IN ORDER TO AVOID ANY RISK OF ELECTRIC SHOCK, TURN OFF THE POWER TO THE
HEATING SYSTEM.
This dial thermostat is designed to be surface mounted.
1. Separate the front part of the thermostat by unscrewing securing screws on the
bottom face of the thermostat.
2. Mark 2 hole positions on the wall using the backplate as a positioning template. Drill at
the marked positions and insert a wall plug in to each hole.
3. Terminate the thermostat as per wiring diagram and screw the DS1-L back plate to the
back box.
4. Reconnect the thermostat front plate and insert the securing screws.

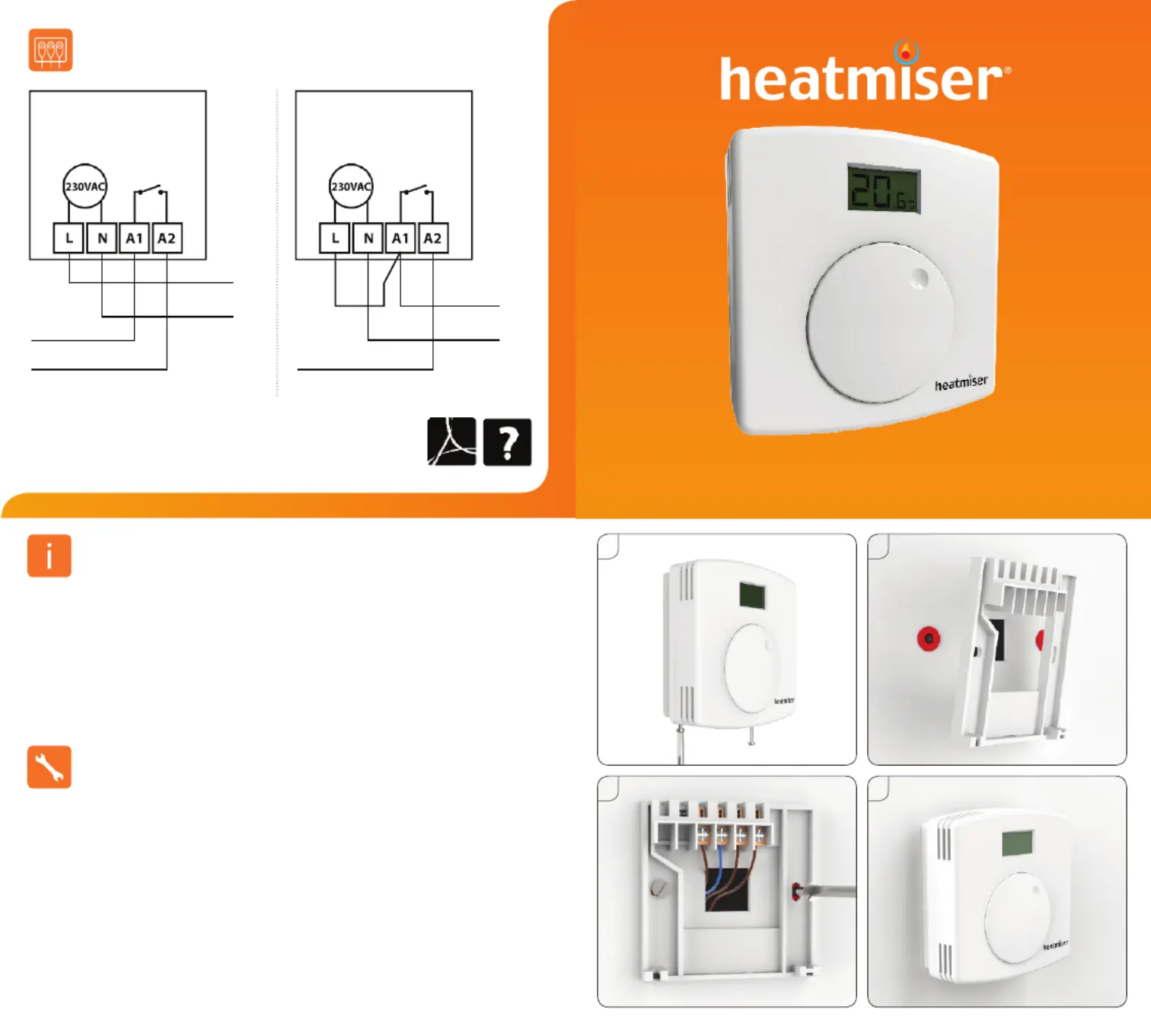

Wiring Diagram
230V Supply
To boiler enable
DS1-L
230V Supply
To boiler enable
DS1-L
The Heatmiser DS1-L dial type thermostat is suitable for conventional or
combi-boiler systems.
This thermostat incorporates the following functions;
• Adjustable Switching Dierential
• Digital LCD
• 230v AC, 3A Switching
Want More Information?
Call our support team on: +44 (0)1254 669090
Or view technical specications directly on our website:
www.heatmiser.com
230V Switching ModeVolt Free Switching Mode
Introduction
Installation
1
4
Model: DS1-L
PDF FAQ
2
3

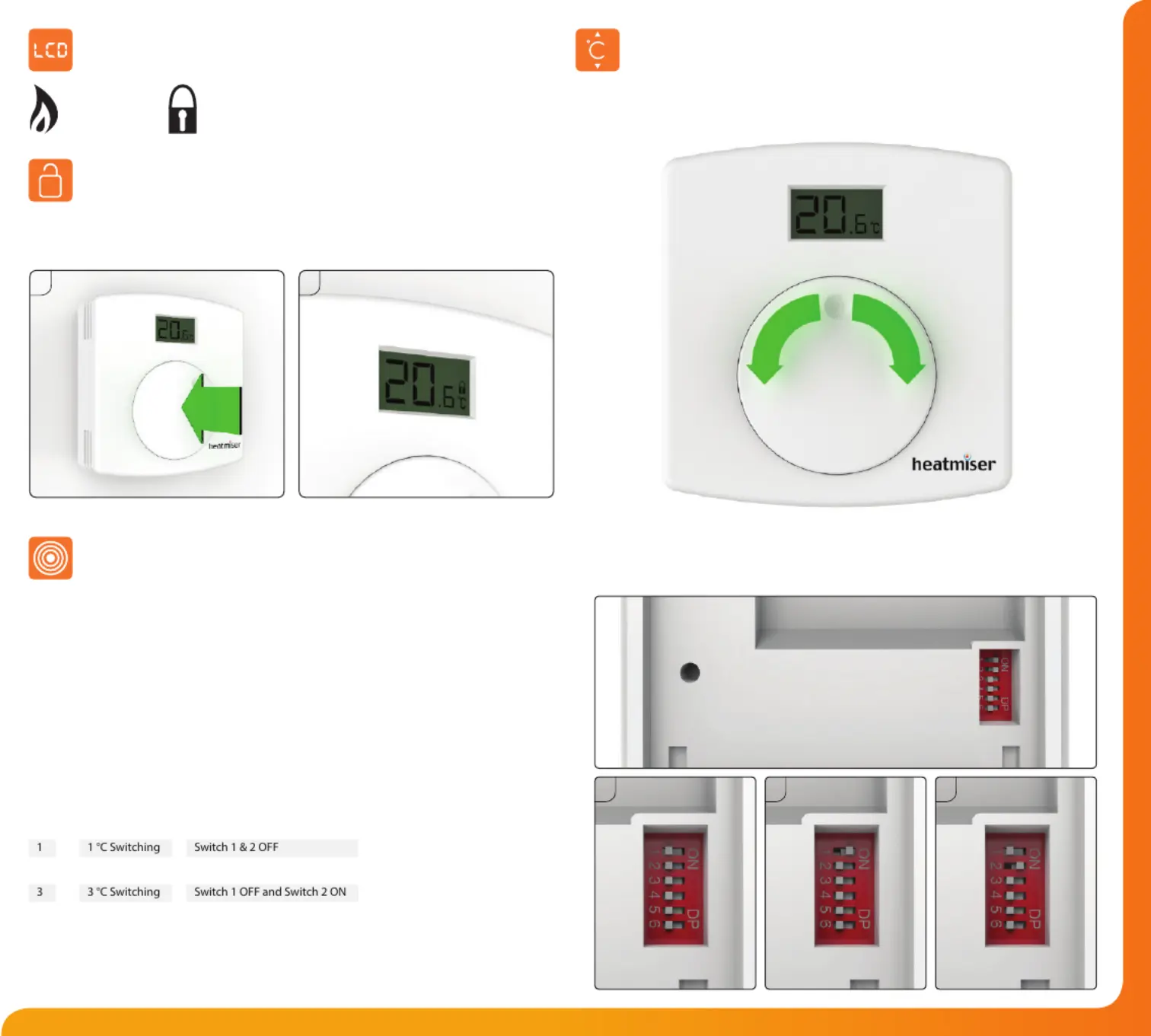

In normal mode, the display shows the actual room temperature. To change the set point,
rotate the dial until the digital LCD displays the new set temperature.
Setting The TemperatureDisplay Icons
The Heatmiser DS1-L has a lock facility. To lock the thermostat, press and hold down the
dial for 10 seconds. You will see a lock symbol appear. To unlock, repeat the steps above.
Heating ON Keypad Locked
The Heatmiser DS1-L oers 1, 2 and 3°C switching dierential.
With a 1°C switching dierential the heating will switch on 1°C below the set
temperature and will turn o when the set temperature is reached.
A 2°C will turn the heating on 2°C below the set temperature.
3°C will switch the heating on 3°C below the set temperature.
To set the dierential, you should set the DIP switches according to the table below.
The DIP switch can be accessed from the back of the thermostat (shown opposite).
Lock Facility
Switching Dierential
1 2
1 °C Switching
2 °C Switching
3 °C Switching
1
2
3
Switch 1 & 2 OFF
Switch 1 ON and Switch 2 OFF
Switch 1 OFF and Switch 2 ON
2 31
