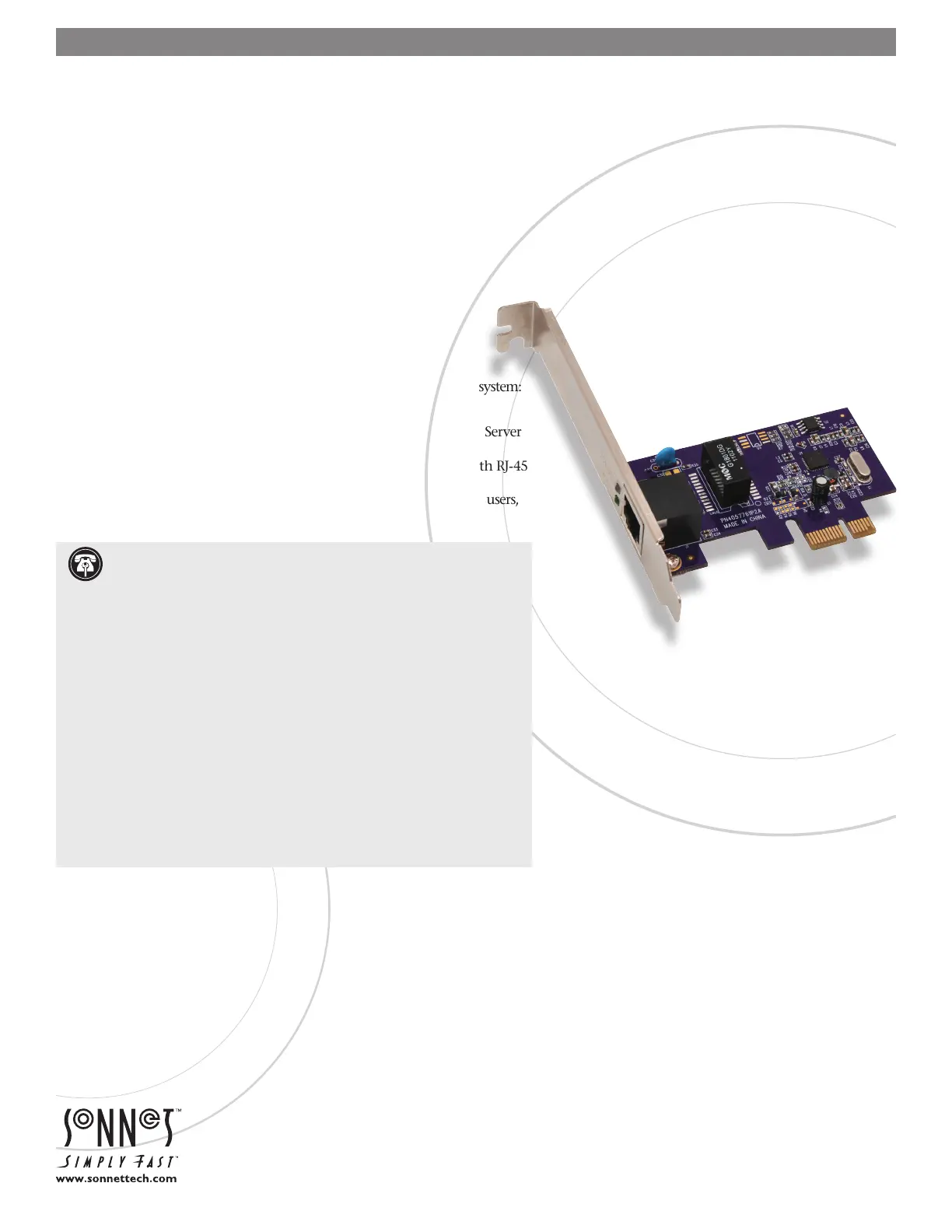

Quick Start Guide for Presto Gigabit Pro PCIe

You Should Have

The following items should be included in your product package:

• One Presto Gigabit Pro PCIe adapter card

The following items may be required for installation:

• Medium Phillips screwdriver

System Requirements

Presto Gigabit Pro PCIe requires the following in order to operate in your system:

• One available PCI Express (PCIe) slot

• OS X® Version 10.7.5 or later; or Windows® 8, 7, Vista®, Server 2012, or Server

2008

• One standard Unshielded Twisted Pair (UTP) Category 5 or 6 cable with RJ-45

connectors

• Internet access (for driver download, Windows 7, Vista, and Server 2008 users,

only)

Support Notes: We recommend you make a backup of important

information on your system’s current hard drive(s) prior to installing new

hardware or software.

When handling computer products, you must take care to prevent components

from being damaged by static electricity. Before opening your computer or

removing parts from their packages, always ground yourself first by touching

a metal part of the computer, such as a port access cover, and work in an area

free of static electricity; avoid carpeted areas. Handle all electronic components

by their edges, and avoid touching connector traces and component pins.

About This Document

Check the Sonnet website for the latest documentation.

1. Go to www.sonnettech.com/support/kb/kb.php

2. Click the Computer Cards link

3. Click the PCIe Cards link

4. Click the Presto Gigabit Pro PCIe link, and then click the Documentation link.

5. Click the Presto Gigabit Pro PCIe Quick Start Guide [English] link, and then

check the Document Version information. If the version listed is later than

this document, click the Download Now button for the latest version.

PRESTO™ GIGABIT PRO PCIe

GIGABIT ETHERNET ADAPTER CARD FOR PCI EXPRESS SLOT

Remember to register your product online at http://registration.sonnettech.com to be informed of future upgrades and product releases.

Software updates and links are available from the Sonnet Website at www.sonnettech.com. • Online support form available at http://supportform.sonnettech.com.

Sonnet Technologies Customer Service hours are Mon.-Fri., 7 a.m.–4 p.m. Pacific Time • Customer Service Phone: 1-949-472-2772 • E-mail: support@sonnettech.com

Sonnet Technologies, Inc., California USA • Tel: 1-949-587-3500

Presto Gigabit Pro PCIe Quick Start Guide

STEPS FOR MAC USERS

The following section covers the installation and conﬁguration

of the Presto Gigabit Ethernet Pro PCIe card in a Mac Pro or

Thunderbolt-to-PCIe card expansion chassis. If you are install-

ing the Presto card into a Windows PC, skip to STEPS FOR

WINDOWS USERS.

Installation Preparation

Sonnet strongly recommends that you read the section in your

computer’s user manual that addresses PCI card installation, prior

to installing the Presto Gigabit Pro PCIe into your system.

Card Installation Steps

This section covers the installation of the Presto Gigabit Pro PCIe

card into your Mac Pro® or Thunderbolt™-to-PCIe expansion

chassis.

1. Shut down your computer or Thunderbolt-to-PCIe expansion

chassis, and then open it to access the expansion card area

(PCIe slots); refer to the user’s manual for speciﬁc information.

2. Locate an available PCIe slot and remove its access cover.

3. Remove the Sonnet card from its packaging, and then install

it into the PCI Express slot; make sure the card is firmly

seated and secured.

4. Close the computer or Thunderbolt-to-PCIe expansion chassis.

5. Plug in a network-connected twisted-pair Ethernet cable into

the Presto Gigabit Ethernet Pro PCIe card.

Driver Information—OS X

The drivers that enable the Presto Gigabit Pro PCIe card to work

in your computer are installed as part of OS X; the Presto card is

ready to conﬁgure when you power on your computer.

System Configuration Steps—Mac Users

Listed below are the basic steps necessary to add the Presto

Gigabit Pro PCIe for use as one of your computer’s Ethernet

network ports.

1. Power on your computer. After your computer has ﬁnished

booting, launch the System Preferences application, and

then click Network.

2. If it is not already selected, click on the Presto Gigabit Pro

PCIe (identiﬁed as a ) in the left panel, and PCI Ethernet slot

then conﬁgure the settings, if necessary. If your computer

was connected to a network using built-in Ethernet, you

should not have to enter new settings.

3. After you accepted the existing settings, edited them, or

created new ones, click the Apply button.

4. Close System Preferences; if you used existing settings,

your installation is complete. For additional information on

conﬁguring settings, refer to Mac Help (Help > Mac Help

from the Finder) and www.info.apple.com; type “network,

Ethernet” and “combining Ethernet ports” to display various

articles.

STEPS FOR WINDOWS USERS

The following section covers conﬁguration and use of the Presto

Gigabit Pro PCIe card in a Windows PC.

Installation Preparation

Sonnet strongly recommends that you read the section in your

computer’s user manual that addresses PCI card installation, prior

to installing the Presto Gigabit Pro PCIe into your system.

Card Installation Steps

This section covers the installation of the Presto Gigabit Pro PCIe

card into your Windows PC.

1. Shut down your computer, and then open it to access the

expansion card area (PCIe slots); refer to the user’s manual for

speciﬁc information.

2. Locate an available PCIe slot and remove its access cover.

3. Remove the Sonnet card from its packaging, and then

install it into the PCI Express slot; make sure the card is

firmly seated and secured.

4. Close the computer.

5. Plug in a network-connected twisted-pair Ethernet cable into

the Presto Gigabit Ethernet Pro PCIe card.

Driver Information—Windows 8, Server 2012

The drivers that enable the Presto Gigabit Pro PCIe card to work

in your computer are installed as part of Windows 8 and Server

2012; the Presto card is ready to conﬁgure when you power on

your computer. Skip to System Conﬁguration Steps—Windows

Users on page 4 for basic conﬁguration information.

Windows 7, Server 2012—Software Download/

Installation Steps

1. Start up your computer.

2. Log onto the Internet and go to www.sonnettech.com/

support, and then click the Online Support Knowledgebase

link.

3. Click the Computer Cards link, and then click the PCIe Cards

link.

4. Locate and click the Presto Gigabit Pro PCIe link. Note: Do not

click the Presto Gigabit Pro PCIe (Discontinued) link.

(continued)

Windows 7, Server 2012—Software Download/

Installation Steps (continued)

5. Click the Presto Gigabit Pro PCIe Driver (Windows) link, and

then click Download Now; a new window or tab will appear.

6. Locate and click the ﬁle download link for the software

appropriate for the OS software running your computer (32

for 32-bit operating systems, x64 for 64-bit versions).

7. When the Broadcom License Agreement window appears, scroll

to the bottom of the page and then click Accept.

8. When asked whether you want to open or save the ﬁle, click

Save. When the message stating the download completed

appears, click Open; a new window will appear.

9. Select the win_b57_32 (or win_b57_x64) ﬁle folder, and

then click the “Extract all ﬁles” button toward the top of the

window.

10. When the Extract Compressed (Zipped) Folders window appears,

accept the default extraction location or choose a new one,

and then click Extract; the ﬁle will be extracted.

11. From the Start menu, right-click Computer and then select

Manage; the Computer Management window will appear.

12. In the window’s left panel, locate and click Device Manager.

In the middle panel, locate and double-click the Ethernet

Controller item listed in the “Other devices” category; an

Ethernet Controller Properties window will appear.

13. Click the Update Driver button; an Update Driver Software

window will appear.

14. Click “Browse my computer for driver”, and then click

Browse. Locate and select the win_b57_32 (or win_b57_x64)

folder you downloaded, and then click OK.

15. Back in the Update Driver Software window, click Next; the

driver is installed. When a message appears stating the

software installation is complete, click Close; the card is

ready for use. Skip to System Conﬁguration Steps—Windows

Users on page 4 for basic conﬁguration information.

Windows Vista, Server 20 —Software Download/08

Installation Steps

1. Start up your computer.

2. During startup, a Found New Hardware window will

appear; click “Don’t show this message again for this device”.

If you haven’t disabled User Account Control (UAC), a UAC

window will appear; click Continue.

3. Log onto the Internet and go to www.sonnettech.com/

support, and then click the Online Support Knowledgebase

link.

Presto Gigabit Pro PCIe Quick Start Guide

4. Click the Computer Cards link, and then click the PCIe Cards

link.

5. Locate and click the Presto Gigabit Pro PCIe link. Note: Do not

click the Presto Gigabit Pro PCIe (Discontinued) link.

6. Click the Presto Gigabit Pro PCIe Driver (Windows) link, and

then click Download Now; a new window or tab will open.

7. Locate and click the ﬁle download link for the software

appropriate for the OS software running your computer (32

for 32-bit operating systems, x64 for 64-bit versions).

8. When the Broadcom License Agreement window appears, scroll

to the bottom of the page and then click Accept.

9. When asked whether you want to open or save the ﬁle, click

Save. When the message stating the download completed

appears, click Open; a new window will appear.

10. Select the win_b57_32 (or win_b57_x64) ﬁle folder, and

then click the “Extract all ﬁles” button toward the top of the

window.

11. When the Extract Compressed (Zipped) Folders window appears,

accept the default extraction location or choose a new one,

and then click Extract; the ﬁle will be extracted.

12. From the Start menu, right-click Computer and then select

Manage; the Computer Management window will appear.

13. In the window’s left panel, locate and click Device Manager.

In the middle panel, locate and double-click the Ethernet

Controller item listed in the “Other devices” category; an

Ethernet Controller Properties window will appear.

14. Click the Reinstall Driver button; an Update Driver Software

window will appear.

15. Click “Browse my computer for driver”, and then click

Browse. Locate and select the win_b57_32 (or win_b57_x64)

folder you downloaded, and then click OK.

16. Back in the Update Driver Software window, click Next; the

driver is installed. When a message appears stating the

software installation is complete, click Close; the card is

ready for use. Skip to System Conﬁguration Steps—Windows

Users on the next page for basic conﬁguration information.

Specyfikacje produktu

Marka:	Sonnet
Kategoria:	Karta sieciowa/adapter
Model:	GE1000LAB-E

Potrzebujesz pomocy?

Jeśli potrzebujesz pomocy z Sonnet GE1000LAB-E, zadaj pytanie poniżej, a inni użytkownicy Ci odpowiedzą

Twoje imię*

Twój email*

Napisz tutaj swoje pytanie

Instrukcje Karta sieciowa/adapter Sonnet

Sonnet Echo Express SE I Instrukcja

3 Października 2024

Sonnet Solo5G Instrukcja

3 Października 2024

Sonnet SOLO10G Instrukcja

3 Października 2024

Sonnet Echo Express SE III Instrukcja

3 Października 2024

Sonnet Echo Express SEL Instrukcja

3 Października 2024

Sonnet GE1000LAB-E Instrukcja

3 Października 2024

Sonnet Presto Gigabit Server PCIe Instrukcja

3 Października 2024

Sonnet G10E-SFP-1X-E3 Instrukcja

3 Października 2024

Instrukcje Karta sieciowa/adapter

Najnowsze instrukcje dla Karta sieciowa/adapter

LevelOne FNC-0109TX Instrukcja

14 Października 2024

StarTech.com ST1000SPEX2T Instrukcja

9 Października 2024

StarTech.com ST1000SPEX2LT Instrukcja

9 Października 2024

StarTech.com AF221CE-POE-INJECTOR Instrukcja

9 Października 2024

StarTech.com USB3LINK Instrukcja

9 Października 2024

StarTech.com PCMACLINK2 Instrukcja

9 Października 2024

StarTech.com PEX1000SFP Instrukcja

9 Października 2024

StarTech.com ST2GPEX Instrukcja

9 Października 2024

StarTech.com USB56KEM2 Instrukcja

9 Października 2024

StarTech.com PUSBADAP Instrukcja

9 Października 2024
