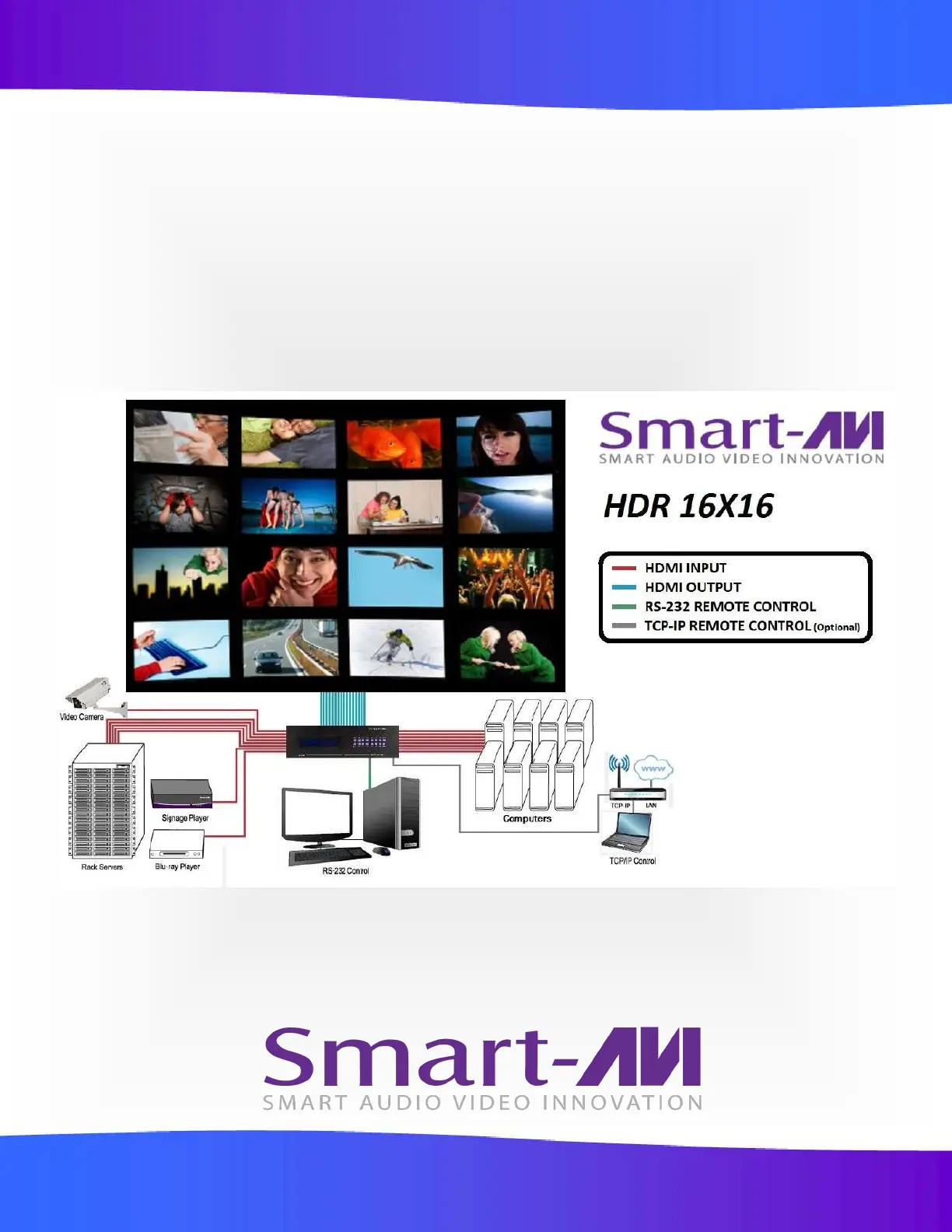

Made in U.S.A. www.SmartAVI.com 1- -AVI-2131 800
HDR16X16
User Manual
16
16
16
1616-P
-P
-P
-P-Por
or
or
orort HDMI Matrix Switch with F
t HDMI Matrix Switch with F
t HDMI Matrix Switch with F
t HDMI Matrix Switch with Ft HDMI Matrix Switch with Fr
r
r
rront P
ont P
ont P
ont Pont Panel, RS-232 &
anel, RS-232 &
anel, RS-232 &
anel, RS-232 & anel, RS-232 &
Optional T
Optional T
Optional T
Optional TOptional TCP/IP Contr
CP/IP Contr
CP/IP Contr
CP/IP ContrCP/IP Control
ol
ol
olol
1
1
1
116 Por
6 Por
6 Por
6 Por6 Port HDMI Matrix Swit
t HDMI Matrix Swit
t HDMI Matrix Swit
t HDMI Matrix Switt HDMI Matrix Switch
ch
ch
ch ch
2
TABLE OF CONTENTS
WHAT'S IN THE BOX? 2
INTRODUCTION 3
FEATURES 3
APPLICATIONS 3
TECHNICAL SPECIFICATIONS 4
HARDWARE INSTALLATION 5
FRONT PANEL CONTROL 6-8
ESTABLISHING AN RS-232 CONNECTION 9
USING THE SmartControl SOFTWARE - 10 12
USING A TERMINAL APPLICATION FOR REMOTE CONTROL VIA RS-232 - 13 15
COMMAND MODE - 16 17
Using TCP/IP Control (Optional) 17
LIMITED WARRANTY STATEMENT 18
PART NO. QTY DESCRIPTION
HDR16X16 1 16 Port HDMI Matrix Switch
CCPWR06 1 Power Supply Cord
1 Quick Start Guide
WHAT’S IN THE BOX?
Figure 2-1
3
INTRODUCTION
The HDR16X16 conforms to the HDMI (High Definition Media Interface) standard with HDCP compliance
and provides a connection to view any of sixteen HDMI video sources on any combination of sixteen video
displays. The HDR16X16 provides HDMI output up to 40 feet away at resolutions up to 1080p. The sys-
tem works with Blu-ray players, TiVo systems, HTPCs, and satellite set-top boxes that connect to an HDMI
display. Users can switch to any source locally using the Front Panel or remotely via RS-232 with Win-
dows®-based software that is easy to understand and simple to use, a cornerstone of all SmartAVI prod-
ucts. It can be optionally controlled via TCP/IP using the NET-IP-PRO from SmartAVI.
FEATURES
Switches 16 HDMI inputs with 16 HDMI outputs
Sources can be routed independently to displays
Switching controlled via the front panel, RS-232 and TCP/IP with optional NET-IP-PRO
Supports high definition video resolutions of 480p, 720p, 1080i and 1080p
Supports 7.1 Digital Surround Sound Audio
HDCP and HDMI 1.4 compliant
Supports EDID for total control of compliant displays
Learn EDID from any display
Delivers uncompressed digital video with zero signal loss
Outputs HDMI up to 40 feet (with high-quality 24AWG or better cable)
Rack-mountable
Front panel can be locked to prevent accidental changes
APPLICATIONS
Wall Displays
Digital Signage
Airports
Dealer Rooms
Control Rooms
Audio/Visual Presentations
Shopping Centers
Security
Point-of-Sale
Hotels/Resorts
