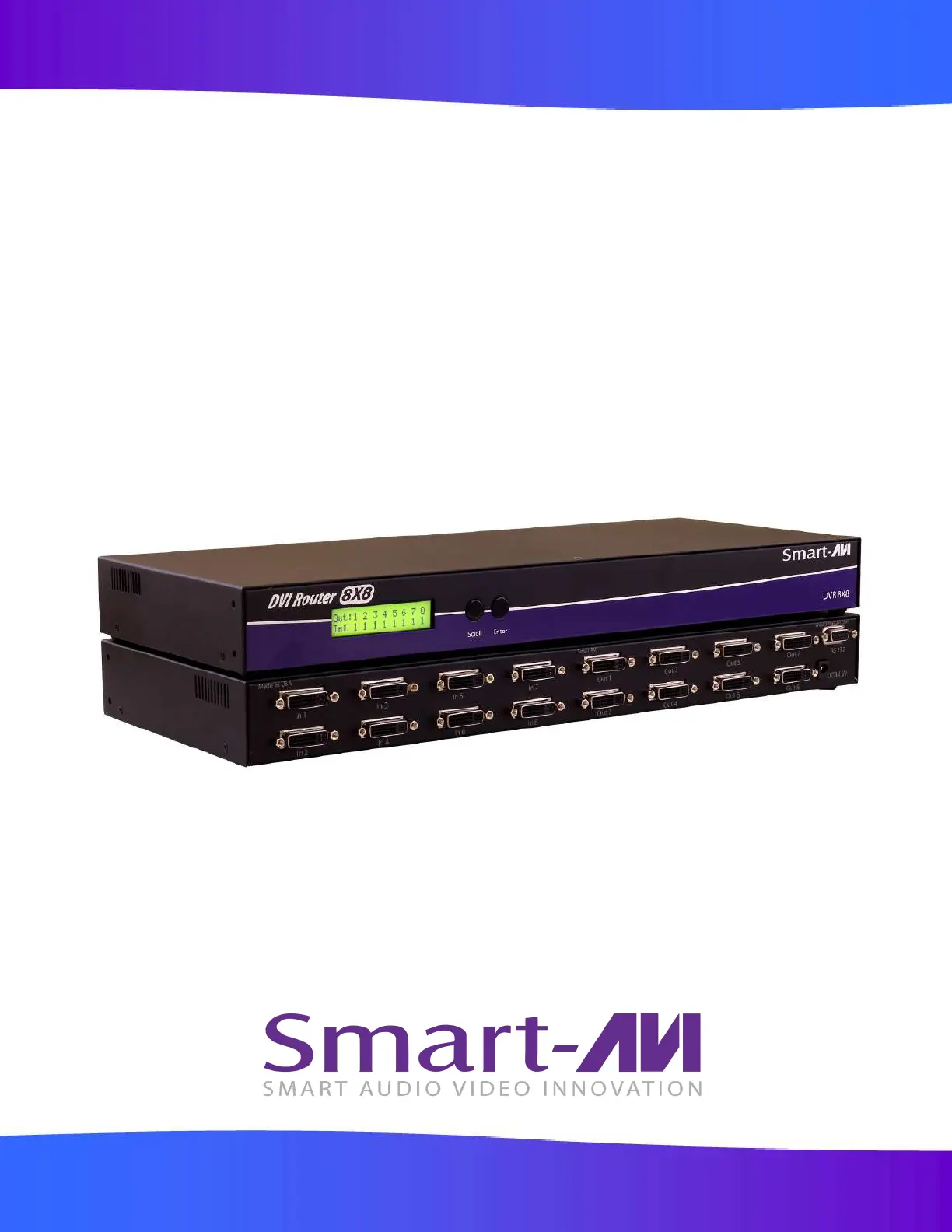

Strona 1/13
Made in U.S.A. www.SmartAVI.com 1- -AVI-2131 800
DVR 8X8
User Manual
Displa
Displa
Displa
DisplaDisplay Cont
y Cont
y Cont
y Conty Content F
ent F
ent F
ent Fent Fr
r
r
rrom An
om An
om An
om Anom Any 8 Comput
y 8 Comput
y 8 Comput
y 8 Computy 8 Compute
e
e
eers
rs
rs
rs rs
On An
On An
On An
On AnOn Any 8 Screens Independently
y 8 Screens Independently
y 8 Screens Independently
y 8 Screens Independently y 8 Screens Independently
Up T
Up T
Up T
Up TUp To 20 F
o 20 F
o 20 F
o 20 Fo 20 Feet A
eet A
eet A
eet Aeet Awa
wa
wa
waway
y
y
y y
8-por
8-por
8-por
8-por 8-port D
t D
t D
t Dt DVI-
VI-
VI-
VI-VI-D Matrix Switch
D Matrix Switch
D Matrix Switch
D Matrix Switch D Matrix Switch
2
TABLE OF CONTENTS
WHAT'S IN THE BOX? 2
INTRODUCTION 3
FEATURES 3
APPLICATIONS 3
TECHNICAL SPECIFICATIONS 4
HARDWARE INSTALLATION 5
FRONT PANEL CONTROL 6
DDC LEARNING 7
IR REMOTE CONTROL 7
ESTABLISHING AN RS-232 CONNECTION 8
USING THE SmartControl SOFTWARE 9- 11
LIMITED WARRANTY STATEMENT 12
Figure 2-1
WHAT’S IN THE BOX?
PART NO. QTY DESCRIPTION
DVR8X8S 1 -D 8x8 Router DVI
PS5VDC4A 1 Power Adapter
SM-EYE2 1 IR Eye (Optional)
SAVI-RMT 1 IR Remote Control (Optional)
EN-DVR8X8-
EAR-P 2 Rack Mount Brackets
1 Quick Start Guide
3
INTRODUCTION
The DVR 8x8 is a high-quality switching matrix for up to 8 input and 8 output video signals. This allows an
easy and dynamic approach to displaying content from 8 video sources on 8 screens independently.
The matrix provides DVI-D, single-link Video interface at the maximum TMDS rate of 2 x 1.65 Gbps at
resolutions up to 1920 x 1200. The DVI signals can be transmitted up to 20 feet on both the input
and output sides of the switch.
Control the matrix instantly either locally via the front panel button or remotely using RS-232 connection
and Windows based software that is easy to understand and simple to use a cornerstone of all –
SmartAVI products.
FEATURES
Supports resolutions up to 1920 x 1200
Control from either Front Panel or via RS- 232
IR Remote Control available optionally
Ethernet control available optionally
Easy- -use Windows®-based software for remote control via RS-232. to
Supports DVI operation at the maximum TMDS rate of 2 x 1.65 Gbps
Multiple EDID Support
Programmable EDID
Automatic EDID learning from monitor
APPLICATIONS
Wall Displays
Digital Media
Airports
Dealer Rooms
Control Rooms
Audio/Visual Presentations
Shopping Centers
Security
Point-of-Sale
Hotels/Resort
