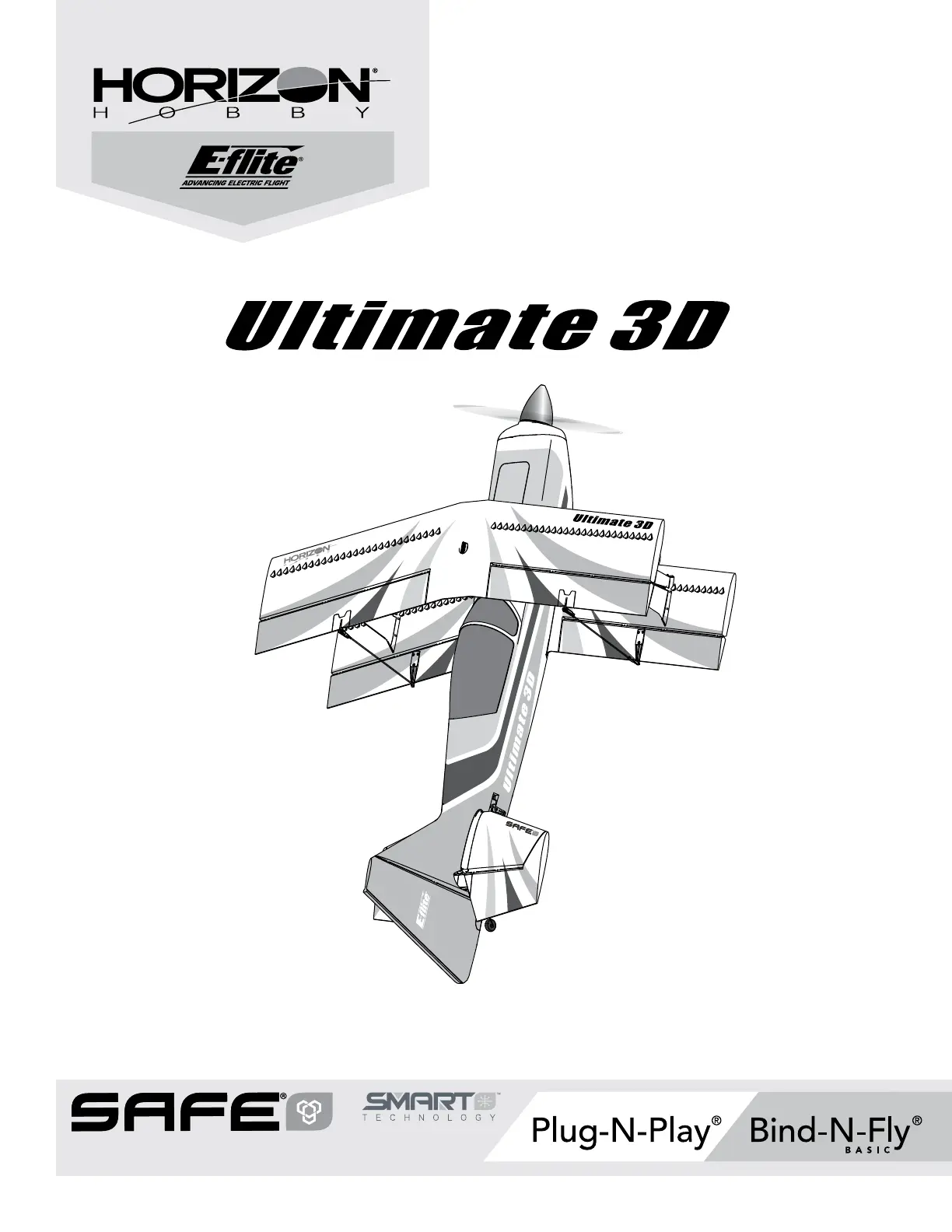

Instruction Manual

Bedienungsanleitung

Manuel d’utilisation

Manuale di Istruzioni

SAFE® Select Technology, Optional Flight Envelope Protection

Ultimate 3D

Safety Precautions and Warnings

AGE RECOMMENDATION: Not for children under 14 years. This is not a toy.

As the user of this product, you are solely responsible for operating in a manner that does not endanger yourself and others or result in damage to the product or the property of

others.

• Always keep a safe distance in all directions around your model

to avoid collisions or injury. This model is controlled by a radio

signal subject to interference from many sources outside your

control. Interference can cause momentary loss of control.

• Always operate your model in open spaces away

from full-size vehicles, trafﬁc and people.

• Always carefully follow the directions and warnings for this and any

optional support equipment (chargers, rechargeable battery packs, etc.).

• Always keep all chemicals, small parts and anything

electrical out of the reach of children.

• Always avoid water exposure to all equipment not speciﬁcally designed

and protected for this purpose. Moisture causes damage to electronics.

• Never place any portion of the model in your mouth as

it could cause serious injury or even death.

• Never operate your model with low transmitter batteries.

• Always keep aircraft in sight and under control.

• Always use fully charged batteries.

• Always keep transmitter powered on while aircraft is powered.

• Always remove batteries before disassembly.

• Always keep moving parts clean.

• Always keep parts dry.

• Always let parts cool after use before touching.

• Always remove batteries after use.

• Always ensure failsafe is properly set before ﬂying.

• Never operate aircraft with damaged wiring.

• Never touch moving parts.

NOTICE

All instructions, warranties and other collateral documents are subject to change at the sole discretion of Horizon Hobby, LLC. For up-to-date product literature,

visit www.horizonhobby.com or towerhobbies.com and click on the support or resources tab for this product.

MEANING OF SPECIAL LANGUAGE:

The following terms are used throughout the product literature to indicate various levels of potential harm when operating this product:

WARNING: Procedures, which if not properly followed, create the probability of property damage, collateral damage, and serious injury OR create a high

probability of superﬁcial injury.

CAUTION: Procedures, which if not properly followed, create the probability of physical property damage AND a possibility of serious injury.

NOTICE: Procedures, which if not properly followed, create a possibility of physical property damage AND little or no possibility of injury.

WARNING: Read the ENTIRE instruction manual to become familiar with the features of the product before operating. Failure to operate the product

correctly can result in damage to the product, personal property and cause serious injury.

This is a sophisticated hobby product. It must be operated with caution and common sense and requires some basic mechanical ability. Failure to operate this

Product in a safe and responsible manner could result in injury or damage to the product or other property. This product is not intended for use by children

without direct adult supervision. Do not use with incompatible components or alter this product in any way outside of the instructions provided by Horizon

Hobby, LLC. This manual contains instructions for safety, operation and maintenance. It is essential to read and follow all the instructions and warnings in the

manual, prior to assembly, setup or use, in order to operate correctly and avoid damage or serious injury.

14+

WARNING AGAINST COUNTERFEIT PRODUCTS: If you ever need to replace your Spektrum receiver found in a Horizon Hobby product, always purchase

from Horizon Hobby, LLC or a Horizon Hobby authorized dealer to ensure authentic high-quality Spektrum product. Horizon Hobby, LLC disclaims all

support and warranty with regards, but not limited to, compatibility and performance of counterfeit products or products claiming compatibility with DSM or

Spektrum technology.

If you own this product, you may be required to register with the FAA.

For up-to-date information on how to register with the FAA, please visit

https://registermyuas.faa.gov/. For additional assistance on regulations and

guidance on UAS usage, visit knowbeforeyouﬂy.org/.

Table of ContentsSpeciﬁcations

Preﬂight 4 .............................................................................................

Transmitter Setup 4 ..............................................................................

Model Assembly ................................................................................5

PNP Receiver Selection and Installation 8 .............................................

Battery Installation and ESC Arming 9 ...................................................

Control Surface Centering and Adjusting a Ball Link 10 .........................

Control Horn and Servo Arm Settings 10 ...............................................

Binding 11 ............................................................................................

SAFE® Select Switch Designation 12 ....................................................

SMART Technology™ Telemetry ......................................................12

Control Direction Test .......................................................................13

AS3X Control Direction Test 14 .............................................................

Center of Gravity (CG) 14 ......................................................................

In-Flight Trimming............................................................................14

Flying Tips and Repairs 15 ....................................................................

SAFE® Select Flying Tips 15 ..................................................................

Post Flight 16 .......................................................................................

Motor Service 16 ..................................................................................

Troubleshooting Guide AS3X ............................................................16

Troubleshooting Guide 17 .....................................................................

Replacement Parts 18 ...........................................................................

Recommended Parts 18 ........................................................................

Optional Parts 18 ..................................................................................

AMA National Model Aircraft Safety Code 19 .........................................

Limited Warranty .............................................................................20

Contact Information 20 .........................................................................

FCC Information 21 ...............................................................................

IC Information 21 ..................................................................................

Compliance Information for the European Union 21 ...............................

Box Contents

RECEIVER BIND INFORMATION

Channels 6

Frequency 2404 – 2476 MHz

Compatibility DSM2 and DSMX

Quick Start Information

Transmitter Setup

1. Blank (Acro) Model

2. Servo Reversing: Set all to normal

3. Travel Adjust (All Surfaces): 100%

Dual Rates*

High Rate Low Rate

Aileron = 24mm

= 24mm

= 18mm

Elevator = 45mm

= 45mm

= 30mm

Rudder = 70mm

= 70mm

= 50mm

EXPO

(Soft center)

High Rate Low Rate

Aileron 10% 5%

Elevator 10% 5%

Rudder 10% 5%

Center of Gravity (CG) 89mm back from the leading edge at the center of

the top wing

Flight Timer Setting 3 minutes

Motor:

BL10 Brushless Outrunner

(EFLM17552)

Included Included

ESC: Installed Installed Smart 60-Amp ESC (SPMXAE1060)

Servos: (4) 9g Servos (SPMSA332) Installed Installed

Receiver: Spektrum™

AR637TA 6-Channel AS3X/SAFE

Telemetry Receiver (SPMAR637T) Installed Required to

Complete

Recommended Battery: 2200mAh 11.1v 3S 30C

LiPo (SPMX22003S30) or 2200mAh 14.8v 4S 30C

LiPo (SPMX22004S30)

Required to

Complete

Required to

Complete

Recommended Battery Charger:

3-4 cell Li-Po battery balancing charger

Required to

Complete

Required to

Complete

Recommended Transmitter:

Full-Range 2.4GHz with Spektrum

™ DSM2®/DSMX®

technology with programmable mixing and adjustable

dual rates

Required to

Complete

Required to

Complete

3.25–3.75lbs

(1.47–1.53kg)

42.6 in (1082.3mm)

37.6 in (954.4mm)

519 sq in

(33.5 sq dm)

Specyfikacje produktu

Marka:	E-flite
Kategoria:	zabawka sterowana radiowo
Model:	Ultimate 3D
Kolor produktu:	Grey, Red, White
Typ produktu:	Samolot
Materiał obudowy:	Ekspandowana poliolefina (EPO)
Podręcznik użytkownika:	Tak
Ładowarka:	Nie
Silnik:	Bezszczotkowy
Odbiornik dołączony:	Nie
Baterie w zestawie:	Nie
Sugerowana płeć:	Chłopak, dziewczyna
Wymagane baterie:	Tak
Rodzaj konstrukcji:	Plug-N-Play (PNP)
Rodzaj silnika:	Silnik elektryczny
Elektroniczny kontroler prędkości silnika (ESC):	Tak
Rodzaj elektronicznego kontrolera prędkości silnika (ESC):	Bezszczotkowy
Liczba serw:	4
Replica:	Tak
Zalecana bateria:	3S 11.1V / 4S 14.8V 1800–2700mAh Li-Po
