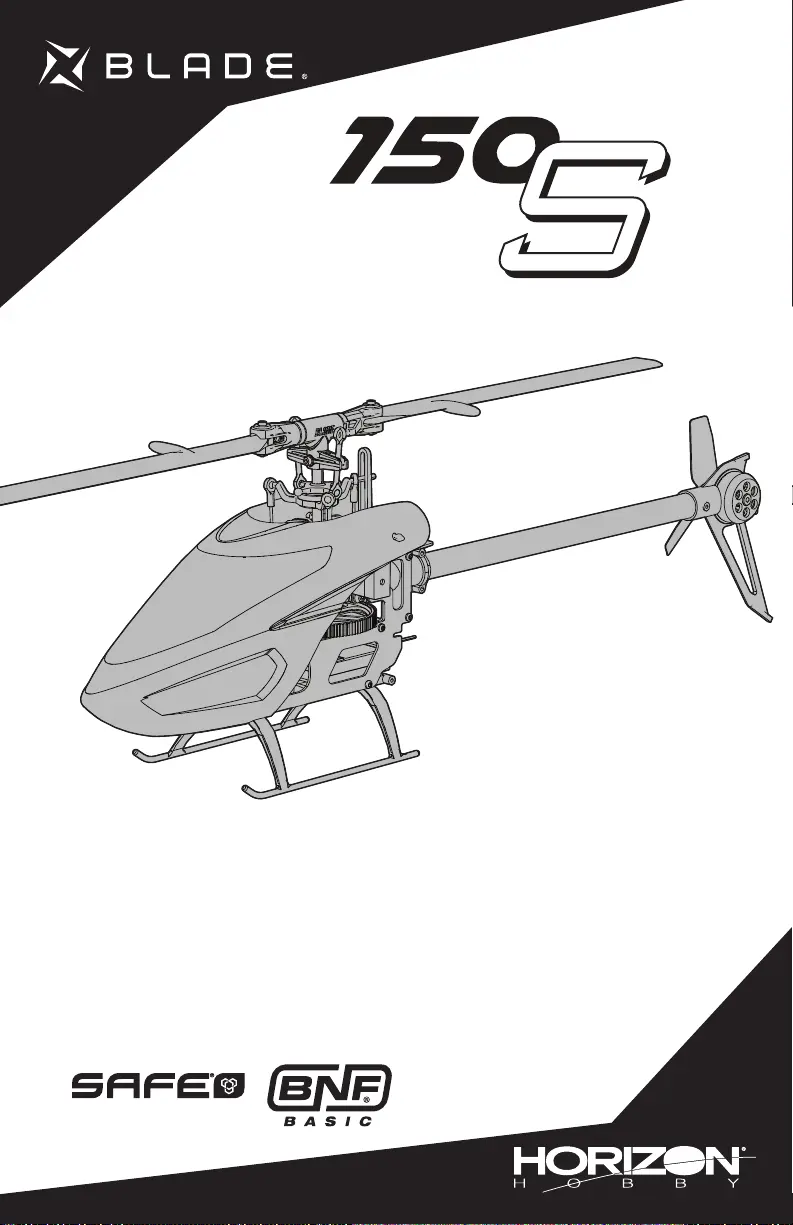

Strona 1/22

Instruction Manual

Bedienungsanleitung

Manuel d’utilisation

Manuale di Istruzioni

WARNING AGAINST COUNTERFEIT PRODUCTS: If you ever need to replace a Spektrum

™ component found in a

Horizon Hobby product, always purchase from Horizon Hobby, LLC or a Horizon Hobby authorized dealer to ensure

authentic high-quality Spektrum

™ product. Horizon Hobby, LLC disclaims all support and warranty with regards, but not

limited to, compatibility and performance of counterfeit products or products claiming compatibility with DSM

® or Spektrum™

technology.

As the user of this product, you are solely responsible for operating in a manner that does not endanger yourself and

others or result in damage to the product or the property of others.

• Always keep a safe distance in all directions around

your model to avoid collisions or injury. This model is

controlled by a radio signal subject to interference from

many sources outside your control. Interference can

cause momentary loss of control.

• Always operate your model in open spaces away from

full-size vehicles, trafﬁc and people.

• Always carefully follow the directions and warnings

for this and any optional support equipment (chargers,

rechargeable battery packs, etc.).

• Always keep all chemicals, small parts and anything

electrical out of the reach of children.

• Always avoid water exposure to all equipment not

speciﬁcally designed and protected for this purpose.

Moisture causes damage to electronics.

• Always engage throttle hold before approaching the

aircraft.

• Never place any portion of the model in your mouth as it

could cause serious injury or even death.

• Never operate your model with low transmitter batteries.

• Always keep aircraft in sight and under control.

• Always move the throttle fully down at rotor strike.

• Always use fully charged batteries.

• Always keep transmitter powered on while aircraft is

powered.

• Always remove batteries before disassembly.

• Always keep moving parts clean.

• Always keep parts dry.

• Always let parts cool after use before touching.

• Always remove batteries after use.

• Never operate aircraft with damaged wiring.

• Never touch moving parts.

Age Recommendation: Not for children under 14 years. This is not a toy.

WARNING: Read the ENTIRE instruction manual to become familiar with the features of the product before

operating. Failure to operate the product correctly can result in damage to the product, personal property and

cause serious injury.

This is a sophisticated hobby product. It must be operated with caution and common sense and requires some basic

mechanical ability. Failure to operate this Product in a safe and responsible manner could result in injury or damage

to the product or other property. This product is not intended for use by children without direct adult supervision. Do

not use with incompatible components or alter this product in any way outside of the instructions provided by Horizon

Hobby, LLC. This manual contains instructions for safety, operation and maintenance. It is essential to read and follow

all the instructions and warnings in the manual, prior to assembly, setup or use, in order to operate correctly and avoid

damage or serious injury.

The following terms are used throughout the product literature to indicate various levels of potential harm when

operating this product:

WARNING: Procedures, which if not properly followed, create the probability of property damage, collateral damage,

and serious injury OR create a high probability of superﬁcial injury.

CAUTION: Procedures, which if not properly followed, create the probability of physical property damage AND a

possibility of serious injury.

NOTICE: Procedures, which if not properly followed, create a possibility of physical property damage AND a little or no

possibility of injury.

NOTICE

All instructions, warranties and other collateral documents are subject to change at the sole discretion of Horizon

Hobby, LLC. For up-to-date product literature, visit horizonhobby.com or towerhobbies.com and click on the support or

resources tab for this product.

Meaning of Special Language

Safety Precautions and Warnings

3EN

Table of Contents

Length 14.4 in (366mm)

Height 5 in (127 mm)

Main Rotor Diameter 14.2in (360 mm)

Tail Rotor Diameter 2.5 in (64mm)

Flying Weight 7.1oz (200 g)

Specifications

Components BNF- Basic

(BLH54500)

Airframe Blade 150 S Smart Included

Main Motor 1310-5800Kv Brushless (BLH3417) Installed

Tail Motor Brushless (BLH9311) Installed

Receiver Blade 150 S AS3X®/ SAFE® receiver (SPMAR6250MHXC) Installed

ESC Dual Brushless ESC (SPMXAE2020) Installed

First Flight Preparation 4 ......................................................

Flying Checklist 4 ................................................................

Transmitter Setup Table .................................................... 4

Installing the Flight Battery 5 ...............................................

Transmitter and Receiver Binding 6 ......................................

SAFE Technology .............................................................. 7

Flight Mode and Rate Selection 7 .........................................

Panic Recovery 7 .................................................................

Throttle Hold 8 ....................................................................

Control Tests .................................................................... 8

Understanding the Primary Flight Controls 9 ........................

Flying the 150 S Smart 10 ...................................................

Advanced Tuning (Forward Programming) 11 .......................

Advanced Tuning (Non-Forward Programming)................ 12

Servo Adjustment .......................................................... 13

Trim Flight 14 ......................................................................

Calibration Procedure 15 .....................................................

Post-Flight Inspection and Maintenance Checklist 16 ...........

Troubleshooting Guide 16 ....................................................

Exploded View ................................................................ 18

Parts List 18 ........................................................................

Recommended Parts List 18 ................................................

Optional Parts List 19 ...........................................................

Limited Warranty ............................................................ 19

Warranty and Service Contact Information 20 ......................

FCC Information 20 ..............................................................

IC Information 21 .................................................................

Compliance Information for the European Union 21 ..............

Box Contents

• Blade®

150 S Smart (BLH54500)

Required Items

• DSM2 / DSMX compatible transmitter

• 450-500mAh 3S 11.1V 50C Li-Po Battery IC2

• 3S Li-Po compatible battery charger

Specyfikacje produktu

Marka:	Blade
Kategoria:	zabawka sterowana radiowo
Model:	150 S
Typ produktu:	Helikopter
Materiał obudowy:	Acrylonitrile Butadiene Styrene (ABS), Plastic
Wysokość produktu:	127 mm
Szerokość produktu:	61 mm
Waga produktu:	200 g
Podręcznik użytkownika:	Tak
Ilość:	1
Pojemność baterii:	500 mAh
Technologia baterii:	Litowo-polimerowy (LiPo)
Silnik:	Bezszczotkowy
Odbiornik dołączony:	Tak
Zalecany wiek (min):	- lat(a)
Sugerowana płeć:	Chłopak, dziewczyna
Kolor obudowy:	Black, Green
Rodzaj konstrukcji:	Sparuj z aparaturą i leć
Napięcie baterii:	11.1 V
Przystosowane do użytku na zewnątrz:	Tak
Długość produktu:	366 mm
Czas lotu:	5 min
Rodzaj silnika:	Silnik elektryczny
System stabilizacji:	Brak systemu Flybar (FBL) głowica wirnika
Średnica wirnika:	361 mm
Częstotliwość nadajnika:	2.4 GHz
Elektroniczny kontroler prędkości silnika (ESC):	Tak
Rodzaj elektronicznego kontrolera prędkości silnika (ESC):	Bezszczotkowy
Rozmiar silnika:	1310-5800Kv
Liczba ostrzy wirnika nośnego:	2
Ilość kanałów przetwornika:	6
Konfiguracja wirnika:	Skok ogólny
Długość głównego ostrza:	155 mm
Średnica wirnika ogonowego:	64 mm
Tworzywo łopaty wirnika:	Włókno szklane
