Strona 1/22

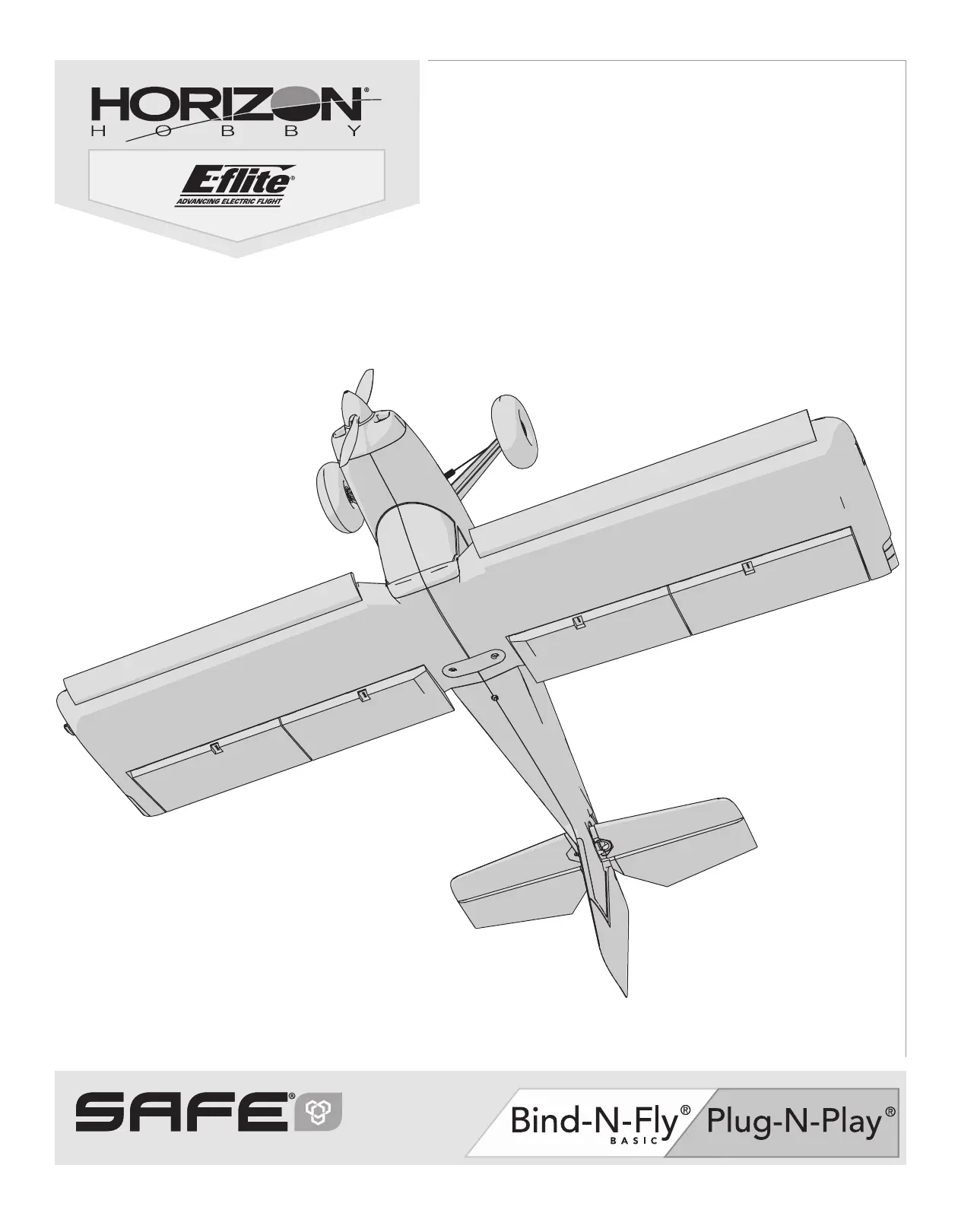

Instruction Manual

Bedienungsanleitung

Manuel d’utilisation

Manuale di Istruzioni

SAFE® Select Technology, Optional Flight Envelope Protection

Timber® X 1.2m

2Timber X 1.2m

As the user of this product, you are solely responsible for operating in a manner that does not endanger yourself and others or result in damage to the product or

the property of others.

• Always keep a safe distance in all directions around your model to avoid

collisions or injury. This model is controlled by a radio signal subject to

interference from many sources outside your control. Interference can

cause momentary loss of control.

• Always operate your model in open spaces away from full-size vehicles,

trafﬁ c and people.

• Always carefully follow the directions and warnings for this and any

optional support equipment (chargers, rechargeable battery packs, etc.).

• Always keep all chemicals, small parts and anything electrical out of the

reach of children.

• Always avoid water exposure to all equipment not speciﬁ cally designed

and protected for this purpose. Moisture causes damage to electronics.

• Never place any portion of the model in your mouth as it could cause

serious injury or even death.

• Never operate your model with low transmitter batteries.

• Always keep aircraft in sight and under control.

• Always use fully charged batteries.

• Always keep transmitter powered on while aircraft is powered.

• Always remove batteries before disassembly.

• Always keep moving parts clean.

• Always keep parts dry.

• Always let parts cool after use before touching.

• Always remove batteries after use.

• Always ensure failsafe is properly set before ﬂ ying.

• Never operate aircraft with damaged wiring.

• Never touch moving parts.

NOTICE

All instructions, warranties and other collateral documents are subject to change at the sole discretion of Horizon Hobby, LLC. For up-to-date product

literature, visit www.horizonhobby.com and click on the support tab for this product.

Meaning of Special Language:

The following terms are used throughout the product literature to indicate various levels of potential harm when operating this product:

WARNING: Procedures, which if not properly followed, create the probability of property damage, collateral damage, and serious injury OR create a high

probability of superﬁ cial injury.

CAUTION: Procedures, which if not properly followed, create the probability of physical property damage AND a possibility of serious injury.

NOTICE: Procedures, which if not properly followed, create a possibility of physical property damage AND little or no possibility of injury.

WARNING: Read the ENTIRE instruction manual to become familiar with the features of the product before operating. Failure to operate the product

correctly can result in damage to the product, personal property and cause serious injury.

This is a sophisticated hobby product. It must be operated with caution and common sense and requires some basic mechanical ability. Failure to operate this

Product in a safe and responsible manner could result in injury or damage to the product or other property. This product is not intended for use by children

without direct adult supervision. Do not use with incompatible components or alter this product in any way outside of the instructions provided by Horizon

Hobby, LLC. This manual contains instructions for safety, operation and maintenance. It is essential to read and follow all the instructions and warnings in the

manual, prior to assembly, setup or use, in order to operate correctly and avoid damage or serious injury.

Safety Precautions and Warnings

14+AGE RECOMMENDATION:

Not for children under 14

years. This is not a toy.

WARNING AGAINST COUNTERFEIT PRODUCTS: If you ever need to replace your Spektrum receiver

found in a Horizon Hobby product, always purchase from Horizon Hobby, LLC or a Horizon Hobby

authorized dealer to ensure authentic high-quality Spektrum product. Horizon Hobby, LLC disclaims all support

and warranty with regards, but not limited to, compatibility and performance of counterfeit products or products

claiming compatibility with DSM or Spektrum technology.

If you own this product, you may be required to register with the FAA.

For up-to-date information on how to register with the FAA, visit https://

registermyuas.faa.gov/.

For additional assistance on regulations and guidance on UAS usage, visit

knowbeforeyouﬂ y.org/.

Box Contents

To register your product online, visit www.e-ﬂ iterc.com

Quick Start Information

Transmitter

Setup

Set up your transmitter using the

transmitter setup chart

Dual Rates

Hi Rate Low Rate

Ail 33mm

33mm

25mm

Ele 22mm 16mm

Rud 30mm 20mm

Flaps Full

=35mm

Half

=20mm

Center of

Gravity (CG)

82mm-92mm back from leading edge

of wing at the fuselage.

Flight Timer

Setting 4 minutes

Table of Contents

55 OZ

(1.56 Kg)

41.5 in (1055mm)

(47.5 in 1200mm)

Speciﬁ cations

Motor: 10BL Brushless outrunner 900Kv

(EFLM17533) Installed Installed

ESC: 50 AMP Brushless ESC (EFLA1050) Installed Installed

Servo: 9 gram metal geared servo

(5 x SPMSA332) (1 x SPMSA332R) Installed Installed

Receiver: Spektrum™

AR636A 6-Channel

Sport Receiver (SMPAR636) Installed Required to

Complete

Recommended Battery: 11.1V–14.8V

3S–4S 2200mAh 30C Li-Po

(EFLB22003S30 or EFLB22004S30*)

Required to

Complete

Required to

Complete

Recommended Battery Charger: 3 or

4-cell Li-Po battery balancing charger

Required to

Complete

Required to

Complete

Recommended Transmitter:

Full-Range 6 channel 2.4GHz with

Spektrum DSMX® technology with

adjustable Dual Rates.

Required to

Complete

Required to

Complete

527.3 sq/in

(34 sq/dm)

SAFE® Select Technology (BNF Basic) ..............................................................4

Preﬂ ight ...........................................................................................................4

Transmitter Setup (BNF Basic) ..........................................................................4

Model Assembly ..............................................................................................5

Binding / Switching ON and OFF SAFE Select (BNF Basic) ................................8

Battery Installation and ESC Arming .................................................................9

Control Horn and Servo Arm Settings .............................................................10

Center of Gravity (CG) ...................................................................................11

AS3X Control Direction Test (BNF Basic) ........................................................11

In Flight Trimming (BNF Basic) .......................................................................11

Flying Tips and Repairs ..................................................................................12

SAFE Select Flying .........................................................................................12

PNP Receiver Selection and Installation .........................................................13

Post Flight......................................................................................................13

Motor Service ................................................................................................13

Troubleshooting Guide AS3X ..........................................................................13

Troubleshooting Guide ...................................................................................14

BNF advanced receiver setup (optional) .........................................................15

AMA National Model Aircraft Safety Code .......................................................16

Limited Warranty ...........................................................................................17

Contact Information .......................................................................................17

FCC Information .............................................................................................18

IC Information ................................................................................................18

Compliance Information for the European Union .............................................18

Recommended Receivers ..............................................................................64

Replacement Parts .........................................................................................65

Optional Parts ................................................................................................66

RECEIVER BIND INFORMATION

Channels 6

Frequency 2405 – 2476 MHz

Compatibility DSM2 and DSMX

Specyfikacje produktu

Marka:	E-flite
Kategoria:	zabawka sterowana radiowo
Model:	Timber X
Kolor produktu:	Green, Grey, White
Typ produktu:	Samolot
Waga produktu:	1698 g
W zestawie pilot zdalnego sterowania:	Tak
Pojemność baterii:	3200 mAh
Silnik:	Bezszczotkowy
Liczba kanałów:	6 kan.
Rodzaj baterii:	3–4S LiPo
Liczba baterii:	1
Wymagane baterie:	Tak
Rodzaj konstrukcji:	Sparuj z aparaturą i leć
Rozpiętość skrzydeł:	1200 mm
Długość produktu:	1055 mm
Rodzaj silnika:	Silnik elektryczny
Montaż wymagany:	Tak
Czas montażu:	60 min
Powierzchnia skrzydeł:	3400 cm²
Replica:	Nie
Zalecana bateria:	EFLB22003S30, EFLB22004S30
