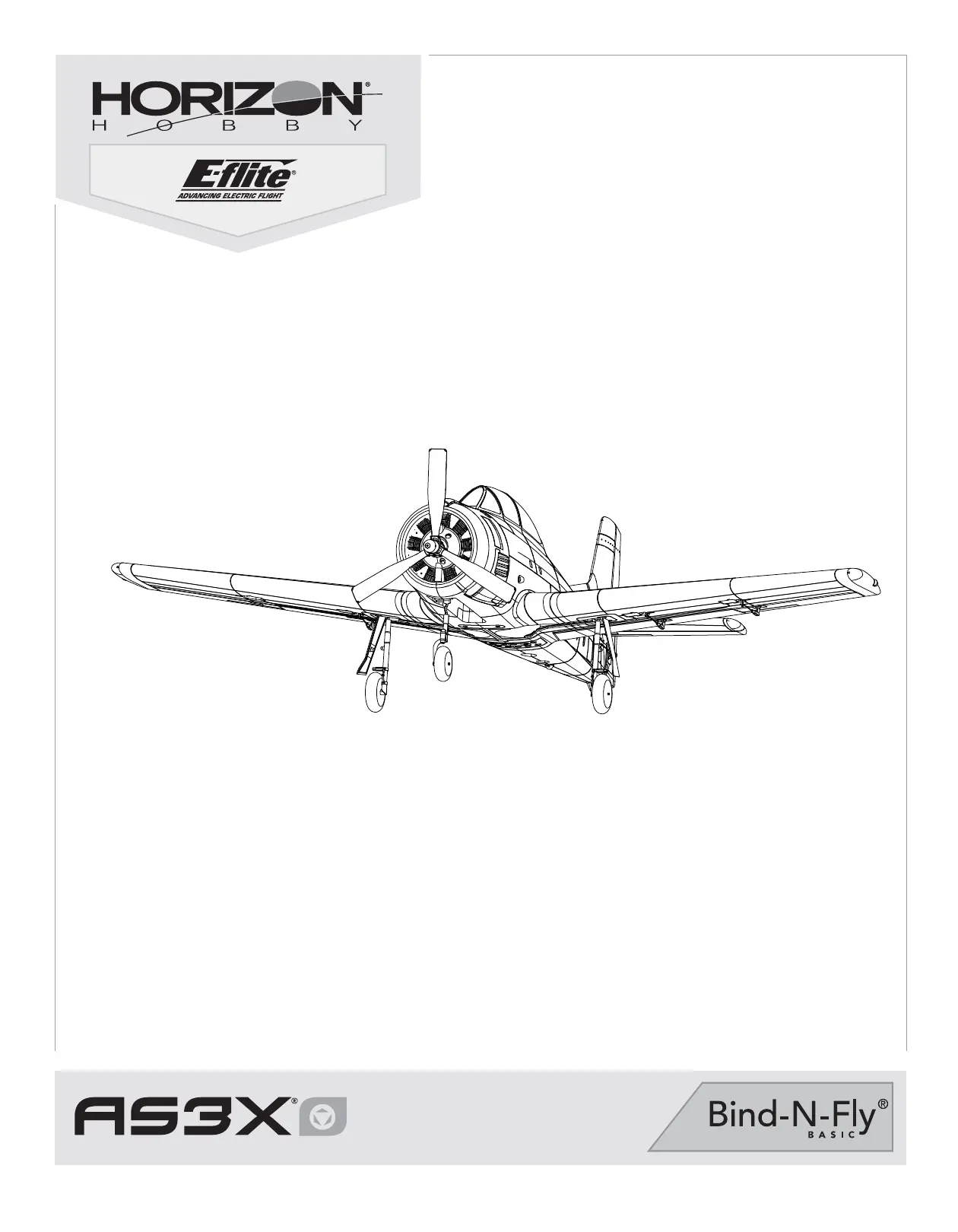

T-28B Trojan 1.2m

Instruction Manual

Bedienungsanleitung

Manuel d’utilisation

Manuale di Istruzioni

As the user of this product, you are solely responsible for operating in a man-

ner that does not endanger yourself and others or result in damage to the

product or the property of others.

• Always keep a safe distance in all directions around your model to avoid

collisions or injury. This model is controlled by a radio signal subject to

interference from many sources outside your control. Interference can cause

momentary loss of control.

• Always operate your model in open spaces away from full-size vehicles,

trafﬁ c and people.

• Always carefully follow the directions and warnings for this and any optional

support equipment (chargers, rechargeable battery packs, etc.).

• Always keep all chemicals, small parts and anything electrical out of the

reach of children.

• Always avoid water exposure to all equipment not speciﬁ cally designed and

protected for this purpose. Moisture causes damage to electronics.

• Never place any portion of the model in your mouth as it could cause serious

injury or even death.

• Never operate your model with low transmitter batteries.

• Always keep aircraft in sight and under control.

• Always use fully charged batteries.

• Always keep transmitter powered on while aircraft is powered.

• Always remove batteries before disassembly.

• Always keep moving parts clean.

• Always keep parts dry.

• Always let parts cool after use before touching.

• Always remove batteries after use.

• Always ensure failsafe is properly set before ﬂ ying.

• Never operate aircraft with damaged wiring.

• Never touch moving parts.

NOTICE

All instructions, warranties and other collateral documents are subject to change at the sole discretion of Horizon Hobby, LLC. For up-to-date product

literature, visit www.horizonhobby.com and click on the support tab for this product.

Meaning of Special Language:

The following terms are used throughout the product literature to indicate various levels of potential harm when operating this product:

NOTICE: Procedures, which if not properly followed, create a possibility of physical property damage AND little or no possibility of injury.

CAUTION: Procedures, which if not properly followed, create the probability of physical property damage AND a possibility of serious injury.

WARNING: Procedures, which if not properly followed, create the probability of property damage, collateral damage, and serious injury OR create a high

probability of superﬁ cial injury.

WARNING: Read the ENTIRE instruction manual to become familiar with the features of the product before operating. Failure to operate the product

correctly can result in damage to the product, personal property and cause serious injury.

This is a sophisticated hobby product. It must be operated with caution and common sense and requires some basic mechanical ability. Failure to oper-

ate this Product in a safe and responsible manner could result in injury or damage to the product or other property. This product is not intended for use by

children without direct adult supervision. Do not use with incompatible components or alter this product in any way outside of the instructions provided by

Horizon Hobby, LLC. This manual contains instructions for safety, operation and maintenance. It is essential to read and follow all the instructions and warn-

ings in the manual, prior to assembly, setup or use, in order to operate correctly and avoid damage or serious injury.

Safety Precautions and Warnings

14+AGE RECOMMENDATION:

Not for children under 14

years. This is not a toy.

WARNING AGAINST COUNTERFEIT PRODUCTS: If you ever need to replace your Spektrum receiver found

in a Horizon Hobby product, always purchase from Horizon Hobby, LLC or a Horizon Hobby authorized dealer to en-

sure authentic high-quality Spektrum product. Horizon Hobby, LLC disclaims all support and warranty with regards,

but not limited to, compatibility and performance of counterfeit products or products claiming compatibility with

DSM or Spektrum.

To register your product online, visit www.e-ﬂ iterc.com

Box Contents

Quick Start Information

Transmitter

Setup

Set up your transmitter using the

transmitter setup chart

Dual Rates

Hi Rate Low Rate

Ail =20mm

=17mm

=13mm

=12mm

Ele =16mm

=16mm

=12mm

Rud =23mm

=23mm

=16mm

Flaps Full

=50mm

Takeoff

=20mm

Center of

Gravity (CG)

62mm +/- 3 back from leading edge

at the root.

Flight Timer

Setting 5 minutes

Table of Contents

55.5 oz

(1570 g)

985mm (38.8 in)

1225mm (48.2 in)

Speciﬁ cations

Motor: BL15 Brushless Outrunner

850Kv (EFLM4115) Installed

ESC: 40 AMP Brushless ESC

(EFLA1140W) Installed

9 gram servo (SPMSA330) Installed

Receiver: Spektrum™ AR636A

6-Channel Sport Receiver

(SPMAR636)

Installed

Recommended Battery:

11.1V 3S 2200mAh 30C Li-Po

(EFLB22003S30)

Required to

Complete

Recommended Battery Charger:

3-cell Li-Po battery balancing

charger

Required to

Complete

Recommended Transmitter:

Full-Range 6 channel (or more)

2.4GHz with Spektrum

DSM2®/DSMX® technology with

adjustable Dual Rates.

Required to

Complete

386 sq/in

(24.9 sq/dm)

Preﬂ ight ..........................................................................................4

Transmitter Setup ..........................................................................4

Model Assembly .............................................................................5

Control Horn and Servo Arm Settings ..............................................7

Transmitter and Receiver Binding ....................................................8

Battery Installation and ESC Arming ................................................9

Center of Gravity (CG) ..................................................................10

AS3X Control Direction Test .........................................................10

In Flight Trimming .........................................................................11

Flying Tips and Repairs .................................................................11

Post Flight ....................................................................................12

Motor Service ...............................................................................12

Troubleshooting Guide AS3X .........................................................12

Troubleshooting Guide ..................................................................13

AMA National Model Aircraft Safety Code ......................................14

Limited Warranty ..........................................................................15

Contact Information ......................................................................16

FCC Information ............................................................................16

IC Information ...............................................................................16

Compliance Information for the European Union ............................16

Replacement Parts ........................................................................59

Optional Parts ...............................................................................59
