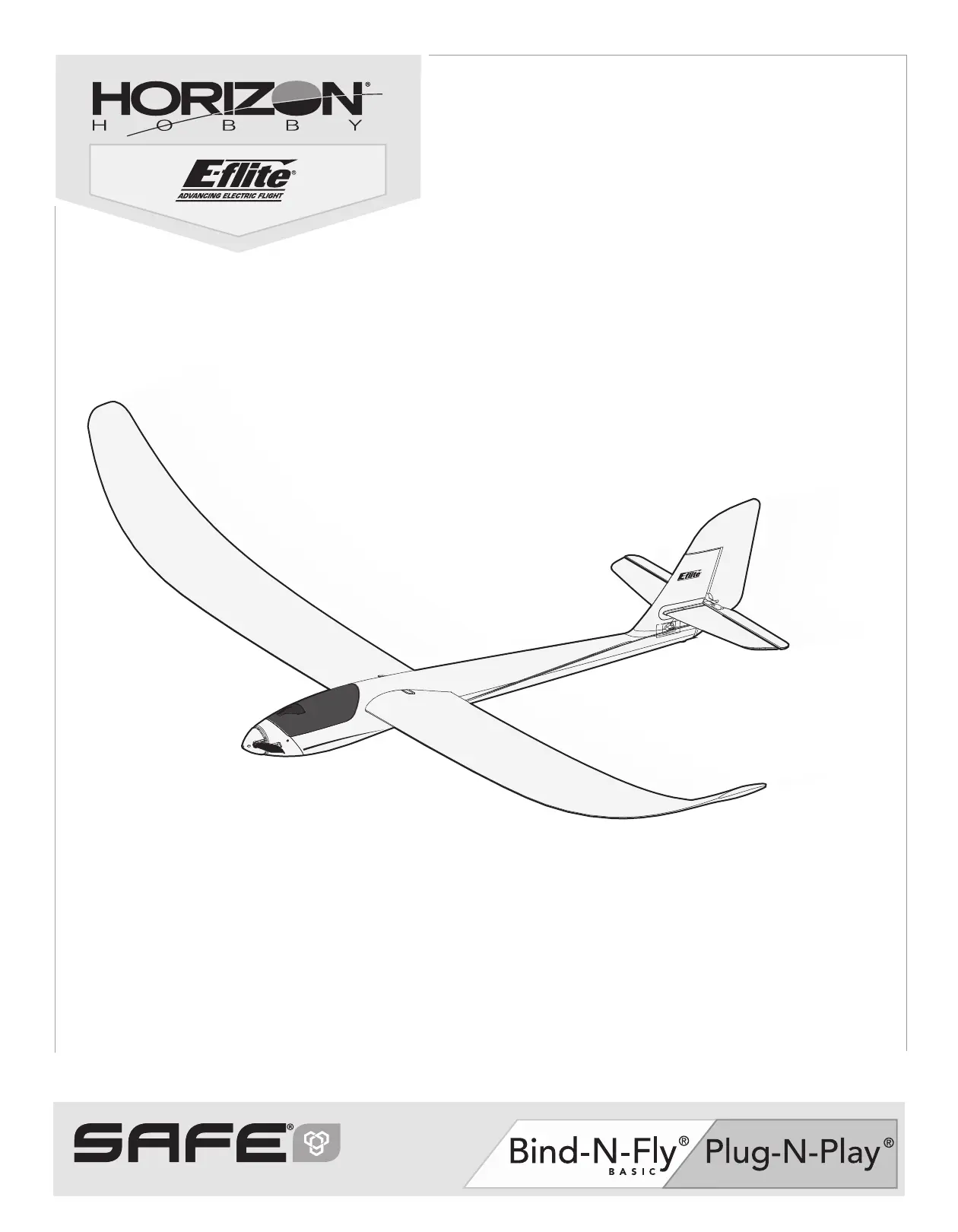

Night Radian® FT 2.0m

Instruction Manual

Bedienungsanleitung

Manuel d’utilisation

Manuale di Istruzioni

SAFE® Select Technology, Optional Flight Envelope Protection

Night Radian FT

As the user of this product, you are solely responsible for operating in a man-

ner that does not endanger yourself and others or result in damage to the

product or the property of others.

• Always keep a safe distance in all directions around your model to avoid

collisions or injury. This model is controlled by a radio signal subject to

interference from many sources outside your control. Interference can cause

momentary loss of control.

• Always operate your model in open spaces away from full-size vehicles,

traf c and people.

• Always carefully follow the directions and warnings for this and any optional

support equipment (chargers, rechargeable battery packs, etc.).

• Always keep all chemicals, small parts and anything electrical out of the

reach of children.

• Always avoid water exposure to all equipment not speci cally designed and

protected for this purpose. Moisture causes damage to electronics.

• Never place any portion of the model in your mouth as it could cause serious

injury or even death.

• Never operate your model with low transmitter batteries.

• Always keep aircraft in sight and under control.

• Always use fully charged batteries.

• Always keep transmitter powered on while aircraft is powered.

• Always remove batteries before disassembly.

• Always keep moving parts clean.

• Always keep parts dry.

• Always let parts cool after use before touching.

• Always remove batteries after use.

• Always ensure failsafe is properly set before  ying.

• Never operate aircraft with damaged wiring.

• Never touch moving parts.

NOTICE

All instructions, warranties and other collateral documents are subject to change at the sole discretion of Horizon Hobby, LLC. For up-to-date product

literature, visit www.horizonhobby.com and click on the support tab for this product.

Meaning of Special Language:

The following terms are used throughout the product literature to indicate various levels of potential harm when operating this product:

WARNING: Procedures, which if not properly followed, create the probability of property damage, collateral damage, and serious injury OR create a high

probability of super cial injury.

CAUTION: Procedures, which if not properly followed, create the probability of physical property damage AND a possibility of serious injury.

NOTICE: Procedures, which if not properly followed, create a possibility of physical property damage AND little or no possibility of injury.

WARNING: Read the ENTIRE instruction manual to become familiar with the features of the product before operating. Failure to operate the product

correctly can result in damage to the product, personal property and cause serious injury.

This is a sophisticated hobby product. It must be operated with caution and common sense and requires some basic mechanical ability. Failure to operate this

Product in a safe and responsible manner could result in injury or damage to the product or other property. This product is not intended for use by children

without direct adult supervision. Do not use with incompatible components or alter this product in any way outside of the instructions provided by Horizon

Hobby, LLC. This manual contains instructions for safety, operation and maintenance. It is essential to read and follow all the instructions and warnings in the

manual, prior to assembly, setup or use, in order to operate correctly and avoid damage or serious injury.

Safety Precautions and Warnings

14+AGE RECOMMENDATION:

Not for children under 14

years. This is not a toy.

WARNING AGAINST COUNTERFEIT PRODUCTS: If you ever need to replace your Spektrum receiver

found in a Horizon Hobby product, always purchase from Horizon Hobby, LLC or a Horizon Hobby

authorized dealer to ensure authentic high-quality Spektrum product. Horizon Hobby, LLC disclaims all support

and warranty with regards, but not limited to, compatibility and performance of counterfeit products or products

claiming compatibility with DSM or Spektrum technology.

To register your product online, visit www.e- iterc.com

Box Contents

Quick Start Information

Transmitter

Setup

Blank (Acro) Model

Servo Reversing:

Rudder: Normal

Elevator: Normal

Aileron: Normal

DO NOT Reverse Throttle

Dual Rates

Dual Rates: 100% / 70%

Hi Rate Low Rate

Ele =12mm

=12mm

=8mm

Rud =35mm

=35mm

=25mm

Center of

Gravity (CG)

2 1/2 inches (63mm) back

from leading edge at the root.

Flight Timer

Setting 7-10 minutes

Table of Contents

31.0 oz

(880 g)

1140mm (44.7 in)

2000mm (78.7 in)

Speciﬁ cations

EFL3650 EFL3675

Motor: 480B BL Outrunner Motor;

960Kv Reverse Shaft PKZ4716 Installed Installed

ESC: 30A Brushless ESC

(EFLA1030B) Installed Installed

Servo: Mini Servo (3W) with

Arms, Short Lead PKZ1060 Installed Installed

Receiver: Spektrum

™ AR636

6-Ch AS3X Sport Receiver

(SPMAR636)

Installed

Required

Complete

Recommended Battery:

1350mAh 11.1V 30C Li-Po with

EC3 Connector (EFLB13503S30)

Required

Complete

Required

Complete

Recommended Battery Char-

ger: 3-cell Li-Po battery balanc-

ing charger

Required

Complete

Required

Complete

Recommended Transmitter:

Full-Range 4 channel (or more)

2.4GHz with Spektrum

™

DSM2®/DSMX® technology with

adjustable Dual Rates.

Required

Complete

Required

Complete

551 sq in

(35.5 sq dm)

SAFE® Select Technology (BNF Basic) .............................................4

Pre ight ..........................................................................................4

Model Assembly .............................................................................5

Control Horn and Servo Arm Settings ..............................................6

Binding / Switching ON and OFF SAFE Select ..................................7

SAFE® Select Switch Designation ....................................................8

LED Controller .................................................................................8

Battery Installation and ESC Arming ................................................9

Center of Gravity (CG) ..................................................................10

AS3X Control Direction Test ...........................................................10

In Flight Trimming .........................................................................11

Flying Tips and Repairs .................................................................11

Post Flight ....................................................................................12

Motor Service ...............................................................................12

PNP Receiver Selection and Installation ........................................12

Troubleshooting Guide ..................................................................13

AMA National Model Aircraft Safety Code ......................................14

Limited Warranty ..........................................................................15

Contact Information ......................................................................16

FCC Information ............................................................................16

IC Information ...............................................................................16

Compliance Information for the European Union ............................16

Replacement Parts ........................................................................58

Optional Parts ...............................................................................58

Recommended Receivers .............................................................59

RECEIVER BIND INFORMATION

Channels 6

Frequency 2405 – 2476 MHz

Compatibility DSM2 and DSMX

Specyfikacje produktu

Marka:	E-flite
Kategoria:	zabawka sterowana radiowo
Model:	Night Radian FT
Kolor produktu:	Black, White
Typ produktu:	Samolot
Waga produktu:	905 g
Podręcznik użytkownika:	Tak
Ładowarka:	Nie
Odbiornik dołączony:	Nie
Liczba baterii:	1
Baterie w zestawie:	Nie
Wymagane baterie:	Tak
Rodzaj konstrukcji:	Plug-N-Play (PNP)
Rozpiętość skrzydeł:	2000 mm
Długość produktu:	1137 mm
Rodzaj silnika:	Silnik elektryczny
Montaż wymagany:	Tak
Czas montażu:	60 min
Elektroniczny kontroler prędkości silnika (ESC):	Tak
Rodzaj elektronicznego kontrolera prędkości silnika (ESC):	Bezszczotkowy
Liczba serw:	2
Powierzchnia skrzydeł:	3550 cm²
Zalecana bateria:	1300–2200mAh 3S LiPo
Serwo waga:	9 g
