Strona 1/18

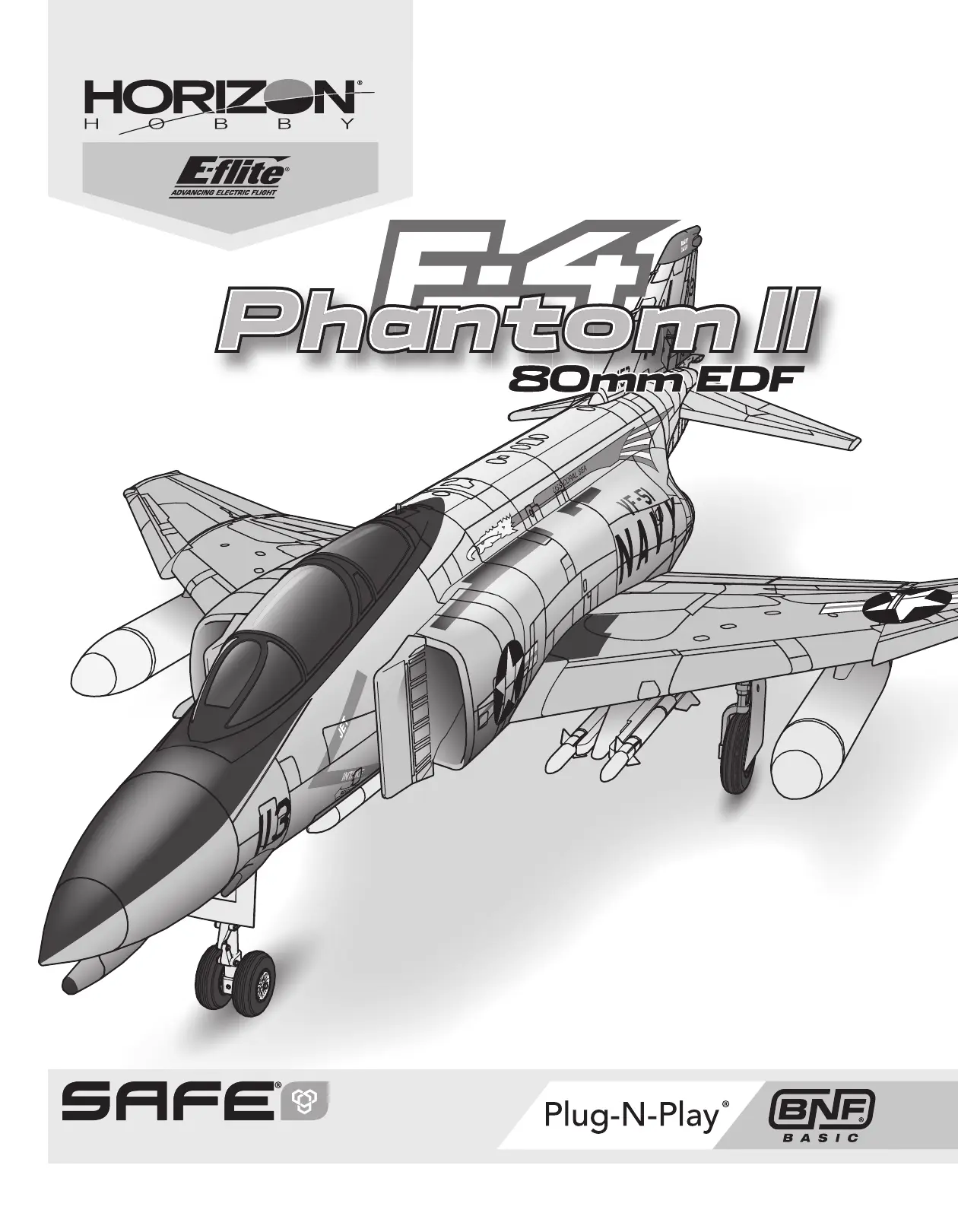

Instruction Manual

Bedienungsanleitung

Manuel d’utilisation

Manuale di Istruzioni

SAFE® Select Technology, Optional Flight Envelope Protection

F-4 Phantom 80mm EDF

Safety Precautions and Warnings

NOTICE

All instructions, warranties and other collateral documents are subject to change at the sole discretion of Horizon Hobby, LLC. For up-to-date product literature, visit

www.horizonhobby.com and click on the support tab for this product.

14+ AGE RECOMMENDATION: Not for children under 14 years. This is not a toy.

MEANING OF SPECIAL LANGUAGE:

The following terms are used throughout the product literature to indicate various levels of potential harm when operating this product:

WARNING: Procedures, which if not properly followed, create the probability of property damage, collateral damage, and serious injury OR create a high probability of

superﬁ cial injury.

CAUTION: Procedures, which if not properly followed, create the probability of physical property damage AND a possibility of serious injury.

NOTICE: Procedures, which if not properly followed, create a possibility of physical property damage AND little or no possibility of injury.

WARNING: Read the ENTIRE instruction manual to become familiar with the features of the product before operating. Failure to operate the product correctly can

result in damage to the product, personal property and cause serious injury.

This is a sophisticated hobby product. It must be operated with caution and common sense and requires some basic mechanical ability. Failure to operate this Product

in a safe and responsible manner could result in injury or damage to the product or other property. This product is not intended for use by children without direct adult

supervision. Do not use with incompatible components or alter this product in any way outside of the instructions provided by Horizon Hobby, LLC. This manual contains

instructions for safety, operation and maintenance. It is essential to read and follow all the instructions and warnings in the manual, prior to assembly, setup or use, in

order to operate correctly and avoid damage or serious injury.

As the user of this product, you are solely responsible for operating in a manner that does not endanger yourself and others or result in damage to the product or the

property of others.

• Always keep a safe distance in all directions around your model to avoid

collisions or injury. This model is controlled by a radio signal subject to

interference from many sources outside your control. Interference can cause

momentary loss of control.

• Always operate your model in open spaces away from full-size vehicles, trafﬁ c

and people.

• Always carefully follow the directions and warnings for this and any optional

support equipment (chargers, rechargeable battery packs, etc.).

• Always keep all chemicals, small parts and anything electrical out of the reach

of children.

• Always avoid water exposure to all equipment not speciﬁ cally designed and

protected for this purpose. Moisture causes damage to electronics.

• Never place any portion of the model in your mouth as it could cause serious

injury or even death.

• Never operate your model with low transmitter batteries.

• Always keep aircraft in sight and under control.

• Always use fully charged batteries.

• Always keep transmitter powered on while aircraft is powered.

• Always remove batteries before disassembly.

• Always keep moving parts clean.

• Always keep parts dry.

• Always let parts cool after use before touching.

• Always remove batteries after use.

• Always ensure failsafe is properly set before ﬂ ying.

• Never operate aircraft with damaged wiring.

• Never touch moving parts.

WARNING AGAINST COUNTERFEIT PRODUCTS: If you ever need to replace your Spektrum receiver found in a Horizon Hobby product, always purchase from

Horizon Hobby, LLC or a Horizon Hobby authorized dealer to ensure authentic high-quality Spektrum product. Horizon Hobby, LLC disclaims all support and

warranty with regards, but not limited to, compatibility and performance of counterfeit products or products claiming compatibility with DSM or Spektrum technology.

Box Contents

Table of ContentsSpeciﬁ cations

53.7 in (1364mm)

35.8 in (910mm)

~101–106 oz

(~2866–3006g)

If you own this product, you may be required to register with the FAA.

For up-to-date information on how to register with the FAA, please visit

https://registermyuas.faa.gov/.

For additional assistance on regulations and guidance on UAS usage,

visit knowbeforeyouﬂ y.org/.

Preﬂ ight .................................................................................................................4

SAFE® Select Switch Designation ...........................................................................5

Using SAFE® Select With the DX6 and DX6e Transmitters

With a 6 Channel Aircraft .......................................................................................5

Model Assembly ....................................................................................................5

Flaps .....................................................................................................................7

Optional Scale External Stores Installation ..............................................................7

PNP Receiver Selection and Installation .................................................................7

Battery Installation and ESC Arming .......................................................................8

Center of Gravity (CG) ...........................................................................................8

Transmitter and Receiver Binding / Enabling and Disabling SAFE Select .................9

Control Surface Centering ....................................................................................10

Control Surface Direction .....................................................................................10

Dual Rates and Control Throws ............................................................................10

Control Horn and Servo Arm Settings ...................................................................10

In Flight Trimming ................................................................................................11

Flying Tips and Repairs ........................................................................................11

Post Flight............................................................................................................12

Power Components Service .................................................................................12

Troubleshooting Guide AS3X ................................................................................13

Troubleshooting Guide .........................................................................................13

Replacement Parts ...............................................................................................14

Recommended Parts ............................................................................................14

Optional Parts ......................................................................................................14

AMA National Model Aircraft Safety Code .............................................................15

Limited Warranty .................................................................................................16

Warranty and Service Contact Information ...........................................................16

FCC Information ...................................................................................................17

IC Information ......................................................................................................17

Compliance Information for the European Union ...................................................17

Quick Start Information

Transmitter Setup

1. Blank (Acro) Model

2. Wing Type: 1 Aileron, 1 Flap

3. Servo Reversing: Gear Reversed, All Others Normal

4. Travel Adjust (All Surfaces): 100%

Dual Rates*

High Rate Low Rate

Aileron = 20mm

= 20mm

= 15mm

Elevator = 30mm

= 20mm

= 25mm

= 12mm

Rudder = 15mm

= 15mm

= 10mm

Flap Travel Half = 25mm Full = 45mm

EXPO

(Soft center)

High Rate Low Rate

Aileron 10% 5%

Elevator 15% 5%

Rudder 10% 5%

Center of Gravity (CG) 180–190mm back from the leading edge,

measured at the wing root

Flight Timer Setting 3.5 minutes

Motor: Brushless, 3270-2000Kv (EFLM2000DF)

Installed Installed

Fan Unit: 80mm Ducted Fan Unit (EFLA8012DF)

Installed Installed

ESC: 100A Pro Switching Mod

e (EFLA10100EC5)

Installed Installed

Servos: 13 and 23g Analog Metal Gear (SPMSA450, SPMSA460)

Installed Installed

Retracts: Nose and Main Gear (

EFLG315, EFLG316

)

Installed Installed

Receiver: Spektrum

™ AR636 6-Channel Sport Receiver

(SPMAR636)

Installed Required to

Complete

Recommended Battery: 22.2V 4000–5000mAh 30-40C

6SLiPo with EC5™ connector

Required to

Complete

Required to

Complete

Recommended Battery Charger:

6-cell Li-Po battery balancing charger

Required to

Complete

Required to

Complete

Recommended Transmitter:

6+ channel, Full-Range 2.4GHz with Spektrum

™ DSM2®/

DSMX® technology and adjustable dual rates

Required to

Complete

Required to

Complete

Specyfikacje produktu

Marka:	E-flite
Kategoria:	zabawka sterowana radiowo
Model:	F-4 Phantom II
Kolor produktu:	Black, Blue, Grey, Red, White
Typ produktu:	Myśliwiec
Materiał obudowy:	Ekspandowana poliolefina (EPO)
Waga produktu:	3006 g
Podręcznik użytkownika:	Tak
Ładowarka:	Nie
Silnik:	Bezszczotkowy
Odbiornik dołączony:	Nie
Liczba baterii:	1
Baterie w zestawie:	Nie
Wymagane baterie:	Tak
Oryginalna nazwa modelu:	F-4 Phantom II
Rodzaj konstrukcji:	Plug-N-Play (PNP)
Rozpiętość skrzydeł:	910 mm
Długość produktu:	1364 mm
Rodzaj silnika:	Silnik elektryczny
Montaż wymagany:	Tak
Maksymalna prędkość:	128 km/h
Czas montażu:	60 min
Środek ciężkości (CG):	170 mm
Elektroniczny kontroler prędkości silnika (ESC):	Tak
Rodzaj elektronicznego kontrolera prędkości silnika (ESC):	Bezszczotkowy
Liczba serw:	7
Rozmiar silnika:	3270
Obciążenie skrzydeł:	1.05 g/cm²
Powierzchnia skrzydeł:	2860 cm²
Replica:	Tak
Zalecana bateria:	6S 4000-5000mAh Li-Po
Serwo waga:	13 g
