Strona 1/19

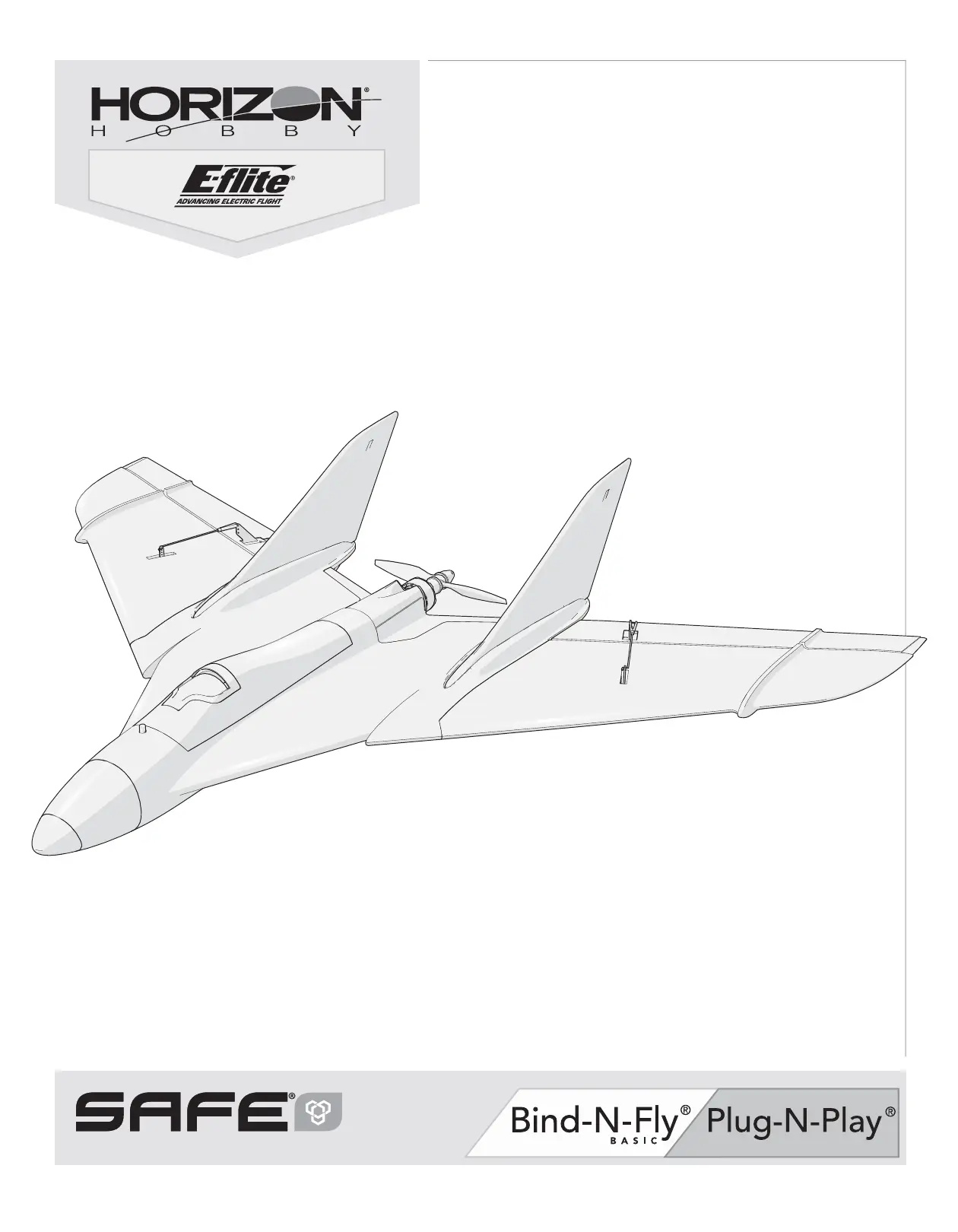

Instruction Manual

Bedienungsanleitung

Manuel d’utilisation

Manuale di Istruzioni

SAFE® Select Technology, Optional Flight Envelope Protection

F-27 Evolution™

2F-27 Evolution™

As the user of this product, you are solely responsible for operating in a

manner that does not endanger yourself and others or result in damage to the

product or the property of others.

• Always keep a safe distance in all directions around your model to avoid

collisions or injury. This model is controlled by a radio signal subject to

interference from many sources outside your control. Interference can

cause momentary loss of control.

• Always operate your model in open spaces away from full-size vehicles,

trafﬁ c and people.

• Always carefully follow the directions and warnings for this and any

optional support equipment (chargers, rechargeable battery packs, etc.).

• Always keep all chemicals, small parts and anything electrical out of the

reach of children.

• Always avoid water exposure to all equipment not speciﬁ cally designed

and protected for this purpose. Moisture causes damage to electronics.

• Never place any portion of the model in your mouth as it could cause

serious injury or even death.

• Never operate your model with low transmitter batteries.

• Always keep aircraft in sight and under control.

• Always use fully charged batteries.

• Always keep transmitter powered on while aircraft is powered.

• Always remove batteries before disassembly.

• Always keep moving parts clean.

• Always keep parts dry.

• Always let parts cool after use before touching.

• Always remove batteries after use.

• Always ensure failsafe is properly set before ﬂ ying.

• Never operate aircraft with damaged wiring.

• Never touch moving parts.

NOTICE

All instructions, warranties and other collateral documents are subject to change at the sole discretion of Horizon Hobby, LLC. For up-to-date product

literature, visit www.horizonhobby.com and click on the support tab for this product.

Meaning of Special Language:

The following terms are used throughout the product literature to indicate various levels of potential harm when operating this product:

WARNING: Procedures, which if not properly followed, create the probability of property damage, collateral damage, and serious injury OR create a high

probability of superﬁ cial injury.

CAUTION: Procedures, which if not properly followed, create the probability of physical property damage AND a possibility of serious injury.

NOTICE: Procedures, which if not properly followed, create a possibility of physical property damage AND little or no possibility of injury.

WARNING: Read the ENTIRE instruction manual to become familiar with the features of the product before operating. Failure to operate the product

correctly can result in damage to the product, personal property and cause serious injury.

This is a sophisticated hobby product. It must be operated with caution and common sense and requires some basic mechanical ability. Failure to operate this

Product in a safe and responsible manner could result in injury or damage to the product or other property. This product is not intended for use by children

without direct adult supervision. Do not use with incompatible components or alter this product in any way outside of the instructions provided by Horizon

Hobby, LLC. This manual contains instructions for safety, operation and maintenance. It is essential to read and follow all the instructions and warnings in the

manual, prior to assembly, setup or use, in order to operate correctly and avoid damage or serious injury.

Safety Precautions and Warnings

14+AGE RECOMMENDATION:

Not for children under 14

years. This is not a toy.

WARNING AGAINST COUNTERFEIT PRODUCTS: If you ever need to replace your Spektrum receiver

found in a Horizon Hobby product, always purchase from Horizon Hobby, LLC or a Horizon Hobby

authorized dealer to ensure authentic high-quality Spektrum product. Horizon Hobby, LLC disclaims all support

and warranty with regards, but not limited to, compatibility and performance of counterfeit products or products

claiming compatibility with DSM or Spektrum technology.

373 sq/in (24.1

sq/dm)

SAFE® Select Technology (BNF only) ..................................................4

Preﬂ ight .............................................................................................4

Transmitter Setup (BNF only) ..............................................................4

Model Assembly ................................................................................5

Transmitter and Receiver Binding/ SAFE Select On/Off (BNF only) ......6

Receiver Selection and Installation (PNP only) ....................................7

Battery Installation and ESC Arming ...................................................7

Final Setup ........................................................................................8

SAFE® Select Switch Designation (BNF only) ......................................8

Control Horn and Servo Arm Settings .................................................8

Center of Gravity (CG) .......................................................................9

Control Direction Test .........................................................................9

AS3X Control Response Test (BNF only) ..............................................9

Flying Tips and Repairs ....................................................................10

In Flight Trimming (BNF only) ...........................................................10

Post Flight .......................................................................................10

Operation on 4S LiPo Batteries (optional) .........................................11

Optional FPV Nose Installation (not included) ....................................11

Motor Service ..................................................................................12

Troubleshooting Guide AS3X ............................................................12

Troubleshooting Guide .....................................................................13

AMA National Model Aircraft Safety Code .........................................14

Limited Warranty .............................................................................15

Contact Information .........................................................................16

FCC Information ...............................................................................16

IC Information ..................................................................................16

Compliance Information for the European Union ...............................16

Recommended Receivers ................................................................58

Replacement Parts ...........................................................................59

Optional Parts ..................................................................................59

If you own this product, you may be required to register with the FAA.

For up-to-date information on how to register with the FAA,

visit https://registermyuas.faa.gov/.

For additional assistance on regulations and guidance on UAS usage, visit

knowbeforeyouﬂ y.org/.

To register your product online, visit www.e-ﬂ iterc.com

Box Contents

Quick Start Information

Transmitter

Setup

Set up your transmitter using the

transmitter setup chart

Dual Rates

Hi Rate Low Rate

Ail 20mm 15mm

Ele 22mm

17mm 15mm

Center of

Gravity (CG) 140mm forward from the ﬁ rewall.

Flight Timer

Setting 4 minutes

Table of Contents

Speciﬁ cations

Motor: BL10 1920Kv

(EFLM101920) Installed Installed

ESC: Installed Installed 40A ESC (EFLA1040LB)

Servos: Installed Installed Digital servo (PKZ1090)

Receiver: Spektrum™ AR636A

6-Channel Sport Receiver

(SMPAR636A)

Installed

Required

Complete

Recommended Battery: 11.1V

3S 2200-3200mAh 30C Li-Po

(EFLB22003S30, EFLB32003S30)

Required

Complete

Required

Complete

Recommended Battery Charger:

3-cell Li-Po battery balancing

charger

Required

Complete

Required

Complete

Recommended Transmitter:

Full-Range 6 channel (or more)

2.4GHz with Spektrum

DSM2®/DSMX® technology with

adjustable Dual Rates

Required

Complete

Required

Complete

37.1 in (943mm)

24.1 in (612mm)

28.4 oz (805g)

Specyfikacje produktu

Marka:	E-flite
Kategoria:	zabawka sterowana radiowo
Model:	F-27 Evolution
Kolor produktu:	White, Yellow
Typ produktu:	Samolot
Waga produktu:	825 g
Pojemność baterii:	2500 mAh
Ładowarka:	Nie
Silnik:	Bezszczotkowy
Odbiornik dołączony:	Nie
Baterie w zestawie:	Nie
Zalecany wiek (min):	14 lat(a)
Rodzaj konstrukcji:	Plug-N-Play (PNP)
Rozpiętość skrzydeł:	943 mm
Długość produktu:	612 mm
Rodzaj silnika:	Silnik elektryczny
Montaż wymagany:	Tak
Czas montażu:	60 min
Rozmiar silnika:	10
Powierzchnia skrzydeł:	2410 cm²
