Strona 1/20

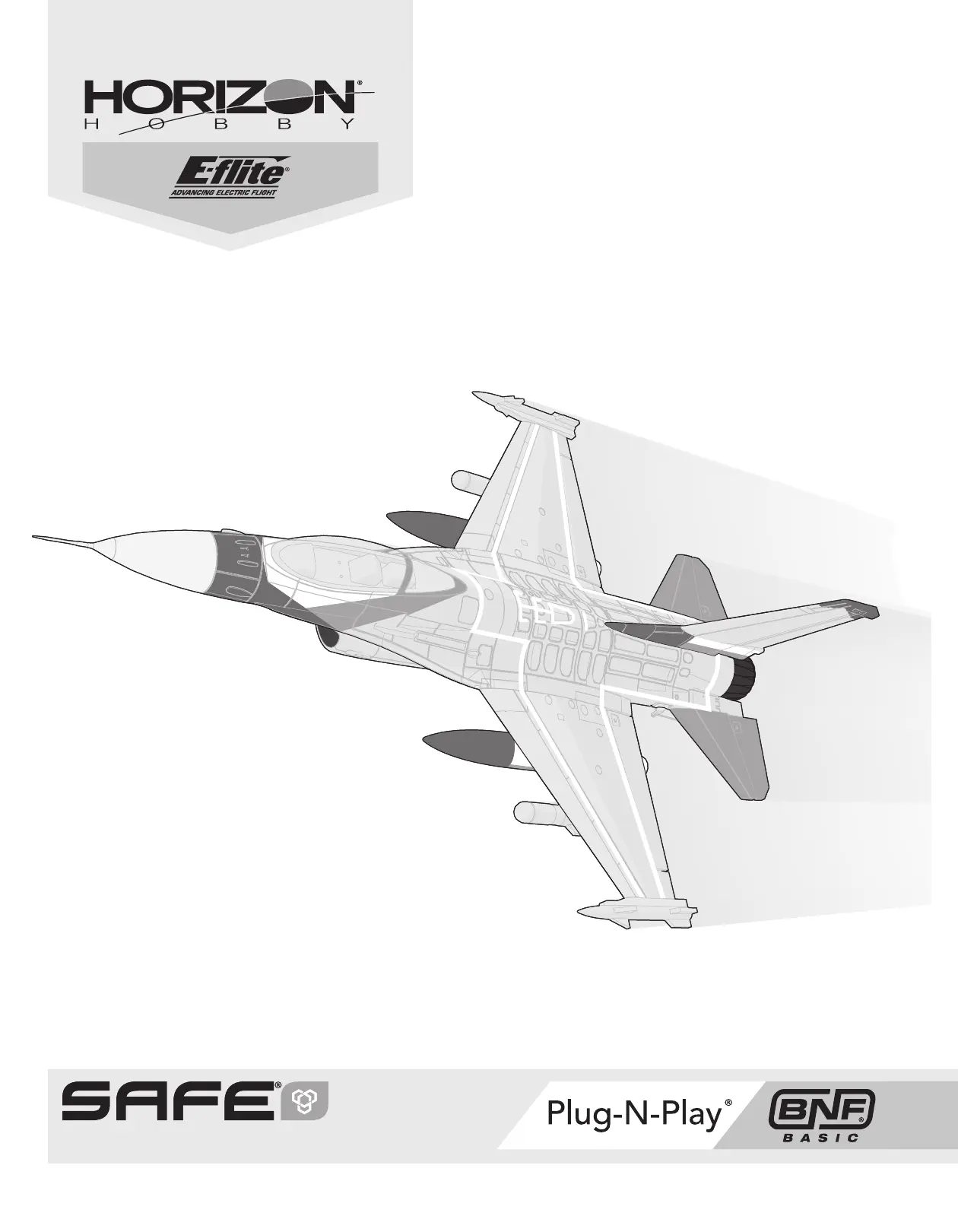

Instruction Manual

Bedienungsanleitung

Manuel d’utilisation

Manuale di Istruzioni

F-16 Falcon 64mm EDF

SAFE® Select Technology, Optional Flight Envelope Protection

F-16 64mm EDF

Safety Precautions and Warnings

NOTICE

All instructions, warranties and other collateral documents are subject to change at the sole discretion of Horizon Hobby, LLC. For up-to-date product

literature, visit www.horizonhobby.com or www.towerhobbies.com and click on the support or resources tab for this product.

14+ AGE RECOMMENDATION: Not for children under 14 years. This is not a toy.

MEANING OF SPECIAL LANGUAGE:

The following terms are used throughout the product literature to indicate various levels of potential harm when operating this product:

WARNING: Procedures, which if not properly followed, create the probability of property damage, collateral damage, and serious injury OR create a high probability of

superﬁcial injury.

CAUTION: Procedures, which if not properly followed, create the probability of physical property damage AND a possibility of serious injury.

NOTICE: Procedures, which if not properly followed, create a possibility of physical property damage AND little or no possibility of injury.

WARNING: Read the ENTIRE instruction manual to become familiar with the features of the product before operating. Failure to operate the product correctly can

result in damage to the product, personal property and cause serious injury.

This is a sophisticated hobby product. It must be operated with caution and common sense and requires some basic mechanical ability. Failure to operate this Product

in a safe and responsible manner could result in injury or damage to the product or other property. This product is not intended for use by children without direct adult

supervision. Do not use with incompatible components or alter this product in any way outside of the instructions provided by Horizon Hobby, LLC. This manual contains

instructions for safety, operation and maintenance. It is essential to read and follow all the instructions and warnings in the manual, prior to assembly, setup or use, in

order to operate correctly and avoid damage or serious injury.

As the user of this product, you are solely responsible for operating in a manner that does not endanger yourself and others or result in damage to the product or the property of others.

• Always keep a safe distance in all directions around your model to avoid

collisions or injury. This model is controlled by a radio signal subject to

interference from many sources outside your control. Interference can cause

momentary loss of control.

• Always operate your model in open spaces away from full-size vehicles, trafﬁc

and people.

• Always carefully follow the directions and warnings for this and any optional

support equipment (chargers, rechargeable battery packs, etc.).

• Always keep all chemicals, small parts and anything electrical out of the reach

of children.

• Always avoid water exposure to all equipment not speciﬁcally designed and

protected for this purpose. Moisture causes damage to electronics.

• Never place any portion of the model in your mouth as it could cause serious

injury or even death.

• Never operate your model with low transmitter batteries.

• Always keep aircraft in sight and under control.

• Always use fully charged batteries.

• Always keep transmitter powered on while aircraft is powered.

• Always remove batteries before disassembly.

• Always keep moving parts clean.

• Always keep parts dry.

• Always let parts cool after use before touching.

• Always remove batteries after use.

• Always ensure failsafe is properly set before ﬂying.

• Never operate aircraft with damaged wiring.

• Never touch moving parts.

WARNING AGAINST COUNTERFEIT PRODUCTS: If you ever need to replace your Spektrum receiver found in a Horizon Hobby product, always purchase from

Horizon Hobby, LLC or a Horizon Hobby authorized dealer to ensure authentic high-quality Spektrum product. Horizon Hobby, LLC disclaims all support and

warranty with regards, but not limited to, compatibility and performance of counterfeit products or products claiming compatibility with DSM or Spektrum technology.

Box Contents

Table of Contents

Speciﬁcations

43.3 in (1100mm)

30 – 32.6 oz

(853 - 925g)

Preﬂight 4 ...............................................................................................................

Model Assembly ..................................................................................................4

Scale Accessories Optional ..................................................................................6

Control Horn and Servo Arm Settings 7 ...................................................................

Receiver Installation (PNP) 8 ...................................................................................

Transmitter Setup (BNF) 8 .......................................................................................

Battery Installation and ESC Arming 9 .....................................................................

Center of Gravity 9 .................................................................................................

SAFE® Select Switch Designation (BNF) 11 .............................................................

Control Surface Centering 11 ..................................................................................

Control Surface Direction 11 ...................................................................................

Dual Rates and Control Throws 12 ..........................................................................

AS3X Control Direction Test (BNF Basic) 12 .............................................................

In Flight Trimming .............................................................................................. 12

Flying Tips and Repairs 13 ......................................................................................

SAFE Select Flying Tips 13 ......................................................................................

Post Flight..........................................................................................................14

Power Components Service 14 ...............................................................................

Troubleshooting Guide AS3X ..............................................................................15

Troubleshooting Guide 15 .......................................................................................

Replacement Parts 16 .............................................................................................

Optional Parts 16 ....................................................................................................

Recommended Receivers (

PNP) 16 ............................................................................

AMA National Model Aircraft Safety Code 17 ...........................................................

Limited Warranty ...............................................................................................18

Warranty and Service Contact Information 18 .........................................................

FCC Information 19 .................................................................................................

IC Information 19 ....................................................................................................

Compliance Information for the European Union 19 .................................................

To receive product updates, special offers and more,

RECEIVER BIND INFORMATION

Channels 6

Frequency 2404 – 2476 MHz

Compatibility DSM2 and DSMX

As of this printing, you may be required to register with the FAA

if you own this product.

For up-to-date information on how to register with the FAA,

please visit https://registermyuas.faa.gov/.

For additional assistance on regulations and guidance on UAS usage,

visit knowbeforeyouﬂy.org/.

Motor:

Motor 2840- 3150Kv (EFL9787) Installed Installed

Fan Unit:

64mm Ducted Fan Unit (EFL9790) Installed Installed

ESC: 40A Brushless with 230mm Wire (EFLA9891) Installed Installed

Servos: Installed Installed (3; SPMSA330) (1; SPMSA30R) (1; SPMSA354)

Receiver: Spektrum™ AR636B 6-Channel Sport Receiver

(SPMAR636B) Installed Required to

Complete

Recommended Battery: 14.8V 2,200mAh 30C 4S LiPo

with IEC3 or IC3™

connector

Required to

Complete

Required to

Complete

Recommended Battery Charger:

4-cell Li-Po battery balancing charger

Required to

Complete

Required to

Complete

Recommended Transmitter:

Full-Range 2.4GHz with Spektrum

™ DSM2®/DSMX®

technology and adjustable dual rates

Required to

Complete

Required to

Complete

Quick Start Information

Transmitter Setup

1. Blank (Acro) Model

2. Wing Type: Normal

3. Servo Reversing: All Normal

4. Travel Adjust (All Surfaces): 100%

Dual Rates*

High Rate Low Rate

Aileron p = 8mm

q = 8mm

p = 4mm

q = 4mm

Elevator p = 13mm

q = 13mm

p = 7mm

q = 7mm

EXPO

(Soft center)

High Rate Low Rate

Aileron 10% 0%

Elevator 10% 0%

Nose Wheel 30% 10%

Center of Gravity (CG) 90–95mm back from the leading edge, measured at

the wing root

Flight Timer Setting 3 minutes

28.7 in (729mm)
