Strona 1/20

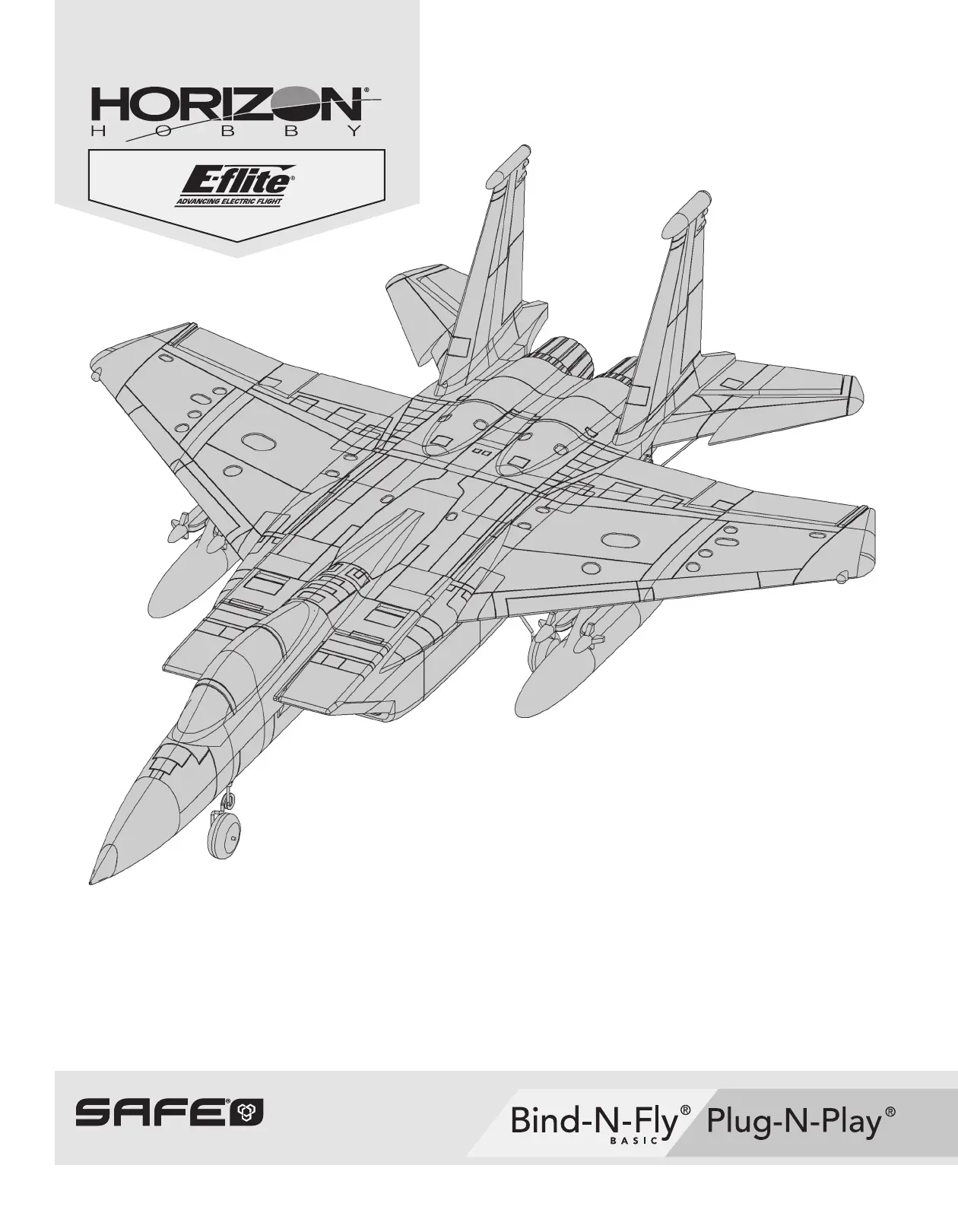

Instruction Manual

Bedienungsanleitung

Manuel d’utilisation

Manuale di Istruzioni

SAFE® Select Technology, Optional Flight Envelope Protection

F-15 Eagle

64mm EDF

2F-15 Eagle 64 mm

As the user of this product, you are solely responsible for operating in a manner that does not endanger yourself and others or result in damage to

the product or the property of others.

• Always keep a safe distance in all directions around your model

to avoid collisions or injury. This model is controlled by a radio

signal subject to interference from many sources outside your

control. Interference can cause momentary loss of control.

• Always operate your model in open spaces away from full-size

vehicles, trafﬁ c and people.

• Always carefully follow the directions and warnings for this and

any optional support equipment (chargers, rechargeable battery

packs, etc.).

• Always keep all chemicals, small parts and anything electrical

out of the reach of children.

• Always avoid water exposure to all equipment not speciﬁ cally

designed and protected for this purpose. Moisture causes

damage to electronics.

• Never place any portion of the model in your mouth as it could

cause serious injury or even death.

• Never operate your model with low transmitter batteries.

• Always keep aircraft in sight and under control.

• Always use fully charged batteries.

• Always keep transmitter powered on while aircraft is powered.

• Always remove batteries before disassembly.

• Always keep moving parts clean.

• Always keep parts dry.

• Always let parts cool after use before touching.

• Always remove batteries after use.

• Always ensure failsafe is properly set before ﬂ ying.

• Never operate aircraft with damaged wiring.

• Never touch moving parts.

NOTICE

All instructions, warranties and other collateral documents are subject to change at the sole discretion of Horizon Hobby, LLC. For up-to-date

product literature, visit www.horizonhobby.com and click on the support tab for this product.

Meaning of Special Language

The following terms are used throughout the product literature to indicate various levels of potential harm when operating this product:

WARNING: Procedures, which if not properly followed, create the probability of property damage, collateral damage, and serious injury OR

create a high probability of superﬁ cial injury.

CAUTION: Procedures, which if not properly followed, create the probability of physical property damage AND a possibility of serious injury.

NOTICE: Procedures, which if not properly followed, create a possibility of physical property damage AND little or no possibility of injury.

WARNING: Read the ENTIRE instruction manual to become familiar with the features of the product before operating. Failure to operate

the product correctly can result in damage to the product, personal property and cause serious injury.

This is a sophisticated hobby product. It must be operated with caution and common sense and requires some basic mechanical ability. Failure

to operate this Product in a safe and responsible manner could result in injury or damage to the product or other property. This product is not

intended for use by children without direct adult supervision. Do not use with incompatible components or alter this product in any way outside

of the instructions provided by Horizon Hobby, LLC. This manual contains instructions for safety, operation and maintenance. It is essential to

read and follow all the instructions and warnings in the manual, prior to assembly, setup or use, in order to operate correctly and avoid damage

or serious injury.

Safety Precautions and Warnings

14+AGE RECOMMENDATION:

Not for children under

14years. This is not a toy.

WARNING AGAINST COUNTERFEIT PRODUCTS: If you ever need to replace your Spektrum

receiver found in a Horizon Hobby product, always purchase from Horizon Hobby, LLC or a

Horizon Hobby authorized dealer to ensure authentic high-quality Spektrum product. Horizon Hobby, LLC

disclaims all support and warranty with regards, but not limited to, compatibility and performance of

counterfeit products or products claiming compatibility with DSM or Spektrum technology.

Safety Precautions and Warnings . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

Box Contents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

Components . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

Table of Contents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

SAFE® Select Technology (BNF Basic) . . . . . . . . . . . . . . . . . . . . . . . . 4

Preﬂ ight . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

Transmitter Setup (BNF Basic) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

Model Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

PNP Receiver Selection and Installation . . . . . . . . . . . . . . . . . . . . . . 8

Transmitter and Receiver Binding / SAFE Select (BNF Basic) . . . . . . . 9

Battery Installation and ESC Arming . . . . . . . . . . . . . . . . . . . . . . . . 10

SAFE® Select Switch Designation . . . . . . . . . . . . . . . . . . . . . . . . . . 10

Clevis Installation and Control Centering . . . . . . . . . . . . . . . . . . . . . 11

Control Horn and Servo Arm Settings . . . . . . . . . . . . . . . . . . . . . . . 11

Center of Gravity (CG) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

Control Surface Direction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

AS3X Control Direction Test (BNF Basic) . . . . . . . . . . . . . . . . . . . . . 12

In Flight Trimming (BNF Basic) . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

Flying Tips and Repairs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

Post Flight . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

Power Components Service . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

Troubleshooting Guide AS3X . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

Troubleshooting Guide . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

AMA National Model Aircraft Safety Code . . . . . . . . . . . . . . . . . . . . 16

Limited Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

Contact Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

FCC Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

IC Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

Compliance Information for the European Union . . . . . . . . . . . . . . . 18

Replacement Parts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 67

Optional parts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 67

If you own this product, you may be required to register with the FAA.

For up-to-date information on how to register with the FAA,

visit https://registermyuas.faa.gov/.

For additional assistance on regulations and guidance on UAS usage,

visit knowbeforeyouﬂ y.org/.

To receive product updates, special offers and more,

visit www.horizonhobby.com/content/e-ﬂ ite-rc

Box Contents

Quick Start Information

Transmitter Setup Set up your transmitter using the

transmitter setup chart

Travel and

Dual Rates

Hi Rate Low Rate

Aileron 15mm 12mm

Elevator 18mm 14mm

Center of Gravity (CG) 88mm +/-3mm back from leading

edge of wing at the fuselage.

Flight Timer Setting

3 minutes

Table of Contents

Components

28.4 in (720 mm)

38.6 in (977mm)

33 – 38 oz

(935 –1077g)

RECEIVER BIND INFORMATION

Channels 6

Frequency 2405 – 2476 MHz

Compatibility DSM2 and DSMX

Motor: Brushless Outrunner

2840-3150 (EFL9787) Installed Installed

ESC: Installed Installed 40A ESC (EFL9791)

Servo: Installed Installed9 gram servo

Receiver: Spektrum™ AR636 6-Channel

Sport Receiver (SPMAR636) Installed

Required

Complete

Recommended Battery: 11.1-14.8V

3S or 4S 2200-2600mAh 30C Li-Po

(EFLB22003S30, EFLB22004S30)

Required

Complete

Required

Complete

Recommended Battery Charger: 3-4

cell Li-Po battery balancing charger

Required

Complete

Required

Complete

Recommended Transmitter:

Full-Range 6 channel (or more) 2.4GHz

with Spektrum

DSM2®/DSMX® technology with

adjustable Dual Rates

Required

Complete

Required

Complete

Specyfikacje produktu

Marka:	E-flite
Kategoria:	zabawka sterowana radiowo
Model:	F-15 Eagle
Kolor produktu:	Blue, Tan, White
Typ produktu:	Myśliwiec
Materiał obudowy:	Ekspandowana poliolefina (EPO)
Waga produktu:	1077 g
Podręcznik użytkownika:	Tak
Ładowarka:	Nie
Silnik:	Bezszczotkowy
Liczba kanałów:	6 kan.
Odbiornik dołączony:	Tak
Liczba baterii:	1
Baterie w zestawie:	Nie
Wymagane baterie:	Tak
Oryginalna nazwa modelu:	F-15 Eagle
Rodzaj konstrukcji:	Sparuj z aparaturą i leć
Rozpiętość skrzydeł:	715 mm
Długość produktu:	980 mm
Rodzaj silnika:	Silnik elektryczny
Montaż wymagany:	Tak
Czas montażu:	60 min
Środek ciężkości (CG):	85 - 90 mm
Elektroniczny kontroler prędkości silnika (ESC):	Tak
Rodzaj elektronicznego kontrolera prędkości silnika (ESC):	Bezszczotkowy
Liczba serw:	5
Rozmiar silnika:	2840-3150
Replica:	Tak
Zalecana bateria:	4S 14.8V 2200mAh 30+C Li-Po
Serwo waga:	9 g
