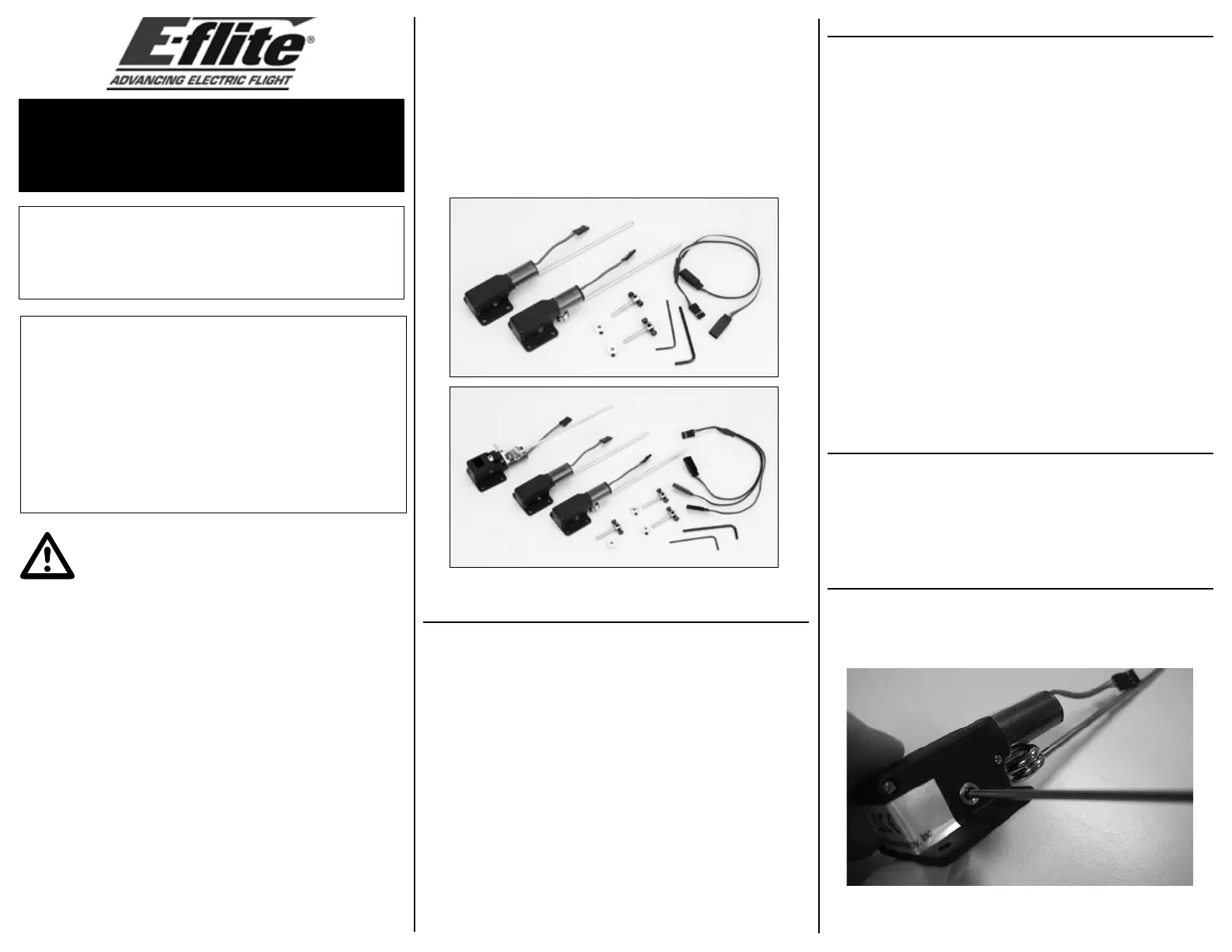

Note: The EFLG230 tricycle gear set comes
with (1) 90° nose gear and (2) 90° main units.
Parts Available
Tools Required
NOTICE
Installation
EFLG200, EFLG210, EFLG220
EFLG230
15- to 25-Size
Electric Retract
Instructions
All instructions, warranties and other collateral documents are
subject to change at the sole discretion of Horizon Hobby, Inc.
For up-to-date product literature, visit http://www.horizonhobby.
com and click on the support tab for this product.
Meaning of Special Language:
The following terms are used throughout the product
literature to indicate various levels of potential harm when
operating this product:
WARNING: Procedures, which if not properly followed,
create the probability of property damage, collateral
damage, and serious injury OR create a high probability
of supercial injury.
WARNING: Read the ENTIRE instruction manual
to become familiar with the features of the
product before operating. Failure to operate the
product correctly can result in damage to the product,
personal property and cause serious injury.
This is a sophisticated hobby product and NOT a toy. It must be
operated with caution and common sense and requires some
basic mechanical ability. Failure to operate this Product in a
safe and responsible manner could result in injury or damage to
the product or other property. This product is not intended for
use by children without direct adult supervision. Do not attempt
disassembly, use with incompatible components or augment
product in any way without the approval of Horizon Hobby, Inc.
This manual contains instructions for safety, operation and main-
tenance. It is essential to read and follow all the instructions and
warnings in the manual, prior to assembly, setup or use, in order
to operate correctly and avoid damage or serious injury.
Thank you for purchasing the E-ite ® 15- to 25-Size Electric
Retracts. These self-contained units are powered from your
model’s receiver and do not require separate servos.
The retracts are supplied with coil struts installed, plus
adjustable axles, wheel collars, Allen wrenches and a 3-into-1
wire harness (for the tricycle set) or 2-into-1 wire harness (for
main gear set). The nose gear unit is steerable and has a slot in
the sliding steering arm to prevent binding of the steering cable
when retracted.
EFLG20190 90-degree Main Retract Unit
EFLG20185 85-degree Main Retract Unit
EFLG201100L 100-degree Left Rotating Main Unit
EFLG201100R 100-degree Right Rotating Main Unit
EFLG202 Left Main Wire Strut
EFLG203 Right Main Wire Strut
EFLG204 Adjustable Axles
EFLRYH9 Dual Plug Y-harness
EFLG21190 90-degree Nose Retract Unit
EFLG211105 105-degree Nose Retract Unit
EFLG2112 Nose Gear Wire Strut
EFLG2113 Nose Gear Steering Arm
EFLRY9HTR Triple Plug Y-harness
Specications
Current draw
Idle 5mA
Operating 200mA (maximum)
Pulse width trigger points
Down 1.331ms
Up 1.690ms
Operation with FM and DSM
FM 22ms frame rate, 5V signal
DSM 20ms frame rate, 3.3V signal
Sequence time
@ 4.8V 1.25sec
@ 6.0V 1.00sec
@ 7.4V 0.75sec
Operating voltage range: 4.8 – 7.4V
Aircraft weight: 4.0 - 7.0 lb (1.80 – 3.20 kg)
Unit weight: Nose gear 1.7 oz (48.0 g)
Main gear 1.4 oz (39.5 g) each
Pencil Screwdriver
Flat le Threadlock
Safety glasses Rotary tool with cutoff wheel
1.5mm, 2mm, 2.5mm hex wrenches
1. Use a 1.5mm hex wrench to remove the setscrew retaining
the strut in each main gear trunnion. Apply threadlock to the
setscrew and reinstall it.
Nosegear Steering
2. Test t the retract unit in the wing or fuselage to determine
the strut length and axle location. Cut the strut to length using
a cutoff wheel in a rotary tool.
4. Install the wheels on the axles. Slide the brass wheel collar
onto the axle and secure it using a 1.5mm hex wrench. Apply
threadlock to the setscrew to prevent it loosening due to
vibration.
6. Install the retracts in the model using the screws provided
with the kit or those of your own choice. A #4 x 1/2-inch wood
screw works well. You will nd the main units require the use
of a 100-degree countersunk woodscrew while the nose unit
requires a button head woodscrew.
Connect the steering pushrod clevis to the steering arm on
the nosegear.
5. Mark the retract mounting hole locations on the rails using
a pencil and drill appropriately sized holes for the hardware
you intend to use.
3. Make two at spots on the end of the strut with a le and
use a 2.5mm hex wrench to secure the axle to the strut. Apply
threadlock to the threads of the retaining screws so they do
not loosen from vibration.
Radio Connections and Operation
Warranty and Repair Policy
1. Plug the connector from each of the retract units into the
3-into-1 wire harness supplied with the retracts.
2. Plug the single lead from the wire harness into the gear
channel of your receiver. An auxiliary channel can be used if
the gear channel is occupied.
3. Before operating the retracts in the model for the rst time
check that there are no obstructions in the wheel wells that
could impede operation of the gear.
4. Turn on your transmitter and receiver. Use the gear or other
assigned switch to activate the landing gear and check that it
operates correctly.
5. If the switch direction is opposite of that desired, use the
reversing function in the transmitter to change the retraction
direction.
6. If using a 2.4GHz radio, once you have set the correct
servo direction be sure to rebind the system before ight.
Warranty Period
Exclusive Warranty- Horizon Hobby, Inc., (Horizon) warranties
that the Products purchased (the “Product”) will be free from
defects in materials and workmanship at the date of purchase
by the Purchaser.
Limited Warranty
Horizon reserves the right to change or modify this
warranty without notice and disclaims all other warranties,
express or implied.
(a) This warranty is limited to the original Purchaser (“Purchaser”)
and is not transferable. REPAIR OR REPLACEMENT AS
PROVIDED UNDER THIS WARRANTY IS THE EXCLUSIVE
REMEDY OF THE PURCHASER. This warranty covers only
those Products purchased from an authorized Horizon dealer.
Third party transactions are not covered by this warranty. Proof
of purchase is required for all warranty claims.
(b) Limitations- HORIZON MAKES NO WARRANTY OR
REPRESENTATION, EXPRESS OR IMPLIED, ABOUT
NON-INFRINGEMENT, MERCHANTABILITY OR FITNESS
FOR A PARTICULAR PURPOSE OF THE PRODUCT. THE
PURCHASER ACKNOWLEDGES THAT THEY ALONE
HAVE DETERMINED THAT THE PRODUCT WILL
SUITABLY MEET THE REQUIREMENTS OF THE
PURCHASER’S INTENDED USE.
(c) Purchaser Remedy- Horizon’s sole obligation hereunder
shall be that Horizon will, at its option, (i) repair or (ii) replace,
any Product determined by Horizon to be defective. In the event
of a defect, these are the Purchaser’s exclusive remedies.
Horizon reserves the right to inspect any and all equipment
involved in a warranty claim. Repair or replacement decisions
are at the sole discretion of Horizon. This warranty does not
cover cosmetic damage or damage due to acts of God, accident,
misuse, abuse, negligence, commercial use, or modication of
or to any part of the Product. This warranty does not cover
damage due to improper installation, operation, maintenance, or
attempted repair by anyone other than Horizon. Return of any
Product by Purchaser must be approved in writing by Horizon
before shipment.
Damage Limits
HORIZON SHALL NOT BE LIABLE FOR SPECIAL, INDIRECT
OR CONSEQUENTIAL DAMAGES, LOSS OF PROFITS
OR PRODUCTION OR COMMERCIAL LOSS IN ANY WAY
CONNECTED WITH THE PRODUCT, WHETHER SUCH CLAIM
IS BASED IN CONTRACT, WARRANTY, NEGLIGENCE, OR
STRICT LIABILITY. Further, in no event shall the liability of
Horizon exceed the individual price of the Product on which
liability is asserted. As Horizon has no control over use, setup,
nal assembly, modication or misuse, no liability shall be
assumed nor accepted for any resulting damage or injury.
By the act of use, setup or assembly, the user accepts all
resulting liability.
If you as the Purchaser or user are not prepared to accept the
liability associated with the use of this Product, you are advised
to return this Product immediately in new and unused condition
to the place of purchase.
Law: These Terms are governed by Illinois law (without regard
to conict of law principals).
WARRANTY SERVICES
Questions, Assistance, and Repairs
Your local hobby store and/or place of purchase cannot provide
warranty support or repair. Once assembly, setup or use of the
Product has been started, you must contact Horizon directly.
This will enable Horizon to better answer your questions and
service you in the event that you may need any assistance.
For questions or assistance, please direct your email to
productsupport@horizonhobby.com, or call 877.504.0233
toll free to speak to a Product Support representative. You may
also nd information on our website at www.horizonhobby.com.
