Strona 1/22

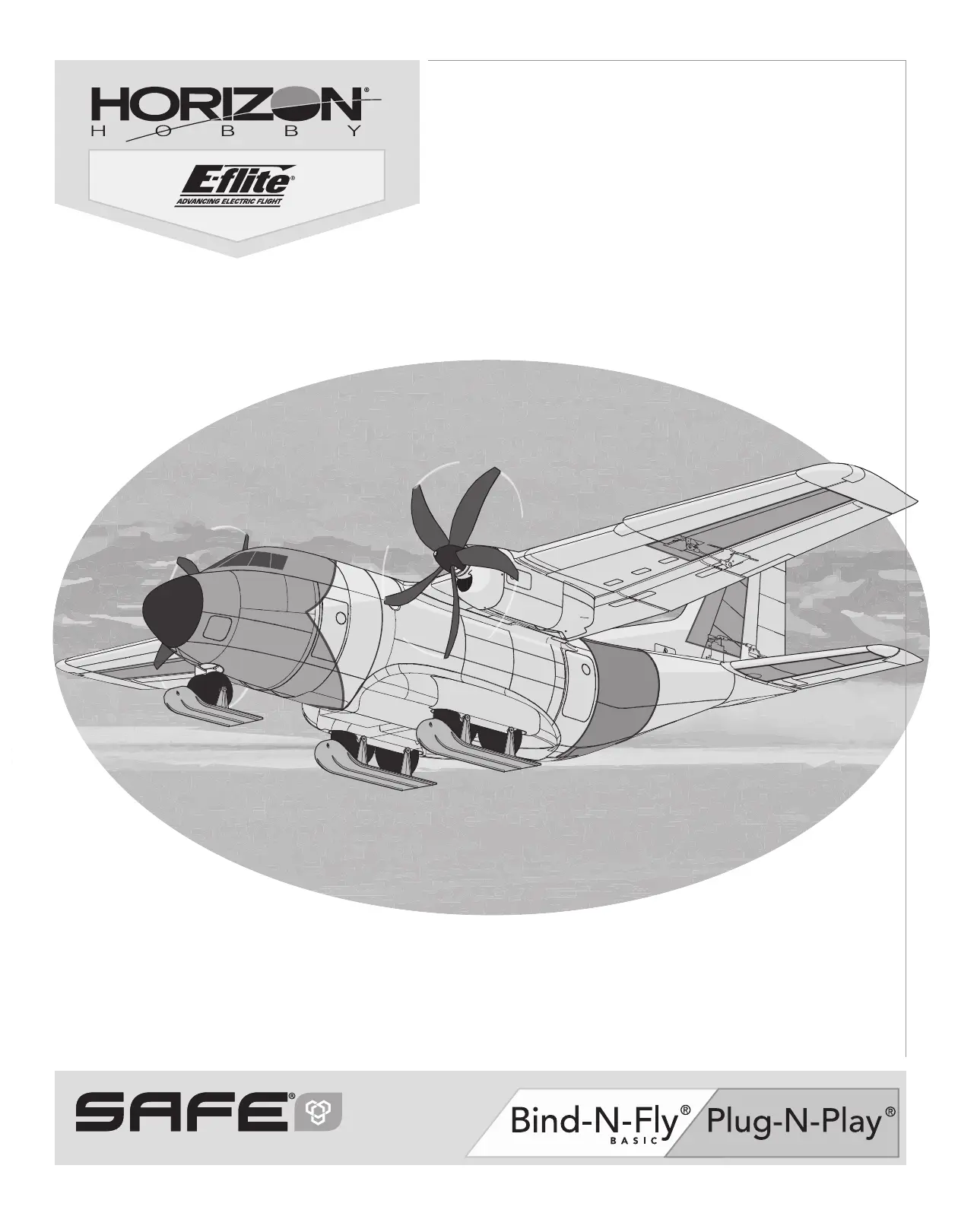

Instruction Manual

Bedienungsanleitung

Manuel d’utilisation

Manuale di Istruzioni

SAFE® Select Technology, Optional Flight Envelope Protection

EC-1500 1.5m

2EC-1500 1.5m

As the user of this product, you are solely responsible for operating in a manner that does not endanger yourself and others or result in damage to the product or the property of others.

• Always keep a safe distance in all directions around your model to avoid

collisions or injury. This model is controlled by a radio signal subject to

interference from many sources outside your control. Interference can cause

momentary loss of control.

• Always operate your model in open spaces away from full-size vehicles,

trafﬁ c and people.

• Always carefully follow the directions and warnings for this and any optional

support equipment (chargers, rechargeable battery packs, etc.).

• Always keep all chemicals, small parts and anything electrical out of the

reach of children.

• Always avoid water exposure to all equipment not speciﬁ cally designed and

protected for this purpose. Moisture causes damage to electronics.

• Never place any portion of the model in your mouth as it could cause serious

injury or even death.

• Never operate your model with low transmitter batteries.

• Always keep aircraft in sight and under control.

• Always use fully charged batteries.

• Always keep transmitter powered on while aircraft is powered.

• Always remove batteries before disassembly.

• Always keep moving parts clean.

• Always keep parts dry.

• Always let parts cool after use before touching.

• Always remove batteries after use.

• Always ensure failsafe is properly set before ﬂ ying.

• Never operate aircraft with damaged wiring.

• Never touch moving parts.

NOTICE

All instructions, warranties and other collateral documents are subject to change at the sole discretion of Horizon Hobby, LLC. For up-to-date product

literature, visit www.horizonhobby.com or www.towerhobbies.com and click on the support or resources tab for this product.

Meaning of Special Language:

The following terms are used throughout the product literature to indicate various levels of potential harm when operating this product:

WARNING: Procedures, which if not properly followed, create the probability of property damage, collateral damage, and serious injury OR create a high probability of

superﬁ cial injury.

CAUTION: Procedures, which if not properly followed, create the probability of physical property damage AND a possibility of serious injury.

NOTICE: Procedures, which if not properly followed, create a possibility of physical property damage AND little or no possibility of injury.

WARNING: Read the ENTIRE instruction manual to become familiar with the features of the product before operating. Failure to operate the product correctly

can result in damage to the product, personal property and cause serious injury.

This is a sophisticated hobby product. It must be operated with caution and common sense and requires some basic mechanical ability. Failure to operate this Product

in a safe and responsible manner could result in injury or damage to the product or other property. This product is not intended for use by children without direct adult

supervision. Do not use with incompatible components or alter this product in any way outside of the instructions provided by Horizon Hobby, LLC. This manual contains

instructions for safety, operation and maintenance. It is essential to read and follow all the instructions and warnings in the manual, prior to assembly, setup or use, in

order to operate correctly and avoid damage or serious injury.

Safety Precautions and Warnings

14+AGE RECOMMENDATION:

Not for children under 14

years. This is not a toy.

WARNING AGAINST COUNTERFEIT PRODUCTS: If you ever need to replace your Spektrum receiver found in a

Horizon Hobby product, always purchase from Horizon Hobby, LLC or a Horizon Hobby authorized dealer to ensure

authentic high-quality Spektrum product. Horizon Hobby, LLC disclaims all support and warranty with regards, but not

limited to, compatibility and performance of counterfeit products or products claiming compatibility with DSM or

Spektrum technology.

Quick Start Information

Transmitter

Setup

Set up your transmitter using the

transmitter setup chart

Dual Rates

Low Rate Hi Rate

Ail 20mm 30mm

Ele 20mm 25mm

Rud 25mm 40mm

Flaps Half

=15mm

Full

=35mm

Center of Gravity

(CG)

65-75mm back from leading edge

of wing at the fuselage.

Flight Timer

Setting 5 minutes

Motors: 15BL Brushless outrunner

650Kv ( )EFLM15650 Installed Installed

ESCs: 40 AMP Brushless ESC

EFL7250EC, EFLA950 BEC Installed Installed

Servos:

9 gram servos; 7 x metal gear,

1 x plastic gear

(6 x SPMSA332), (1 x SPMSA332R),

(1 x SPMSA370R)

Installed Installed

Receiver: Spektrum™ AR636B

6-Channel Sport Receiver

(SPMAR636)

Installed Required to

Complete

Recommended Battery:

11.1V–14.8V 3S–4S 4000–5000mAh

30C Li-Po

(EFLB40003S30 – EFLB50004S30)

Required to

Complete

Required to

Complete

Recommended Battery Charger:

3 or 4-cell Li-Po battery balancing

charger

Required to

Complete

Required to

Complete

Recommended Transmitter:

Full-Range 6 channel 2.4GHz with

Spektrum DSMX® technology with

adjustable Dual Rates.

Required to

Complete

Required to

Complete

Box Contents

Table of Contents

89-99 oz

(2.5-2.8 Kg)

46.9 in (1190mm)

(60.1 in 1527mm)

Speciﬁ cations

562.1 sq/in

(36.3 sq/dm)

SAFE® Select Technology (BNF Basic) ..........................................................4

Preﬂ ight .......................................................................................................4

Model Assembly ..........................................................................................4

Receiver Installation (PNP) ...........................................................................6

Cargo Door Operation ..................................................................................6

Transmitter Setup (BNF) ...............................................................................7

Battery Installation and ESC Arming .............................................................8

Center of Gravity .........................................................................................8

SAFE® Select Switch Designation ...............................................................10

AS3X Control Direction Test (BNF) .............................................................12

In Flight Trimming (BNF) .............................................................................12

Flying Tips and Repairs ..............................................................................13

SAFE Select Flying Tips ..............................................................................13

Post Flight .................................................................................................14

Motor Service ............................................................................................14

Troubleshooting Guide AS3X ......................................................................14

Troubleshooting Guide ...............................................................................15

Ski Installation (Optional) ...................................................................................16

Camera Mounts (Optional)..........................................................................16

Float Installation (Optional, ﬂ oats not included) ...........................................17

Flying Off Water .........................................................................................17

Limited Warranty .......................................................................................20

Contact Information ...................................................................................20

FCC Information .........................................................................................21

IC Information ............................................................................................21

Compliance Information for the European Union .........................................21

To receive product updates, special offers and more,

As of this printing, you may be required to register with the FAA

if you own this product.

For up-to-date information on how to register with the FAA,

please visit https://registermyuas.faa.gov/.

For additional assistance on regulations and guidance on UAS usage,

visit knowbeforeyouﬂ y.org/.

RECEIVER BIND INFORMATION (BNF)

Channels 6

Frequency 2405–2476 MHz

Compatibility DSM2 and DSMX

Specyfikacje produktu

Marka:	E-flite
Kategoria:	zabawka sterowana radiowo
Model:	EC-1500 Twin
Kolor produktu:	Black, Grey, Orange, White
Typ produktu:	Samolot
Waga produktu:	2800 g
Podręcznik użytkownika:	Tak
Ładowarka:	Nie
Silnik:	Bezszczotkowy
Liczba kanałów:	6 kan.
Odbiornik dołączony:	Tak
Liczba baterii:	1
Baterie w zestawie:	Nie
Sugerowana płeć:	Chłopak, dziewczyna
Wymagane baterie:	Tak
Rodzaj konstrukcji:	Sparuj z aparaturą i leć
Rozpiętość skrzydeł:	1524 mm
Przystosowane do użytku na zewnątrz:	Tak
Długość produktu:	1190 mm
Rodzaj silnika:	Silnik elektryczny
Środek ciężkości (CG):	65 - 75 mm
Elektroniczny kontroler prędkości silnika (ESC):	Tak
Rodzaj elektronicznego kontrolera prędkości silnika (ESC):	Bezszczotkowy
Liczba serw:	8
Rozmiar silnika:	15
Powierzchnia skrzydeł:	3626.4 cm²
Zalecana bateria:	3200–6400mAh 3S; 4S 11.1–14.8V Li-Po
Serwo waga:	9 g
