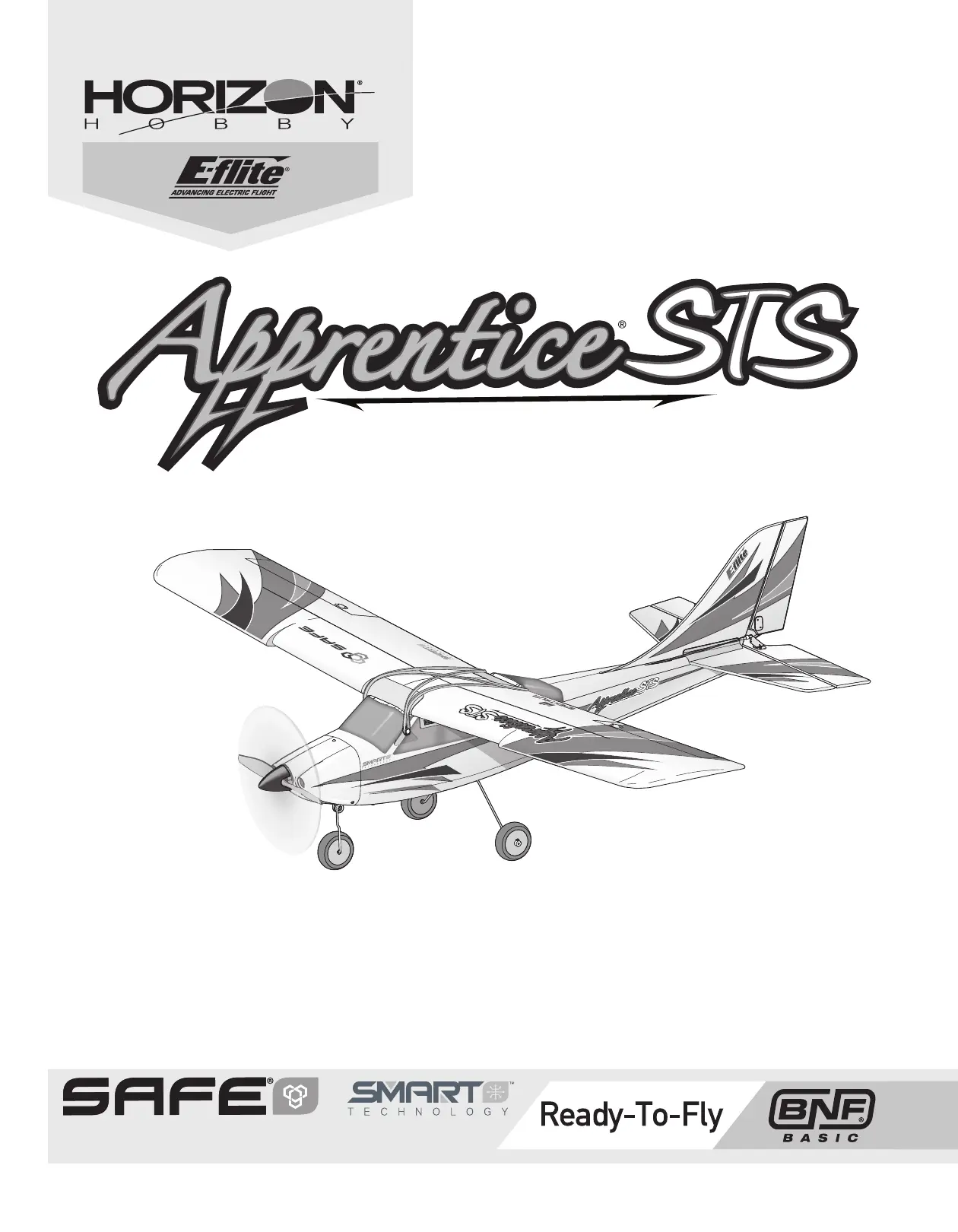

Instruction Manual

Bedienungsanleitung

Manuel d’utilisation

Manuale di Istruzioni

SAFE® Select Technology, Optional Flight Envelope Protection

Apprentice STS

Safety Precautions and Warnings

AGE RECOMMENDATION: Not for children under 14 years. This is not a toy.

As the user of this product, you are solely responsible for operating in a manner that does not endanger yourself and others or result in damage to the product or the property of others.

• Always keep a safe distance in all directions around your model

to avoid collisions or injury. This model is controlled by a radio

signal subject to interference from many sources outside your

control. Interference can cause momentary loss of control.

• Always operate your model in open spaces away

from full-size vehicles, trafﬁ c and people.

• Always carefully follow the directions and warnings for this and any

optional support equipment (chargers, rechargeable battery packs, etc.).

• Always keep all chemicals, small parts and anything

electrical out of the reach of children.

• Always avoid water exposure to all equipment not speciﬁ cally designed

and protected for this purpose. Moisture causes damage to electronics.

• Never place any portion of the model in your mouth as

it could cause serious injury or even death.

• Never operate your model with low transmitter batteries.

• Always keep aircraft in sight and under control.

• Always use fully charged batteries.

• Always keep transmitter powered on while aircraft is powered.

• Always remove batteries before disassembly.

• Always keep moving parts clean.

• Always keep parts dry.

• Always let parts cool after use before touching.

• Always remove batteries after use.

• Always ensure failsafe is properly set before ﬂ ying.

• Never operate aircraft with damaged wiring.

• Never touch moving parts.

NOTICE

All instructions, warranties and other collateral documents are subject to change at the sole discretion of Horizon Hobby, LLC. For up-to-date product literature, visit

www.horizonhobby.com or towerhobbies.com and click on the support or resources tab for this product.

MEANING OF SPECIAL LANGUAGE:

The following terms are used throughout the product literature to indicate various levels of potential harm when operating this product:

WARNING: Procedures, which if not properly followed, create the probability of property damage, collateral damage, and serious injury OR create a high probability of

superﬁ cial injury.

CAUTION: Procedures, which if not properly followed, create the probability of physical property damage AND a possibility of serious injury.

NOTICE: Procedures, which if not properly followed, create a possibility of physical property damage AND little or no possibility of injury.

WARNING: Read the ENTIRE instruction manual to become familiar with the features of the product before operating. Failure to operate the product correctly can

result in damage to the product, personal property and cause serious injury.

This is a sophisticated hobby product. It must be operated with caution and common sense and requires some basic mechanical ability. Failure to operate this Product

in a safe and responsible manner could result in injury or damage to the product or other property. This product is not intended for use by children without direct adult

supervision. Do not use with incompatible components or alter this product in any way outside of the instructions provided by Horizon Hobby, LLC. This manual contains

instructions for safety, operation and maintenance. It is essential to read and follow all the instructions and warnings in the manual, prior to assembly, setup or use, in

order to operate correctly and avoid damage or serious injury.

14+

WARNING AGAINST COUNTERFEIT PRODUCTS: If you ever need to replace your Spektrum receiver found in a Horizon Hobby product, always purchase from

Horizon Hobby, LLC or a Horizon Hobby authorized dealer to ensure authentic high-quality Spektrum product. Horizon Hobby, LLC disclaims all support and

warranty with regards, but not limited to, compatibility and performance of counterfeit products or products claiming compatibility with DSM or Spektrum technology.

Table of ContentsSpeciﬁ cations

If you own this product, you may be required to register with the FAA. For up-to-

date information on how to register with the FAA, please visit

https://registermyuas.faa.gov/. For additional assistance on regulations and

guidance on UAS usage, visit knowbeforeyouﬂ y.org/.

From the box to the air (No LAS or GPS Module) .....................................................4

Charger Warnings ..................................................................................................4

Charge the Flight Battery .......................................................................................5

Transmitter ............................................................................................................6

Transmitter Setup (BNF) .........................................................................................7

Dual Rates .............................................................................................................7

Assemble the Aircraft .............................................................................................8

Transmitter and Receiver Binding .........................................................................10

Flight Battery Installation, SAFE system and Electronic

Speed Control (ESC) Arming .................................................................................11

Center of Gravity (CG) ..........................................................................................11

Control Direction Test ...........................................................................................12

Choose a Flying Field ...........................................................................................12

Range Test ...........................................................................................................13

Install the Propeller ..............................................................................................14

Flying ..................................................................................................................15

Landing ...............................................................................................................20

Water Takeoff and Landing Using the Optional Float Set .......................................20

Post Flight............................................................................................................20

Factory settings for the Control Horns and Servo Arms .........................................21

BNF Transmitter Setup .........................................................................................21

AS3X® System Trouble Shooting Guide (without GPS) ...........................................22

Troubleshooting Guide (without GPS) ....................................................................22

Optional Landing Assist Sensor (LAS) Upgrade .....................................................23

Optional SAFE+ GPS Upgrade ..............................................................................24

LED Indications ....................................................................................................32

Service and Repairs .............................................................................................33

Replacement Parts ...............................................................................................34

Recommended Parts ............................................................................................34

Optional Parts ......................................................................................................34

AMA National Model Aircraft Safety Code .............................................................35

Limited Warranty .................................................................................................36

Warranty and Service Contact Information ...........................................................36

FCC Information ...................................................................................................37

IC Information ......................................................................................................37

Compliance Information for the European Union ...................................................37

Box Contents

Motor:

840Kv Brushless Outrunner

(EFLM7450)

Included Included

ESC: 30-Amp Smart ESC; Apprentice STS (EFLA1030FB) Installed Installed

Servos: (4) 37g Standard Servo (EFLR7150)

(2) 13g Digital MG Micro Servo (EFLR7155) Installed Installed

Receiver: Spektrum™

DSMX SRXL2™

Receiver w/

Connector Installed (SPM4650C) Installed Installed

Recommended Battery: 3200mAh 11.1V 3S Smart

IC3™ 30C Li-Po (SPMX32003S30) Included Required

Recommended Battery Charger:

3-cell Li-Po battery balancing charger Included Required

Recommended Transmitter:

Full-Range 2.4GHz with Spektrum

™ DSM2®/DSMX®

technology with programmable mixing and adjustable dual

rates

Included Required to

Complete

49.0 oz

(1390 g)

42.5 inches (1080mm)

59.0 inches (1500mm)

515 in²

(33.2 dm²)

RECEIVER BIND INFORMATION

Channels 6

Frequency 2404 – 2476 MHz

Compatibility DSM2 and DSMX

Specyfikacje produktu

Marka:	E-flite
Kategoria:	zabawka sterowana radiowo
Model:	Apprentice STS
Kolor produktu:	Wielobarwny
Typ produktu:	Samolot
Waga produktu:	1390 g
W zestawie pilot zdalnego sterowania:	Tak
Podręcznik użytkownika:	Tak
Pojemność baterii:	3200 mAh
Ładowarka:	Tak
Silnik:	Bezszczotkowy
Odbiornik dołączony:	Tak
Rodzaj baterii:	Li-Po
Liczba baterii:	1
Baterie w zestawie:	Tak
Wymagane baterie:	Tak
Rodzaj konstrukcji:	Sparuj z aparaturą i leć
Rozpiętość skrzydeł:	1500 mm
Napięcie baterii:	11.1 V
Długość produktu:	1080 mm
Czas lotu:	5 min
Rodzaj silnika:	Silnik elektryczny
Montaż wymagany:	Tak
Czas montażu:	60 min
Środek ciężkości (CG):	79 mm
Elektroniczny kontroler prędkości silnika (ESC):	Tak
Rodzaj elektronicznego kontrolera prędkości silnika (ESC):	Bezszczotkowy
Liczba serw:	6
Rozmiar silnika:	840kV
Powierzchnia skrzydeł:	3320 cm²
