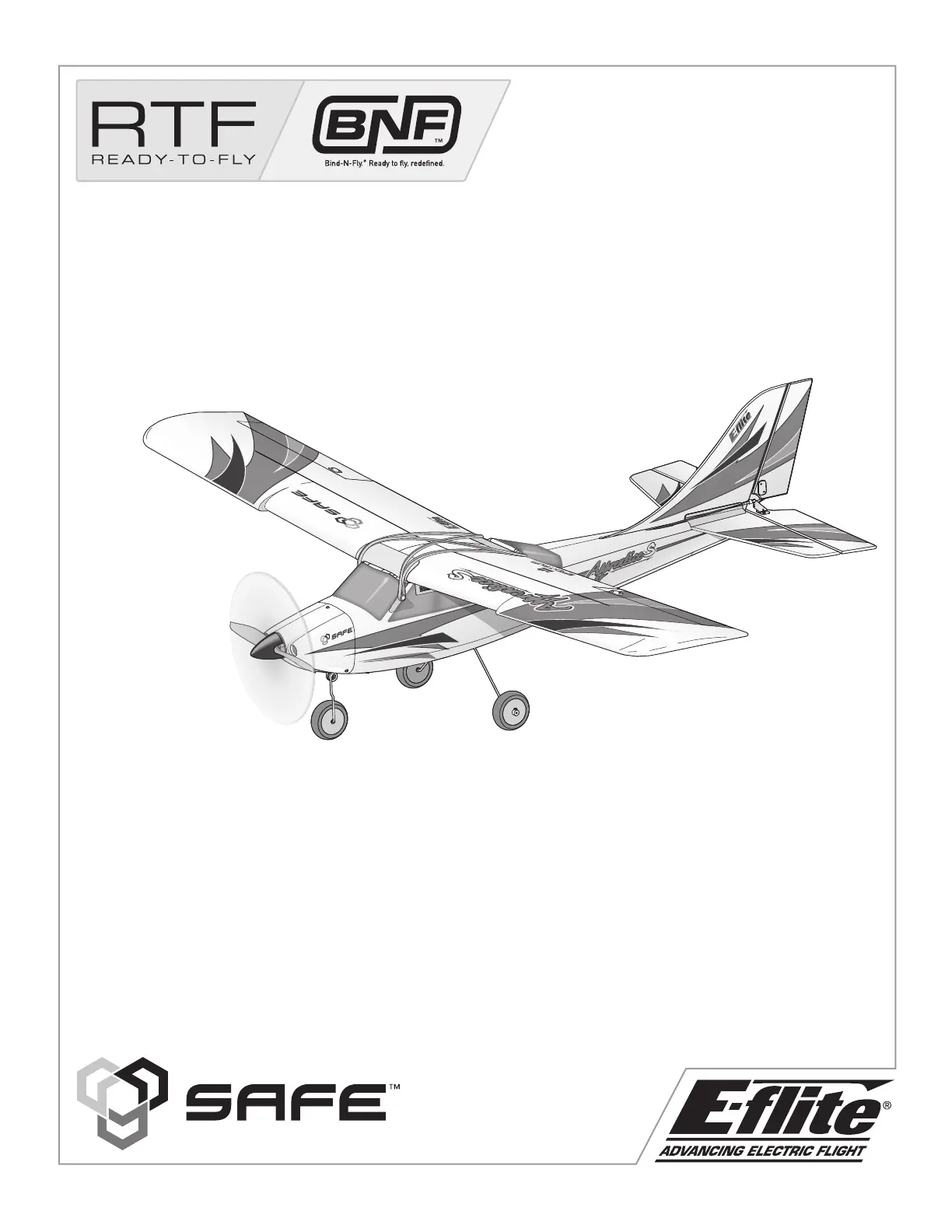

Apprentice® S 15e

Instruction Manual

Bedienungsanleitung

Manuel d’utilisation

Manuale di Istruzioni

WARNING: Read the ENTIRE instruction manual to become familiar with the features of the product before operating. Failure to operate the product

correctly can result in damage to the product, personal property and cause serious injury.

This is a sophisticated hobby product. It must be operated with caution and common sense and requires some basic mechanical ability. Failure to operate this

Product in a safe and responsible manner could result in injury or damage to the product or other property. This product is not intended for use by children

without direct adult supervision. Do not use with incompatible components or alter this product in any way outside of the instructions provided by Horizon Hobby,

Inc. This manual contains instructions for safety, operation and maintenance. It is essential to read and follow all the instructions and warnings in the manual,

prior to assembly, setup or use, in order to operate correctly and avoid damage or serious injury.

NOTICE

All instructions, warranties and other collateral documents are subject to change at the sole discretion of Horizon Hobby, Inc. For up-to-date product

literature, visit www.horizonhobby.com and click on the support tab for this product.

Meaning of Special Language:

The following terms are used throughout the product literature to indicate various levels of potential harm when operating this product:

NOTICE: Procedures, which if not properly followed, create a possibility of physical property damage AND little or no possibility of injury.

CAUTION: Procedures, which if not properly followed, create the probability of physical property damage AND a possibility of serious injury.

WARNING: Procedures, which if not properly followed, create the probability of property damage, collateral damage, and serious injury OR create a high

probability of superﬁcial injury.

Age Recommendation: Not for children under 14 years. This is not a toy.

Safety Precautions and Warnings

As the user of this product, you are solely responsible for operating in a manner

that does not endanger yourself and others or result in damage to the product

or the property of others.

• Always keep a safe distance in all directions around your model to avoid

collisions or injury. This model is controlled by a radio signal subject to

interference from many sources outside your control. Interference can cause

momentary loss of control.

• Always operate your model in open spaces away from full-size vehicles,

trafﬁc and people.

• Always carefully follow the directions and warnings for this and any optional

support equipment (chargers, rechargeable battery packs, etc.).

• Always keep all chemicals, small parts and anything electrical out of the

reach of children.

• Always avoid water exposure to all equipment not speciﬁcally designed and

protected for this purpose. Moisture causes damage to electronics.

• Never place any portion of the model in your mouth as it could cause serious

injury or even death.

• Never operate your model with low transmitter batteries.

• Always keep aircraft in sight and under control.

• Always use fully charged batteries.

• Always keep transmitter powered on while aircraft is powered.

• Always remove batteries before disassembly.

• Always keep moving parts clean.

• Always keep parts dry.

• Always let parts cool after use before touching.

• Always remove batteries after use.

• Always ensure failsafe is properly set before ﬂying.

• Never operate aircraft with damaged wiring.

• Never touch moving parts.

• By handling, charging or using the included Li-Po battery, you assume all

risks associated with lithium batteries.

• If at any time the battery begins to balloon or swell, discontinue use

immediately. If charging or discharging, discontinue and disconnect.

Continuing to use, charge or discharge a battery that is ballooning or

swelling can result in ﬁre.

• Always store the battery at room temperature in a dry area for best results.

• Always transport or temporarily store the battery in a temperature range

of 40–120º F (5–49º C). Do not store battery or aircraft in a car or direct

sunlight. If stored in a hot car, the battery can be damaged or even catch

ﬁre.

• Always charge batteries away from ﬂammable materials.

• Always inspect the battery before charging and never charge damaged

batteries.

• Always disconnect the battery after charging, and let the charger cool

between charges.

• Always constantly monitor the temperature of the battery pack while

charging.

• ONLY USE A CHARGER SPECIFICALLY DESIGNED TO CHARGE LI-PO

BATTERIES. Failure to charge the battery with a compatible charger may

cause ﬁre resulting in personal injury and/or property damage.

• Never discharge Li-Po cells to below 3V under load.

• Never cover warning labels with hook and loop strips.

• Never leave charging batteries unattended.

• Never charge batteries outside recommended levels.

• Never attempt to dismantle or alter the charger.

• Never allow minors to charge battery packs.

• Never charge batteries in extremely hot or cold places (recommended

between 40–120° F or 5–49° C) or place in direct sunlight.

The Battery Charger included with your aircraft is designed to safely balance and charge the Li-Po battery.

CAUTION: All instructions and warnings must be followed exactly. Mishandling of Li-Po batteries can result in a ﬁre, personal injury, and/or property damage.

Charging Warnings

To register your product online, visit www.e-ﬂiterc.com

Introduction

Table of Contents

Box Contents

49.0 oz

(1390 g)

42.5 inches (1080mm)

59.0 inches (1500mm)

840Kv Brushless Outrunner (EFLM7215) Installed Installed

30-Amp Pro Switch-Mode BEC Brushless

ESC (V2) (EFLA1030B) Installed Installed

13 g Digital Micro Servo (EFLR7155) and

37 g Standard Servo (EFLR7150) Installed Installed

Apprentice S (SAFE RX) (EFLR310013) Installed Installed

3S 3200mAh Li-Po battery (EFLB32003S) Included Included

DC powered 2S–3S balancing fast char-

ger (EFLC3010) Included Included

Spektrum DX5e with batteries (SPMR5510,

SPMR55101 (MD1)) Included Needed to

Complete

515 in²

(33.2 dm²)

Speciﬁcations

Charging the Flight Battery 4 ........................................................................

Landing Gear Installation 5 ...........................................................................

Tail Installation 5 ...........................................................................................

Wing Installation 6 ........................................................................................

Sensor Assisted Flight Envelope (SAFE) Technology 7 ....................................

Transmitter 9 ................................................................................................

Transmitter and Receiver Binding 10 .............................................................

Flight Battery Installation, SAFE system/ESC Arming 11 ................................

LVC (Low Voltage Cutoff) 11 ..........................................................................

Control Horn and Servo Arm Settings 12 ......................................................

Center of Gravity (CG) Veriﬁcation 12 ............................................................

Control Direction Test ............................................................................... 13

Flight Control 14 ...........................................................................................

Flight Training ..........................................................................................15

Flight Trimming ........................................................................................ 16

Range Check 17 ...........................................................................................

Flying Tips ...............................................................................................17

Takeoff 18 ....................................................................................................

Flying 19 ......................................................................................................

Landing 19 ...................................................................................................

Post Flight................................................................................................20

Service and Repairs 20 .................................................................................

Service of Power Components 21 .................................................................

Propeller Maintenance 21 .............................................................................

Water Takeoff and Landing Using the Optional Float Set 22 ...........................

Receiver Setup 22 ........................................................................................

Optional Transmitter Setup ....................................................................... 23

Buddy Box Setup 23 .....................................................................................

AMA National Model Aircraft Safety Code 24 .................................................

Troubleshooting Guide for SAFE Technology 25 .............................................

Troubleshooting Guide 26 .............................................................................

Limited Warranty .....................................................................................27

Contact Information 28 .................................................................................

FCC Information 28 .......................................................................................

Compliance Information for the European Union 28 .......................................

Parts Contact Information 107 ......................................................................

Replacement Parts 108 .................................................................................

Optional Parts 108 ........................................................................................

Congratulations on choosing the E-ﬂite

® Apprentice® S 15e airplane. Within

your grasp is the most intelligent RC airplane ever offered by Horizon

Hobby. Based on the renowned original Apprentice model, at its heart is

groundbreaking SAFE™ (Sensor Assisted Flight Envelope) technology that

makes learning to ﬂy RC easier than ever and more fun for the experienced

pilot too. That’s because SAFE technology makes the complexity of model

aircraft spatial awareness possible so that you get the innovative beneﬁt of

ﬂight envelope protection, smooth ﬂight performance and more.

Multiple levels of ﬂight envelope protection allow you to reduce or remove

assistance features from the transmitter instantly so your skills can progress

more quickly. In addition, a “panic” feature is always ready to instantly return

your model to level ﬂight if you ever loose orientation.

Patented Z-Foam™ construction of the Apprentice S offers durability beyond

comparison. SpektrumTM DSMX® radio technology means that you get the

assurance of an interference-free 2.4GHz signal for industry-leading command.

Because great control is more fun with power, count on the installed E-ﬂite

electronics and power system to deliver crisp response of your transmitter

commands, and the performance to make it more fun.

All you have to do next is read and apply the information presented in this

instruction manual. Once you’ve learned the basics of RC ﬂight, feel free to

enjoy this aircraft to learn more advanced maneuvers. You can also consider

ﬂying from a lake or pond by installing the optional Apprentice S Float Set

(EFLA550), available separately.

Includes
