Instrukcja obsługi Blustream HMXL42ARC-KIT
Przeczytaj poniżej 📖 instrukcję obsługi w języku polskim dla Blustream HMXL42ARC-KIT (27 stron) w kategorii router. Ta instrukcja była pomocna dla 3 osób i została oceniona przez 2 użytkowników na średnio 4.5 gwiazdek
Strona 1/27

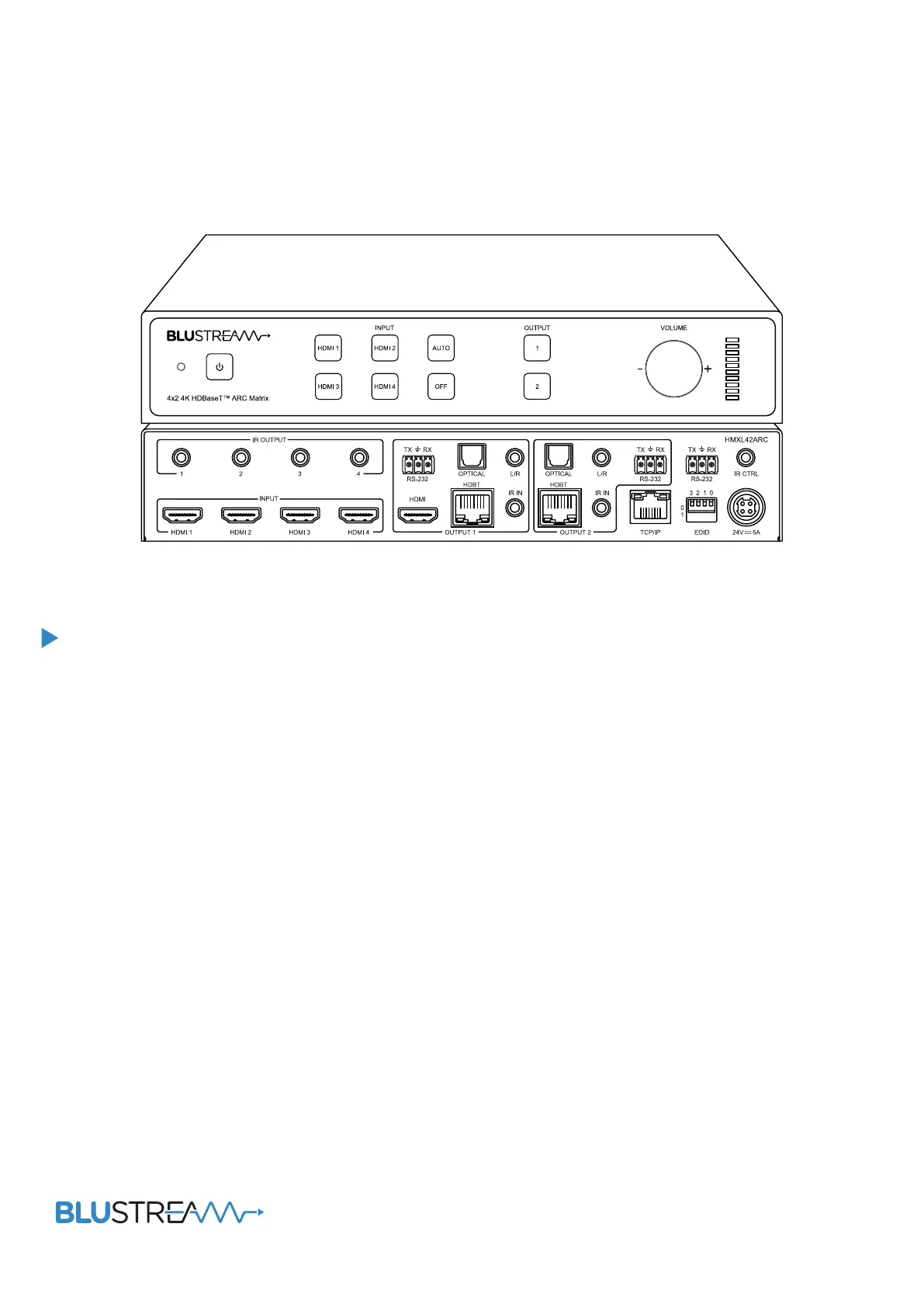

HMXL42ARC-KIT
User Manual
REVA3_HMXL42ARC-KIT_User_Manual
HMXL42ARC-KIT USER MANUAL
www.blustream.com.au | www.blustream-us.com | www.blustream.co.uk02
Surge Protection Device
Recommended
This product contains sensitive
electrical components that may be
damaged by electrical spikes, surges,
electric shock, lightning strikes, etc.
Use of surge protection systems is
highly recommended in order to
protect and extend the life of your
equipment.
Contents
Thank you for purchasing
this product.
For optimum performance and safety,
please read these instructions care-
fully before connecting, operating or
adjusting this product. Please keep this
manual for future reference.
Introduction 03
Features 03
Front Panel Description 04
Rear Panel Description 04
EDID Management 05
Front Panel Menu System 06
HDBaseT™ Receiver Compatibility 06
Power Over Cable 06
Terminating CAT Cables for use with HDBT 07
Understanding the HDBaseT™ Status LED’s 07
Infrared (IR) Control 08
CEC Control 08
Audio Return Channel 08
Web GUI Control 08-16
Remote Control Description 17
IR Commands 17-18
Specifications 19
Package Contents 19
Maintenance 19
RS-232 Config & Telnet Commands 20-22
Web-GUI Firmware Update 23-24
Schematic 25
Certifications 26
HMXL42ARC-KIT USER MANUAL
Contact: support@blustream.com.au | support@blustream-us.com | support@blustream.co.uk 03
Our Essential 4x2 HDBaseT™ Matrix oers unprecedented performance and value for the
custom installation market. The HMXL42ARC-KIT is a HDMI2.0 4K60Hz 4:4:4 HDCP2.2 Matrix
package utilising CSC technology to deliver HDMI, Bi-directional IR and PoC up to lengths
of 70m over a single CAT cable.
The Matrix also provides advanced features including simultaneous HDBaseT™/HDMI
on output 1, video Smart Scaling on HDBaseT™ outputs, manual or auto source
selection, Independent Audio Matrix and a web browser interface module for control and
configuration of the Matrix. The HMXL42CS-KIT is supplied with 2 x RX70CS HDBaseT™
receivers.
Introduction
FEATURES:
• Advanced HDBaseT™ technology oering distribution of video and audio over a single CAT cable
• Advanced Colour Space Conversion (CSC) supports HDMI 2.0 18Gbps specification including HDR*
• Features 4 x HDMI inputs which can be independently routed to 2 x HDBaseT™ outputs
• Output 1 features simultaneous HDMI and HDBaseT™ output
• Video Smart Scaling on HDBaseT™ outputs allowing a display only capable of supporting lower video resolutions (4K 60Hz
4:2:0 or 1080p) to receive 4K 60Hz 4:4:4 video content while still showing maximum original 4K UHD resolution on remaining
video outputs
• Supports 4K 60Hz 4:4:4 UHD video up to 40m, and 1080p video up to 70m
• 8x2 Audio Matrix independently controllable from video. Audio source inputs include:
- 4 x audio breakout from HDMI source inputs
- 2 x audio breakout from zone outputs
- 2 x ARC from zone outputs
• Supports all known HDMI audio formats including Dolby TrueHD, Dolby Atmos, Dolby Digital Plus and DTS-HD Master Audio
transmission
• Web interface module for control and configuration of Matrix
• Supports bi-directional IR and RS-232 on all HDBaseT™ outputs
• Control via front panel, IR, iOS / Android App, RS-232 and TCP/IP
• Supports PoC (Power over Cable) to power compatible HDBaseT™ receivers
• Advanced EDID management and HDCP 2.2 compliant
• Supplied with 2 x RX70CS HDBaseT™ Receivers*
• Supplied with Blustream IR receivers and emitters
* PoC, CSC & ARC features compatible with RX70CS only
