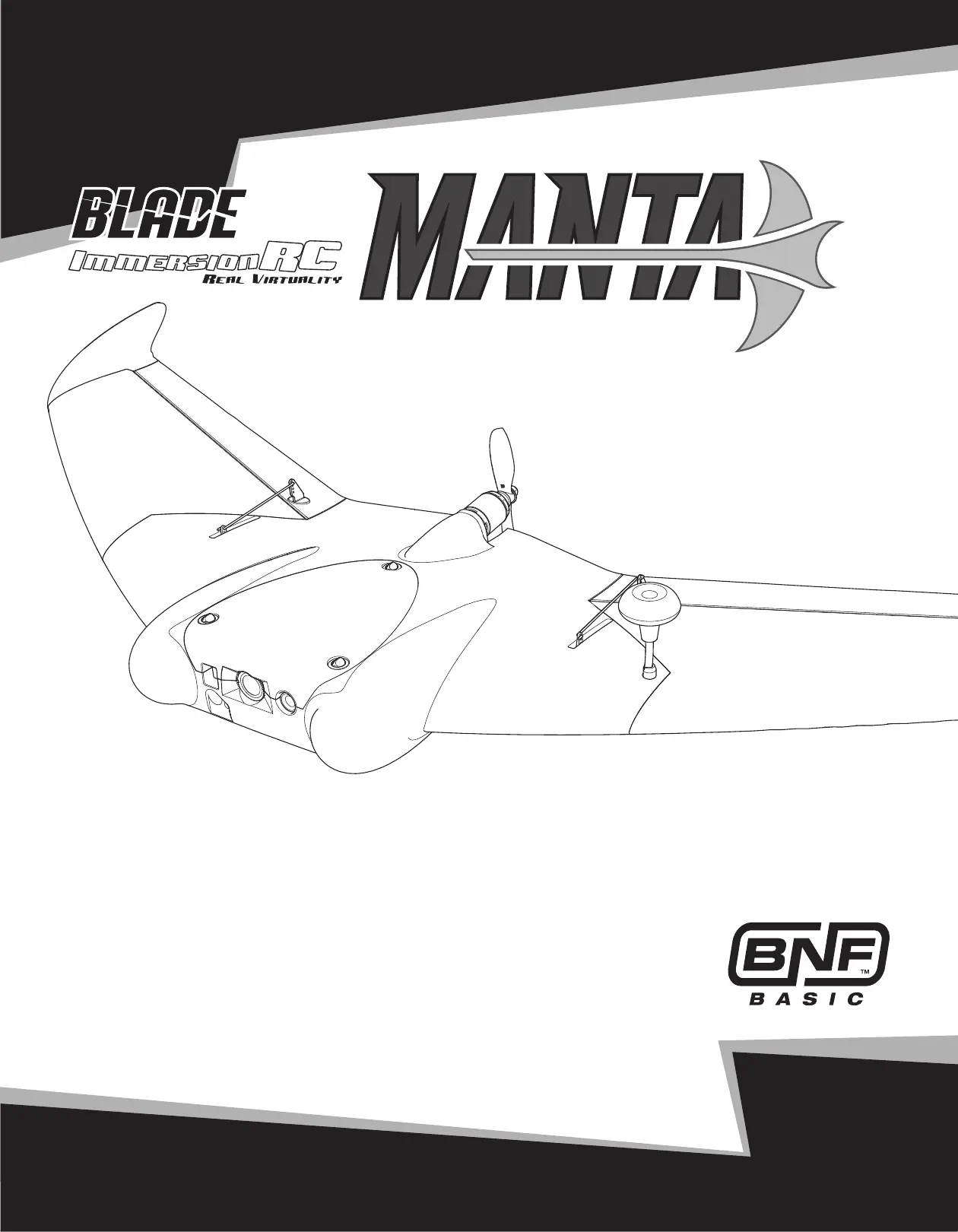

Instruction Manual

Bedienungsanleitung

Manuel d’utilisation

Manuale di Istruzioni

• Always keep a safe distance in all directions around your model to avoid

collisions or injury. This model is controlled by a radio signal subject to

interference from many sources outside your control. Interference can

cause momentary loss of control.

• Always operate your model in open spaces away from full-size vehicles,

trafﬁ c and people.

• Always carefully follow the directions and warnings for this and any optional

support equipment (chargers, rechargeable battery packs, etc.).

• Always keep all chemicals, small parts and anything electrical out of the

reach of children.

• Always avoid water exposure to all equipment not speciﬁ cally designed and

protected for this purpose. Moisture causes damage to electronics.

• Never place any portion of the model in your mouth as it could cause serious

injury or even death.

• Never operate your model with low transmitter batteries.

• Always keep aircraft in sight and under control.

• Always move the throttle fully down at rotor strike.

• Always use fully charged batteries.

• Always keep transmitter powered on while aircraft is powered.

• Always remove batteries before disassembly.

• Always keep moving parts clean.

• Always keep parts dry.

• Always let parts cool after use before touching.

• Always remove batteries after use.

• Never operate aircraft with damaged wiring.

• Never touch moving parts.

Age Recommendation: Not for children under 14 years. This is not a toy.

WARNING AGAINST COUNTERFEIT PRODUCTS: If you ever need to replace a Spektrum component found in a Horizon Hobby product, always purchase from

Horizon Hobby, LLC or a Horizon Hobby authorized dealer to ensure authentic high-quality Spektrum product. Horizon Hobby, LLC disclaims all support and

warranty with regards, but not limited to, compatibility and performance of counterfeit products or products claiming compatibility with DSM or Spektrum technology.

WARNING: Read the ENTIRE instruction manual to become familiar with the features of the product before operating. Failure to operate the product correctly

can result in damage to the product, personal property and cause serious injury.

This is a sophisticated hobby product. It must be operated with caution and common sense and requires some basic mechanical ability. Failure to operate this Product

in a safe and responsible manner could result in injury or damage to the product or other property. This product is not intended for use by children without direct

adult supervision. Do not use with incompatible components or alter this product in any way outside of the instructions provided by Horizon Hobby, LLC. This manual

contains instructions for safety, operation and maintenance. It is essential to read and follow all the instructions and warnings in the manual, prior to assembly, setup or

use, in order to operate correctly and avoid damage or serious injury.

The following terms are used throughout the product literature to indicate various levels of potential harm when operating this product:

NOTICE: Procedures, which if not properly followed, create a possibility of physical property damage AND a little or no possibility of injury.

CAUTION: Procedures, which if not properly followed, create the probability of physical property damage AND a possibility of serious injury.

WARNING: Procedures, which if not properly followed, create the probability of property damage, collateral damage, and serious injury OR create a high probability of

superﬁ cial injury.

NOTICE

All instructions, warranties and other collateral documents are subject to change at the sole discretion of Horizon Hobby, LLC. For up-to-date product literature, visit

horizonhobby.com and click on the support tab for this product.

Meaning of Special Language

Safety Precautions and Warnings

As of this printing, you are required to register with the FAA if you own this product.

For up-to-date information on how to register with the FAA, please visit https://registermyuas.faa.gov/.

For additional assistance on regulations and guidance on UAS usage, visit knowbeforeyouﬂ y.org/.

If you are operating this product in North America, you are required to have an Amateur Radio (HAM) license. Visit www.arrl.org for more information.

3EN

Box Contents:

• Manta FPV Wing

-C enter section with electronic components installed

-Right and left wing panels

-Main spar

-2 leading edge spars

-2 pushrods with clevises

-Motor mounting plate

-Standard up-swept wingtips

-Optional ﬂ at wingtips

-Video antenna support

-Propeller adapter

-2 5.5 x 4.5 propellers

-3 decal sheets

Needed to Complete:

• CA, Epoxy or Polyurethane adhesive

• Battery (3S, 2100mAh or 4S,

1300-1800mAh LiPo)

• LiPo compatible charger

• Propeller

(6 x 4 for 3S setup, 5.5 x 4.5 for 4S setup)

• DSM2®/DSMX® compatible,

full range transmitter

• 5.8GHz FPV headset

Wingspan

43 in (670mm)

Length

19.5 in (215mm)

Flying Weight

25.4 oz (850 g)

Speciﬁ cations

To receive product updates, special offers and more, register your product at www.bladehelis.com.

Table of Contents

First Flight Preparation .......................................................................................4

Flying Checklist ..................................................................................................4

Assembly ........................................................................................................... 4

Transmitter Setup ..............................................................................................7

Flight Battery Installation and ESC Arming ..........................................................7

Transmitter and Receiver Binding .......................................................................7

Control Surface Centering ..................................................................................8

AS3X® Control Direction Test ..............................................................................8

Install the Propeller ............................................................................................8

Balance the Airframe ..........................................................................................8

Flying the Manta ................................................................................................9

Post-Flight Inspection and Maintenance .............................................................9

Changing Video Transmitter Frequency .............................................................10

AS3X Troubleshooting Guide .............................................................................10

Troubleshooting Guide ......................................................................................10

Parts List..........................................................................................................11

Optional Parts List ............................................................................................11

Limited Warranty ..............................................................................................12

Warranty and Service Contact Information ........................................................12

FCC Information ...............................................................................................13

IC Information ..................................................................................................13

Compliance Information for the European Union ...............................................13

Specyfikacje produktu

Marka:	Blade
Kategoria:	zabawka sterowana radiowo
Model:	Manta
Kolor produktu:	Biały
Typ produktu:	Samolot sterowany radiowo (RC)
Wysokość produktu:	495.3 mm
Waga produktu:	720.1 g
Pojemność baterii:	1500 mAh
Technologia baterii:	Litowo-polimerowy (LiPo)
Ładowarka:	Nie
Wymagane baterie:	Tak
Oryginalna nazwa modelu:	FPV Manta BNF Basic
Rodzaj konstrukcji:	Sparuj z aparaturą i leć
Rozpiętość skrzydeł:	1092.2 mm
Waga (łącznie z baterią):	720.1 g
Długość produktu:	495.3 mm
Łatwy w użyciu:	Tak
Liczba wirników:	2 wirn.
Rodzaj silnika:	Silnik elektryczny
Montaż wymagany:	Tak
Powierzchnia skrzydeł:	218 cm²
Replica:	Nie
Czas unoszenia się (max):	180 min
Czas unoszenia się (min):	60 min
