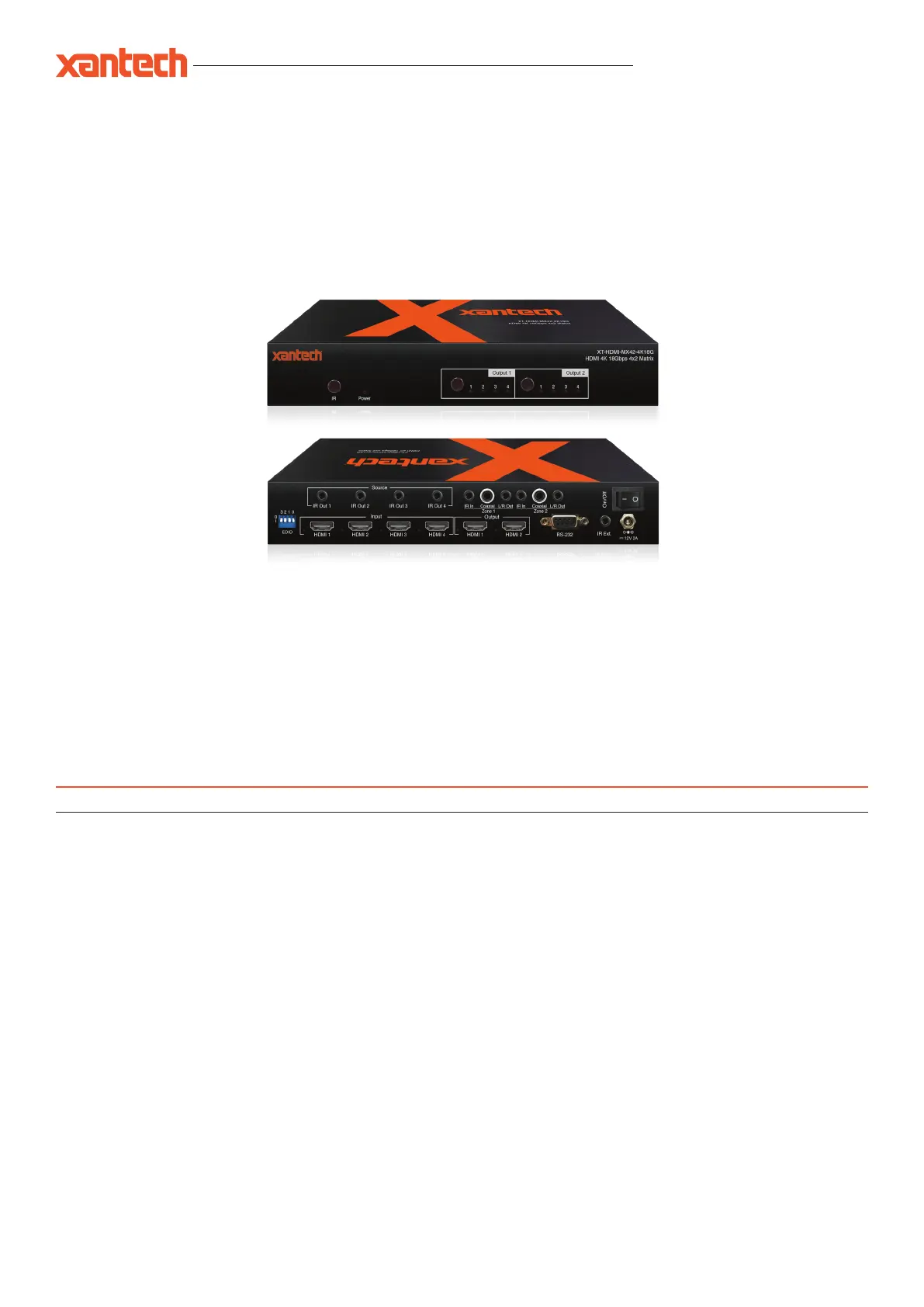

XT-HDMI-MX42-4K18G USER MANUAL
10019358 REV-A0
®
© 2018 XANTECH® is a registered trademark of Nortek Security & Control.
User Manual
XT-HDMI-MX42-4K18G
Our XT-HDMI-MX42-4K18G 4K HDMI matrix features HDMI 2.0 chipsets with HDCP 2.2 support, allowing distribution of four HDMI sources to two
displays. The unit transmits all HDMI resolutions up to and including 4K 60Hz 4:4:4. The matrix also includes advanced features such as RS-232
for control and configuration of the matrix, bi-directional IR routing, audio breakout and EDID management.
Introduction
Key Features
• Features 4x HDMI inputs which can be independently routed to 2x HDMI outputs
• Supports 4K UHD video (up to 4K @60Hz 4:4:4)
• Supports all known HDMI audio formats including Dolby TrueHD, Dolby Atmos, Dolby Digital Plus and DTS-HD Master Audio Transmission
• Bi-directional IR from all input and output locations
• HDMI audio breakout via analog L/R audio and coaxial digital outputs concurrently
• Advanced EDID management
• HDCP 2.2
XT-HDMI-MX42-4K18G USER MANUAL
www.xantech.com
®
Panel Description
Front Panel
IR receiver window for matrix control
Power LED indicator
HDMI output selection buttons 1-2. Press to scroll through source inputs per HDMI output
1
2
3
1 2
Rear Panel
IR input - 3.5mm stereo jack provides zone specific routed IR
receiver input
IR output - 3.5mm mono jack provides routed IR emitter
output for discrete control of sources
Coaxial digital audio output - RCA (SPDIF)
Analog L/R audio output - 3.5mm stereo audio jack,
Supports 2 channel PCM only
Power on/off switch
EDID DIP switch - Used to manage the video and audio
resolution output by the connected source device.
HDMI inputs - connect to HDMI source devices
HDMI outputs - connect to HDMI display devices
RS-232 Serial port - For control of switcher by third party control
devices
IR input for matrix control
Power port - Use included 12V/2A DC power adaptor
4
7
9
14139
510
10 12
8
11
3
4
11
6 7
6
8
12
13
14
5
IR Power
Output 1 Output 2
1 2 3 4 1 2 3 4
XT-HDMI-MX42-4K18G
HDMI 4K 18Gbps 4x2 Matrix
On/Off
3 2
EDID
1
1
0
0
12V 2A
IR Ext.
RS-232HDMI 1
IR Out 1 IR Out 2 IR Out 3 IR Out 4 IR In L/R OutCoaxial
HDMI 2
Input
Source
HDMI 3 HDMI 4 HDMI 1 HDMI 2
Output
Zone 1
IR In L/R OutCoaxial
Zone 2
OUTPUT AND INPUT SELECTION
A Selects the zone OUTPUT you wish to change the source on (Numbers 1 - 2 correspond to
the zone outputs 1 - 2)
B Selects the source INPUT you wish to change on the selected zone (Numbers 1 - 4
correspond to the source inputs 1 - 4)
EXAMPLE: To switch source 2 to zone 1 you would press 1 in the output section (A) followed
by pressing 2 in the Input section (B).
ALL button: The all button selects all the inputs or outputs in its corresponding box.
Example: (The “All” button in the Output box selects all the zones so all zones will change to
what source input is selected next)
PTP: This button will align all the zone outputs with the like numbered source inputs. Example:
Input 1 to output 1, input 2 to output 2, etc
Remote Control Description
XT-HDMI-MX42-4K18G USER MANUAL
10019358 REV-A0
®
© 2018 XANTECH® is a registered trademark of Nortek Security & Control.
EDID
3 2 1 0
0
1
EDID (Extended Display Identification Data) is a data structure that is used between a display and a source. This data is used by the source to find
out what audio and video resolutions are supported by the display, from this information the source will discover what the best audio and video
resolutions need to be outputted.
While the objective of EDID is to make connecting a digital display to a source a simple plug and play procedure, issues do arise when multiple
displays or video matrix switching is introduced because of the increased number of variables.
By pre-determining the video resolution and audio format of the sources and display device you can reduce the time needed for EDID hand shaking
thus making switching quicker and more reliable.
Configuration of EDID settings can be achieved using the product dip-switches on the XT-MX42-4K18G. EDID dip-switch settings are shown below.
Note: You must power cycle the product after making EDID changes. For some sources it may be necessary to power cycle the source after EDID
changes have been made for the source to update its video & audio output settings.
Adjusting The EDID Settings
[DIP]=0000: HDMI 1080p@60Hz, Audio 2ch PCM
[DIP]=0001: HDMI 1080p@60Hz, Audio 5.1ch PCM/DTS/DOLBY
[DIP]=0010: HDMI 1080p@60Hz, Audio 7.1ch PCM/DTS/DOLBY/HD
[DIP]=0011: HDMI 1080i@60Hz, Audio 2ch PCM
[DIP]=0100: HDMI 1080i@60Hz, Audio 5.1ch PCM/DTS/DOLBY
[DIP]=0101: HDMI 1080i@60Hz, Audio 7.1ch PCM/DTS/DOLBY/HD
[DIP]=0110: HDMI 4K@60Hz 4:2:0+4K@30Hz 4:4:4, Audio 2ch PCM
[DIP]=0111: HDMI 4K@60Hz 4:2:0+4K@30Hz 4:4:4, Audio 5.1ch PCM/DTS/DOLBY
[DIP]=1000: HDMI 4K@60Hz 4:2:0+4K@30Hz 4:4:4, Audio 7.1ch PCM/DTS/DOLBY/HD
[DIP]=1001: HDMI 4K@60Hz 4:4:4, Audio 2ch PCM
[DIP]=1010: HDMI 4K@60Hz 4:4:4, Audio 5.1ch PCM/DTS/DOLBY
[DIP]=1011: HDMI 4K@60Hz 4:4:4, Audio 7.1ch PCM/DTS/DOLBY/HD
[DIP]=1100: DVI 1280x1024@60Hz, Audio None
[DIP]=1101: DVI 1920x1080@60Hz, Audio None
[DIP]=1110: DVI 1920x1200@60Hz, Audio None
[DIP]=1111: Software Control EDID
EDID Dip-switches
Dip-switch position ‘0’ = Off
Dip-switch position ‘1’ = On
Audio Breakout
The matrix includes audio breakout from the selected HDMI input to associated analogue L/R audio and coaxial digital outputs.
Extracted audio will be concurrent with the corresponding HDMI video output.
1. Coaxial digital output
2. Analogue fixed line level output 3.5mm stereo jack. Note:
supports 2 channel PCM only
1 2
IR In L/R OutCoaxial
Zone 1
IR In L/R OutCoaxial
Zone 2
