IR Receivers
1
172-94
XTRA LINK® 2
REMOTE CONTROL EXTENSION SYSTEM
INSTALLATION INSTRUCTIONS
The Xtra Link 2 system provides full remote control operation of a satellite receiver, cable box or VCR from
a second room by sharing the coaxial cable connecting your video equipment to this second room’s TV.
The 172-94 Xtra Link 2 consists of the following supplied parts (Fig.1):
1. One 291-00 IR Receiver. It is placed at the remote room location to receive IR signals from the
handheld remote controller.
2. One INJ94 Injector. This unit, located in the Remote
Room, injects the remote control signal into the room-
to-room coaxial cable (along with the TV signal) and
passes it to the CPL94B Coupler in the Main room. It
also provides quick connection of the 291-00 IR Re-
ceiver and 781C-00 Power Supply cables.
3. One CPL94B Coupler. Located in the Main Room,
this Coupler extracts the remote control signal from
the coaxial cable and passes it to the emitters that
control your IR remote controlled audio/video source
components. Two emitter jacks are provided for con-
trol of up to four components.
4. One 282M high output emitter and one 283M Blink-
IRTM emitter. These permit acontrol of two IR remote
controlled components. The visible output of the allows it to also be used for 283M troubleshooting.
5. Two short coaxial cables. One connects the TV signal source to the CPL94B Coupler in the Main
Room. The other connects the INJ94 Injector to the TV in the Remote Room.
6. A 781C-00 Power supply. This plugs into an unswitched 120V AC outlet to provide power to the 291-
00 IR Receiver.
CONNECTIONS:
The Xtra Link system uses the coaxial
cable that carries the TV RF signal from
the source equipment in the main room
to the remote room, to send the IR
control signals back to the source equip-
ment. The coaxial cable may be up to
one mile in length.
If you already have a coaxial cable con-
necting your video equipment with a re-
mote room, your current hookup should
be similar to . If it isn't, run a singleFig. 2
length of RG59 or preferably RG6 cable
from the Main Room to the Remote Room.
NOTE: If RF amplifier(s) are used any-
where in the line of coaxial cable be-
tween the CPL94B Coupler and the INJ94
282M
Mouse Emitter
Coax Jumper Cables
283M
Blink-IR™
Mouse Emitter
INJ94 Injector
+12 V
IR
RCVR
TV INPUT
INJ 94 INJ EC TO R
CPL94B Coupler
EMITTER
REMOTE TVSAT/VCR
C PL9 4B C OU PLER
EMITTER
291-00 IR Receiver
Front View
291-00 IR Receiver
Side View
781C-00
Power Supply

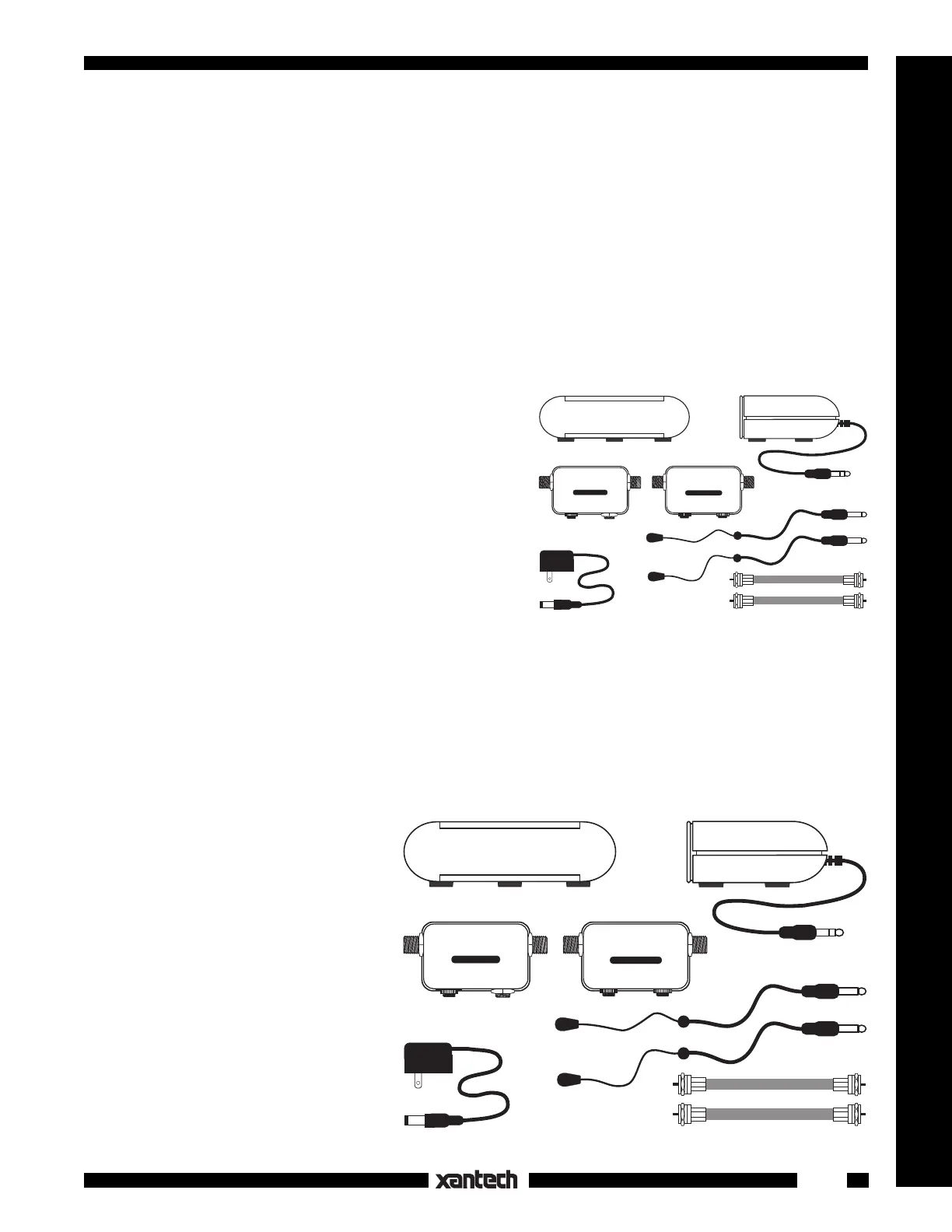

Fig. 1 172-94 Xtra Link 2 System Parts
282M
Mouse Emitter
Coax Jumper Cables
283M
Blink-IR™
Mouse Emitter
INJ94 Injector
+12 V
IR
RCVR
TV INPUT
INJ 94 INJ ECT O R
CPL94B Coupler
EMITTER
REMOTE TVSAT/VCR
CPL94B COUPLER
EMITTER
291-00 IR Receiver
Front View
291-00 IR Receiver
Side View
781C-00
Power Supply
Fig. 2 Basic System Without Xtra Link
2172-94
Injector, you must use a Xantech BYPASS94 KIT to route the IR commands around the amplifier(s).
When using more than one Xtra Link for more rooms, be sure the RF splitters you use are DC passing types,
such as Xantech Models 200-00 (2-way) and 202-00 (4-way). Refer to .Fig. 4
INSTALLING THE 291-00 IR RECEIVER:
Insert the cable mini plug attached to the 291-00 into the jack marked " " on the INJ94 Injector. ReferIR RCVR
to .Fig. 3
Plug the 781C-00 Power Supply cord into the jack marked " " on the INJ94 Injector. Plug the 781C-+12 V
00 into a 120 VAC unswitched outlet after you have made all other connections.
Position the 291-00 IR Receiver so that the infrared beam from the handheld remote control has a direct
view to the front of the unit, within 20 feet.
INSTALLING THE INJ94 INJECTOR:
Connect one of the two short coaxial cables between " " on the INJ94 Injector and "RF IN" on the TV inTV
the Remote Room. Connect the room-to-room cable to " " on the INJ94 Injector.INPUT
Fig. 3 Basic Xtra Link Hookup
REMOTE ROOM
MAIN ROOM
RF IN OUT TO TV
RF IN OUT TO TV
IN
OUT
OUT
Satellite Dish,
Cable, Etc.
Coaxial Cable
SATELLITE
RECEIVER
(Back Panel)
VCR
(Back Panel)
Coaxial Cable
Coaxial Cable
Room-to-Room Coaxial Cable
RF SPLITTER
2-Way
Coaxial Cable
2ND
TV
RF IN
1ST
TV
RF IN
IR Receivers
3
INSTALLING THE CPL94B COUPLER:
Connect the other short coaxial cable between " " on the CPL94B Coupler and the RF splitter.SAT/VCR
Connect the room-to-room cable to " " on the CPL94B Coupler.REMOTE TV
Make the remaining connections from the RF splitter to the "OUT TO TV" on VCR, the RF splitter to the
local TV, etc., as shown in Fig. 3.
NOTE: If your main room TV has A/V input jacks, you may connect the VCR and Satellite Receiver with
A/V patch cords instead of using the RF IN jack on the TV and the RF splitter. Refer to Fig. 3 for typical
connections.
INSTALLING THE IR EMITTERS:
Plug the supplied emitters into the jacks marked " " on the CPL94B. Next, remove the paperEMITTER
backing exposing the adhesive surface of each emitter. Press the adhesive side directly into place over the
center of the infrared sensor "window" on the l of the satellite receiver, VCR, etc.front pane
NOTE: It may not be possible to place emitters on the sensor of some products (such as RCA DSS
receivers). In such cases, use the high output 282M emitter placed close to the sensor or on a nearby shelf,
etc. (within 6 inches).
172-94
Fig. 4 Advanced Multiroom Hookup
282M &
283M
IR Emitters
(included)
1ST TV
RF IN A/V INPUTS
(BACK PANEL)
V LR
MAIN ROOM
RF IN RF OUT
RF IN OUT TO TV
TV SIGNAL PATH
IR REMOTE CONTROL PATH
Hand Held
Remote
REMOTE ROOM
120 V AC
(unswitched)
RF IN
2ND
TV
Satellite Dish
Coaxial Cable
(not included)
Place emitters on
the IR sensor
window on front
panel of each
controlled unit
(see text).
Emitter
SATELLITE
RECEIVER
(Back Panel)
VCR
(Back Panel)
Emitter
IR Sensor Windows
(Front Panel)
Coaxial Cable
(not included)
Coaxial Cable
(included)
Coaxial Cable
(not included)
CPL94B
COUPLER
(included)
Room-to-Room Coaxial Cable
(not included)
291-00 IR
RECEIVER
(included)
Coaxial Cable
(included)
INJ94 INJECTOR
(Included)
781C-00
Power Supply (included)
200-00
RF SPLITTER
2-Way
(not included)
Coaxial Cable
(not included)
A/V OUTPUTS
V LR
IN
OUT
V LR
A/V Patch Cords
(alternative connection - see text, pg 4)
IN
OUT
OUT
EMITTER
REMOTE TVSAT/VCR
CPL94B COUPLER
EMITTER
+12 V
IR
RCVR
TV INPUT
INJ94 INJ ECT OR
