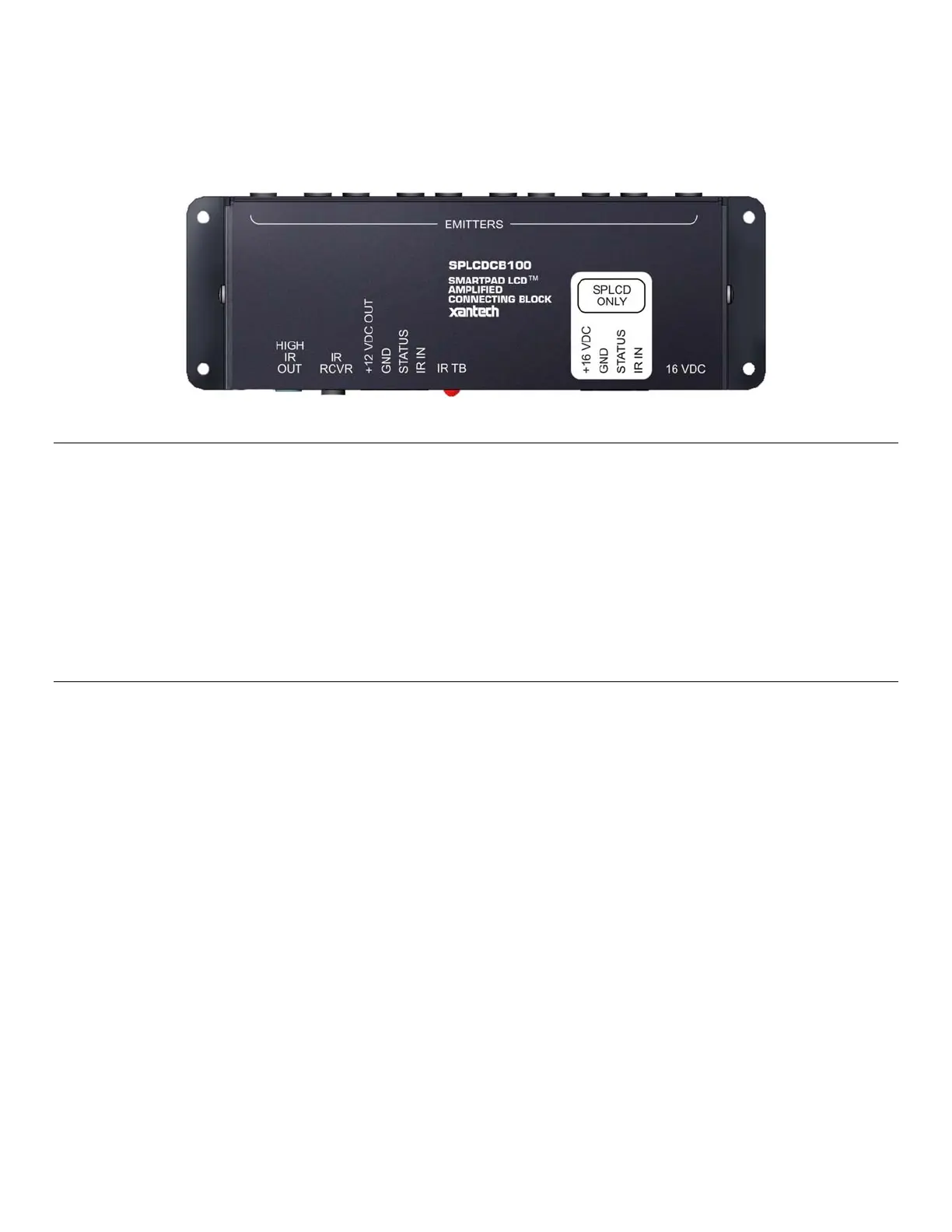

INSTALLATION INSTRUCTIONS
MODEL SPLCDCB100
SmartPad LCD™ Amplified IR Connecting Block
TABLE OF CONTENTS
Table of contents ..................................................................................................................................................1
Introduction...........................................................................................................................................................1
Features:...........................................................................................................................................................1
Specifications:...................................................................................................................................................2
Installation.............................................................................................................................................................2
Power Wiring: ...................................................................................................................................................2
SPLCD IR Wiring: .............................................................................................................................................2
SPLCD Wiring Over CAT5:...............................................................................................................................3
IR Receiver Wiring: ...........................................................................................................................................3
High IR Out Wiring: ...........................................................................................................................................4
INTRODUCTION
The SPLCDCB100 Connecting Block allows any combination of SmartPad LCD™ panels and standard Xantech IR
Receivers to be connected in parallel while providing 10 Amplified Emitter outputs (expandable to 100 Emitter Outputs).
The SPLCDCB100 allows central 16VDC powering (for SmartPad LCD™ panels) and includes a regulated 12VDC
Voltage output for powering all standard X 90, 490-90, and 780-90 Plasma Series). antech IR Receivers (such as the 291-
This enables all devices to be wired back to the head-end for centralized wiring distribution.
The SPLCDCB100 also features 10 amplified emitter outputs to assure proper emitter signal strength allowing for longer
emitter runs (up to 500ft with 18AWG wire). The SPLCDCB100 emitter output can also be expanded using Xantech’s 790-
00 Emitter Expansion Block to accommodate any project.
FEATURES:
Screw-Terminal Connections for Voltage, Status, IR and GND for SmartPad LCD™ Connection
Built-In 12vDC Regulator for powering Xantech IR Receivers
10 Amplified Emitter Outputs for Xantech full line of IR Emitters (282M, 283M, 284M etc..)
3.5mm Quick-Connect Jack for easy IR Receiver Input (also screw-terminal connection for IR Receivers)
High IR OUT for expansion to Xantech 790-00 Connecting Block (Connect up to nine 790-00 for a total of 100-
Emitters)
IR Talk Back LED for system verification
Easily mounts to flat wooden, plastic, or metal surfaces using the included screws.
Page 2 Model SPLCDCB100
SPECIFICATIONS:
Power Input: 16VDC (2.1mm Coaxial Jack)
Power Output: 12VDC (100mA Max)
SmartPad LCD™ Connection: 4-Screw Terminal (16VDC Pass thru, GND, Status, IR Input)
IR Receiver Connection: 3.5mm Quick Connect Stereo Mini Jack & 4-Screw Terminal (12VDC output, GND,
STATUS, IR Input)
Ten IR Emitter Ports (3.5mm Mono Mini Jack)
High IR Output: 1Amp Current Output for expansion to 790-00 Connecting Block (3.5mm Mono Mini Jack)
Dimensions: 6-7/8” L x 2-3/4” W x 15/16” H (175mm L x 70mm W x 24mm H)
SPLCDPS1 16VDC Power Supply (not included) powers one SPLCD and up to four IR Receivers.
SPLCDPS4 16VDC Power Supply (not included) powers up to four SPLCD’s and up to four IR Receivers.
Maximum Emitter Output Current: 12mA
INSTALLATION
POWER WIRING:
1. Connect the 16VDC SPLCDPS1 or SPLCDPS4 power supply to the 2.1mm coaxial power input jack (labeled
16VDC).
2. Plug the AC Adaptor into an un-switched AC Outlet.
SPLCD IR WIRING:
1. Wire 4-Conductor 18AWG from the SPLCD’s IR OUT, GND, STATUS (optional) and +16VDC terminals back to
the appropriate terminals of the SPLCDCB100 Connecting Block. 18AWG can be run in excess of 1000ft. See
Figure 1 for wiring examples.
2. For more than one SPLCD Controller, connect in parallel directly on the 4-screw WECO terminal or use a CB-18
parallel connecting block to neatly combine up to 4-SPLCD controllers (Requires SPLCDPS4 Power Supply).
283M
Blink-IR
Mouse Emitter
283M
Emitter
283M
Emitter
DVD
Satellite Receiver
AV Receiver
SPLCD-CB
Amplified Connecting Block
E M I T T E R S
16 VDC
IR
RCVR
SPLCD-CB
AMPLIFIED
CONNECT ING BLOCK
®
+ 1 2 V D C O UT
G N D
S T AT US
IR IN
HIGH
IR
OUT
SPLCD
ONLY
+ 1 6 V D C
G N D
S T AT US
IR IN
IR TB
S P L C D P S 1
16 V DC P o w er Su p pl y
(To Un - Sw i t c he d A C O u tl et )
SPLCD57G
IR BUSIR IN
ZONE
CONTROLLER EXPANSION SERIAL
GND
IR OUT
+16V IN ONLY
GND
STATUS
IR BUS
+12V OUT
GND
GND
IR IN
+12V IN TO EXPANSION IR RECEIVER ENABLE
TERMINATION
SMARTPAD LCD 5.7
GRAPHIC TOU CHPANEL
IR RECIEVER
CAUTION:
SPLCD ONLY!
DO NOT CONNECT
12V DEVICE
Figure 1 – Basic Connection: Connecting the SmartPad LCD™ Controller to the SPLCDCB100
Caution: Remember, the STATUS output can be either an Input (5-30VDC from remote device) to trigger a
Macro within the SPLCD, give LED indication of a Zones power status, or it can be an OUTPUT (+12VDC from
the SPLCD) to trigger some other ex to note before STATUS wiring is made ternal device. This is important
between the SPLCD and the other device.
© 2004 Xantech Corporation
Model 490-95 Page 3
SPLCD WIRING OVER CAT5:
CAT5 Wire can be used up to approximately 200ft. when wired appropriately (maximum distance may differ
depending upon wiring locations and other outside elements). Follow the appropriate wiring scheme as outlined
below:
1. Twist all four white-stripe wires together on both ends and connect to the GND terminal on both the
SPLCDCB100 and the SPLCD Controller.
2. Twist two solid colored wires together on both ends and connect to the 16VDC terminal on both the
SPLCDCB100 and the SPLCD Controller.
3. Twist the last two solid colored wires together on both ends and connect to terminal labeled IR IN on the
SPLCDCB100 and to the terminal labeled IR BUS on the SPLCD Controller.
Note: If using the STAUTS line, use one of the solid wires in step 3 for STATUS and the other for IR. This will limit
the overall distance to under 200ft.
CAUTION: When using CAT5 always measure the voltage at the rear of the SPLCD across the 16VDC and
GND terminals and confirm the voltage is between 13VDC and 16VDC.
IR RECEIVER WIRING:
1. For IR Receivers with Xantech’s Quick-Connect Stereo Mini Plug, simply plug directly into the 3.5mm IR Receiver
Jack on the SPLCDCB100 connecting block.
2. For all other wiring configurations, connect the 12VDC, GND, STATUS (optional), and IR Output wires to the
appropriate of the SPLCDCB100 Connecting Block.
3. For more than one IR Receiver, connect in parallel directly on the 4-screw WECO terminal or use a CB-18 parallel
connecting block to neatly combine up to 4-IR Receivers.
283M
Blink-IR
Mouse Emitter
283M
Emitter
283M
Emitter
DVD
Satellite Receiver
AV Receiver
SPLCD-CB
Amplified Connecting Block
E M I T T E R S
16 VDC
IR
RCVR
SPLCD-CB
AMPLIFIED
CONNECTING BLOCK
®
+ 1 2 V D C O
UT
G N D
S T AT U S
I R I N
GND
+12V
490-00 Series
Micro Link
IR Receivers
3-Wire
Cable
IR
OUT
GND
+12V
Red
Stripe
3-Wire
Cable
IR
OUT
GND
+12V
480-85
CFL/LCD Friendly
Dinky LinkIR
Receiver
Red
(or white)
Stripe
REMOTE ROOM 1
780-80
CFL-Friendly
J-Box IR Receiver
780-90
Plasma-Friendly
J-Box IR Receiver
REMOTE ROOM 2
REMOTE ROOM 3 REMOTE ROOM 4
GND
IR
OUT
+12V
IR OUT
GND
STAT US
+12V
780-80
IR RECEIVER
®
780-90
IR RECEIVER
®
IR
OUT
IR OUT
GND
STAT US
+12V
HIGH
IR
OUT
SPLCD
ONLY
+ 1 6 V D C
G N D
S T AT U S
I R I N
Hand Held
Remote
291-90
Hidden Link
Plasma-Friendly
IR Receiver
IR TB
S P L C D P S1
1 6 VD C Po wer Su p p ly
( To U n- S wit c h ed A C Ou t l e t)
SPLCD57G
IR BUSIR IN
ZONE
CONTROLLER EXPANSION SERIAL
GND
IR OUT
+16V IN ONLY
GND
STATUS
IR BUS
+12V OUT
GND
GND
IR IN
+12V IN TO EXPANSION IR RECEIVER ENABLE
TERMINATION
SMARTPAD LCD 5.7
GRAPHIC TOUCHPANEL
IR RECIEVER
CAUTION:
SPLCD ONLY!
DO NOT CONNECT
12V DEVICE
Fig. 2 – Advanced Connection: Connecting SmartPad LCD™ and Multiple IR Receivers
© 2004 Xantech Corporation
