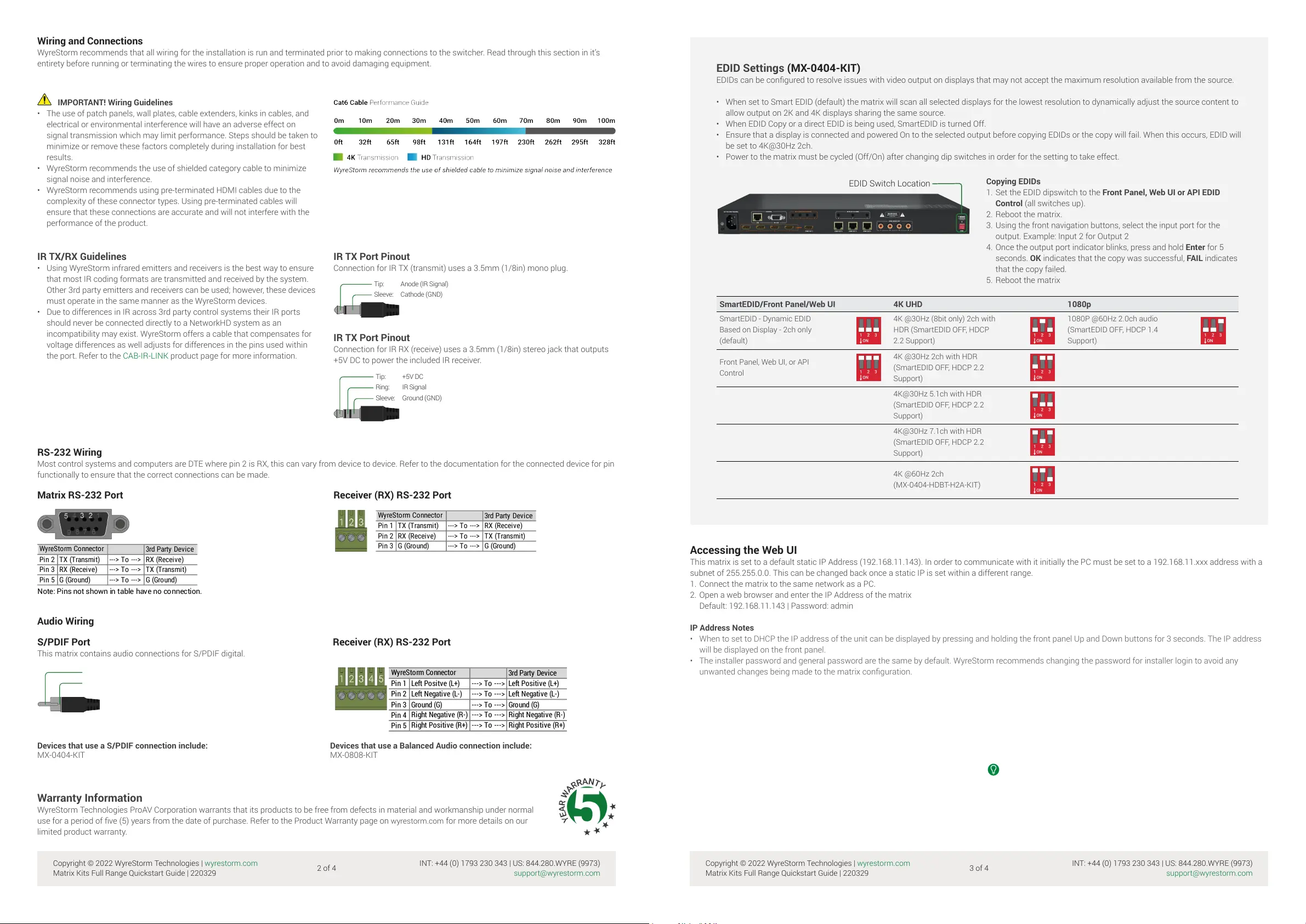

Tip: Signal (+)

Shield: Ground/Return (-)

Troubleshooting

• No or Poor Quality Picture (snow or noisy image)

• Verify that power is being supplied to the transmitter and receiving device

• Verify that all HDMI and HDBaseT connections are not loose and are

functioning properly

• Verify that the HDBaseT cable is properly terminated following EIA568B

standard

• Verify that the output resolution of the source and display is supported by

this matrix and receiver.

• If transmitting 3D or 4K, verify that the HDMI cables used are 3D or 4K

rated.

No or Intermittent 3rd party Device Control

Verify that the IR and RS-232 cables are properly terminated following the

Wiring and Connections section.

Troubleshooting Tips:

WyreStorm recommends using a cable tester or connecting the cable to other

devices to verify functionality.

Matrix Kits Full Range Quickstart Guide | 220329 4 of 4 INT: +44 (0) 1793 230 343 | US: 844.280.WYRE (9973)

support@wyrestorm.com

MX-0404-KIT MX-0808-KIT v2

Audio and Video

Inputs 4x HDMI In: 19-pin type A 8x HDMI In: 19-pin type A

Outputs

4x S/PDIF Out: RCA

3x HDBT Out: 8-pin RJ-45

1x HDMI Out: 19-pin type A

4x HDMI Out: 19-pin type A

8x HDBT Out: 8-pin RJ-45

4x 5-pin Balanced Analog Audio

Output Video Encoding HDBaseT Class B

Encoding Data Rate 9.2Gbps

End to End Latency (Max) 10μs (micro seconds)

Audio Formats HDMI/HDBaseT: 2ch LPCM | Multichannel up to Dolby Atmos and DTS-X

Analog Output: 2ch PCM

Supported Standards DCI | RGB | HDR10 | HLG | BT.2020

Maximum Pixel Clock HDBaseT: 340MHz

Communication and Control

HDMI HDMI | HDCP 2.2 | EDID | CEC

Consumer Electronics Control

(CEC) CEC power triggering for connected screens – Requires CEC compatibility

IR 3x IR RX: 3.5mm (1/8in)

4x IR TX: 3.5mm (1/8in)

8x IR RX: 3.5mm (1/8in)

8x IR TX: 3.5mm (1/8in)

RS-232 1x RS-232: 9-pin DB9

(matrix control only)

1x RS-232: 9-pin DB9

(matrix control only)

Ethernet 1x LAN: 8-pin RJ-45 1x LAN: 8-pin RJ-45

Power

Power Supply 100~240V AC 50/60Hz 100~240V AC 50/60Hz

PoH 1-way Matrix to Receiver

Max Power Consumption 48.2W 105.4W

Environmental

Operating Temperature 0 to + 45°C (32 to + 113 °F), 10% to 90%, non-condensing

Storage Temperature -20 to +70°C (-4 to + 158 °F), 10% to 90%, non-condensing

Maximum BTU 164 BTU/hr 374 BTU/hr

Dimensions and Weight

Rack Units/Wall Box 1U 1U

Height 43.5mm/1.72in 43.5mm/1.72in

Width 440mm/17.33in 440mm/17.33in

Depth 300mm/11.82in 300mm/11.82in

Weight 4.06kg/8.93lbs 4.06kg/8.93lbs

Regulatory

Safety and Emission CE | FCC | RoHS | RCM | EAC

Video Resolution (Max)

Video Resolution

1920x1080p @60Hz 16bit

3840x2160p @24Hz 10bit 4:2:0 HDR

3840x2160p @30Hz 8bit 4:4:4

3840x2160p @60Hz 8bit 4:2:0

Note: WyreStorm recommends the use of shielded category cable to minimize signal noise and interference

Note: WyreStorm reserves the right to change product specication, appearance or dimensions of this product at any time without prior notice.

Specications

MX-0404-KIT | MX-0808-KIT v2

4K UHD HDBaseT™ Matrix Switchers with

Included Receivers & Audio Breakout

Quickstart Guide

WyreStorm recommends reading through this document in its entirety to become familiar with the product’s features prior to starting the

installation process.

IMPORTANT! Installation Requirements

IMPORTANT! The MX-0404-KIT and MX-0808-KIT had the previous model number of EXP-MX-0404-KIT and EXP-MX-0808-KIT. If you would like to access

previous documentation for these models, visit wyrestorm.com

• Visit the product pages to download the latest rmware, document version, additional documentation, and conguration tools.

• Read through the section for important wiring guidelines before creating or choosing premade cables.Wiring and Connections

• While these products support CEC for the HDMI outputs, WyreStorm cannot guarantee compatibility with all forms of CEC communication.

Matrix Kits Full Range Quickstart Guide | 220329 1 of 4 INT: +44 (0) 1793 230 343 | US: 844.280.WYRE (9973)

support@wyrestorm.com

In the Box (MX-0404-KIT)

1x MX-0404-KIT Matrix

3x MX-KIT-RX Receivers

1x AC Power Cord (US/UK/EU/AU)

1x IR Remote (Battery not Included)

4x IR Emitters

3x IR Receivers

2x Matrix Mounting Brackets

6x Receiver Mounting Brackets (2 per RX)

1x Quickstart Guide (this document)

In the Box (MX-0808-KIT v2)

1x MX-0x0x-KIT Matrix

8x MX-KIT-RX Receivers

1x AC Power Cord (US/UK/EU/AU)

1x IR Remote (Battery not Included)

8x 3-pin Phoenix Connectors

8x IR Emitters

8x IR Receivers

4x 5-pin Terminal Blocks

2x Matrix Mounting Brackets

16x Receiver Mounting Brackets (2 per RX)

1x Quickstart Guide (this document)

Basic Wiring Diagram

Identifying Product Versions

Some of these products have been released under multiple versions which contain either different chassis designs and/or feature sets. Content within this

QSG is for the version 2 or newer of these products. Information on other versions can be found within the matching QSG. Each product version is

identied by a v# after the product number on the product and outer packaging. Note that a version of these products may not contain this identier while

all versions above v1 will have the version indicated.
