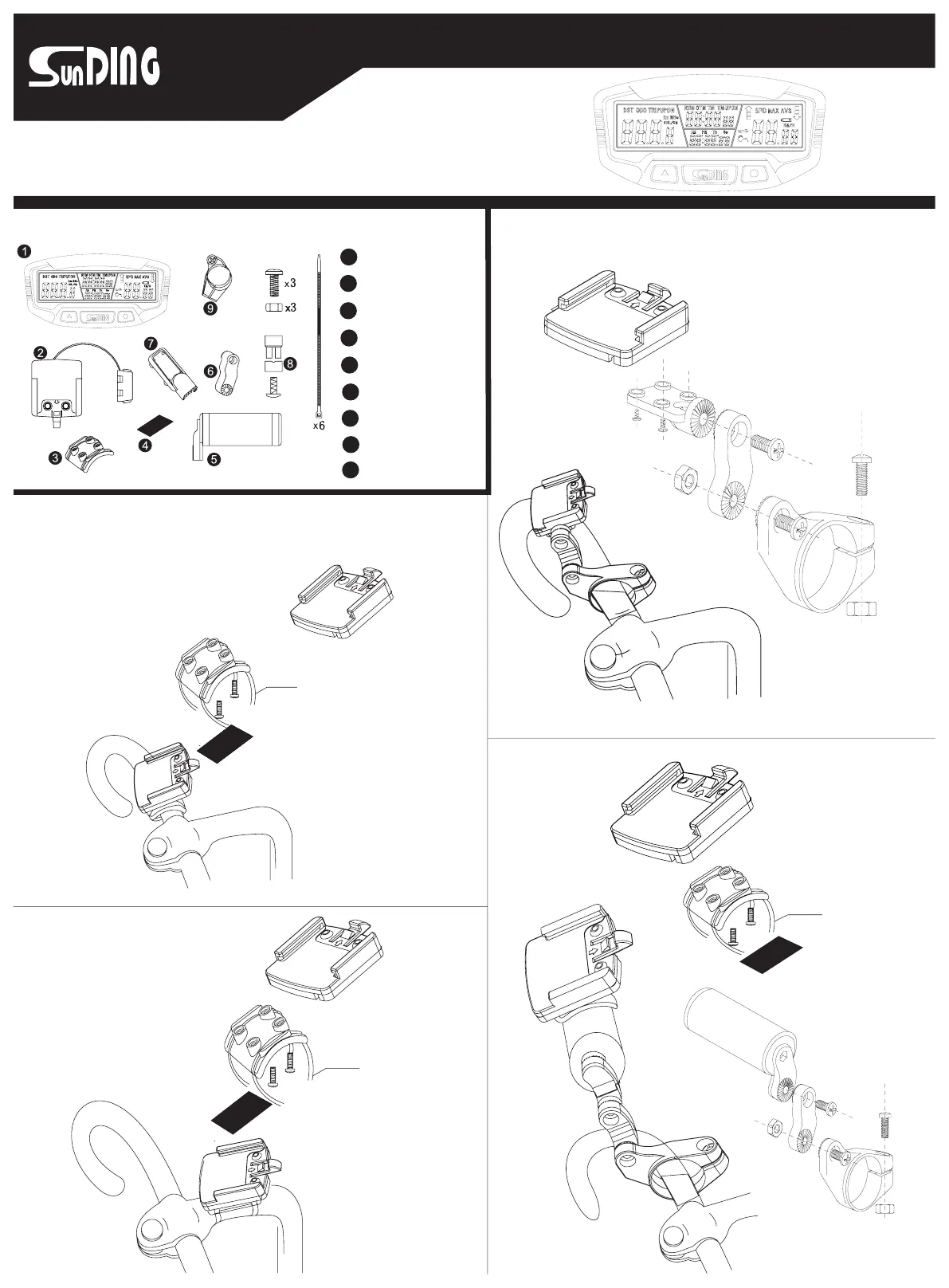

COMPUTER PARTS &
12
3
4
5 6
SE T
MO DE
1
2
3
4
5
6
Co mputer
Cr2032 Battery
Magnet
Mounting Shoe
Sensor
Ties
Remove the battery
cover out of the
bottom of the
computer
by using a flat blade
screwdriver,
install one CR2032
battery with the
positive (+)pole
facing the battery
cover and close
the cover.
INSTALLAT I ON
1
2
COMPONENT ILLUSTRATIONS
Fix it firmly by
screwdriver.
This magnet
is only for
less than
2mm spoke .
CAUTION:
COMPUTER SETTINGS
MALFUNCTIONS AND REASONS
Attach the sensor to the one side of the front wheel fork, place
the magnet on spoke as the same level to make the good signal
connection. using the shims to adjust the diameter, tie it to the
fork by cable ties. Position the sensor and magnet as image
shows; make sure that the arc of the magnet intersects the
alignment mark on the sensor with 1mm clearance.
Fix the wire :Place the wire like image shows ,
avoid binding the wire on the controller or ,
probably affect your con trol on riding .
MAIN UNIT
SPEED
TIME
MODE SET
BATTERY COVER
COMPUTER MOUNTING &
SHOE TRIGGER
FRONT BACK
Open
Close
Coin
1 . 5 m m Important!
Attach the computer to the mounting shoe by sliding
the computer completely to the end of the shoe.
To remove it, press and hold the arrow part of the
shoe and slide the computer to the opposite direction.
To check for proper speed function and sensor
alignment, spin the front wheel with computer in
speed mode. Adju s t th e p os i ti o n of s e ns o r an d
magnet if there is no or weak reaction.
Attach the sensor on the bike by ties peel ,
off the paper off the mounting shoe to glue
to the computer and make it more reliable .
A Temperature exceeds operating limits (0 ~55 ). ℃ ℃ .
3,Slow display response
4,Weak display
A Poor battery or dead battery. .
5,Displays irregular figures
A Take battery out and reinstall it after 10 seconds.. .
1,No speedometer
A Improper magnet/sensor alignment.
2,Inaccurate value is indicated
A Improper input, such as wheel circumference. .
WHEEL SIZE
SETTING & CHART
When in WHEEL SIZE SETTING
MODE, the default wh eel
circumference setting is
2080mm,Choose correct
wheel circumference figure as
the chart below.Press UP button
to change each figure properly,
press SET button to confirm and
jump to next figure. (Range 0-9999mm). ：
When this setting is over, press SET button
to enter into (KM/H)/(M/H) SE TTING MODE.
Press UP button to switch 12/24 hour mode.press the SET button to
confirm and enter to HOUR setting, wh en figure indicates HOUR and
start flashing, press the UP button to adjust the figure to the proper one,
each press makes one number plus.Then press the SET button to set
MINUTE,SECOND SETTING MODE and adjust them by pressing UP
button as well. When this setting is over, press SET button to enter into
WHEEL SIZE SETTING MODE.
TEMPERATURE SETTING C/ F(° ° )
When in DATA SETTING MODE, press UP button to choose C and F,
press SET button to confirm and enter into the CLOCK SETTING MODE.
12/24 CLOCK SETTING
RAT SETTING
When in RAT SETTING MODE, press UP button to adjust press SET
button to jump to next figure.The default number is.The defalut number
is 00 :00 :00 (range : 0-9999Hrs).When this setting is over, press SET
button to enter into DISPLAY MODE,then press MODE to enter into
TM UP & TRIP UP SETTING MODE.
When in TM UP & TRIP UP SETTING MODE, press and hold SET button
for three seconds to SET the figure of TM UP & TRIP UP. Press UP button
to adjust, press SET to jump to next figure. The TM UP default number is
00 :00 :00 (range :0-99.59.59Hrs). The TRIP UP default number is
000.0 (range :0-999.9kms/miles). Press SET button to finish this setting
and back to TM UP & TRIP UP SETTING MODE. Press SET button to
enter into TM DOWM & TRIP DOWN SETTING MODE.
TM UP & TRIP UP SETTING
When in TM DOWM & TRIP DOWN SETTING MODE, press and hold SET
button for three seconds to SET the figure of TM DOWM & TRIP DOWN.
Press UP button to adjust, press SET to jump to next figure. The
TM DOWN default number is 00 :00 :00 (range :0-99.59.59Hrs). The
TRIP DOWN default number is 000.0 (range :0-999.9kms/miles). Press
SET button to finish this setting and back to TM DOWM & TRIP DOWN
SETTING MODE.
TM DOWM & TRIP DOWN SETTING
DST
The distance of one single trip. Its range is: 0~9999km(m),
The display will automatically turn to zero if the value
is out of the range.
.
SPD
When the wheel is cicrling, the current speed data is
showing all the time on the screen, its ranges is :
0- 99.9km/h(m/h), and it is accurate to +/- 0.1km/h (m/h).
SPD COMPARATOR
During riding , or will dispaly on the screen ,
indicates the speed is higher than average speed.
Indicates the current speed is lower than average
speed.
ODO
The total distance record from the beginning zero to the
current. its mileage ranges : 0.001 99999km(m). The ～
display will automatically turn to zero if the value is out
of the range.
If the computer is free for over 300 seconds,the computer
will automatically enter into Sleep mode and hide all data
but CLK. It will turn back to the previous mode with all the
data when start circling or press any botton.
MAX SPD
AVS
The maximum speed of one single trip.
The average speed of one single trip.
TM
The trip time is how long one single trip riding lasts .
SLEEP MODE
The wired remote control button is attached the mounting
shoe it is able to replace the MODE button, ...
（ ） （ ）KM/H / M/H SETTING
When in (KM/H)/(M/H) SETTING MODE, press the UP button to switch
KM/H or M/H mode, press SET button to confirm and enter into
ODOMETER SETTING MODE.
ODOMETER SETTING
When in ODOMETER SETTING MODE, Pr ess UP button to adjust the
flashing.ODO figure.Press SET button to jump to next number and set
them as the same way.The default number is 0000
(range : 0-9999kms/miles). When this setting is over,
press SET button to enter into RAT SETTING MODE.
MODE INSTRUCTION
When battery is put in the computer, the display is in DST mode. It has three modes of this computer,
DST ,TRIP UP/DOWN and INQUIRY MODE.Each press of the MODE button switches into one of
three MODEs .The DST MODE is the default one.
STOPWATCH
In DST or ODO mode, press SET button to enter into
STOPWATCH MODE.Start stopwatch with UP button,
press UP button again to freeze,press one more UP
button to start the stopwatch again. Clean the stopwatch
data by pressing SET button.
TTM
The total trip time record from the beginning zero to the
current. Its range is: 0~99 :59 :59, The display will
automatically turn to zero if the value is out of the range.。
RAT
Riding time record in total from the beginning zero to
the current.its range is 0-9999 Hr.。
TH
FREEZE FRAME MEMORY
Press the UP button in any mode except STOPWATCH
mode to enter into FreezeFrame memory mode, DST,
TTM, SPD data will be freezed and the figures start flashing.
Press the UP button to leave this mode.
When the SPD is over 20KM/H, the SPD will be flashing
until the SPD is less than 20KM/H.
。
When the ODO is over 300KM, will be flashing, press
both UP and MODE button at the same time to clear the
reminder.
When the ODO
is over 300KM,
the will
be flashing,
press both UP
and MODE button at the
same time to clear the reminder.
WIRED REMOTE CONTROL
AUTO ON OFF /
The sensor in computer is able to wake up automatically
.the computer from sleep mode
TRIP UP/DOWN MODE
Fix the shoe
firmly by ties .
Slide the
computer
by the
trough of
the mounting
shoe.
DST MODE
INQUIRY MODE
ONE SINGLE TRIP DATA RESET
In any mode, press and hold UP button for 3 seconds, then all the data of this single trip riding will be reset to zero except
CLK ODO and RAT.
MAIN FUNCTIONS
Up
UP
OVER-SPEED REMINDER
MAINTENANCE ALERT
CARE REMINDER
The current outdoor temperature. its ranges
is :-20~70 ( ) -4 ~158 .℃ ℉ ℉
TIRE SIZE CIRC TIRE SIZE CIRC TIRE SIZE CIRC
700CX38mm 2 18 0 650CX23mm 19 90 2 6 x 1 7 5 2035 " . "
700CX35mm 2168 650CX20mm 1945 26 X1 5 1985 " . "
700Cx32mm 2 15 5 27 x1 1 4 2 16 1 26 X1 25 19 53 " - / " " . "
700Cx30mm 2 14 5 27 x1 1 8 2 15 5 26 X1 0 191 3 " - / " " . "
700Cx28mm 2 13 6 26 x2 3 2135 24 x1 9 19 16 " . " " . "
700Cx25mm 2 12 4 26 x2 25 2115 20 x1 1 4 1 61 8 " . " " - / "
700Cx23mm 2 10 5 26 x2 1 2 09 5 1 6 X 2 0 12 53 " . " . " . "
700Cx20mm 2 07 4 26 x2 0 2 07 4 1 6 X1 95 1 25 7 " . " . " . "
700CxTubular 213 0 26 X1 9 2055 1 6 X1 5 1 20 6 " . " . " . "
INSTRUCTION
