Instrukcja obsługi StarTech.com PR22GI-NETWORK-CARD

StarTech.com Karta sieciowa/adapter PR22GI-NETWORK-CARD

Przeczytaj poniżej 📖 instrukcję obsługi w języku polskim dla StarTech.com PR22GI-NETWORK-CARD (2 stron) w kategorii Karta sieciowa/adapter. Ta instrukcja była pomocna dla 6 osób i została oceniona przez 2 użytkowników na średnio 4.5 gwiazdek

Pobierz PDF

Strona 1/2

Quick-Start Guide

To view manuals, FAQs, videos, drivers, downloads, technical drawings, and more, visit www.startech.com/support

Manual Revision: February 16, 2023

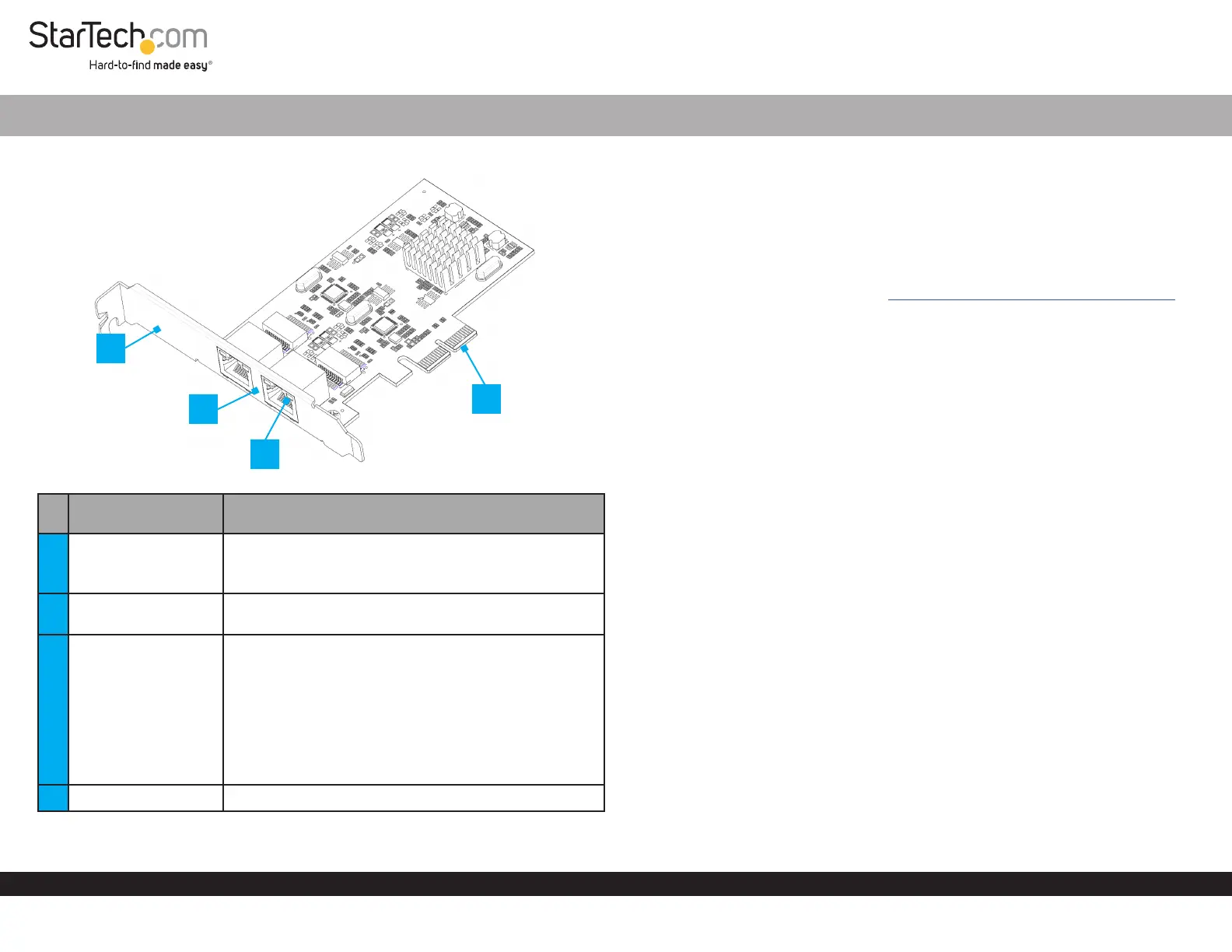

Product Diagram (PR22GI-NETWORK-CARD)

Port/LED/Connector Function

1Bracket

• Secures the card to the Host Computer Case

• The comes pre-installedFull Prole Bracket

• The is included Low Prole Bracket

22x Ethernet Ports • Connect a to the Network Cable Network Card

• Supports 2.5 Gbps, 1 Gbps, 100 Mbps, and 10 Mbps

3LED Indicators

• Right LED Indicator Link Speed is

• Solid Green: 2.5 Gbps

• Solid Amber: 1 Gbps

• O: 100 or 10 Mbps

• Left LED Indicator Link Status is

• Solid Green: Active link

• Flashing Green: Activity

4PCIe 2.0 p1-x2 Connector • Insert into a on the PCI Express Slot Host Computer

2-Port 2.5GBase-T Ethernet Network Adapter Card - PCIe 2.0 x2

Package Contents

• 2-Port PCIe 2.5 Gbps Network Card x 1

• Low Prole Bracket x 1

• Quick-Start Guide x 1

Requirements

For the latest requirements, please visit www.startech.com/PR22GI-NETWORK-CARD

• Host Computer with an available PCI Express 2.0 or greater Slot (x2, x4, x8, or x16)

Installation

Install the PCI Express Card

WARNING!

Static Electricity PCI Express Cardscan severely damage . Ensure that you are

adequately before you open your or touch the Grounded Host Computer Case PCI

Express Card Anti-Static Strap Anti-Static Mat . You should wear an or use an when

installing any Host Computer component. If an isn’t available, Anti-Static Strap

discharge any built-up static electricity by touching a large Grounded Metal Surface

for several seconds. Only handle the by its edges and don’t touch PCI Express Card

the gold connectors.

1. Turn o the and any that are connected to it Host Computer Peripheral Devices

(e.g. printers, external hard drives, etc.).

2. Unplug the from the back of the .Power Cable Host Computer

3. Disconnect any that are connected to the .Peripheral Devices Host Computer

4. Remove the from the . Consult the documentation that Cover Host Computer Case

came with the for details about doing this safely.Host Computer

5. Locate an open and remove the corresponding PCI Express Slot Slot Cover Plate

from the back of the . Host Computer Case

Note: Consult the documentation that came with the for details Host Computer

about doing this safely. This card works in PCI Express x2, x4, x8, or x16 Slots.

6. Gently insert the into the open and fasten the PCI Express Card PCI Express Slot

Bracket Host Computer Case to the back of the .

Note: If you install the into a or a PCI Express Card Small Form Factor Low Prole

Desktop System, it may be necessary to replace the pre-installed standard

Full Prole Bracket Low Prole Bracketwith the included .

*Product may vary from image

Regulatory Compliance

FCC - Part 15

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC

Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.

This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the

instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will

not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which

can be determined by turning the equipment o and on, the user is encouraged to try to correct the interference by one or

more of the following measures:

• Connect the equipment into an outlet on a circuit dierent from that to which the receiver is connected.

• Consult the dealer or an experienced radio/TV technician for help

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:

(1) This device may not cause harmful interference, and (2) this device must accept any interference received, including

interference that may cause undesired operation. Changes or modications not expressly approved by StarTech.com could

void the user’s authority to operate the equipment.

Industry Canada Statement

This Class B digital apparatus complies with Canadian ICES-003.

Cet appareil numérique de la classe [B] est conforme à la norme NMB-003 du Canada.

CAN ICES-3 (B)/NMB-3(B)

This device complies with Industry Canada licence-exempt RSS standard(s). Operation is subject to the following two

conditions:

(1) This device may not cause interference, and (2) This device must accept any interference, including interference that may

cause undesired operation of the device.

Le présent appareil est conforme aux CNR d’Industrie Canada applicables aux appareils radio exempts de licence. L’exploitation

est autorisée aux deux conditions suivantes:

(1) l’appareil ne doit pas produire de brouillage, et (2) l’utilisateur de l’appareil doit accepter tout brouillage radioélectrique

subi, même si le brouillage est susceptible d’en compromettre le fonctionnement.

Warranty Information

This product is backed by a two years warranty.

For further information on product warranty terms and conditions, please refer to .www.startech.com/warranty

Limitation of Liability

In no event shall the liability of StarTech.com Ltd. and StarTech.com USA LLP (or their ocers, directors, employees or agents)

for any damages (whether direct or indirect, special, punitive, incidental, consequential, or otherwise), loss of prots, loss of

business, or any pecuniary loss, arising out of or related to the use of the product exceed the actual price paid for the product.

Some states do not allow the exclusion or limitation of incidental or consequential damages. If such laws apply, the limitations

or exclusions contained in this statement may not apply to you.

FR: startech.com/fr

DE: startech.com/de

ES: startech.com/es

NL: startech.com/nl

IT: startech.com/it

JP: startech.com/jp

StarTech.com Ltd.

45 Artisans Crescent

London, Ontario

N5V 5E9

Canada

StarTech.com Ltd.

Unit B, Pinnacle 15

Gowerton Road

Brackmills,

Northampton

NN4 7BW

United Kingdom

StarTech.com LLP

4490 South Hamilton

Road

Groveport, Ohio

43125

U.S.A.

StarTech.com Ltd.

Siriusdreef 17-27

2132 WT Hoofddorp

The Netherlands

Safety Measures

• Read the entire manual and ensure the instructions are fully understood before assembling and/or using this product.

Mesures de Sécurité

• Lisez tout le manuel et assurez-vous que vous comprenez les instructions avant de commencer à assembler et utiliser

ce produit.

安全対策

• 最初に取扱説明書を最後まで読み、本製品の組み立て方をすべて理解してから組み立て作業を始めて下さい。

Misure di Sicurezza

• Leggere l’intero manuale e assicurarsi di aver compreso tutte le istruzioni prima di iniziare ad assemblare e a utilizzare

questo prodotto.

Säkerhetsåtgärder

• Läs hela manualen och se till att du förstår instruktionerna innan du börjar montera och använda produkten.

Medidas de Seguridad

• Lea todo el manual y asegúrese de haber comprendido bien las instrucciones antes de proceder con el ensamblaje y el

uso de este producto.

7. Return the onto the .Cover Host Computer Case

8. Reconnect the to the back of the .Power Cable Host Computer

9. Reconnect all of the disconnected in .Peripheral Devices Step 3

10. Turn on the and .Host Computer Peripheral Devices

11. Connect an to the (s).Ethernet Cable Ethernet Port

Download the Driver

1. Navigate to www.startech.com/PR22GI-NETWORK-CARD

2. Click the tab.Drivers & Downloads

3. Under , download the for Windows.Driver(s) Driver Package

Note: Windows usually saves the les to the Downloads folder associated with the user

account (e.g. C:\Users\useraccount\Downloads).

4. the zipped that was downloaded. Click . Right-click Driver Package Extract All

Follow the on-screen instructions to the les. Extract

Note: Ensure to make a note of the location where the drivers were extracted. That

location will be used in later steps.

5. Follow the instructions on the accompanying le for further Intel_Windows_DIG

Installation Instructions.

Verify the Driver Installation

Windows

1. Navigate to the .Device Manager

2. Under , right-click and click Network Adapters Intel Ethernet Controller I225-V

the option.Properties

3. Conrm that the is installed and working as expected.Driver

Linux

Note: Ensure kernel 5.8 or higher is being used. Execute the following command from

the terminal prompt to check the kernel version, uname -r.

1. Open a and type the command to Terminal Window sudo dmesg | grep Intel

check the Intel Driver Integration.

2. You should see the following response if the drivers are present, Intel(R) 2.5G

Ethernet Linux Driver.

Quick-Start Guide
