Quick-Start Guide

To view manuals, FAQs, videos, drivers, downloads, technical drawings, and more, visit www.startech.com/support

Manual Revision: September 14, 2023

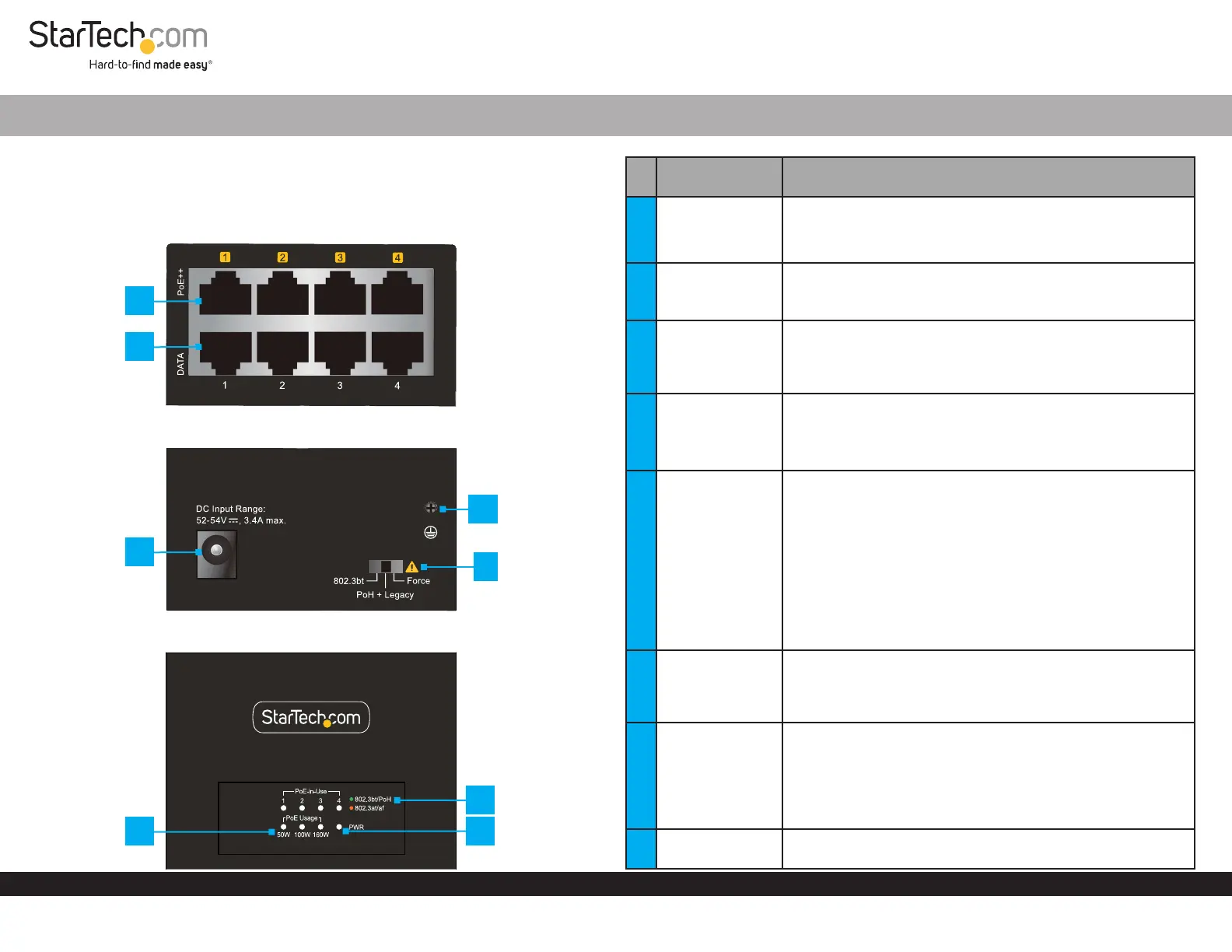

Product Diagram

AS445C-POE-INJECTOR

Front View

Back View

Top View

4-Port 802.3bt 90W 5Gbps PoE Injector

Port/LED/

Connector Function

1PoE++ Ports x 4

(Data + Power)

• Connect a to a (Powered Device)Network Cable PD

Note: 160W shared power allocation across all PoE ports.

• Supports 5 Gbps, 2.5 Gbps, 1 Gbps, 100 Mbps, and 10 Mbps

2Data Ports x 4

(Data Input)

• Connect a to a Network Cable Network Device

• Supports 5 Gbps, 2.5 Gbps, 1 Gbps, 100 Mbps, and 10 Mbps

3DC Power Port

• Connect to a using the included Power Source Power

Adapter

• Recommended 54 V and 3.3 A. Type M barrel plug,

Ø 5.5x2.1x9.5mm

4Grounding Point

• Attach a to the and to an Grounding Wire PoE Injector

Earth Ground Connection

Note: A Grounding Wire is typically green or green with a

yellow stripe and should be at least 18 AWG.

5PoE Operation

Mode Switch

• Three positions are available:

• . Operates as a 90W 802.3bt (default)

802.3bt PoE++ type 4 (Power Source Equipment)PSE

• . Operates as a 95W (Power over HD-PoH + Legacy PoH

BASE-T) PSE with Legacy function

• . Operates as a non-negotiating 4-pair 60W Force

PoE PSE. Useful for PoE devices that lack a proper

handshake.

Warning! Force Mode is intended for PoE PDs only.

6PoE Usage LEDs

• . Indicates that the system is consuming Steady Amber

over the indicated PoE power budget

• . Indicates that the system is consuming Blinking Amber

under the indicated PoE power budget

7PoE-in-Use LEDs

• Steady Green . Indicates that the port is providing 802.3bt

PoE++/PoH/Force power to the remote powered device

• Steady Amber . Indicates that the port is providing 802.3af/

at PoE/PoE+ power to the remote powered device

• . Indicates that no power is being provided to the O

remote device

8Power LED • . Indicates that power is being supplied to Steady Green

the PoE Injector

*Product may vary from image

6 8

Regulatory Compliance

Use of Trademarks, Registered Trademarks, and other Protected Names and Symbols

This manual may make reference to trademarks, registered trademarks, and other protected names and/or symbols of

third-party companies not related in any way to StarTech.com. Where they occur these references are for illustrative

purposes only and do not represent an endorsement of a product or service by StarTech.com, or an endorsement of the

product(s) to which this manual applies by the third-party company in question. StarTech.com hereby acknowledges that

all trademarks, registered trademarks, service marks, and other protected names and/or symbols contained in this manual

and related documents are the property of their respective holders.

PHILLIPS® is a registered trademark of Phillips Screw Company in the United States or other countries.

FCC - Part 15

This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of

the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential

installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used

in accordance with the instructions, may cause harmful interference to radio communications. However, there is no

guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to

radio or television reception, which can be determined by turning the equipment o and on, the user is encouraged to try

to correct the interference by one or more of the following measures:

• Connect the equipment into an outlet on a circuit dierent from that to which the receiver is connected.

• Consult the dealer or an experienced radio/TV technician for help

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:

(1) This device may not cause harmful interference, and (2) this device must accept any interference received, including

interference that may cause undesired operation. Changes or modications not expressly approved by StarTech.com

could void the user’s authority to operate the equipment.

Industry Canada Statement

This Class A digital apparatus complies with Canadian ICES-003.

Cet appareil numérique de la classe [A] est conforme à la norme NMB-003 du Canada.

CAN ICES-3 (A)/NMB-3(A)

This device complies with Industry Canada licence-exempt RSS standard(s). Operation is subject to the following two

conditions:

(1) This device may not cause interference, and (2) This device must accept any interference, including interference that

may cause undesired operation of the device.

Le présent appareil est conforme aux CNR d’Industrie Canada applicables aux appareils radio exempts de licence.

L’exploitation est autorisée aux deux conditions suivantes:

(1) l’appareil ne doit pas produire de brouillage, et (2) l’utilisateur de l’appareil doit accepter tout brouillage radioélectrique

subi, même si le brouillage est susceptible d’en compromettre le fonctionnement.

Warranty Information

This product is backed by a two-year warranty.

For further information on product warranty terms and conditions, please refer to .www.startech.com/warranty

Limitation of Liability

In no event shall the liability of StarTech.com Ltd. and StarTech.com USA LLP (or their ocers, directors, employees or

agents) for any damages (whether direct or indirect, special, punitive, incidental, consequential, or otherwise), loss of prots,

loss of business, or any pecuniary loss, arising out of or related to the use of the product exceed the actual price paid for the

product. Some states do not allow the exclusion or limitation of incidental or consequential damages. If such laws apply,

the limitations or exclusions contained in this statement may not apply to you.

FR: startech.com/fr

DE: startech.com/de

ES: startech.com/es

NL: startech.com/nl

IT: startech.com/it

JP: startech.com/jp

StarTech.com Ltd.

45 Artisans Crescent

London, Ontario

N5V 5E9

Canada

StarTech.com Ltd.

Unit B, Pinnacle 15

Gowerton Road

Brackmills,

Northampton

NN4 7BW

United Kingdom

StarTech.com LLP

4490 South Hamilton

Road

Groveport, Ohio

43125

U.S.A.

StarTech.com Ltd.

Siriusdreef 17-27

2132 WT Hoofddorp

The Netherlands

À DÉPOSER

EN MAGASIN À DÉPOSER

EN DÉCHÈTERIE

Points de collecte sur www.quefairedemesdechets.fr

Privilégiez la répara�on ou le don de votre appareil !

Cet appareil,

ses accessoires

et cordons

se recyclent

1. Connect an from the (i.e., router, modem, Ethernet Cable Source Network Device

or non-PoE switch) to the (s) on the . Data Port PoE Injector

2. Connect an to the (s) on the Ethernet cable Corresponding PoE++ Port PoE

Injector.

3. Connect the other end of the used in to either a Ethernet Cable Step 2 Powered

Device PoE Splitter Data Power (PD), or to a to separate and .

4. Plug the included to an and connect it into the Power Adapter AC Outlet DC

Power Port Power LED. Ensure the is illuminated.

DIN Rail Installation

1. Insert a through the and into the . Mounting Screw Mounting Plate PoE Injector

Using a , tighten the just enough to Phillips Head Screwdriver Mounting Screw

catch the thread. (Figure 1)

2. Re-align the with the and insert the second Mounting Plate Mounting Holes

Mounting Screw Mounting Screw . Alternate between gently driving each until

both are tight.

3. Select the desired before mounting onto the .PoE Operation Mode DIN Rail

4. Mount the by inserting the at an angle starting from PoE Injector Mounting Plate

the then against the . (Figure 2) Top Push DIN Rail

Figure 1 Figure 2

Package Contents

• 4-Port PoE Injector x1

• DIN Rail Mounting Kit x 1

• Universal Power Adapter x 1

• Quick-Start Guide x 1

Requirements

For the latest manuals, product information, technical specications, and declarations of

conformance, please visit: www.startech.com/AS445C-POE-INJECTOR

• Phillips head screwdriver

Installation

Warnings!

Force Mode: Prior to connecting the PSE to a PD, ensure the PD supports 60W PoE

through pin 1/2 ( - ), 3/6 ( +), pin 4/5 ( +), and 7/8 ( - ). Otherwise, the PD may be

damaged as power is injected without handshaking.

Prior to powering on the PSE, ensure that a Grounding Wire is connected to the PSE. A

Grounding Wire should typically be green or green with a yellow stripe and should be at

least 18 AWG.

Prior to connecting the PSE to a PD ensure that the PD supports the corresponding PoE

setting on the PoE Operation Mode Switch to prevent potential damage.

Power OFF the PoE Injector before adjusting the PoE Operation Mode Switch, and then

power it back ON.

The legacy detection feature identies the PDs that do not fully follow the

IEEE 802.3af/at/bt standards and their unique electrical handshakes. This allows the

PoE Injector to provide power to those PDs.

Quick-Start Guide
