Strona 1/14

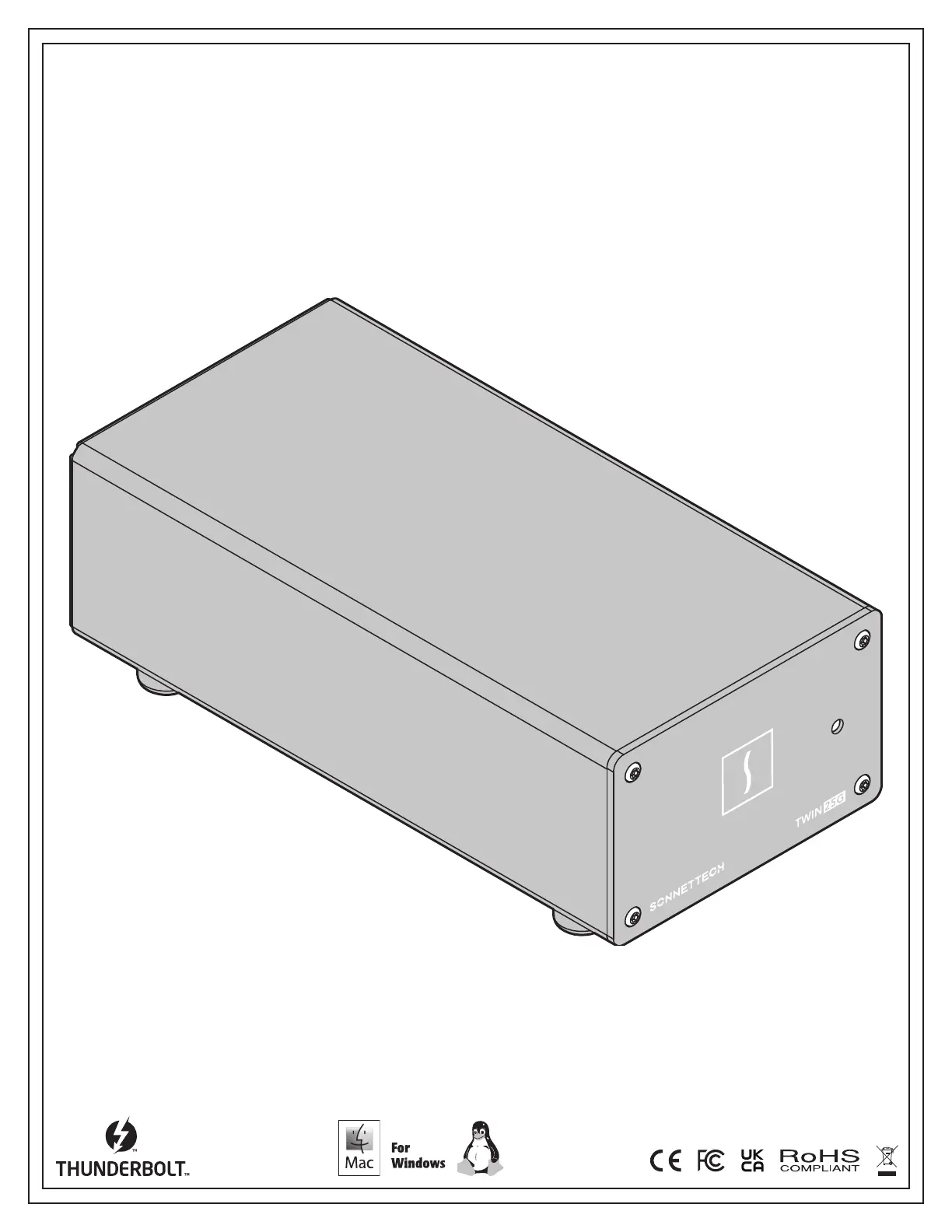

User’s Guide
for Twin
25
G Thunderbolt Adapter
Contents
1 Introduction, System Requirements, Driver Information and System Preparation 1
Introduction
Mac Compatibility
Windows Compatibility
Linux Compatibility
System Requirements
Driver Information—macOS
Driver Information—Windows
Driver Information—Linux
Preparing to Use the Adapter With a Mac Computer
Preparing to Use the Adapter With a Windows Computer
Preparing to Use the Adapter With a Linux Computer
2 Twin25G Thunderbolt Adapter Description 3
Twin25G Indicators and Ports
Power Adapter
Thunderbolt 3 (40Gbps) Cable
Thunderbolt Connector Retainer Clip
3 Driver Download/Installation Steps 5
Driver Download/Installation Steps—Mac Users
Driver Download/Installation Steps—Windows Users
4 Twin25G Thunderbolt Adapter Connection Steps 6
5 Verification and Configuration Steps 7
Confirm the Twin25G and Its Ethernet Controllers are Recognized—Mac Users
Confirm the Twin25G and Its Ethernet Controllers are Recognized—Windows Users
Basic Configuration Steps—Mac Users
Basic Configuration StepsWindows Users
6 Tips, General Information, and Known Issues 11
Tips, General Information
Known Issues
7 Warnings, FCC Compliance, and Support Information 12
Warnings
FCC Compliance
Contacting Customer Service
Driver Information—macOS
The driver that enables the Twin25G adapter to work with
Mac computers must be downloaded from Sonnet’s Website
and installed connecting the Twin25G adapter to your before
computer; instructions follow.
Driver Information—Windows
Although a driver that enables the Twin25G adapter to work with
Windows computers is already present in supported Windows
operating systems, you should download the latest driver through
the Sonnet Website and install it connecting the Twin25G before
adapter to your computer; instructions follow.
Driver and Configuration Information—Linux
The drivers that enable the Twin25G adapter to work with Linux
are installed as part of the Linux Kernel 5.0 and later.
The steps necessary to configure the Sonnet adapter with your
computer may vary based on the version of Linux running.
Sonnet recommends using whatever method or tools you would
normally use for configuring any onboard ports.
1
Chapter 1 – Introduction, System Requirements, Driver Information, and System Preparation
Introduction
Congratulations on your purchase! The Twin25G Thunderbolt
Adapter is a Thunderbolt to 25 Gigabit Ethernet (25GbE) adapter
that enables you to connect your computer with Thunderbolt 4 or
Thunderbolt 3 ports to 25GbE infrastructure.
Mac® Compatibility
Mac (M series)
Mac (Intel®) with Thunderbolt 3 ports
macOS® 13.2+
Windows® Compatibility
Windows computer with Thunderbolt 4 or Thunderbolt 3 ports
Windows 11, 10
Windows Server 2022, 2019
Linux® Compatibility
Linux computer with Thunderbolt 4 or Thunderbolt 3 ports
Linux Kernel 5.0+
System Requirements
The Twin25G adapter requires the following to operate:
OM3 or OM4 LC/LC multimodeber optic cables (sold
separately). When used with OM2 cables, 10Gbps speeds are
supported.
Support Note: This document was up to date at the time of
printing. However, changes to the hardware or
software may have occurred since then. Please check the Sonnet
website for the latest documentation.
1. Go to www.sonnettech.com/support/kb/kb.php
2. Navigate to and click the Twin25G Thunderbolt Adapter link.
3. Click the Manual link.
4. Click the Twin25G Thunderbolt Adapter User’s Guide [English] link and
then check the Document Version information. If the version listed is
later than this document ( ), click the Download Now button revision C
for the latest version.
