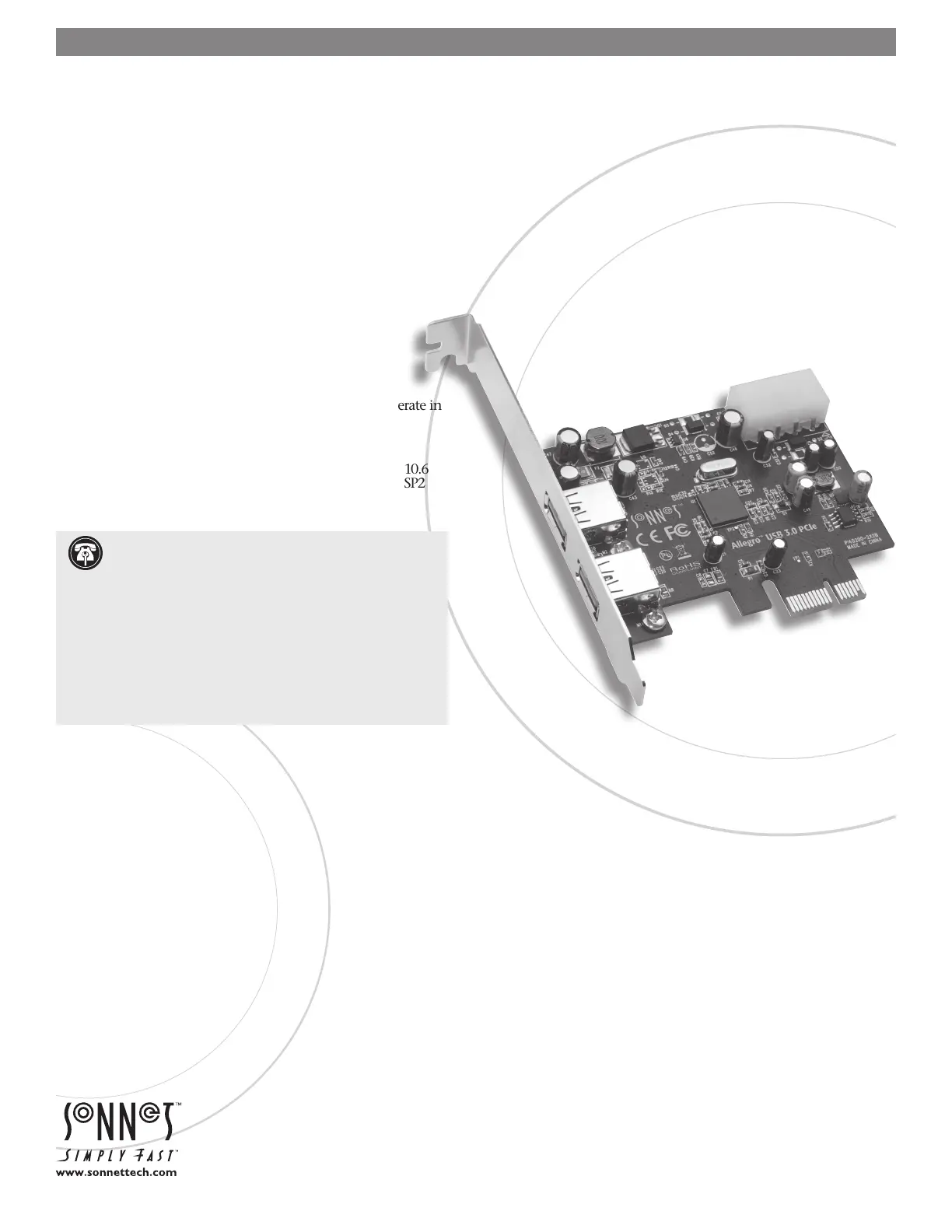

Quick Start Guide for Allegro USB 3.0 PCIe

You Should Have

The following item should be included in your product package:

• One Allegro USB 3.0 PCIe adapter card

The following are required for installation:

• Medium Phillips screwdriver

• Internet connection (for driver download)

System Requirements

Allegro USB 3.0 PCIe requires the following in order to operate in

your system:

• One available PCI Express slot

• Mac OS® X Version 10.6 or later, Mac OS X Server Version 10.6

or later; Windows® 7, Windows Vista®, Windows XP with SP2

installed, Windows Server 2008, or Windows Server 2003

Remember to register your product online at http://registration.sonnettech.com to be informed of future upgrades and product releases.

Software updates and links are available from the Sonnet Website at www.sonnettech.com. • Online support form available at http://supportform.sonnettech.com.

Sonnet Technologies Customer Service hours are Mon.-Fri., 7 a.m.–4 p.m. Pacific Time • Customer Service Phone: 1-949-472-2772 • E-mail: support@sonnettech.com

Sonnet Technologies, Inc., California USA • Tel: 1-949-587-3500 Fax: 1-949-457-6349

©2011 Sonnet Technologies, All rights reserved. Sonnet, the Sonnet logotype, Simply Fast, the Simply Fast logotype, Allegro, and Dio are trademarks of Sonnet Technologies, Inc. iPad, iPod, iPhone, Mac, the Mac logo, and Mac OS are

trademarks of Apple Inc., registered in the United States and other countries. Other product names are trademarks of their respective owners. Product specifications subject to change without notice. QS-USB3M-E-E-C-100711

ALLEGRO™ USB

PCIe

SuperSpeed USB PCIe Adapter Card

Support Notes: We recommend you make a backup of

important information on your system’s current hard

drive(s) prior to installing new hardware or software.

When handling computer products, you must take care to

prevent components from being damaged by static electricity.

Before opening your computer or removing parts from their

packages, always ground yourself first by touching a metal

part of the computer, such as a port access cover, and work in

an area free of static electricity; avoid carpeted areas. Handle

all electronic components by their edges, and avoid touching

connector traces and component pins.

Hardware Installation Steps

This section covers the installation of the Allegro USB 3.0 PCIe

card into your Mac Pro computer.

1. Shut down your computer, and then open it to access

the expansion card area (PCI Express slots); refer to your

computer’s user manual for speciﬁc information.

2. Locate an available PCI Express slot inside your computer

and remove its access cover.

3. Remove the Sonnet card from its packaging, and then install

it into the PCI Express slot; make sure the card is firmly

seated and secured.

4. Close your computer.

Software Download and Installation Steps

Before using the Allegro USB 3.0 PCIe card in your Mac Pro

computer, you must download required software from the

Sonnet Website.

1. Turn on your computer; if you installed the Tempo card into a

Mac Pro (Early 2008), Mac Pro (Early 2009), or Mac Pro (Mid

2010), skip to the next step. If you installed the card into a pre-

2008 Mac Pro, depending on which version of Mac OS X your

computer is running, the Expansion Slot Utility application

will open automatically. If it does not open by itself, you

must do so manually (Expansion Slot Utility is located in the

/ System/Library/CoreServices folder). Select the conﬁguration

appropriate for your setup (your Sonnet card is an x4 card,

and should be assigned at least an x4 slot), and then click Quit

if the default conﬁguration was appropriate, or click Save and

Restart if you changed the conﬁguration.

2. Log onto the Internet and go to http://www.sonnettech.

com/support/kb/kb.php, click on the Computer Cards link,

and then click on the PCIe Cards link.

3. Locate and click the Allegro USB 3.0 PCIe link, then click the

Driver link, and then click the USB 3.0 Driver (Mac) link.

4. Click the Download Now button; the ﬁle will be downloaded.

5. Double-click the SonnetALLEGRO-MacOS106B.dmg ﬁle you

just downloaded; a new window will open. Double-click

the SonnetALLEGRO-MacOS10x-Tb.pkg ﬁle to launch the

software installer; when the Welcome to the Sonnet Allegro USB

3.0 PCIe and ExpressCard/34 Installer window appears, click

Continue.

6. When the Important Information window appears, click

Continue.

Mac Users’ Steps

7. When the Software License Agreement window appears, read

the license, click Continue, and then click Agree.

When the 8. Standard Install on… window appears, accept the

default location or choose a new location, and then click

Install.

9. When asked for a password, enter your password, and then

click OK.

10. Click Continue Installation to install the USB 3.0 driver.

11. When the driver installation is complete, click Restart to

restart your computer; the Allegro card is ready for use.

Known Limitations and Advice

USB peripherals have some limitations you should be aware of,

and we have listed some additional advice here. Refer to the

peripheral manufacturers’ Websites and user’s guides for more

speciﬁc information.

• The Mac OS X driver for this card does not support USB 2.0

and USB 1.1 devices, including, but not limited to iPads, iPods

or iPhones.

• The Mac OS X driver for this card supports USB 3.0 hard drives

Sonnet’s Dio™ Pro Media Reader, and Lexar’s USB 3.0 Compact

Flash/SD reader, but not other non-storage USB devices or hubs.

• USB 3.0 devices require USB 3.0 cables to support USB 3.0

(SuperSpeed) transfer speeds (up to 5 Gb/s). Use of USB 2.0

cables between USB 3.0 devices and Allegro USB 3.0 PCIe is

supported, but data transfers are limited to USB 2.0 speeds (up

to 480 Mb/s).

• Always “eject” any drive before disconnecting it from its cable

or the Sonnet card.

• Always “eject” any memory card before removing it from the

card reader, or disconnecting the card reader (with the card

inserted in it) from its cable or the Sonnet card.

• Many peripherals require additional drivers and application

software to operate or have full functionality. Software should

be included with the device, or available to download from the

manufacturer’s Website. Check the peripheral’s user’s manual

for information about necessary software.

• Disconnecting drives while they are transferring or receiving

data, may result in damage to the ﬁle(s) being transferred or

cause your system to hang.

• Although many peripherals may draw power directly from the

Sonnet card, other devices require an external power source.

Remember to use external power supplies when necessary.

Support Note for Mac Users: Please install the

Allegro USB 3.0 PCIe card in a recommended slot:

Mac Pro (Mid 2010, Early 2009, Early 2008) - Use only slot 3 or 4

Pre-2008 Mac Pro - Use any available slot

Software Download

Before installing the Allegro USB 3.0 PCIe card into your

Windows PC, you must download required software from the

Sonnet Website.

1. Log onto the Internet.

2. Go to http://www.sonnettech.com/support/kb/kb.php, click

on the Computer Cards link, and then click on the PCIe

Cards link.

3. Locate and click the Allegro USB 3.0 PCIe link, then click the

Driver link, and then click the USB 3.0 Driver (Windows)

link. Click the Download Now link; depending on the OS

and how your computer is conﬁgured, a new window may

appear asking you what to do with the ﬁle; click Open. If

another window appears asking for permission to open the

ﬁle, click Allow.

4. When the window showing the contents of the .zip ﬁle

appears, locate and click the Extract Files button (7 or Vista),

or select File > Extract All… from the menu (XP); proceed to

Card Installation Steps.

Installation Preparation

Sonnet strongly recommends that you read the section in

your computer’s user manual that addresses PCI Express card

installation, prior to installing the Allegro USB 3.0 PCIe into your

system.

Card Installation Steps

1. Shut down your computer, and then open it to access

the expansion card area (PCI Express slots); refer to your

computer’s user manual for speciﬁc information.

2. Locate an available PCI Express slot inside your computer

and remove its access cover.

3. Remove the Sonnet card from its packaging, and then install

it into the PCI Express slot; make sure the card is firmly

seated and secured.

4. Close your computer.

Software Installation Steps—Windows 7

1. Log in. During startup, Installing Device Driver pop-ups

will appear, followed by a Device driver software was not

successfully installed; close the last pop-up.

2. Navigate to the location where you extracted the .zip ﬁle,

locate and open the NEC uPD720200 folder, and then

double-click Setup to launch the driver installer.

3. Follow the onscreen instructions to complete the driver

installation.

Windows Users’ Steps

4. After the installer ﬁnishes, pop-ups indicating the drivers

were successfully installed will appear; the Allegro card is

ready for use.

Software Installation Steps—Windows Vista and XP

1. Log in. During startup, a Found New Hardware Wizard

window will appear; click Cancel.

2. Navigate to the location where you extracted the .zip ﬁle,

locate and open the NEC uPD720200 folder, and then

double-click Setup to launch the driver installer.

3. Follow the onscreen instructions to complete the driver

installation.

4. After the installer ﬁnishes, pop-ups indicating the drivers

were successfully installed will appear; the Allegro card is

ready for use.

Known Limitations and Advice

USB peripherals have some limitations you should be aware of,

and we have listed some additional advice here. Refer to the

peripheral manufacturers’ Websites and user’s guides for more

speciﬁc information.

• USB 3.0 devices require USB 3.0 cables to support USB 3.0

(SuperSpeed) transfer speeds (up to 5 Gb/s). Use of USB 2.0

cables between USB 3.0 devices and Allegro USB 3.0 PCIe is

supported, but data transfers are limited to USB 2.0 speeds (up

to 480 Mb/s).

• Always “stop”, “unplug”, “eject”, or “put away” any drive (hard

drive, memory card, iPod, etc.) before disconnecting it from its

cable or the Sonnet card.

• Many peripherals require additional drivers and application

software to operate or have full functionality. Software should

be included with the device, or available to download from the

manufacturer’s Website. Check the peripheral’s user’s manual

for information about necessary software.

• Disconnecting peripherals (including external drives, cameras,

memory card readers, printers, etc.) while they are transferring

or receiving data, may result in damage to the ﬁle(s) being

transferred or cause your system to hang.

• Although many peripherals may draw power directly from the

Sonnet card, other devices require an external power source.

Remember to use external power supplies when necessary.

Specyfikacje produktu

Marka:	Sonnet
Kategoria:	Niesklasyfikowane
Model:	Allegro USB 3.0 PCIe

Potrzebujesz pomocy?

Jeśli potrzebujesz pomocy z Sonnet Allegro USB 3.0 PCIe, zadaj pytanie poniżej, a inni użytkownicy Ci odpowiedzą

Twoje imię*

Twój email*

Napisz tutaj swoje pytanie

Instrukcje Niesklasyfikowane Sonnet

Sonnet MR-STO-X8SSD Instrukcja

3 Października 2024

Sonnet Allegro USB 3.0 PCIe Instrukcja

3 Października 2024

Sonnet Allegro USB-C PCIe Instrukcja

3 Października 2024

Sonnet Echo 11 Thunderbolt 4 Dock Instrukcja

3 Października 2024

Sonnet Echo 13 Triple 4K Display Dock Instrukcja

3 Października 2024

Sonnet Echo Express SE II Instrukcja

3 Października 2024

Sonnet Thunderbolt Pro P2 Instrukcja

3 Października 2024

Sonnet Twin25G Instrukcja

3 Października 2024

Sonnet Echo Dual NVMe Thunderbolt Dock Instrukcja

3 Października 2024

Sonnet Echo 20 Thunderbolt 4 SuperDock Instrukcja

3 Października 2024

Instrukcje Niesklasyfikowane

Najnowsze instrukcje dla Niesklasyfikowane

Black Diamond BD1121530000ALL1 Instrukcja

15 Października 2024

Husqvarna K 970 SmartGuard Instrukcja

15 Października 2024

Stihl HT 70 Instrukcja

15 Października 2024

Ernesto H14270 Instrukcja

15 Października 2024

Uniden BT MIC KIT Instrukcja

15 Października 2024

Vaude Omnis Bike 26 Instrukcja

15 Października 2024

ART ProChannel II Instrukcja

15 Października 2024

Aukey DR02J Instrukcja

15 Października 2024

Master Lock 653EURD Instrukcja

15 Października 2024

Roland FR-18 Diatonic Instrukcja

15 Października 2024
