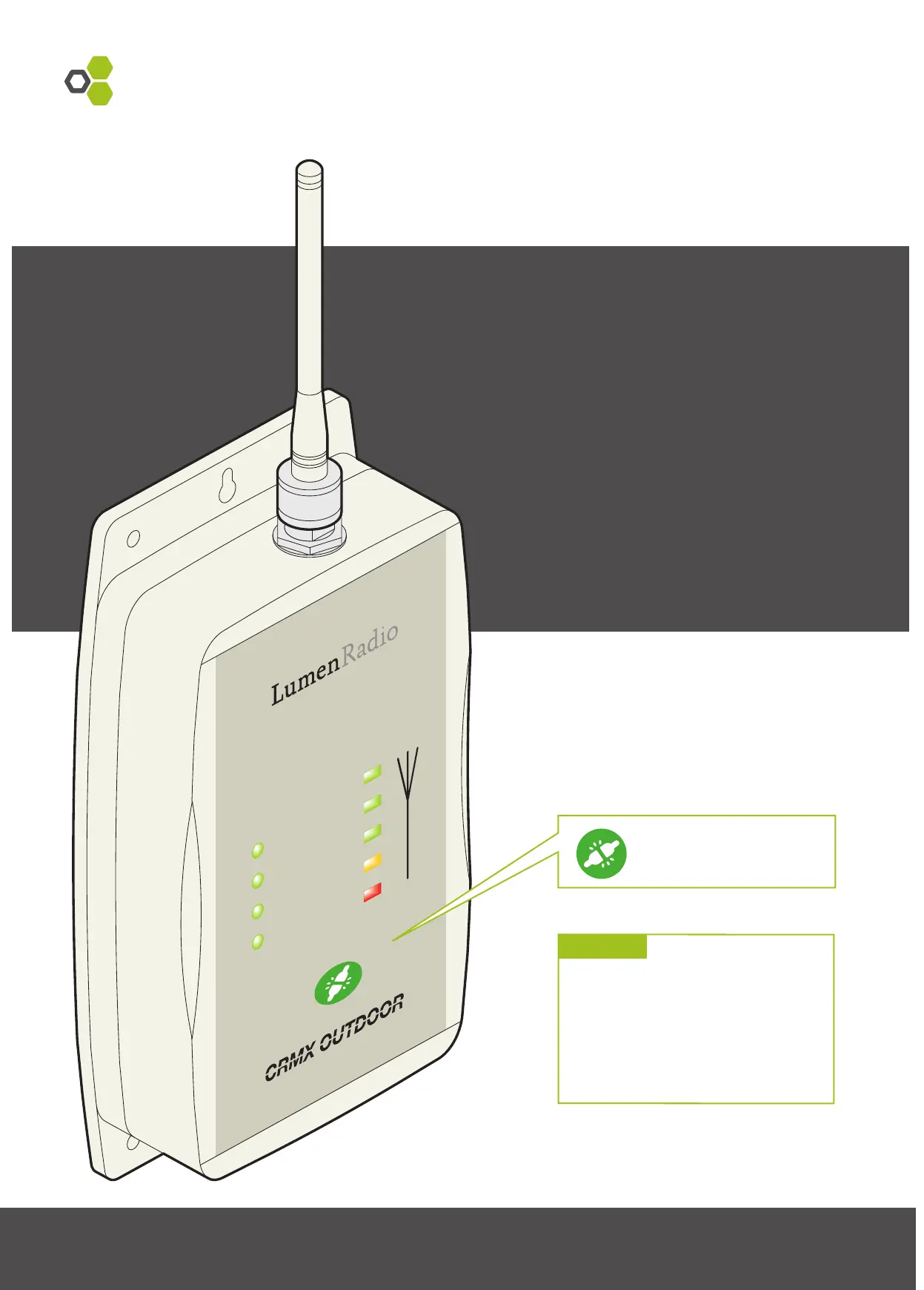

To optimize range and performance:
• Keep antennas upright
• Maintain TX to RX line of sight
• Elevate the units above any crowds
• Elevation above ground increases range
• Keep away from large metal objects
The information furnished in this start guide is for informational use only and is subject to change without notice. Please check www.lumenradio.com for latest version.
LumenRadio AB assumes no responsibility or liability for any errors or inaccuracies that may appear in this start guide. All information and graphics are property of
LumenRadio AB, Svangatan 2B SE-416 68 Gothenburg, Sweden.
CRMX Slim
CRMX Nova Flex
lumenradio
Creating Connectivity for a Better Tomorrow
INTRODUCTION
Thank you for buying a LumenRadio CRMX Slim product. This
guide is intended to give you a quick start to experience the
benets of LumenRadio’s CRMX system.
The CRMX products you just purchased are designed to give you
the highest reliability on the market and are fully compatible with
other CRMX products in professional lighting (CRMX Nova, CRMX
Outdoor, CRMX Slim, CRMX OEM). Through this you are able
to expand your wireless system with units from our other product
lines as well as with those of our partners. For the latest updates
please visit the LumenRadio website www.lumenradio.com.
We hope that you will enjoy our products and that they will bring
benets and positive experiences.
NOTICE
CONNECTIONS
All connections are made via the two cable glands.
100-240VAC POWER INPUT/OUTPUT
Warning: Ensure that the supply is
de-energized before connecting,
disconnecting or whenever opening the casing.
CABLE SIZE AND TYPE
Diameter = 8 - 13mm
Use stranded cable only
POWER TERMINAL CONNECTIONS
Max wire size = 1.5mm2 (16 AWG)
Min wire size* = 0.08mm2 (28 AWG)
Min insulation strip length = 4 mm
DMX TERMINAL CONNECTIONS
Max wire size = 0.5mm2 (20 AWG)
Min wire size = 0.08mm2 (28 AWG)
Insulation strip length = 5-6mm
*Install in compliance with all regulations
applicable to local jurisdiction
DMX+
DMX-
Reserved for future upgrades
DALI out
Reserved for future upgrades
Neutral Mains power in
Live in (100-240VAC)
Reserved for future upgrades
DALI out
GND
CORRECT USE OF THE CABLE GLANDS
When used correctly, the glands offer full environmental protection up to IP65.
1. Each gland has a
membrane inside it.
Puncture this using an
appropriate tool or the
cable itself.
3. Retract the cable
1cm, to ensure the IP
seal.
2. Insert the cable
through the gland, with
an additional 1cm of
cable than your desired
length.

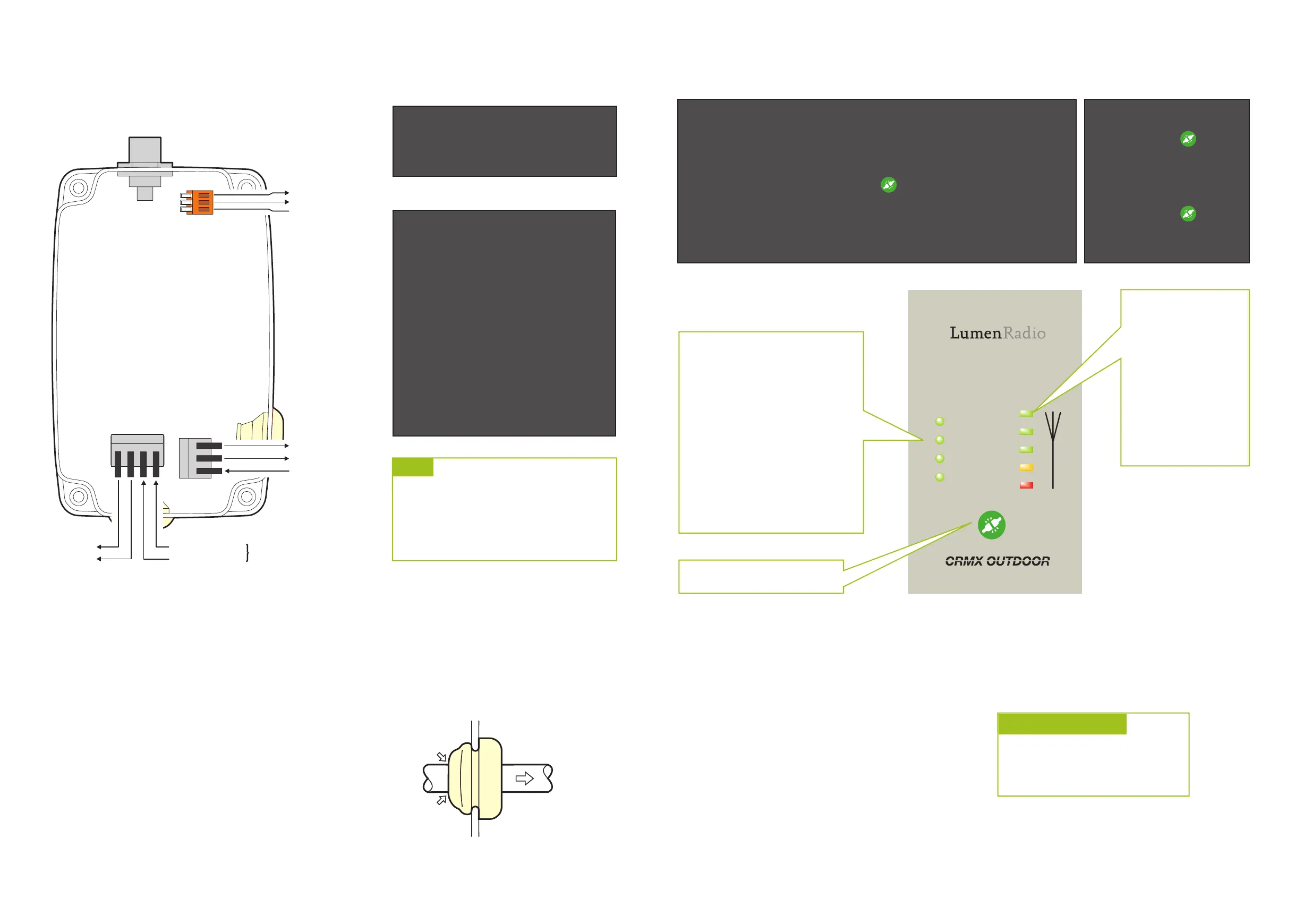

The two grey connector blocks can be detached
from the circuit board to assist with connections.
A separate two-way connector block is also
included to terminate the mains ground
TIPS
MOUNTING TEMPLATE (1:1)
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
Release 5.0 May 2020
FCC ID: XRSCRMXTIMO101
IC: 8879A-CRMXN101
SRRC CMIT ID: 2011DJ0708 US Patent 7,432,803
EU Declaration of Conformity
These products compliance with the Essential Requirements of the Radio
Equipment Directive (RED) of the European Union (2014/53/EU).
This equipment meets the following conformance standards:
ETSI EN 301 489-1 V2.1.1; ETSI EN 301 489-3 V2.1.1;
ETSI EN 300 328 V2.2.1; EN 60950
FCC statement
Note: This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against
harmful interference in a residential installation. This equipment generates, uses and can radiate radio
frequency energy and, if not installed and used in accordance with the instructions, may cause harmful
interference to radio communications. However, there is no guarantee that interference will not occur in
a particular installation. If this equipment does cause harmful interference to radio or television recep-
tion, which can be determined by turning the equipment off and on, the user is encouraged to try to
correct the interference by one or more of the following measures:
R001 - A
00019
Mount only in upright
orientation as shown
in this drawing.
152mm
TOP
156mm
13mm
11mm
11mm
Ø4mm
Ø4mm
Ø7mm
5mm
90mm
25.5mm25.5mm
174mm
NOTICE
CRMX™, CRMX Nova™, CRMX Outdoor™, CRMX Slim™, CRMX OEM™, CRMX SuperNova™ are trademarks of LumenRadio AB. W-DMX™ is a trademark of Wireless Solution
Sweden AB. CRMX is patented by LumenRadio, CE, FCC, ICES, SRRC and ARIB STD-T66 approved.
lumenradio
