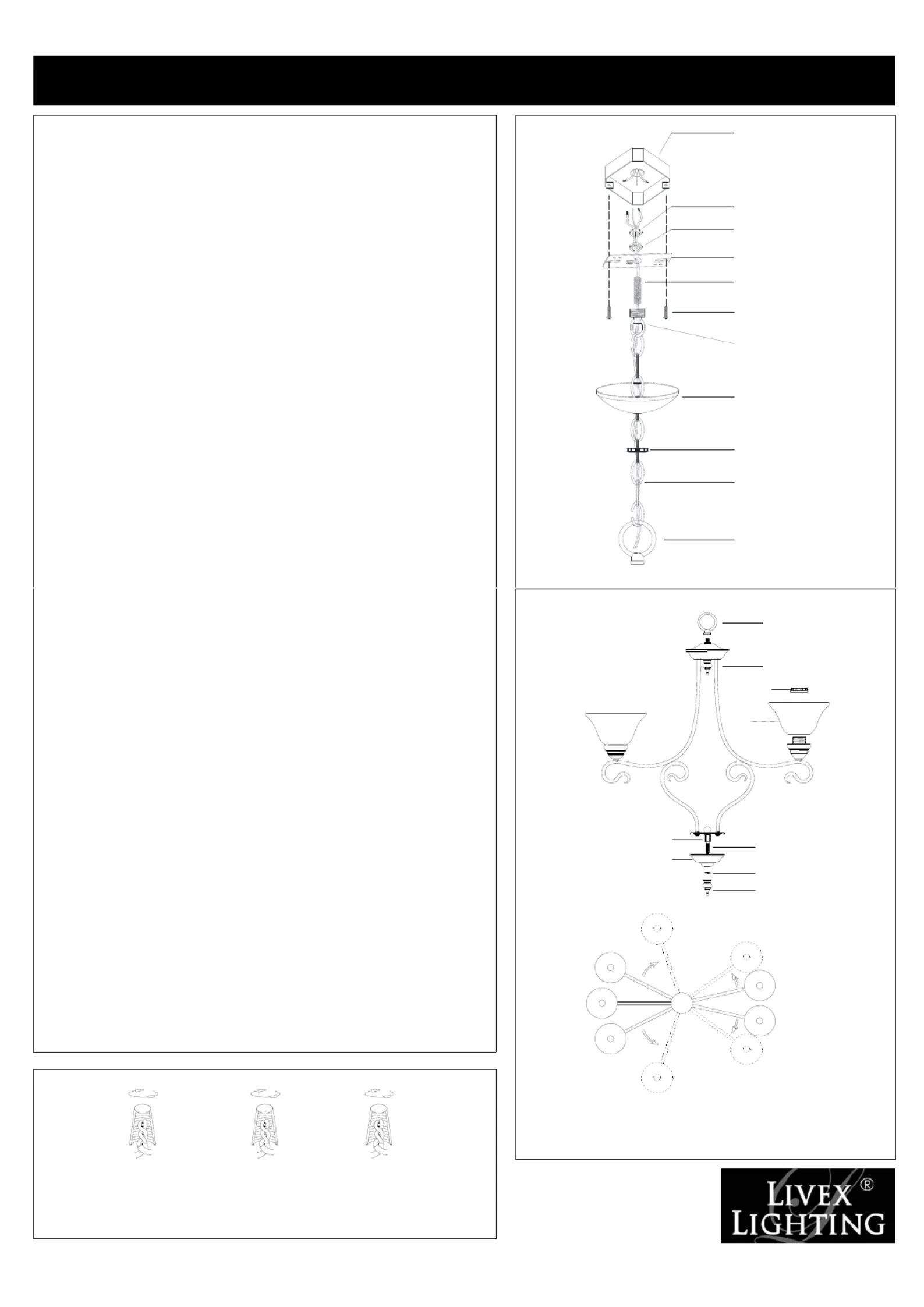

ASSEMBLING & INSTALLATION INSTRUCTIONS PRODUCT#
6118 6119 6126 6133 6135
WARNING! SHUT POWER OFF AT FUSE OR CIRCUIT BREAKER .
Fig.1
ASSEMBLING THE FIXTURE (Fig.2).
1. Return the arms to suitable position, see figure.2.
2. Attach the loop (A) to the fixture body (B) by turning it clockwise until
tight.
3. Raise the pipe nipple (E) to the coupling (D) and securely tighten
,attach
the cover (F) to end of the pipe nipple, screw it with hex nut(G) and
finial (H).
4. Attach the glass shade (I) onto the lamp holder , then lock it securely
with check ring (C).
5. Install the light bulbs in accordance with the fixture specifications
NOTE: DO NOT EXCEED THE SPECIFIED WATTAGE!
HANGING THE FIXTURE (Fig.1)
1. Shut off the power at the circuit breaker and remove old fixture from
ceiling, including the old single bar.
2. Carefully unpack new fixture and lay all the parts on a clear surface.
3. Thread nipple (C) into loop (F) until snug.
4. Thread other end of nipple (C) with loop attached into single bar (D)
until snug.
5. Place lock washer (B) over end of nipple protruding through single bar
and thread hex nut (A) onto nipple until tight.
6. Take this single bar assembly and mount to ceiling junction box with
junction box screws (E). Tighten screws securely with screwdriver.
7. Using proper chain pliers to open one end link of the chain provided
and connect to the fixture loop (I). Close the link.
8. By measuring, determine correct number of links needed for proper
hanging height. Using proper chain pliers disconnect and discard
remaining chain.
9. Lace the fixture wires through the chain.
10. Slip loop collar (H) over the chain, then do the same with the canopy
(G).
11. Open the other end link of the chain and hang the fixture on the loop
at the ceiling. Close the link.
12. Feed the fixture wires through the loop (F) and nipple (C) and pull
until taut.
13. Slide canopy (G) up flush to ceiling, secure using loop (H).
CONNECTING THE WIRES (Fig.3)
1. Take the black wire from the ceiling junction box and the smooth wire
leg from the fixture and twist bare ends together. Twist wire connector
onto end of wire until snug.
2. Repeat same process with white junction box wire and ribbed wire leg
of fixture wire. NOTE: Twist wires together in the same direction you
twist the wire connector onto wires.
3. If your junction box has a grounding wire (green or bare copper),
attach this wire and the bare copper wire from the fixture together as
step 1.If junction box has no ground wire, attach the bare copper
fixture wire to the green ground screw on the single bar.
4. Tuck these wire connections neatly into the ceiling outlet box and then
raise the canopy (G) all the way to the ceiling. Raise the loop (H) and
thread onto ceiling loop protruding through canopy
Your installation is now complete. Return power to the junction
box and test the fixture.
Fig.2
A
B
C
DE
FG
H
I
Fig.3
White or
HOUSE
Black
WIRES
(Hot)
Smooth
FIXTURE
WIRES
Black or
Ribbed
WIRES
FIXTURE
Bare Copper(Ground)
FIXTURE
WIRES
Copper
(Ground)
HOUSE
(Neutral)
WIRES
White
Bare
Green or
WIRES
HOUSE
I
H
CHAIN
G
F
E
D
A
B
C
Junction
Box(Ceiling)
