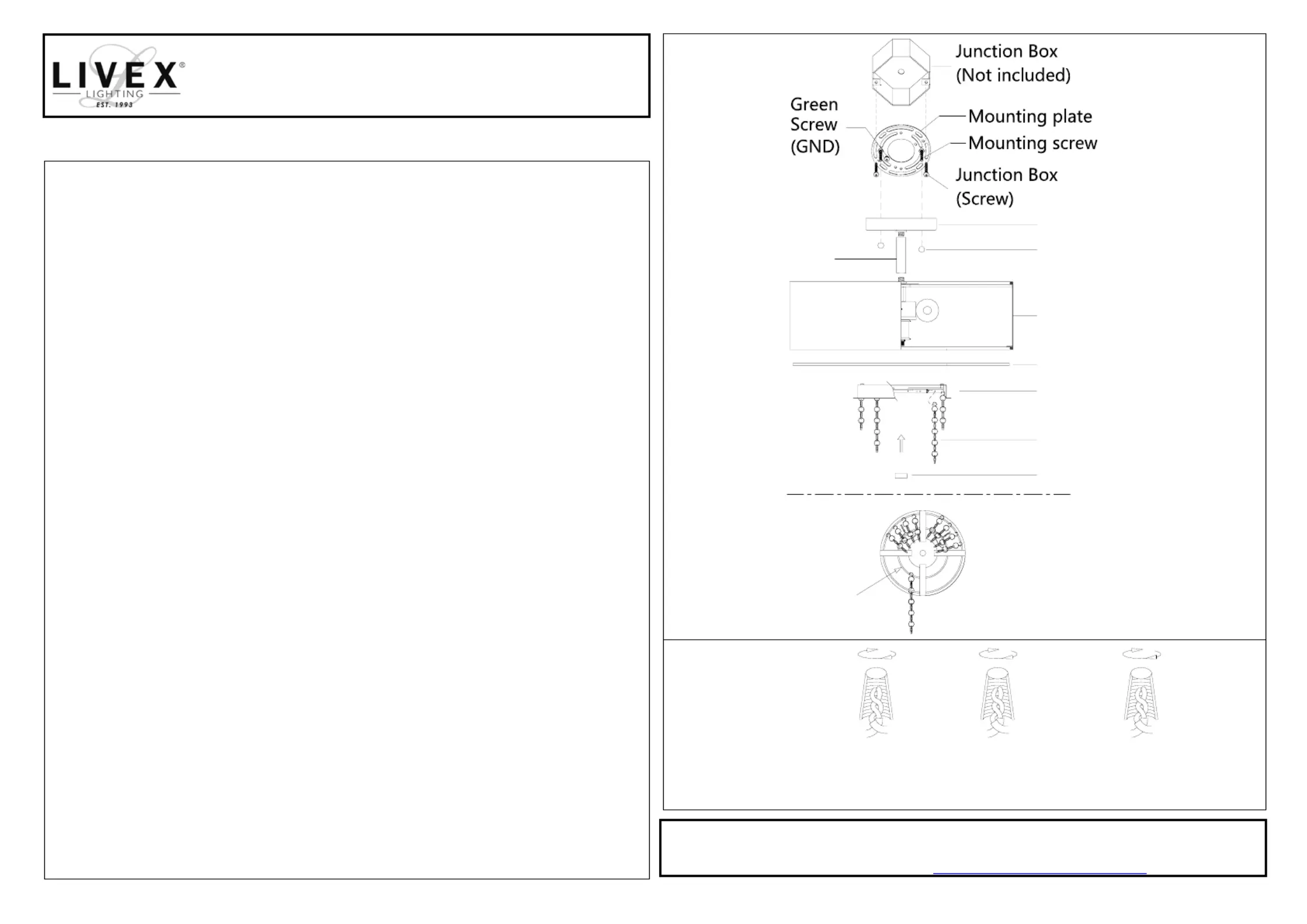

ASSEMBLING & INSTALLATION INSTRUCTIONS
The drawing shown may not exactly match the product enclosed.
However, the installation instructions do apply to this product.
51025 51026 51027 51094 51095 51096
WARNING! SHUT POWER OFF AT FUSE OR CIRCUIT BREAKER.
ATTENTION! COUPER LE COURANT AU FUSIBLE OU UN DISJONCTEUR.
ASSEMBLING THE FIXTURE (Fig.2)
1. Shut off the power at the circuit breaker box. Remove old fixture and all
hardware from Junction Box. Carefully unpack your new fixture and lay out all
the parts on a clear area. Take care not to lose any small parts necessary for
installation.
2. Thread the two mounting screws about 1/4” into the pre-drilled holes in the
mounting plate spaced the same distance apart as the holes in the canopy
(A).
3. Attach the mounting plate to the Junction Box with the two Junction Box
Screws as shown. The side of the mounting plate marked "GND" must face
out. The junction box is not included.
4. Attach the pipe(H) and canopy (A) to the top center pipe nipple of the shade
(C), by turning it clockwise until tight.
5. Install the light bulbs(Not included) in accordance with the fixture
specifications. NOTE: DO NOT EXCEED THE SPECIFIED WATTAGE!
6. Please see the Fig 1.1 (round frame Top View). Loosen the tie crystal cluster
of cord and organize appropriate. Raise the acrylic plate(D), round frame (E)
to the bottom of the shade (C), aligning the center hole with pipe nipple, lock
them securely with the finial (G) until tight.
7. Raise the end grapnel of the crystal cluster(F), hooked the inside ring of round
frame(E).
8. While holding the shade assembly towards the ceiling, connect the electrical
wires as Shown in Fig.2, making sure that all wire nuts are secured. You may
have to wrap the connections with electrical tape. If your outlet has a ground
wire (green or bare copper), connect the fixture ground wire to it. Otherwise
connect fixture’s ground wire directly to the mounting plate with the green
screw provided. After wires are connected, tuck them carefully inside the
Junction Box.
9. Raise the shade assembly onto the junction box, aligning screws on mounting
plate with mounting holes in canopy (A) and lock it securely with the ball nut
(B).
Your installation is now complete. Return power to the junction
box and test the fixture.
C
B
D
E
A
F
G
F
Inside
ring
Fig1.1
Round
frame(E)
H
FIXTURE
WIRES
Black or
Smooth
HOUSE
WIRES
Black(Hot)
FIXTURE
WIRES
White or
Ribbed
FIXTURE
WIRES
Bare
Copper
(Ground)
HOUSE
WIRES
White
(Neutral)
HOUSE
WIRES
Green or Bare
Copper(Ground)
Thank you for purchasing a LIVEX product.
Need assistance with parts or assembly? Please call customer service at: 800-761-8056
Or visit us on-line at: WWW.LIVEXLIGHTING.COM
©COPYRIGHT ALL RIGHTS RESERVED.LIVEX LIGHTING,INC. DOC20161151025
FIG.2
