Strona 1/35

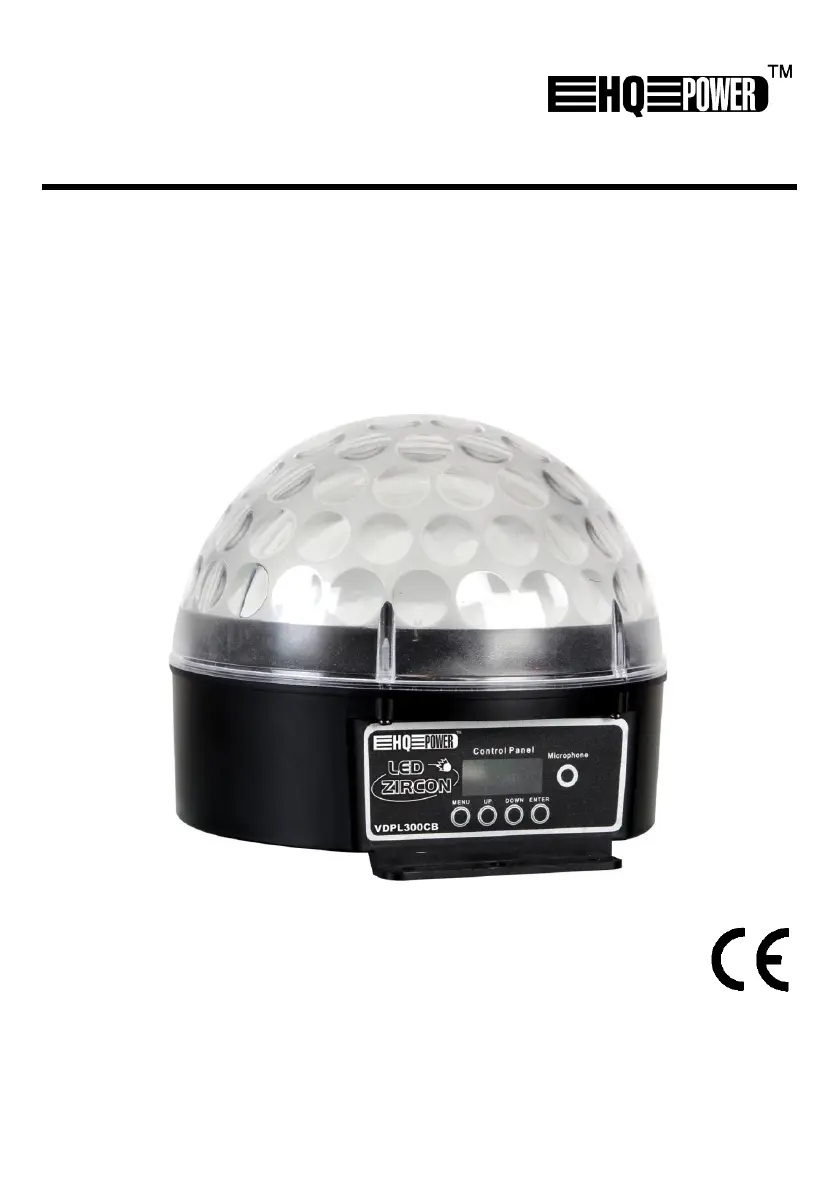

VDPL300CB

LED ZIRCON 6 X 3W LED EFFECT DMX CONTROLLED – –

LED ZIRCON LED-EFFECT 6 X 3W DMX-GESTUURD – – –

LED ZIRCON EFFET LED DE 6 X 3W PILOTAGE DMX – –

LED ZIRCON 6 X 3W EFECTO LED CONTROLADO POR DMX – –

LED ZIRCON 6 X 3W LED-EFFEKT DMX-GESTEUERT – –

EFEKT ŚWIETLNY LED ZIRCON - 6 DIOD LED 3W - STEROWANIE DMX

USER MANUAL 3

GEBRUIKERSHANDLEIDING 8

MODE D’EMPLOI 13

MANUAL DEL USUARIO 18

BEDIENUNGSANLEITUNG 23

INSTRUKCJA OBSŁUGI 28

VDPL300CB

V. 01 22/10/2014 2 ©Velleman nv –

terminator eindweerstand résistance de – –

terminaison terminación Terminierung - – –

terminator

How to turn the controller line from 3-pins into 5-pins (plug and socket).

Controller line van 3-pin naar 5-pin aanpassen (stekker en contact).

Modifier la ligne du contrôleur de 3 broches en 5 broches (fiche et contact).

Modificar la línea del controlador de 3 polos y 5 polos (conector y contacto).

Die Controller-Linie von 3-Pin nach 5-Pin anzupassen (Stecker und Kontakt).

Zamiana złącza sterownika z 3-pinowego na 5-pinowe (wtyczka i gniazdo)

VDPL300CB

V. 01 22/10/2014 3 ©Velleman nv –

USER MANUAL

1. Introduction

To all residents of the European Union

Important environmental information about this product

This symbol on the device or the package indicates that disposal of the device after its lifecycle

could harm the environment. Do not dispose of the unit (or batteries) as unsorted municipal

waste; it should be taken to a specialized company for recycling. This device should be

returned to your distributor or to a local recycling service. Respect the local environmental

rules.

If in doubt, contact your local waste disposal authorities.

Thank you for choosing Please read the manual thoroughly before bringing this device into HQPower™!

service. If the device was damaged in transit, don't install or use it and contact your dealer.

2. Safety Instructions

Be very careful during the installation: touching live wires can cause life-threatening

electroshocks.

Always disconnect mains power when device not in use or when servicing or maintenance

activities are performed. Handle the power cord by the plug only.

Indoor use only. Keep this device away form rain, moisture, splashing and dripping

liquids.

Keep this device away from children and unauthorized users.

Caution: device heats up during use.

Do not stare directly at the light source, as this may cause

 epileptic seizure in sensitive people

 temporarily loss of sight (flash blindness)

 permanent (irreversible) eye damage.

Respect a minimum distance of 0.5 m between the device’s light output and any

illuminated surface.

There are no user-serviceable parts inside the device. Refer to an authorized dealer for

service and/or spare parts.

 This device falls under protection class III.

 Make sure that the available voltage does not exceed the voltage stated in the specifications of this

manual.

 Do not crimp the power cord and protect it against damage. Have an authorised dealer replace it if

necessary.

 Use an appropriate safety cable to fix the device (e.g. VDLSC7N or VDLSC8N).

 Install the VDPL300CB at a minimal distance of 0.5 m from flammable and explosive objects or

substances.

 Only for operation with the transformer complying with EN 61347-2-13 and Annex I of the standard.

3. General Guidelines

Refer to the on the last pages of this manual. Velleman® Service and Quality Warranty

Keep this device away from dust and extreme temperatures.

Specyfikacje produktu

Marka:	HQ Power
Kategoria:	Maszyna efektów
Model:	VDPL300CB
Kolor produktu:	Czarny
Waga produktu:	580 g
Ilość lamp:	6 lamp(y)
Lampy:	30 W
Napięcie:	12 V
Wymiary produktu (SxGxW):	175 x 170 x 150 mm
