Instrukcja obsługi HQ Power VDP900HZ2

HQ Power Maszyna efektów VDP900HZ2

Przeczytaj poniżej 📖 instrukcję obsługi w języku polskim dla HQ Power VDP900HZ2 (28 stron) w kategorii Maszyna efektów. Ta instrukcja była pomocna dla 6 osób i została oceniona przez 2 użytkowników na średnio 4.5 gwiazdek

Pobierz PDF

Strona 1/28

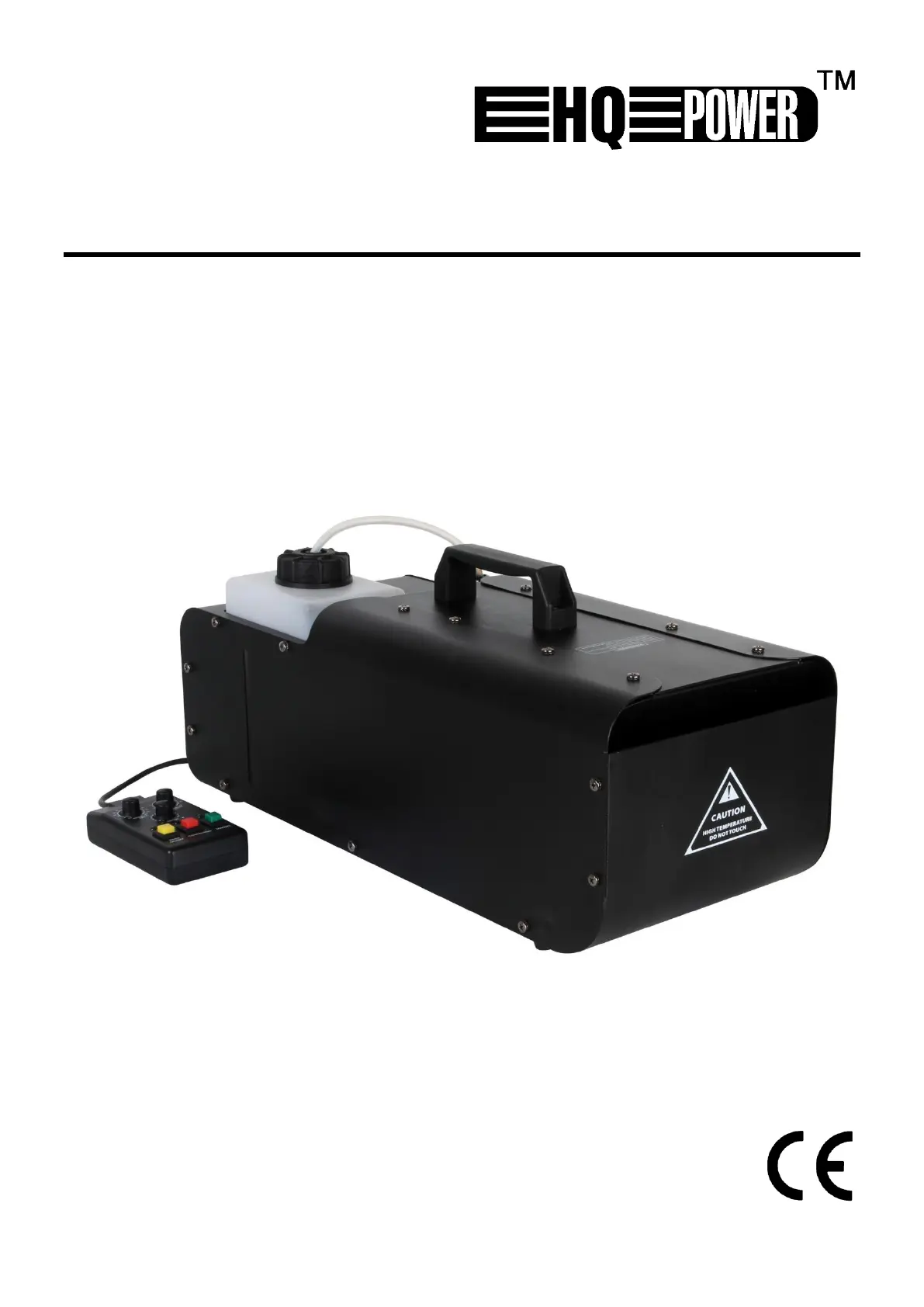

VDP900HZ2

HAZE MACHINE 600W DMX – –

NEVELMACHINE 600W DMX – –

MACHINE À BROUILLARD 600W DMX – –

MÁQUINA DE NIEBLA 600W DMX – –

NEBELMASCHINE 600W DMX – –

USER MANUAL 3

GEBRUIKERSHANDLEIDING 8

MODE D'EMPLOI 13

MANUAL DEL USUARIO 18

BEDIENUNGSANLEITUNG 23

VDP900HZ2

V. 01 05/04/2013 2 ©Velleman nv –

terminator

eindweerstand

résistance de terminaison

terminación

Terminierung

How to turn the controller line from 3-pins into 5-pins (plug and socket).

Controller line van 3-pin naar 5-pin aanpassen (stekker en contact).

Modifier la ligne du contrôleur de 3 broches en 5 broches (fiche et contact).

Modificar la línea del controlador de 3 polos y 5 polos (conector y contacto).

Die Controller-Linie von 3-Pin nach 5-Pin anzupassen (Stecker und Kontakt).

VDP900HZ2

V. 01 05/04/2013 3 ©Velleman nv –

USER MANUAL

1. Introduction

To all residents of the European Union

Important environmental information about this product

This symbol on the device or the package indicates that disposal of the device after its lifecycle could

harm the environment. Do not dispose of the unit (or batteries) as unsorted municipal waste; it

should be taken to a specialized company for recycling. This device should be returned to your

distributor or to a local recycling service. Respect the local environmental rules.

If in doubt, contact your local waste disposal authorities.

Thank you for choosing Please read the manual thoroughly before bringing this device into service. HQPower™!

If the device was damaged in transit, don't install or use it and contact your dealer.

2. Safety Instructions

This appliance is not intended for use by persons (including children) with reduced physical,

sensory or mental capabilities, or lack of experience and knowledge, unless they have been

given supervision or instruction concerning use of the appliance by a person responsible for

their safety.

Children should be supervised to ensure that they do not play with the appliance.

Never let the machine operate while unattended.

Warning: If the supply cord is damaged, it must be replaced by the manufacturer, its service

agent, or similarly qualified persons in order to avoid any hazard.

Be very careful during the installation: touching live wires can cause life-threatening

electroshocks.

Do not use the device when damage to housing or cables is noticed. Do not attempt to service

the device yourself but contact an authorised dealer.

Make sure that the available voltage does not exceed the voltage stated in the specifications of

this manual.

This device falls under protection class I. It is therefore essential that the device be earthed.

Have a qualified person carry out the electric connection.

Disconnect the device from the mains to clean it, to fill the reservoir, or when it is not in use.

Handle the power cord by the plug only.

Indoor use only. Keep this device away form rain, moisture, splashing and dripping liquids.

Never put objects filled with liquids on top of or close to the device.

Do not immerse the device in any liquid.

Caution: device heats up during use. Do not touch hot surfaces. Let the smoke machine cool

down sufficiently after switching off before handling.

Never cover the smoke machine and do not install it on a carpet or wooden floor.

Keep this device away from dust and extreme temperatures. For sufficient air circulation, leave

at least cm on all sides. 30

The maximum ambient temperature is 40 °C. Do not operate the device at higher

temperatures.

Install the device in a well-ventilated place, at a minimal distance of 0.5 m from flammable and

explosive objects or substances.

Make sure the haze outlet is free at all times. Never aim the outlet directly at humans or

animals. Keep the outlet at a minimum distance of cm from any obstacle. 40

To avoid health risks and to optimise the lifespan of the device, use only haze liquids as

specified in this user manual (order code VDLHLH5). Do not add oils, perfume, or any other

fluid or substance to the hazer liquid. This may cause toxic fumes or a fire hazard.

Do not drink hazer liquid. If it is ingested, contact a doctor immediately. If the liquid comes in

contact with eyes or skin, rinse abundantly with water.

Never run the device without liquid: this may cause permanent damage to the device.

Protect this device from shocks and abuse. Avoid brute force when installing or operating the

device.

Specyfikacje produktu

Marka:	HQ Power
Kategoria:	Maszyna efektów
Model:	VDP900HZ2
Kolor produktu:	Czarny
Moc:	600 W
Częstotliwość wejściowa AC:	50 Hz
Napięcie wejściowe AC:	230 V
Waga produktu:	8000 g
Zdalnie sterowany:	Tak
Pojemność zbiornika na ciecz:	1.2 l
Pilot zdalnego sterowania:	Przewodowa
Czas ogrzewania:	1.5 min
Wymiary produktu (SxWxG):	585 x 300 x 290 mm
Wolumen wytwarzania dymu:	79 m³/min
