Strona 1/26

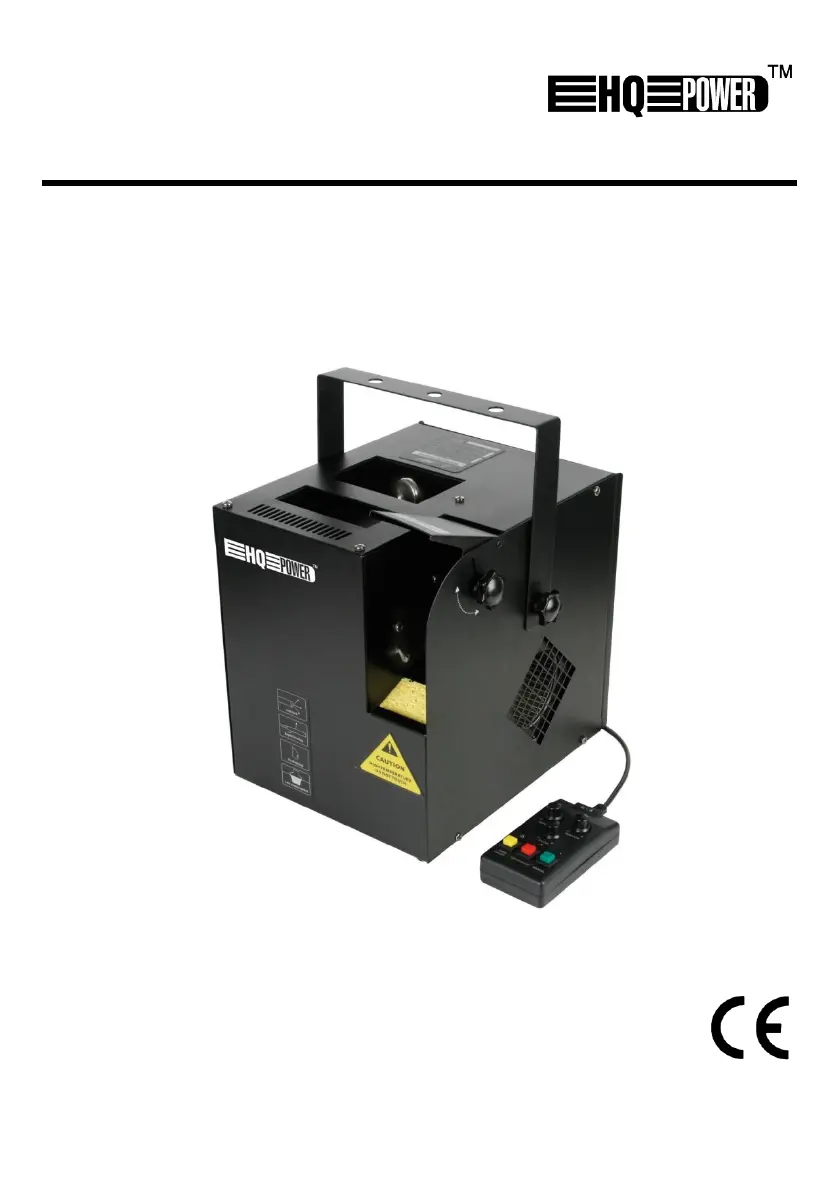

VDP600HZ

PROFESSIONAL HAZE MACHINE DMX –

PROFESSIONELE NEVELMACHINE DMX –

MACHINE À BROUILLARD PROFESSIONNELLE DMX –

MÁQUINA DE NIEBLA PROFESIONAL DMX –

PROFESSIONELLE NEBELMASCHINE DMX –

USER MANUAL 3

GEBRUIKERSHANDLEIDING 7

MODE D'EMPLOI 11

MANUAL DEL USUARIO 16

BEDIENUNGSANLEITUNG 20

VDP600HZ

V. 02 04/03/2013 2 ©Velleman nv –

terminator eindweerstand résistance de – –

terminaison terminación Terminierung – –

How to turn the controller line from 3-pins into 5-pins (plug and socket).

Controller line van 3-pin naar 5-pin aanpassen (stekker en contact).

Modifier la ligne du contrôleur de 3 broches en 5 broches (fiche et contact).

Modificar la línea del controlador de 3 polos y 5 polos (conector y contacto).

Die Controller-Linie von 3-Pin nach 5-Pin anzupassen (Stecker und Kontakt).

VDP600HZ

V. 02 04/03/2013 3 ©Velleman nv –

USER MANUAL

1. Introduction

To all residents of the European Union

Important environmental information about this product

This symbol on the device or the package indicates that disposal of the device after its lifecycle

could harm the environment. Do not dispose of the unit (or batteries) as unsorted municipal

waste; it should be taken to a specialized company for recycling. This device should be returned

to your distributor or to a local recycling service. Respect the local environmental rules.

If in doubt, contact your local waste disposal authorities.

Thank you for choosing ! Please read the manual thoroughly before bringing this device into HQPower™

service. If the device was damaged in transit, don't install or use it and contact your dealer.

2. Safety Instructions

Be very careful during the installation: touching live wires can cause life-threatening

electroshocks.

Caution: device heats up during use.

Indoor use only. Keep this device away form rain, moisture, splashing and dripping

liquids. Never put objects filled with liquids on top of or close to the device.

Disconnect the device from the mains to clean it, fill the tank or when it is not in use.

Handle the power cord by the plug only.

Keep this device away from children and unauthorized users. let the machine Never

operate while unattended.

Damage caused by disregard of certain guidelines in this manual is not covered by the warranty and

the dealer will not accept responsibility for any ensuing defects or problems.

A qualified technician should install and service this device.

Do not switch the device on immediately after it has been exposed to changes in temperature.

Protect the device against damage by leaving it switched off until it has reached room temperature.

This device falls under protection class I. It is therefore essential that the device be earthed. Have a

qualified person carry out the electric connection.

Make sure that the available voltage does not exceed the voltage stated in the specifications of this

manual.

Do not crimp the power cord and protect it against damage. Have an authorised dealer replace it if

necessary.

Note that damage caused by user modifications to the device is not covered by the warranty.

Keep the device away from fire and flammable substances.

3. General Guidelines

Refer to the on the last pages of this manual. Velleman® Service and Quality Warranty

This device is designed for professional use on stage, in discos, theatres, etc. The device should only

be used indoors and connected to an alternating current of 230 , Hz. VAC 50

Do not shake the device. Avoid brute force when installing or operating the device.

Do not drink smoke liquid. If ingested, call a doctor immediately. If smoke liquid comes in contact

with skin or eyes, rinse thoroughly with water.

Familiarise yourself with the functions of the device before actually using it. Do not allow operation

by unqualified people. Any damage that may occur will most probably be due to unprofessional use

of the device.

Use the original packaging if the device is to be transported.

All modifications of the device are forbidden for safety reasons.

Only use the device for its intended purpose. All other uses may lead to short circuits, burns,

electroshocks, crash, etc. Using the device in an unauthorised way will void the warranty.

Do not add oils, perfume or any other liquid in the smoke liquid.

The installation has to be approved by an expert before the device is taken into service.

Specyfikacje produktu

Marka:	HQ Power
Kategoria:	Maszyna efektów
Model:	VDP600HZ
Kolor produktu:	Czarny
Moc:	600 W
Częstotliwość wejściowa AC:	50 Hz
Napięcie wejściowe AC:	230 V
Waga produktu:	7850 g
Zdalnie sterowany:	Tak
Pojemność zbiornika na ciecz:	2.5 l
Pilot zdalnego sterowania:	Przewodowa
Czas ogrzewania:	1.5 min
Wymiary produktu (SxWxG):	275 x 278 x 227 mm
Wolumen wytwarzania dymu:	34 m³/min
