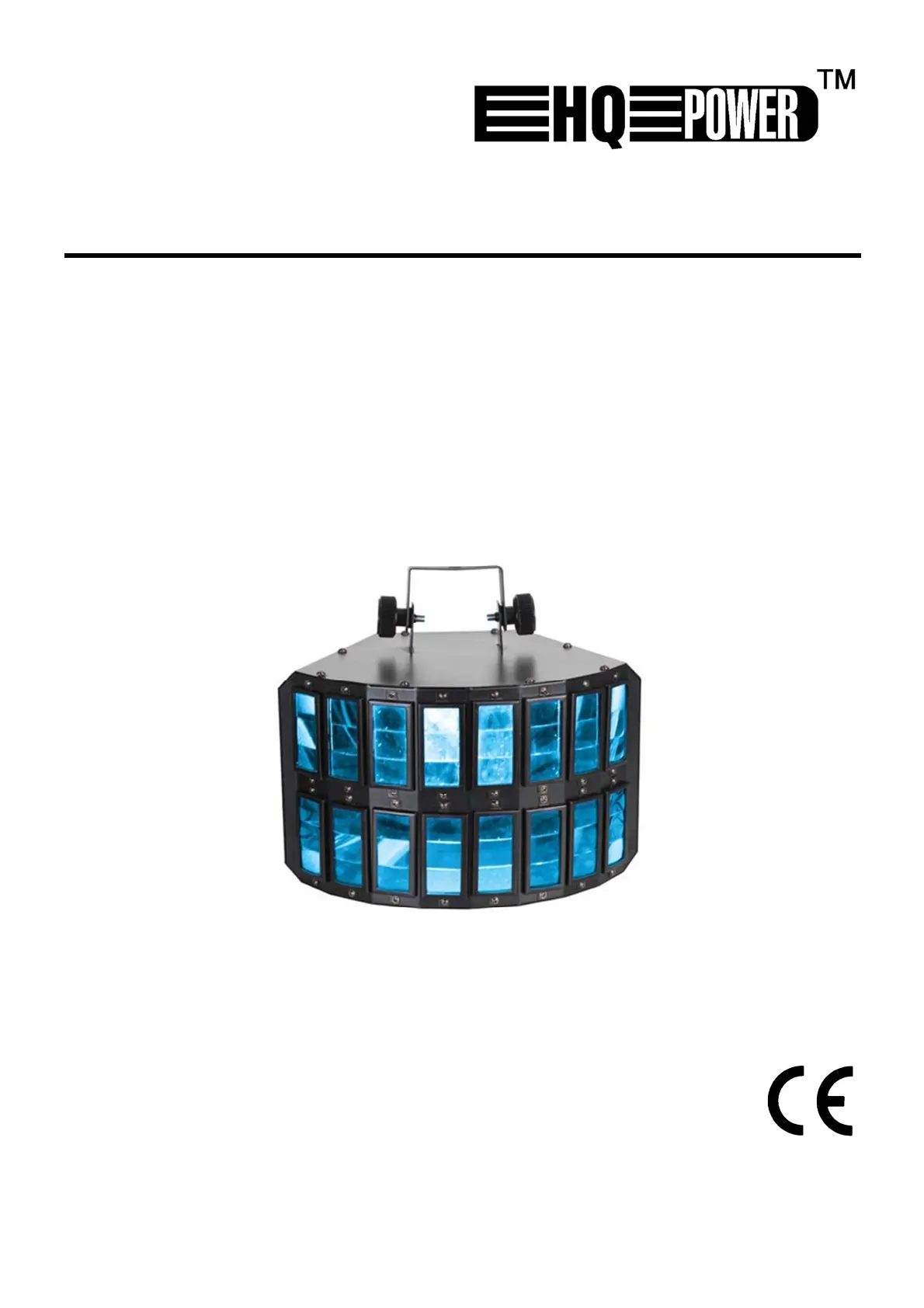

VDPL300HD

ASTAR III - LED TRIPLE DERBY - DMX-CONTROLLED

ASTAR III - TRIPLE DERBY - DMX-GESTUURD

ASTAR III - TRIPLE DERBY - PILOTAGE DM X

ASTAR III - DOBLE DERBY – CONTROL DMX

ASTAR III - TRIPLE DERBY - DMX-GESTEUERT

USER MANUAL 2

GEBRUIKERSHANDLEIDING 7

NOTICE D’EMPLOI 12

MANUAL DEL USUARIO 17

BEDIENUNGSANLEITUNG 25

VDPL300HD

V. 02 – 03/01/2013 2 ©Velleman nv

USER MANUAL

1. Introduction

To all residents of the European Union

Important environmental information about this product

This symbol on the device or the package indicates that disposal of the device after its lifecycle could

harm the environment. Do not dispose of the unit (or batteries) as unsorted municipal waste; it

should be taken to a specialized company for recycling. This device should be returned to your

distributor or to a local recycling service. Respect the local environmental rules.

If in doubt, contact your local waste disposal authorities.

Thank you for choosing HQPower™! Please read the manual thoroughly before bringing this device into service.

If the device was damaged in transit, don't install or use it and contact your dealer.

2. Safety Instructions

Be very careful during the installation: touching live wires can cause life-threatening electroshocks.

Keep this device away from rain and moisture.

Unplug the mains lead before opening the housing.

• Damage caused by disregard of certain guidelines in this manual is not covered by the warranty and the

dealer will not accept responsibility for any ensuing defects or problems.

• A qualified technician should install and service this device.

• Do not switch the device on immediately after it has been exposed to changes in temperature. Protect the

device against damage by leaving it switched off until it has reached room temperature.

• This device falls under protection class I. It is therefore essential that the device be earthed. Have a

qualified person carry out the electric connection.

• Make sure that the available voltage does not exceed the voltage stated in the specifications of this manual.

• Do not crimp the power cord and protect it against damage. Have an authorised dealer replace it if

necessary.

• Disconnect the device from the mains to clean it or when it is not in use. Handle the power cord by the plug

only.

• Do not look directly at the light source as sensitive people may go into epileptic seizure if they do.

• Note that damage caused by user modifications to the device is not covered by the warranty.

• Mechanical wear and the LEDs are not covered by warranty.

• Keep the device away from children and unauthorised users

3. General Guidelines

• Indoor use only. Keep this device away from rain, moisture, splashing and dripping liquids.

• This device is designed for use on stage, in discos, theatres, etc.

• Lighting effects are not designed for permanent operation: regular operation breaks will prolong their lives.

• Do not shake the device. Avoid brute force when installing or operating the device.

• Select a location where the device is protected against extreme heat, dust and moisture. Respect a

minimum distance of 0.5m between the device’s light output and any illuminated surface.

• Use an appropriate safety cable to fix the device (e.g. VDLSC7 or VDLSC8).

• Familiarise yourself with the functions of the device before actually using it. Do not allow operation by

unqualified people. Any damage that may occur will most probably be due to unprofessional use of the

device.

• Use the original packaging if the device is to be transported.

• All modifications of the device are forbidden for safety reasons.

• Only use the device for its intended purpose. All other uses may lead to short circuits, burns, electroshocks,

crash, etc. Using the device in an unauthorised way will void the warranty.

Refer to the Velleman® Service and Quality Warranty on the last pages of this manual.

VDPL300HD

V. 02 – 03/01/2013 3 ©Velleman nv

4. Features

• multi-coloured effect to cover complete room

• DMX controlled by 8 channels

• auto mode, sound activated or master/slave mode

• built-in microphone for sound activation

5. Overview

1 LED display

2 DMX input

3 DMX output

4 Built-in

microphone

5 Fuse holder

6 IEC cord input

6. Installation

a. Mounting the device

• Have the device installed by a qualified person, respecting EN 60598-2-17 and all other applicable norms.

• The carrying construction must be able to support 10 times the weight of the device for 1 hour without

deforming.

• The installation must always be secured with a secondary attachment e.g. a safety cable.

• Never stand directly below the device when it is being mounted, removed or serviced. Have a qualified

technician check the device once a year and once before you bring it into service.

• Install the device in a location with few passers-by that is inaccessible to unauthorised persons.

• Overhead mounting requires extensive experience: calculating workload limits, determining the installation

material to be used… Have the material and the device itself checked regularly. Do not attempt to install

the device yourself if you lack these qualifications as improper installation may result in injuries.

• Adjust the desired inclination angle via the mounting bracket and tighten the bracket screws.

• Make sure there is no flammable material within a 0.5m radius of the device.

• Have a qualified electrician carry out the electric connection.

• Connect the device to the mains with the power plug. Do not connect it to a dimming pack.

• The installation has to be approved by an expert before the device is taken into service.

b. Fuse replacement

Only fit or replace a fuse when the device is unplugged from the mains.

Replace a blown fuse with a fuse of the same type and rating (see “Technical Specifications”):

1. Remove the fuse holder using a flat-head screwdriver.

2. Remove the old fuse and install a new one.

3. Put back the fuse holder.

7. Operation

The device can be used in the following modes:

• Standalone mode (with the built-in microphone)

• Master-slave

• With a DMX512 controller

Specyfikacje produktu

Marka:	HQ Power
Kategoria:	Maszyna efektów
Model:	Astar III
Kolor produktu:	Czarny
Waga produktu:	3250 g
Ilość lamp:	3 lamp(y)
Lampy:	5 W
Napięcie:	130 V
Częstotliwość danych wejściowych:	50 Hz
Wymiary produktu (SxGxW):	340 x 210 x 245 mm
