Wired PIR Detector

DS-PDP15P-EG2

User Manual

UD18957B-C

Hangzhou Hikvision Digital Technology CO.,Ltd. No.555 Qianmo Road, Binjiang District, Hangzhou 310052, China

Appearance

The 15 m Lens

Connect to Control Panel

Installation

Screw Model:

PA_3.5 ×25 (4 screws)

Ceiling Bracket Fitting

45.5 mm

65.4 mm

86.8 mm

Warning

1 2

85.9°

Detection Range

52 zones

4 planes

1.8 to 2.4m

11m

13m

9m 11m1m 3m 5m 7m 13m 15m

15m

9m 11m1m 3m 5m 7m 13m 15m

This PIR detector is approved at 2 m to 2.4 m mounted

height for 15 m detection range, at 1.8 m to 1.9 m

mounted height for 12 m detection range.

Note: The resistor needs to be connected to the end of detector.

None Resistor Connection

ALARMTAMPER +-

EOL EOL

ZONE1 ZONE2COM

+ -

TAMPER/ALARM

Control Panel

Detector

Single EOL Connection

Control Panel

Detector

ALARMTAMPER +-

EOL EOL

ZONE1 ZONE2COM

+ -

TAMPER/ALARM

2.2 K

Read all information and instructions in this document carefully before using the device and keep it for further

reference.

For more device information and instructions, please visit our website at

https://www.hikvision.com. You can also refer to other documents (if any) accompanying the device or scan the QR code

(if any) on the packaging to get more information.

About this Document

• This Document includes instructions for using and managing the Product. Pictures, charts, images and all other

information hereinafter are for description and explanation only.

• The information contained in the Document is subject to change, without notice, due to firmware updates or other

reasons. Please find the latest version of the Document at the Hikvision website (https://www.hikvision.com). Unless

otherwise agreed, Hangzhou Hikvision Digital Technology Co., Ltd. or its affiliates (hereinafter referred to as "Hikvision")

makes no warranties, express or implied.

• Please use the Document with the guidance and assistance of professionals trained in supporting the Product.

About this Product

This product can only enjoy the after-sales service support in the country or region where the purchase is made.

Acknowledgment of Intellectual Property Rights

• Hikvision owns the copyrights and/or patents related to the technology embodied in the Products described in this

Document, which may include licenses obtained from third parties.

• Any part of the Document, including text, pictures, graphics, etc., belongs to Hikvision. No part of this Document may

be excerpted, copied, translated, or modified in whole or in part by any means without written permission.

• and other Hikvision's trademarks and logos are the properties of Hikvision in various jurisdictions.

• Other trademarks and logos mentioned are the properties of their respective owners.

LEGAL DISCLAIMER

• TO THE MAXIMUM EXTENT PERMITTED BY APPLICABLE LAW, THIS DOCUMENT AND THE PRODUCT DESCRIBED, WITH

ITS HARDWARE, SOFTWARE AND FIRMWARE, ARE PROVIDED "AS IS" AND "WITH ALL FAULTS AND ERRORS". HIKVISION

MAKES NO WARRANTIES, EXPRESS OR IMPLIED, INCLUDING WITHOUT LIMITATION, MERCHANTABILITY, SATISFACTORY

QUALITY, OR FITNESS FOR A PARTICULAR PURPOSE. THE USE OF THE PRODUCT BY YOU IS AT YOUR OWN RISK. IN NO

EVENT WILL HIKVISION BE LIABLE TO YOU FOR ANY SPECIAL, CONSEQUENTIAL, INCIDENTAL, OR INDIRECT DAMAGES,

INCLUDING, AMONG OTHERS, DAMAGES FOR LOSS OF BUSINESS PROFITS, BUSINESS INTERRUPTION, OR LOSS OF DATA,

CORRUPTION OF SYSTEMS, OR LOSS OF DOCUMENTATION, WHETHER BASED ON BREACH OF CONTRACT, TORT

(INCLUDING NEGLIGENCE), PRODUCT LIABILITY, OR OTHERWISE, IN CONNECTION WITHTHE USE OF THE PRODUCT,

EVEN IF HIKVISION HAS BEEN ADVISED OF THE POSSIBILITY OF SUCHDAMAGES OR LOSS.

• YOU ACKNOWLEDGE THAT THE NATURE OF THE INTERNET PROVIDES FOR INHERENT SECURITY RISKS, AND HIKVISION

SHALL NOT TAKE ANY RESPONSIBILITIES FOR ABNORMAL OPERATION, PRIVACY LEAKAGE OR OTHER DAMAGES

RESULTING FROM CYBER-ATTACK, HACKER ATTACK, VIRUS INFECTION, OR OTHER INTERNET SECURITY RISKS; HOWEVER,

HIKVISION WILL PROVIDE TIMELY TECHNICAL SUPPORT IF REQUIRED.

• YOU AGREE TO USE THIS PRODUCT IN COMPLIANCE WITH ALL APPLICABLE LAWS, AND YOU ARE SOLELY RESPONSIBLE

FOR ENSURING THAT YOUR USE CONFORMS TO THE APPLICABLE LAW. ESPECIALLY, YOU ARE RESPONSIBLE, FOR USING

THIS PRODUCT IN A MANNER THAT DOES NOT INFRINGE ON THE RIGHTS OF THIRD PARTIES, INCLUDING WITHOUT

LIMITATION, RIGHTS OF PUBLICITY, INTELLECTUAL PROPERTY RIGHTS, OR DATA PROTECTION AND OTHER PRIVACY

RIGHTS. YOU SHALL NOT USE THIS PRODUCT FOR ANY PROHIBITED END-USES, INCLUDING THE DEVELOPMENT OR

PRODUCTION OF WEAPONS OF MASS DESTRUCTION, THE DEVELOPMENT OR PRODUCTION OF CHEMICAL OR

BIOLOGICAL WEAPONS, ANY ACTIVITIES IN THE CONTEXT RELATED TO ANY NUCLEAR EXPLOSIVE OR UNSAFE NUCLEAR

FUEL-CYCLE, OR IN SUPPORT OF HUMAN RIGHTS ABUSES.

• IN THE EVENT OF ANY CONFLICTS BETWEEN THIS DOCUMENT AND THE APPLICABLE LAW, THE LATTER PREVAILS.

These clauses apply only to the products bearing the corresponding mark or information.

FCC Compliance Statement

Note: This product has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of

the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential

installation. This product generates, uses, and can radiate radio frequency energy and, if not installed and used in

accordance with the instructions, may cause harmful interference to radio communications. However, there is no

guarantee that interference will not occur in a particular installation. If this product does cause harmful interference to

radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to

try to correct the interference by one or more of the following measures:

—Reorient or relocate the receiving antenna.

—Increase the separation between the equipment and receiver.

—Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

—Consult the dealer or an experienced radio/TV technician for help.

Please take attention that changes or modification not expressly approved by the party responsible for compliance could

void the user’s authority to operate the equipment.

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:

(1) this device may not cause harmful interference, and

(2)this device must accept any interference received, including interference that may cause undesired operation.

EU/UK Compliance Statement

This product and - if applicable - the supplied accessories too are marked with "CE" and comply therefore with

the applicable harmonized European standards listed under the Directive 2014/30/EU (EMCD) and Directive

2011/65/EU (RoHS).

Note: The products with the input voltage of within 50 to 1000 VAC or 75 to 1500 VDC comply with Directive 2014/35/EU

(LVD), and the rest products comply with Directive 2001/95/EC (GPSD). Please check the specific power supply

information for reference.

The full text of the EU declaration of conformity is available at the following internet address: https://

www.hikvision.com/en/support/compliance/declaration-of-conformity.

This product and - if applicable - the supplied accessories too are marked with "UKCA" and comply therefore

with the following directives: Electromagnetic Compatibility Regulations 2016, Electrical Equipment (Safety)

Regulations 2016, the Restriction of the Use of Certain Hazardous Substances in Electrical and Electronic

Equipment Regulations 2012.

Directive 2012/19/EU (WEEE Directive): Products marked with this symbol cannot be disposed of as unsorted

municipal waste in the European Union. For proper recycling, return this product to your local supplier upon

the purchase of equivalent new equipment, or dispose of it at designated collection points. For more

information see: www.recyclethis.info.

According to the Waste Electrical and Electronic Equipment Regulations 2013: Products marked with this symbol cannot

be disposed of as unsorted municipal waste in the United Kingdom. For proper recycling, return this product to your local

supplier upon the purchase of equivalent new equipment, or dispose of it at designated collection points. For more

information see: www.recyclethis.info.

Directive 2006/66/EC and its amendment 2013/56/EU (Battery Directive): This product contains a battery that

cannot be disposed of as unsorted municipal waste in the European Union. See the product documentation for

specific battery information. The battery is marked with this symbol, which may include letteringto indicate

cadmium (Cd), lead (Pb), or mercury (Hg). For proper recycling, return the battery to your supplier or to a

designated collection point. For more information see: www.recyclethis.info.

According to the Batteries and Accumulators (Placing on the Market) Regulations 2008 and the Waste Batteries and

Accumulators Regulations 2009: This product contains a battery that cannot be disposed of as unsorted municipal waste

in the United Kingdom. See the product documentation for specific battery information. The battery is marked with this

symbol, which may include lettering to indicate cadmium (Cd), lead (Pb), or mercury (Hg). For proper recycling, return the

battery to your supplier or to a designated collection point. For more information see: www.recyclethis.info.

Industry Canada ICES-003 Compliance

This device meets the CAN ICES-003 (B) / NMB-003 (B) standards requirements.

Cet appareil répond aux exigences des normes CAN ICES-003 (B)/NMB-003 (B).

B : (B ) ,급 기기 이 기기는 가정용 급 전자파적합기기로써 주로 가정에서 사용하는 것을 목적으로 하며

모든 지역에서 사용할 수 있습니다.

Safety Information

Please read all the safety information carefully before using.

● For the device powered on and off only by power plug and socket-outlet, the socket-outlet shall be installed near the

device andeasily accessible.

● For the device has oneand more batteries:

1. Do not ingest battery. Chemical Burn Hazard!

2. This product contains a coin/button cell battery. If the coin/button cell battery isswallowed, it can cause severe

internal burns in just 2 hours and can leadto death.

3. Keep new and used batteries awayfrom children.

4. If the battery compartment does not close securely,stop using the product and keep it away from children.

5. If you think batteries might have been swallowed or placed insideany part of the body, seek immediate medical

attention.

6. CAUTION: Risk of explosion if the battery is replaced by an incorrect type.

7. Improper replacement of the battery withan incorrect type may defeat a safeguard (for example, in the case of some

lithium batterytypes).

8. Do not dispose of the batteryinto fire or a hot oven, or mechanically crush or cut the battery, which may result in an

explosion.

9. Do not leave the battery in an extremely high temperature surrounding environment,which may result in an explosion

orthe leakage of flammable liquid or gas.

10. Do not subject the battery to extremely low air pressure, which may resultin an explosion or the leakage of

flammable liquid or gas.

11. Dispose of used batteries according to the instructions.

Refer to the Datasheet for details.

English

Regulatory Compliance and Safety Information

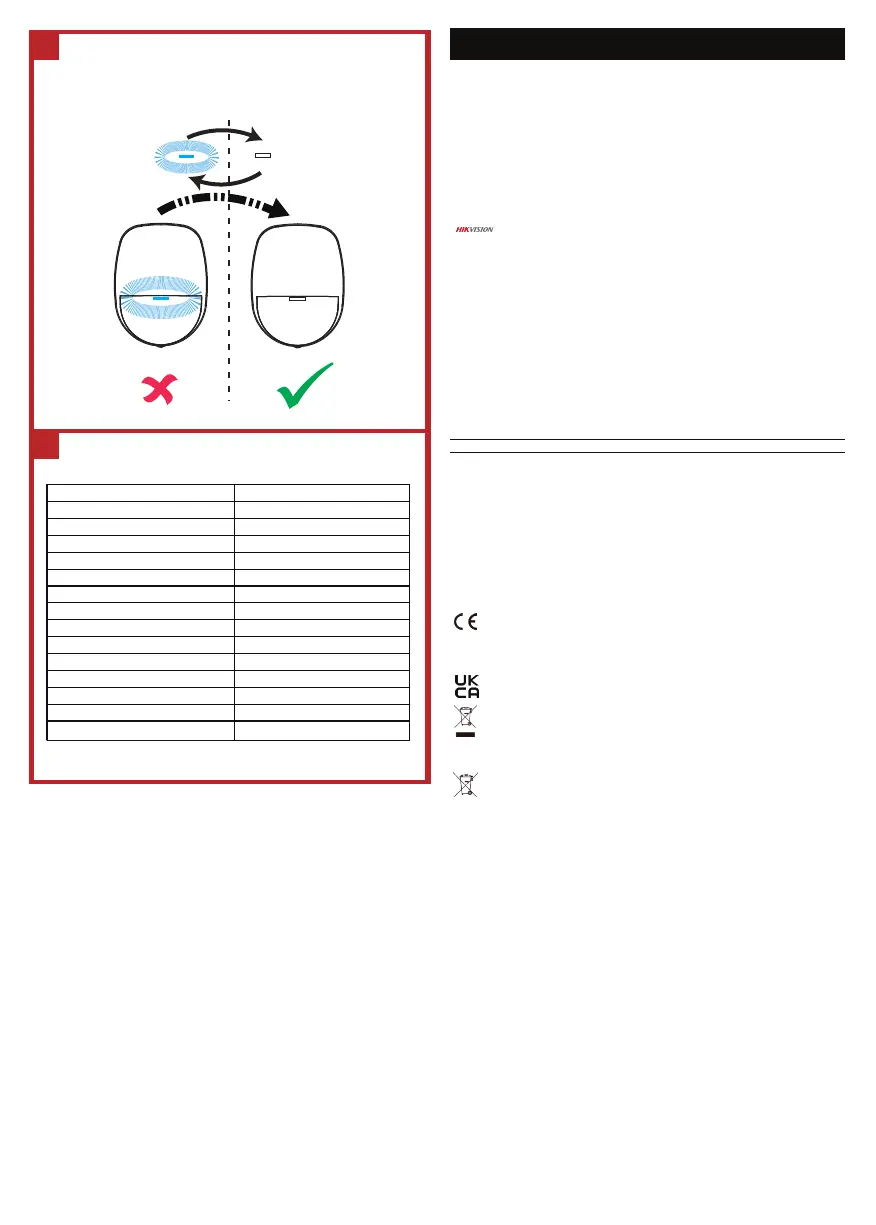

NOT READY READY

Powering On

Specification

After powering on, the indicator ashes rapidly. Once the detector self test

is completed, the blue LED indicator will go out until the detector detects

movement.

Detection range 15 m, 85 .9°

Detection speed 0.3 to 2 m/s

Digital temperature compensation Yes

Technology Digital microprocessor based

Tamper protection Front

LED indicator Blue (alarm)

Power supply 9 to 16 VDC (standard: 12 VDC)

Current consumption 33 mA quiescent, 40 mA max.

Operating temperature -10 °C to 55 °C (14 °F to 131 °F)

Storage temperature -20 °C to 60 °C (-4 °F to 140 °F)

Operating humidity 10% to 90%

Installation height 1.8 to 2.4 m

Detector Dimension (H × W × D) 86.8 mm x 65.4 mm x 45.5 mm

Weight 58 g

Bracket Optional wall & ceilingaccessory
