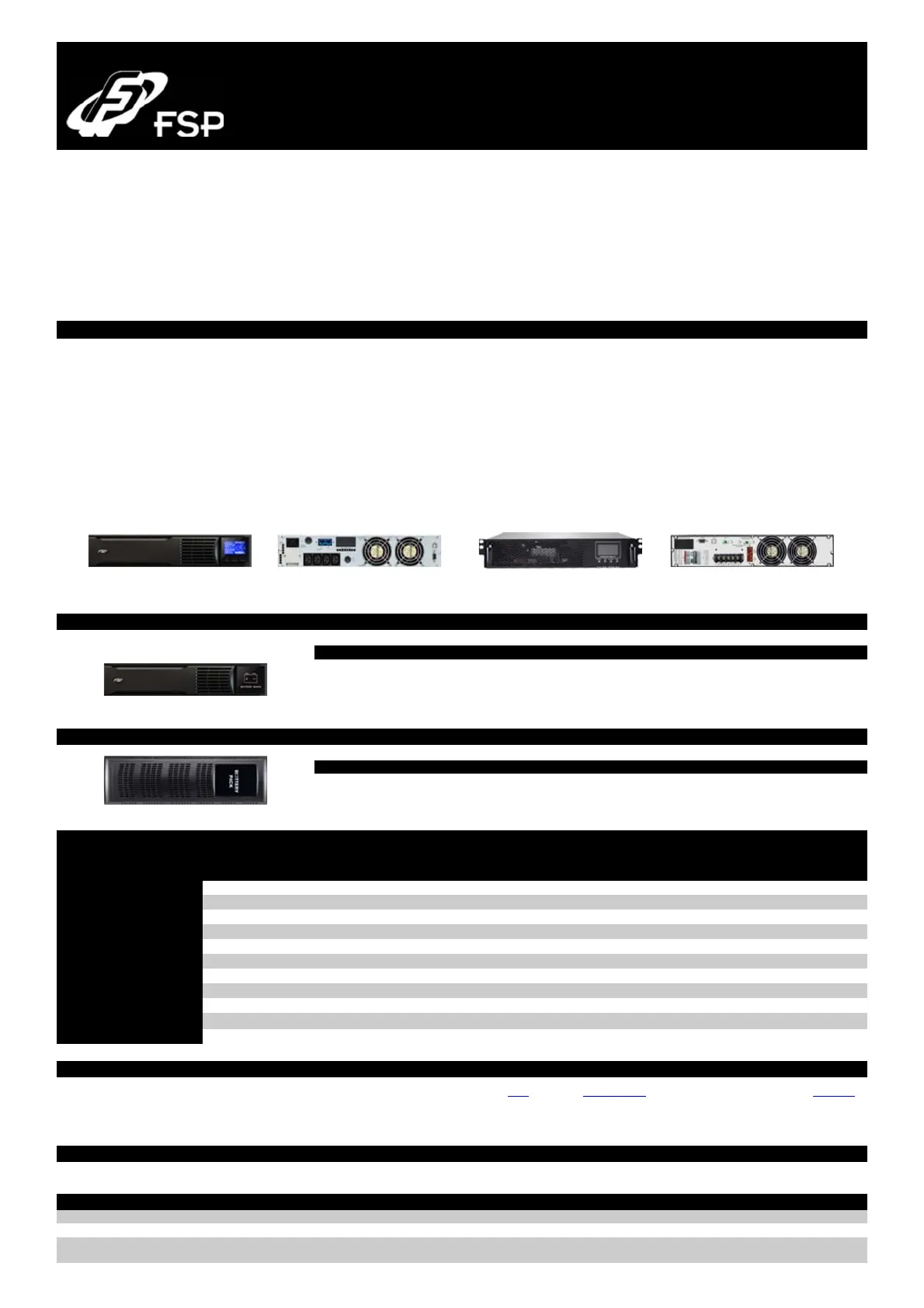

Strona 1/2

Professional On-Line & Line-Interactive UPS Solutions

True Double Conversion 1.0kVA - 20kVA & 30kVA - 800kVA

Output Power Factor 0.9 - Rack/Tower 2 in 1 Design - LCD Display - Perfect Battery Pack

Knight Series Online Rack UPS System

3.0/6.0kVA LCD Display– 1-P In / 1-P Out

with battery bank solution

Knight 3.0 kVA Rack specially designed to with stand high fluctuation power. Built-in input OVCD, it becomes a rugged UPS to protect your equipment against extreme

high voltage.

Knight 6.0 kVA Rack is a high flexibility UPS with 2-in-1 design which integrates standard backup UPS and long-run UPS into one unit by simply adjusting charging current

via LCD front panel. This high flexibility UPS offers easy-adjustable battery numbers design for diverse applications

Features & Advantages

●

True double-conversion

Microprocessor control optimizes reliability

Input power factor correction

Output power factor 0.8

Adjustable charge current suitable for long backup tme

Wide input voltage (110 V – 300 V)

Converter mode available

ECO mode for energy saving

Generator compatible

Smart SNMP works well with either USB or RS-232 together

display allows easy monitoring and access of UPS status

UPS Warranty: 3 years – Battery Bank Warranty: 2 years

Knight 3kVA Knight 3kVA rear view Knight 6kVA Knight 6kVA rear view

Battery Bank for Knight Rack Series 3.0 kVA UPS

Battery bank Battery Type Batteries Bank Capacity Dimension

BB-72/9RT 12V/9Ah 6 pcs 72V / 9Ah 600 x 438 x 88 mm

BB-72/18RT 12V/9Ah 12 pcs 72V / 18Ah 600 x 438 x 88 mm

Backup Time: Please see the following Backup Time Table

Battery Bank for Knight Rack Series 6.0 kVA UPS

Battery bank Battery Type Batteries Bank Capacity Dimension

BB-240/9RT 12V/9Ah 20 pcs 240V / 9Ah 580 x 438 x 133 mm

Backup Time: Please see the following Backup Time Table

Backup Time Table for Knight Series 3.0/6.0 kVA UPS

Backup Time (min)

UPS Battery Bank 100% 75% 50%

Knight

KN-1103RL

Rack

3.0 kVA

without Internal Battery 0 0 0

+ 1 BB-72/9RT - 72V / 9 Ah 5 8,3 12,5

+ 1 BB-72/18RT - 72V / 18 Ah 10 18 27

+ 2 BB-72/18RT - 72V / 36 Ah 23 38 56

+ 3 BB-72/18RT - 72V / 54 Ah 35 57 85

+ 4 BB-72/18RT - 72V / 72 Ah 46 76 113

Knight

KN-1106RL

Rack

6.0 kVA

without Internal Battery 0 0 -

+ 1 BB-240/9RT - 240V / 9 Ah 8 19 -

+ 2 BB-240/9RT - 240V / 18 Ah 37 46 -

+ 3 BB-240/9RT - 240V / 27 Ah 49 56 -

+ 4 BB-240/9RT - 240V / 36 Ah 79 84 -

P Model kVA Form Datasheet Brochure Manual SNMP Card Software Price

1 KN-1103RL 3.0 kVA Rack PDF PDF PDF Go to SNMP Go to Software Pricelist

2 KN-1106RL 6.0 kVA Rack

Specification

Model KN-1103RL KN-1106RL

Input

Capacity 3.0 kVA / 2,4 kW 6.0 kVA / 4,8 kW

Nominal Voltage 200/208/220/230/240 VAC

Voltage Range 110-300 VAC ± 1% 110-300 VAC ± 1% @50% Load

176-300VAC ± 1% @100% Load

Frequency Range

40Hz ~ 70 Hz 46Hz ~ 54Hz or 56Hz ~ 64 Hz

Phase Single phase with ground

Power Factor ≧ 0.99 @ Nominal Voltage (Full load)

Output

Output Voltage 200/208/220/230/240VAC

Voltage Regulation ± 3% ± 1%

Frequency range

(Synchronized Range) 47~ 53Hz or 57 ~ 63Hz 46~ 54Hz or 56 ~ 64Hz

Frequency Range

(Batt. Mode) 50Hz ± 0.25Hz or 60Hz ± 0. Hz 50Hz ± 0.1Hz or 60Hz ± 0.1Hz

Overload

100%~110%:audible warning

110%~130%: UPS shut down in 30 seconds at battery mode

or transfer to bypass when the utility is normal

>130%:UPS shuts down immediately at battery mode or

transfer to bypass mode when the utility is normal 3:1 ( Max)

Current Crest Ratio 3:1 (Max)

Harmonic Distortion ≦ 3 % THD (Linear Load)

≦ 6 % THD (Non-linear Load)

≦ 3 % THD (Linear Load)

≦ 6 % THD (Non-linear Load)

Transfer Time Bypass to Inverte Zero

Inverter to Bypass 4 ms (Typical) Zero

Waveform (Batt. Mode) Pure Sinewave

Efficiency

AC Mode 90% 89%

Battery Mode 89% 88%

Battery

Standard

Backup

Battery Type Depending on the capacity of external battery bank

Numbers 72V (6x 12V) 240V (20x 12V)

Typical Recharge

Time Depending on the capacity of external battery bank

Charging Current

(max.) 1.0/2.0/4.0/6.0A ± 10% 4.0/6.0A ± 10%

Charging Voltage 82.1 VDC ± 1% 8273.1 VDC ± 1%

Indicators

LCD or LED Load level, Battery level, AC mode, Battery mode, Bypass mode, and Fault indicators

Alarm

Battery Mode Sounding every 4 seconds

Low Battery Sounding every second

Overload Sounding twice every second

Fault Continously sounding

AC Input & Output Connectors

AC Input Connerctos 1x IEC 320 C20 Terminal

AC Output Connerctos 4 x IEC 320 C13 Terminal

Standards

IEC 62040-1 (safety) Yes

IEC-62040-2 (EMC) Yes

CE Yes

Physical dimensions

Standard

Model

Dimension (mm) 480 (D) x 438 (W) x 88 (H) (2U) 580 (D) x 438 (W) x 88 (H) (2U)

Net Weight (kgs) 10 15

Environment

Humidity 20-90% RH @ 0-40°C (non-condensing)

Noise Level Less tahn 50dBa @ 1 Meter Less tahn 55dBa @ 1 Meter

Management

Smart RS-232 / USB Supports Windows 2000/2003/XP/Vista/2008/7, Linux, Unix, and MAC

Optional SNMP Power management from SNMP manager and web browser

*Derate to 80% of capacity in Frequency converter mode and to 80% when the output voltage is adjusted to 100/200/208VAC

*When using internal batteries from 16-19, the unit will de-rate according to the below formula: P = PRating x N/20.

**Derate capacity to 60% of capacity in CVCF mode and to 90% when the output voltage is adjusted to 208VAC.

***If the UPS is installed or used in a place where the altitude is above than 1000m, the output power must be derated one percent per 100m.

Product specifications are subject to change without further notice

Specyfikacje produktu

Marka:	FSP/Fortron
Kategoria:	UPS
Model:	Knight KN-1106RL
Kolor produktu:	Czarny
Typ wyświetlacza:	LCD
Wysokość produktu:	88 mm
Szerokość produktu:	438 mm
Głębokość produktu:	580 mm
Waga produktu:	15000 g
Poziom hałasu:	55 dB
Certyfikaty:	IEC 62040-1\r\nIEC-62040-2\r\nCE
Napięcie operacyjne wejścia (maksymalne):	300 V
Pojemność baterii:	9 Ah
Wydajność:	89 %
Zakres temperatur (eksploatacja):	0 - 40 °C
Zakres wilgotności względnej:	20 - 90 %
Układ:	Rack
Częstotliwość danych wejściowych:	46/64 Hz
Diody LED:	Tak
Rodzaj chłodzenia:	Aktywne
Liczba baterii:	20
Napięcie baterii:	12 V
Moc rzeczywista:	4800 W
Pojemność stelaża:	2U
Maksymalna możliwa do konfiguracji moc:	6 kVA
Napięcie operacyjne wejścia (minimalne):	110 V
Napięcie operacyjne wyjścia (maksymalne):	200 V
Napięcie operacyjne wyjścia (minimalne):	240 V
Słyszalny alarm:	Tak
Ilość gniazd sieciowych:	4 x gniazdo sieciowe
Typy wyjść AC:	C13 panel
Typowy czas podtrzymania przy połowie obciążenia:	- min
Typowy czas podtrzymania przy pełnym obciążeniu:	- min
Funkcje ochrony zasilania:	Przeładowanie
Wtyczka:	C20 panel
Współczynnik mocy:	0.99
Liczba faz wejściowych:	1
Liczba faz wyjściowych:	1
Poziom THD prądu wyjściowego:	3 %
Przebieg falowy:	Sinus
Regulacja napięcia wyjściowego:	2 %
Współczynnik mocy wyjściowej:	0.8
Współczynnik szczytu:	3:1
