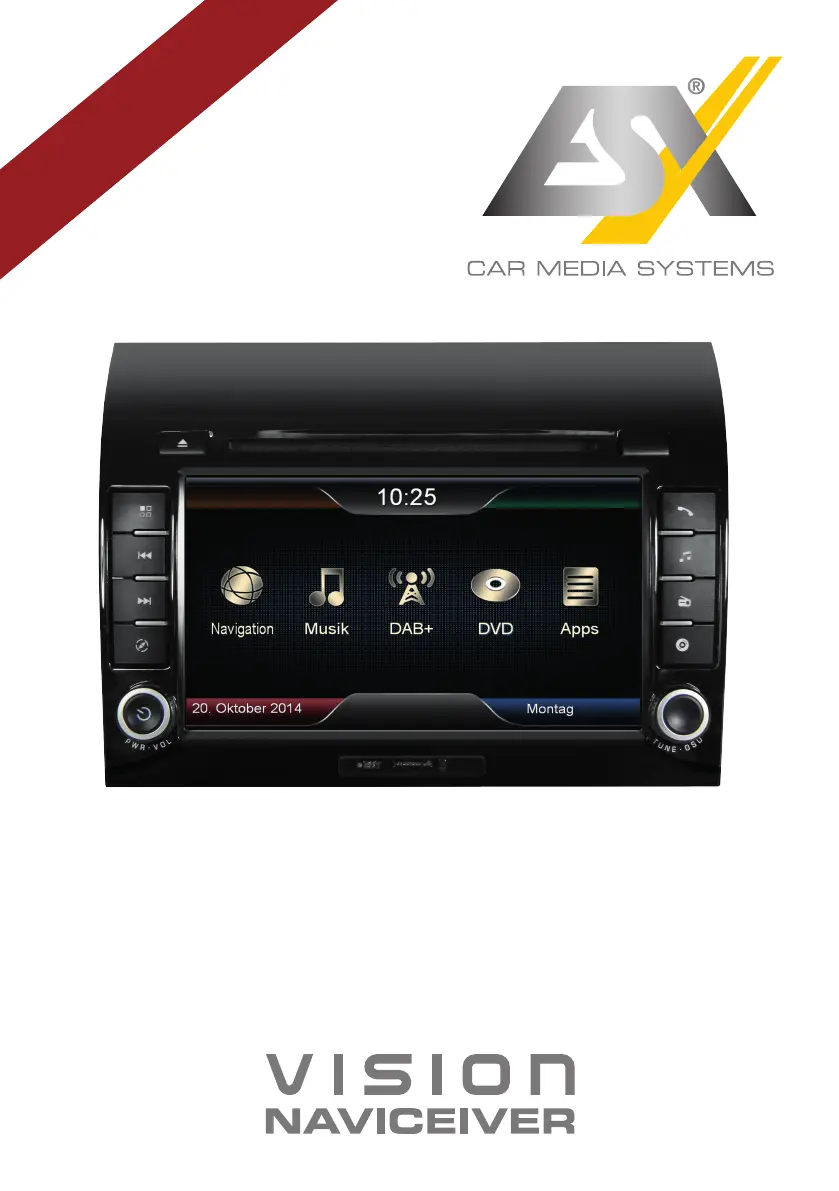

VNS711 FI-DUCATO

VNS711 FI-DUCATO-DAB

OWNER‘S

MANUAL

V1. 1

Features

• High-resolution 17,8 cm (7“) LCD touchscreen display with 800 x 480 pixels

• Advanced i11 operating system based on Microsoft Windows CE 6

• 800 MHz CPU, 4 GB iNand Flash Drive, 256 MB DDR3-RAM, 256 MB NAND Flash RAM

• Audio amplifier with 4 x 50 Watts max.

• Pre-amplifier outputs (4 V) 2 x Front / 2 x Rear / Subwoofer / Center

Quick-Boot (approx. 10 seconds)

• Support ACC Logic: The device can be operated up to 30 minutes without ignition

• Prioritized display of connected optional rear-view camera

• DSP-Audioprocessor with 9-Band-Equalizer and 5.1 Surround-Sound

• Bluetooth™ handsfree, phone book synchronization and A2DP audio streaming

• Media playback (MP3/WMA/MPEG4/MPEG1/2/WMV/AVI/DivX etc.), support also for 1280 x 720 px

HD video playback (RMVB / RM, AVI, MPEG1 / 2/3/4, H.264, WMV)

• DVD-Drive (DVD, DVD-R/RW, DVD+R/RW, VCD, CD, CD-R/RW, MP3)

• Radio AM/FM with RDS function (supports Europe, Northamerica, Asia)

• DAB+ Tuner for digital Radio incl. antenna (only VNC711 FI-DUCATO-DAB)

• Custom design function (wallpaper, startup logo, menu)

• Several design themes (skins) for customizing the user interface

• Individually adjustable pre-channel volume for each application

• File manager with an open file structure, photo slideshow, compatible with MS Office applications

• MicroSD card (up to 32 GB) slot and USB ports with copy function

• Integration of external applications (Compatible with Windows CE 6)

• Date/time function, 12/24 hrs. display

• Video output for two monitors with real dual zone audio outputs

• Front and rear camera inputs

• Supports 2D-/3D navigation maps with TMCpro function

• Supports external TV or radio receivers (DVB-T, DAB, etc.)

• Supports mobile internet with separate 3G/UMTS sticks

• Supports iPod / iPhone™ with ID3 tag display over USB

Compatibility (Status November 2014)

Fiat Ducato III, Citroen Jumper II und Peugeot Boxer II (Typ 250, since 2006)

Intended use

This device is only for the use in a vehicle with an on-board voltage of 12 V and negative ground.

Always follow the instructions in this manual before using the device. Please keep this ma-

nual easily accessible in the vehicle for future reference.

Windows is a registered trademark of Microsoft Corporation in the United States and other countries. iPod and iPhone are trademarks of Apple Inc.. The Bluetooth word mark is

registered trademark owned by Bluetooth SIG, Inc. Other trademarks, trade names or brands are the property of their respective owners.

INTRODUCTION

Safety Information 4 ...................................................................................................................................

Basic functions 6 ........................................................................................................................................

Operating elements 6 ....................................................................................................................................................................

Main menu 8 .................................................................................................................................................................................

Navigation 9 ..................................................................................................................................................................................

Audio Player 10 .............................................................................................................................................................................

Radio AM/FM ............................................................................................................................................................................12

DAB+ Radio 15 ..............................................................................................................................................................................

DVD (DVD/CD-Player) 18 ................................................................................................................................................................

Apps (Applications) 20 ...................................................................................................................................................................

– Bluetooth™ 21 .......................................................................................................................................................................

– LinkPod (optional) 24 ...............................................................................................................................................................

– Video .................................................................................................................................................................................. 24

– TV (optional) .......................................................................................................................................................................25

– Files 25 ...................................................................................................................................................................................

– Internet (optional) 26 ...............................................................................................................................................................

– Audio Settings ....................................................................................................................................................................27

– Rear Media (optional) 29 .........................................................................................................................................................

– Option 30 ................................................................................................................................................................................

Custom settings 33 .....................................................................................................................................

Menu assignments 33 ................................................................................................................................................................

Wallpaper ..............................................................................................................................................................................34

Start Logo 35 .............................................................................................................................................................................

Additional functions 36 ..............................................................................................................................

Infrared remote control 36 .............................................................................................................................................................

Multifunction steering wheel 37 .....................................................................................................................................................

Limited media playback 37 ............................................................................................................................................................

Optional rearview camera 37 .........................................................................................................................................................

Troubleshooting 38 .....................................................................................................................................

General notes 42 .........................................................................................................................................

INDEX
