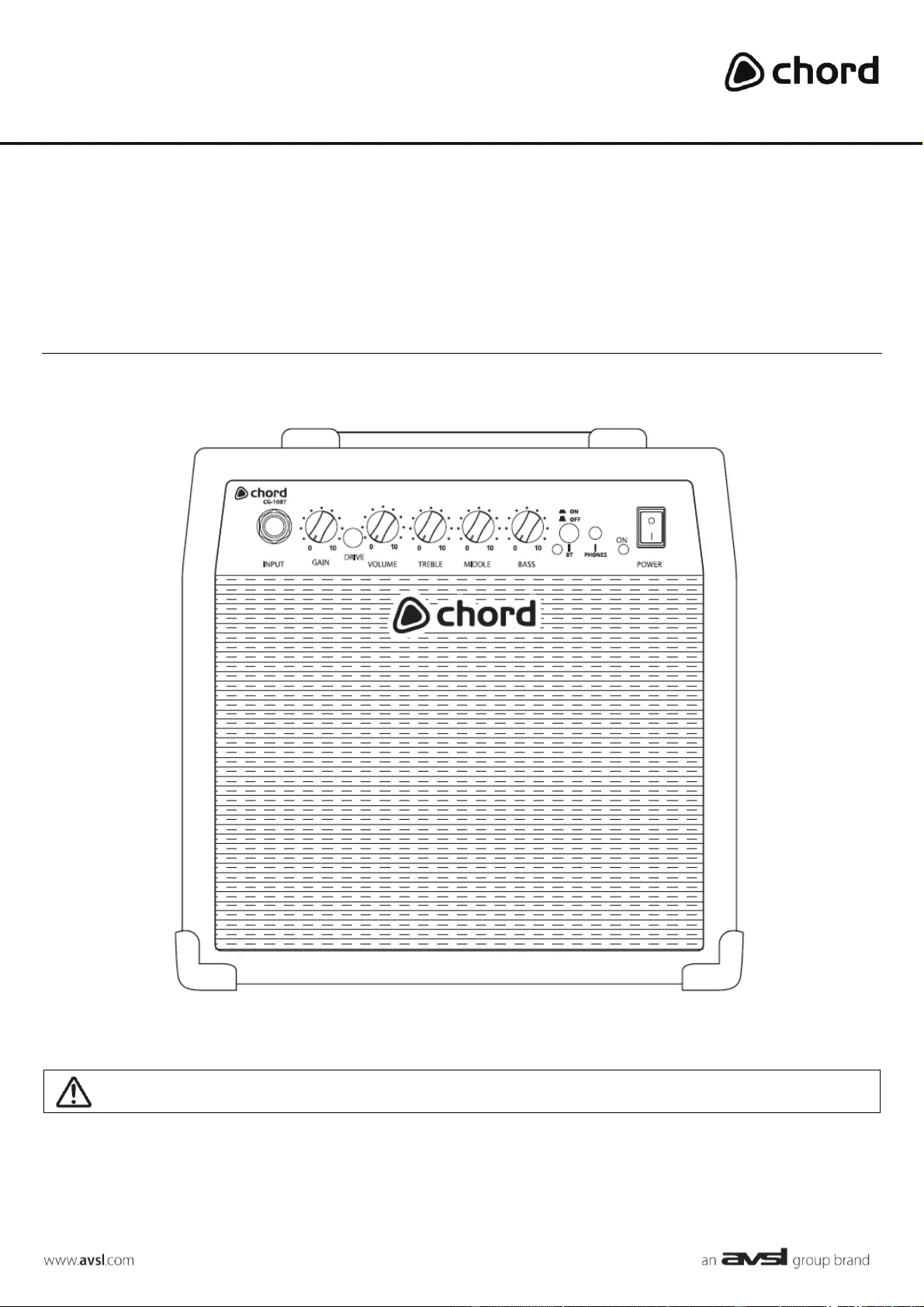

CG-10BT

Guitar Amplifier with Bluetooth®

Item ref: 173.014UK

User Manual

Caution: Please read this manual carefully before operating

Damage caused by misuse is not covered by the warranty

Introduction

Thank you for choosing a Chord CG-10BT classically styled 10W guitar amplifier.

Ideal for practice and rehearsal, this combo includes a Bluetooth receiver for playing along to tracks from a smart phone.

Please read this manual to gain the best results from your product and avoid damage through misuse.

173.014UK User Manual

Caution

Do not cover cooling vents at the rear of the amplifier. Keep away from damp or dusty environments.

Check mains lead is in good condition and ensure mains outlet voltage is correct as indicated.

Use only approved fuse rated as shown Unplug from mains before replacing fuse. .

No user serviceable parts inside. Refer all servicing to qualified personnel.

Control panel

Operation

Connect guitar to the input (1) via a 6.3mm jack lead.

If headphones are to be used for silent practice, connect these to the 3.5mm PHONES jack (9)

Turn the GAIN VOLUME controls (2 . & , 4) fully down and all other controls to the vertical (12 o’clock) position

Connect to mains using the supplied mains lead via the rear panel IEC connector and switch POWER on (10)

With the DRIVE button (3) in the out position and GAIN up part way, gradually turn up the VOLUME. ‘ ’

Play until sound is heard and increase both to the required level. More Gain increases both volume and drive.

Pre the DRIVE button in and increase the GAIN for an overdriven sound and balance the GAIN and VOLUME to suit. ss

Adjust TREBLE, MIDDLE and BASS (5, 6, 7) controls to achieve the required tone character.

For wireless playback of backing tracks from a smart phone, the CG-10BT has a built- Bluetooth receiver. in

Press the BT button (8) in and the indicator will flash. In your phone menu, search for -10BT and select to pair. “CG ”

Once pairing is completed, the indicator will stay on constantly and any tracks played on the smart phone should be

heard through the CG-10BT speaker. Once paired, the CG-10BT will connect to the paired smart phone automatically

whenever Bluetooth is switched on.

Specifications

Power supply

230Vac, 50Hz (IEC)

Output

10Wrms

Speaker

165mm (6.5“)

Controls

Gain, Drive, Volume, Treble, Middle, Bass, BT

Connections

Guitar input, headphones out

Dimensions

295 x 290 x 153mm

Weight

4.132kg

Disposal: symbol on the product means that the product is classed as Electrical or The “Crossed Wheelie Bin”

Electronic equipment and should not be disposed with other household or commercial waste

at the end of its useful life. The goods must be disposed of according to your local council guidelines.

Hereby, A L Group Ltd. declares that the radio equipment type 173.014UK is in compliance with VS Directive 2014/53/EU

The full text of the EU declaration of conformity is available at the following in rnet address: te http://www.avsl.com/assets/exportdoc/1/7/ %20CE.pdf173014UK

AVSL Group Ltd. Unit 2-4 Bridgewater Park, Taylor Rd. Manchester. M41 7JQ

AVSL (EUROPE) Ltd, Unit 3D North Point House, North Point Business Park, New Mallow Road, Cork, Ireland

6.3mm guitar input jack

GAIN control

DRIVE button

VOLUME control

TREBLE EQ control

MIDDLE EQ control

BASS EQ control

Bluetooth on/off/pairing button

Headphones output

10.
