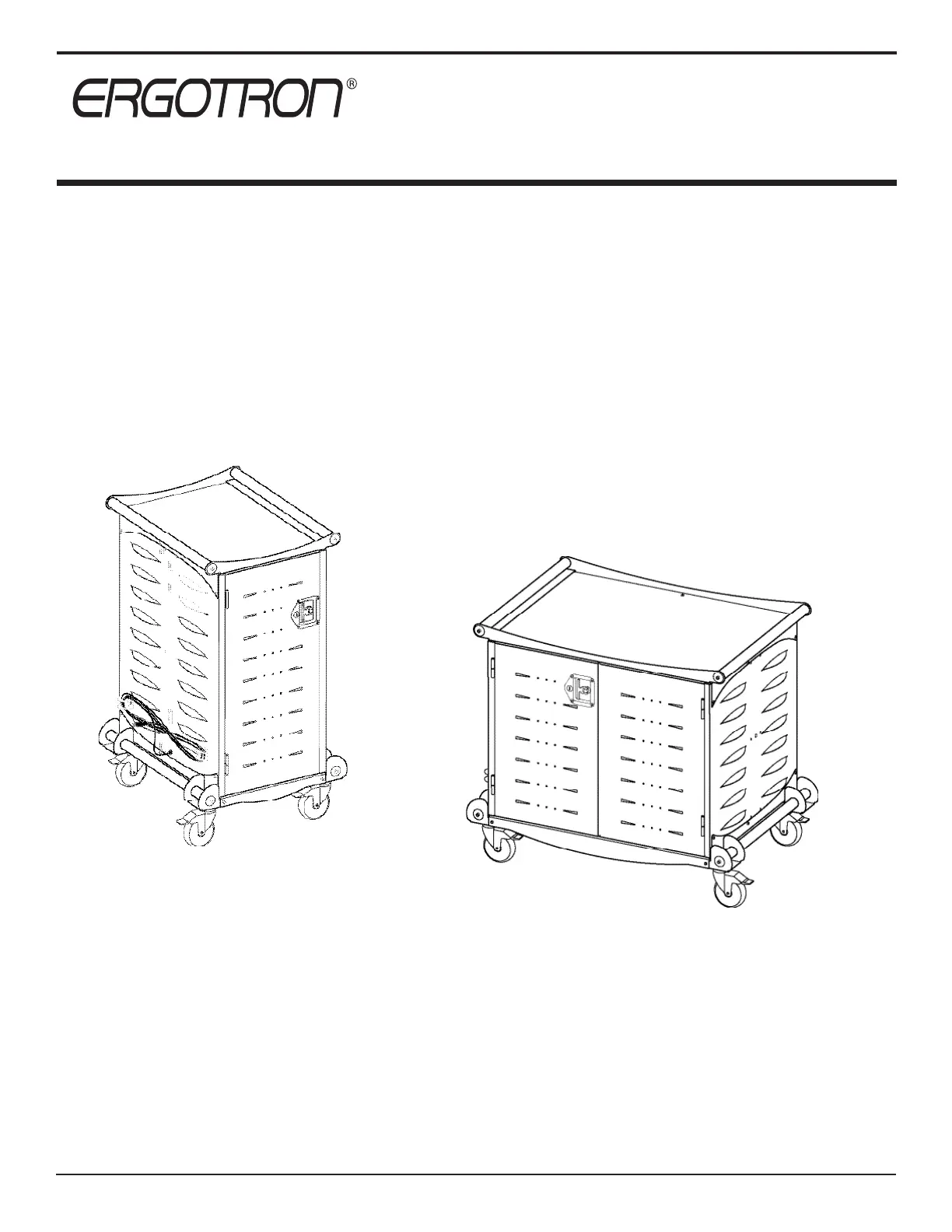

LT Charging Cart for Laptops
Owners Manual
SAVE THIS OWNERS MANUAL!
This unit has been tested to Underwriters Laboratories U.S. and Canadian (Bi-National) Standard for Safety of
Informational Technology Equipment, Including Electrical Business Equipment, CAN/CSA C22.2 No. 950-95 *
UL 1950, Third Edition, including revisions through revision date March 1,1998, which are based on the Fourth
Amendment to IEC 950, Second Edition.
This owners manual contains a list of items that we would like you to be aware of to promote safety in
the use of our product in your work place and/or learning environment.
LTSC20xx/xx
LTSC30xx/xx
Before Using
Please read these operating instructions carefully. It contains important advice concerning the use, and safety of your Laptop
Storage Cart. Keep these operating instructions in a safe place and pass them on to any subsequent user. This storage cart
must only be used for its intended purpose in accordance with these operating instructions.
Please pay attention to the safeguards.
Built with Anthro-DNA™
300-5229-00 rev. L 6/16
1 of 6
1 – Handles
2 – Network Connections
3 – External Power Receptacles
4 – Control Switch
5 – Cord Wrap Claws
6 – Power Cord
7 – Total Lock Casters (black tab)
8 – Directional Lock Casters
(green or gray tab)
9 – Two Point Locking Door Latch
10 – Internal Power Receptacles
11 – Cable Ties & Slots for Wire Management
Components at a Glance
DETAIL VIEW OF INTERNAL POWER RECEP-
TACLES CABLE TIES&
Important Safeguards
When using electrical devices, basic safety precautions should always be followed.
READ ALL INSTRUCTIONS:
• The Control Switch must be in the OFF position before plugging the cart into a wall outlet and before
plugging any equipment into the cart..
• This Storage Cart must only be connected to a 120 volt a.c. 15 or 20 amp power supply.
• Electrical devices are not toys. Children are often unaware of the hazards associated with electrical devices and
the storage cabinet must therefore always be used by adults or with adult supervision.
• The unit is not designed for outdoor use.
• Liquids should not be stored in, set on or placed inside this unit.
• Never unplug this product from the outlet when your hands are wet or by pulling the power cord.
• Never pull the storage cabinet by the power cord.
• Do not pull or jam the power cord against sharp edges. Do not leave the power cord hanging and do not crush or drag
the power cord while transporting the storage cart.
• Do not use an extension cord in conjunction with this product.
• Do not plug the unit in if the switch, receptacle(s) or power cord has been damaged. All electrical components on this
product must be repaired by a qualified electrician.
• Inadequate repair can create significant hazards to users and is not covered by the warranty.
• Ergotron cannot accept any liability for damage if the Storage Cart is misused, incorrectly operated or inadequately re-
paired. Under these circumstances the warranty will be void.
1
2
3
7
8
11
6
45
9
10
2 of 6 300-5229-00 rev. L 6/16
Product Specifications
The Carts are designed to securely store, transport and charge laptop computers. The LTSC20 has 20 separate storage bays
with a 120 V receptacle in each bay. The maximum electrical output for each Cart is rated at 12amps.
The LTSC30 has 30 separate storage bays with a 120 V receptacle in each bay. The maximum electrical output for each Cart
is rated at 12amps.
Before You Use the Storage Cart
• A receptacle shall be installed near the Laptop Storage Cart and shall be easily accessible.
• For your safety have a qualified electrician test the circuit you will be plugging in the unit. The circuit should be
checked for ground integrity to verify that it will handle up to 12A draw and that appropriate branch circuit
protection is in place.
• The Cart’s ground prong must be present for safe operation. If the plug is damaged or if the ground prong
has been removed it should be replaced by a qualified electrician.
• The Storage Cart should only be used for the storage, transport, and charging of laptop computers.
• The use of the Cart including plugging or unplugging laptop computers, plugging or unplugging the Storage
Cart, operating the control switch, engaging or releasing the directional and total lock casters must be done with adult
supervision. The Cart can be very heavy when fully loaded and should be moved by persons physically able to do so.
• The cable ties are provided to secure charging cords to the shelves using the two rectangular cut-outs.
To Charge Your Laptops
1. Locate the external control switch near the bottom of the unit. Move the switch to the middle “OFF” position.
2. Plug in the 12’ power cord for the cart into a suitable receptacle.
3. Push the switch into the down “INSIDE” to direct power inside the enclosure and charge the laptops. External outlets
will not receive power when the switch is in the down position.
To Use the Outside Electrical Receptacles
The storage cart has two 120 V convenience outlets located on the outside of the unit. The maximum electrical output for
the combined external receptacles is 12 A.
1. Locate the external control switch near the bottom of the unit. Move the switch to the middle “OFF” position.
2. Plug in the 12’ power cord for the cart into a suitable receptacle. Plug in your other hardware such as printers and over-
head projectors to use the Cart as a lecture station.
3. Push the external control switch to the up “EXTERNAL” position. You will feel a positive engagement of the switch indi-
cating power to the external receptacles. In this position the internal receptacles are disabled and no charging to
stored computers will occur.
Loading Your Laptops into the Cart
1. Open a Door by pulling the T-handle out from the recessed area. Turn it clockwise 90 degrees and open.
2. Locate the external control switch near the bottom of the unit on the outside. Push the switch to the middle “OFF”
position. When in the middle position, power is cut off from both internal and external receptacles. To eliminate
any arcing, the switch should be in the off position when devices are being plugged in or removed from the storage bays
and prior to plugging the storage cart into a wall receptacle.
3. Load one laptop into each storage bay. Make sure the power switch is in the middle “OFF” position and then plug them
into the 120 V receptacle in each bay. Repeat the loading on other side of the cart if necessary.
3 of 6
300-5229-00 rev. L 6/16
