Strona 1/34
The manual and quick guide can be downloaded from below URL
https://www.crazy3dprint.com/support

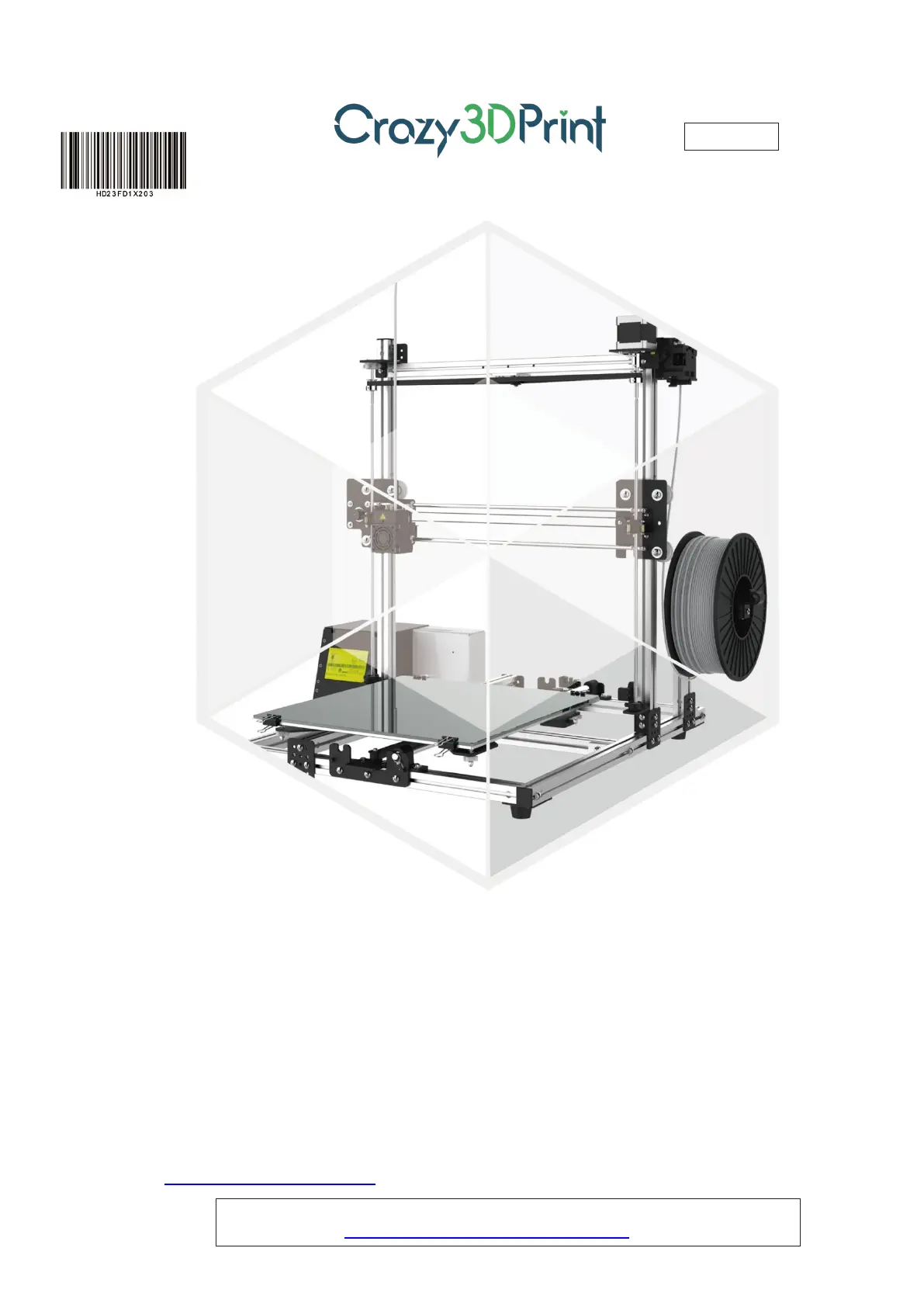

CZ-300
USER MANUAL
Version 1.4 from May 20 20 © Crazy3DPrint Group
WARNING: This 3D Printer - when used with a styrene filament (ABS / HIPS / or PC-ABS) can expose you
to chemicals, including Styrene, which is known to the State of California to cause cancer. For more
information, visit www.p65warnings.ca.gov
ENGLISH
Contents
SAFETY AND COMPLIANCE .................................................................................................................................................................... 1
USED SYMBOLS .......................................................................................................................................................................................... 1
SAFETY INFORMATION .............................................................................................................................................................................. 1
SAFETY PRECAUTIONS ............................................................................................................................................................................... 1
HAZA 2RDS ...................................................................................................................................................................................................
INTRODUCTION ..................................................................................................................................................................................... 3
OUR PRINTER ............................................................................................................................................................................................. 3
PRODUCT FEATURES .................................................................................................................................................................................. 3
CZ- APPEARANCE 300 ................................................................................................................................................................................. 4
SPECIFICATIONS ......................................................................................................................................................................................... 4
UNPACKING AND INSTALLATION ..................................................................................................................................................... 5
UNBOXING ................................................................................................................................................................................................. 5
ACCESSORY CHECKLIST .............................................................................................................................................................................. 5
INSTALLATION ........................................................................................................................................................................................... 6
INSTALLING LOWER UPPER FRAME & FRAME ............................................................................................................................................ 7
INSTALLING ELECTRICAL PARTS ........................................................................................................................................................... 11
OPERATION ......................................................................................................................................................................................... 16
LCD PANEL CONTROL ............................................................................................................................................................................... 16
PRINT BED CALIBRATION ......................................................................................................................................................................... 19
SOFTWARE SETTINGS .............................................................................................................................................................................. 21
CURA SOFTWARE 3D PRINTER MANUAL SE– TTING ............................................................................................................................ 21
FIRMWARE- - UPDATE: WINDOWS (DURCH SAM BA) ................................................................................................................................ 24
FIRMWARE- ) UPDATING: MACOS (BY BOSSA ............................................................................................................................................ 26
FIRST PRINT .............................................................................................................................................................................................. 28
ABS PRINTING TIPS (FAN COVER) ........................................................................................................................................................ 30
MAINTENANCE.................................................................................................................................................................................... 31
PRINTER LUBRICATION ............................................................................................................................................................................ 31
EXTRUDER MODULE CLEANING ............................................................................................................................................................... 31
PRINT BED GLASS CLEANING .................................................................................................................................................................... 31
TROUBLE SHOOTING ........................................................................................................................................................................... 32
ERROR MESSAGE ..................................................................................................................................................................................... 32
CONTENTS
1
This label indicates that:
Always unplug the main power supply from the socket before carrying out maintenance
or intervention of this product.
Children under 14 years of age to use this product in order to prevent any
Must Not
Must Not
Must Not
Must Not Must Not
possible injuries and harm.
CAUTION:
CAUTION:
CAUTION:
CAUTION:CAUTION: AC INPUT VOLTA
AC INPUT VOLTA
AC INPUT VOLTA
AC INPUT VOLTA AC INPUT VOLTAGE RANGE: 100~12
GE RANGE: 100~12
GE RANGE: 100~12
GE RANGE: 100~12GE RANGE: 100~120V/2
0V/2
0V/2
0V/20V/200~240VAC;
00~240VAC;
00~240VAC;
00~240VAC;00~240VAC; 115V/230V AC
115V/230V AC
115V/230V AC
115V/230V AC 115V/230V AC
SELECTED BY
SELECTED BY
SELECTED BY
SELECTED BYSELECTED BY
SWI
SWI
SWI
SWISWITCH
TCH
TCH
TCHTCH
SAFETY AND COMPLIANCE
This is manual designed for users to understand how to a use the CZ- 300 3D printer in safe manner. Please
read through sections, especially safety instructions carefully before unpacking, assembling, all the
operating, replacing, and removing part of product. any this
USED SYMBOLS
This manual contains warnings and safety notices.
Provides important and additional information, and/or hints that users understand the content of tips, help
this user manual with ease.
Warns of a situation that may cause permanent device damage and/or unintentional personal injuries if you
do not the safety instructions. follow
SAFETY INFORMATION
• The device is intended for indoor use Do not store or operate the printer in a dusty and humidonly. environment.
• Always place the printer on a flat and stable surface to prevent it from falling or tipping over.
• -The device is supplied from 100~120V/200~240VAC. Make sure to select the correct power supply voltage based on
your region and area before operating the printer. (115V/230V AC selected by switch.)
• Do not leave the device and power cord to a place where children can reach in order to prevent personal injury and
electric shock.
• Do not allow children access to the tools and accessories kit in case of any possible injuries and harm.
• Do not connect the device to an unknown power which may cause a malfunction or permanent damage to supply,
the printer.
• - Never place any liquid containing items on top of the device or power supply. If any liquid spills into the unit, fire or
electric shock may result.
• The device may generate some odors during the printing process. It is recommended to use the printer in an open
and well-ventilated area for comfortable working atmosphere.
• Do not touch the extruder module, nozzle tip, or heated print bed during the printing process or heating up process.
It is noted that the nozzle tip can reach temperatures of up to 260 °C; and the print bed can reach temperatures of
up to 100 °C. High temperatures can cause harm to human body.
• Always do parts replacement after the device cooling down.
• Do not move the device when it is powered on.
• The motherboard is a precision electronic component. Please be careful not to damage by static electricity or
external force when disassembling and assembling; for example, wearing appropriate equipment such as antistatic
bracelet before manipulating the motherboard.
• Do not clean the device with alcohol and flammable chemicals to avoid the risks or danger.
SAFETY PRECAUTIONS
