4K HDR 4:4:4 60Hz HDBaseT™ Extender with DSC
Supporting USB.2.0 Client/host (4K: 100m/328ft)
EX-100-H2-PRO Quickstart Guide
Copyright © 2019 WyreStorm Technologies | wyrestorm.com
EX-100-H2-PRO v1 Quickstart Guide | 190829
UK: +44 (0) 1793 230 343 | ROW: 844.280.WYRE (9973)
support@wyrestorm.com
1 of 4
WyreStorm recommends reading through this document in its entirety to become familiar with the product’s features prior to starting the
installation process.

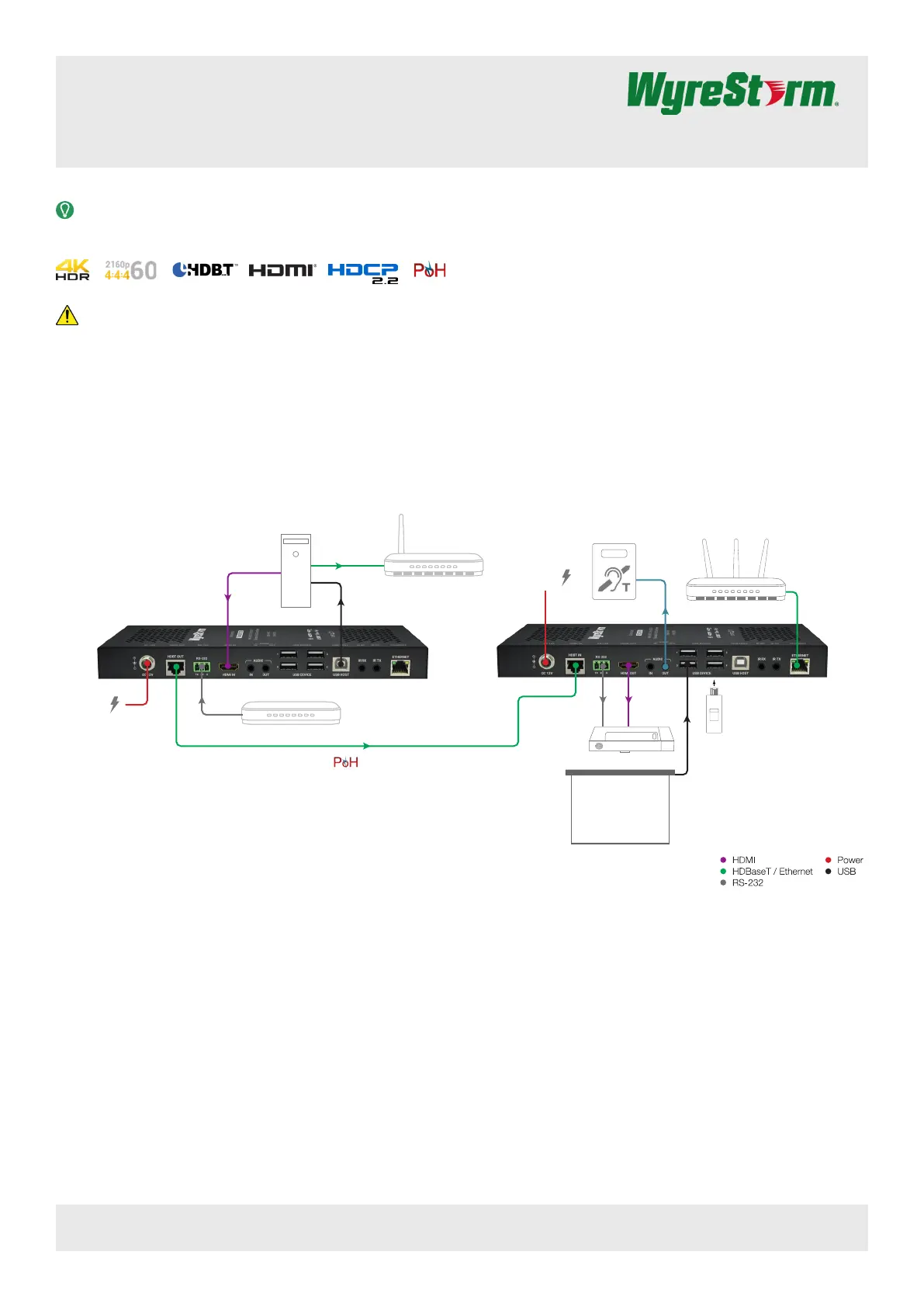

Basic Wiring Diagram
HDMI
HDBaseT
Cat6/6a
Ethernet
EX-100-H2-PRO Transmitter (TX)
EX-100-H2-PRO Receiver (RX)
Personal Computer
Wireless Access Point
Isochronous
USB 2.0 Data
USB 2.0 Host
USB
Flash Drive
Short Throw
Projector
Hearing
Induction Loop
12 DC 2A
Power Supply
12 DC 2A
Power Supply
HDMI
Analog Audio
RS-232
Interactive Whiteboard
RS-232 from Control System
KEY
Wireless Router
IMPORTANT! Installation Requirements
Visit the product page to download the latest rmware, document
versions, additional documentation, and conguration tools.
Read through the section for important wiring Wiring and Connections
guidelines before creating or choosing premade cables.
While this product supports CEC, WyreStorm cannot guarantee
compatibility with all forms of CEC communication.
In the Box
1x EX-100-H2-PRO Transmitter (TX)
1x EX-100-H2-PRO Receiver (RX)
1x IR Emitter
1x IR Receiver
2x 3-pin Terminal Block
1x 12V DC 3A Power Supply (US/UK/EU/AU)
4x Mounting Brackets
1x Quickstart Guide (this document)
Copyright © 2019 WyreStorm Technologies | wyrestorm.com
EX-100-H2-PRO v1 Quickstart Guide | 190829
UK: +44 (0) 1793 230 343 | ROW: 844.280.WYRE (9973)
support@wyrestorm.com
2 of 4
Wiring and Connections
WyreStorm recommends that all wiring for the installation is run and terminated prior to making connections to the switcher. Read through this section in it’s
entirety before running or terminating the wires to ensure proper operation and to avoid damaging equipment.
IMPORTANT! Wiring Guidelines
The use of patch panels, wall plates, cable extenders, kinks in cables, and
electrical or environmental interference will have an adverse effect on
signal transmission which may limit performance. Steps should be taken
to minimize or remove these factors completely during installation for best
results.
WyreStorm recommends the use of shielded category cable to minimize
signal noise and interference.
WyreStorm recommends using pre-terminated HDMI cables due to the
complexity of these connector types. Using pre-terminated cables will
ensure that these connections are accurate and will not interfere with the
performance of the product.
IR TX/RX Guidelines
Using WyreStorm infrared emitters and receivers is the best way to ensure
that most IR coding formats are transmitted and received Other 3rd party
emitters and receivers can be used; however, these devices must operate in
the same manner as the WyreStorm devices.
Due to differences in IR across 3rd party control systems their IR ports
should never be connected directly to a WyreStorm system as an
incompatibility may exist. WyreStorm offers a cable that compensates for
voltage differences as well adjusts for differences in the pins used within the
port. Refer to the product page for more information.CAB-IR-LINK
IR TX Port Pinout
Connection for IR TX (transmit) uses a 3.5mm (1/8in) mono plug.
Tip: Anode
Sleeve: Cathode (IR Signal)
IR RX Port Pinout
Connection for IR RX (receive) uses a 3.5mm (1/8in) stereo jack that outputs
+5V DC to power the included IR receiver.
Tip:
Ring: IR Signal
+5V DC
Sleeve: Ground (GND)
Audio Connections
Tip:
Ring:
Left Channel
Right Channel
Sleeve: Ground (GND)
RS-232 Wiring
The EX-100-H2-PRO uses a 3-pin RS-232 with no hardware ow control. Most
control systems and computers are DTE where pin 2 is RX, this can vary from
device to device. Refer to the documentation for the connected device for pin
functionally to ensure that the correct connections can be made.
Refer to for details on setting RS-232 modes.RS-232 Mode Settings
3rd Party Device
Pin 1 TX (Transmit) > To > RX (Receive)--- ---
Pin 2 RX (Receive) > To > TX (Transmit--- ---
Pin 3 G (Gro d) > To > G (Gro d)un --- --- un
WyreStorm Co ectornn
Copyright © 2019 WyreStorm Technologies | wyrestorm.com
EX-100-H2-PRO v1 Quickstart Guide | 190829
UK: +44 (0) 1793 230 343 | ROW: 844.280.WYRE (9973)
support@wyrestorm.com
3 of 4
Setup and Conguration
USB Operation
When using the USB ports one of the units needs to set as a host while the
other is set as a device connection. The host can be either the TX or RX as long
as the other unit is set to device.
Set the switch to to connect to a host device Host
such as a PC or Mac. Requires that the opposite unit
is set to Device.
Set the switch to to connect devices such Device
keyboards or USB cameras to the unit. Requires that
the opposite unit is set to Host.
RS-232 Port Conguration
The RS-232 port on this extender has 2 settings that are important to the
operation of the unit. While being used the RS-232 switch should be in the
Pass-through position. Set the switch to for normal RS-232 Pass Through
operation. This is the default setting.
Set the switch to Update when updating rmware.
Troubleshooting
No or Poor Quality Picture (snow or noisy image)
Verify that power is being supplied to the transmitter and receiver.
Verify that the HDBaseT cable is properly terminated following EIA568B
standard.
Verify that the output resolution of the source and display is supported by
this extender.
If transmitting 3D or 4K, verify that the HDMI cables used are 3D or 4K rated.
Verify that all source and HDBaseT connections are not loose and are
functioning properly
No or Intermittent 3rd party Device Control
Verify that the IR, RS-232, and Ethernet cables are properly terminated
following the section.Wiring and Connections
Verify that RS-232 modes are properly selected for the desired operation.
Refer to for details.RS-232 Mode Settings
Troubleshooting Tips:
WyreStorm recommends using a cable tester or connecting the cable to
other devices to verify functionality.

Specyfikacje produktu

Marka: WyreStorm
Kategoria: przedłużacz AV
Model: EX-100-H2-PRO
Kolor produktu: Czarny
Wysokość produktu: 21 mm
Szerokość produktu: 195 mm
Głębokość produktu: 94.8 mm
Waga produktu: 360 g
Certyfikat środowiskowy (zrównoważonego rozwoju): RoHS
Technologia łączności: Przewodowa
Prąd: 3 A
Ilość portów USB: 10
Obsługiwany typ USB: USB Type-A, USB Type-B
Gniazdko wyjścia DC: Tak
Maksymalne zużycie mocy: 8.88 W
Napięcie pracy: 12 V
Zakres temperatur (eksploatacja): 0 - 45 °C
Zakres wilgotności względnej: 10 - 90 %
Przewodowa sieć LAN: Tak
Zakres temperatur (przechowywanie): -20 - 70 °C
Dopuszczalna wilgotność względna: 10 - 90 %
Model: Nadajnik i odbiornik AV
Adapter zewnętrznego zasilania: Tak
Maks. rozdzielczość: 3840 x 2160 px
Maksymalna częstotliwość odświeżania: 60 Hz
Wersja HDMI: 2.0
HDCP: Tak
Szerokość pasma: 10.2 Gbit/s
Możliwości montowania w stelażu: Tak
Wersja USB: 2.0
HDMI in: 1
Zdalne wejście IR: 2
Wersja HDCP: 2.2
Wejśćie 3,5 mm: Tak
Wejścia RJ-45: 1
Wyjścia RJ-45: 1
Porty wejściowe RS-232: 2
Wyjście 3,5mm: Tak
Port HDBaseT: Tak
Rozszerzone dane identyfikacyjne wyświetlacza (EDID): Tak
Certyfikat HDBaseT: Tak
Przejście HDCP: Tak
