Instrukcja obsługi Sussex BLWBMS210RH
Przeczytaj poniżej 📖 instrukcję obsługi w języku polskim dla Sussex BLWBMS210RH (2 stron) w kategorii Dźwig. Ta instrukcja była pomocna dla 7 osób i została oceniona przez 2 użytkowników na średnio 4.5 gwiazdek
Strona 1/2
3.0
Licence No. 0124
In ac cord anc e with AS/NZS 6400
Sussex Taps Pty Ltd
WATER RATING
www.waterrat ing.gov.au
The mo re
stars the mo re
water efcient
Set
Screw
Handle
Body
1
NOGGING
80 mm
Backplate
Finished
Wall Surface
Apply Silicone
Masterfit
Apply Silicone
Stud Face
2
NOGGING
Backplate
Masterfit
Stud Face
Finished
Wall Surface
Set
Screw
O-Rings
Bath Outlet
Product code
Suba
BLWBMS160RH Lever wall basin mixer outlet system 160mm
BLWBMS210RH Lever wall basin mixer outlet system 210mm
Lever wall basin mixer outlet system Dress kit

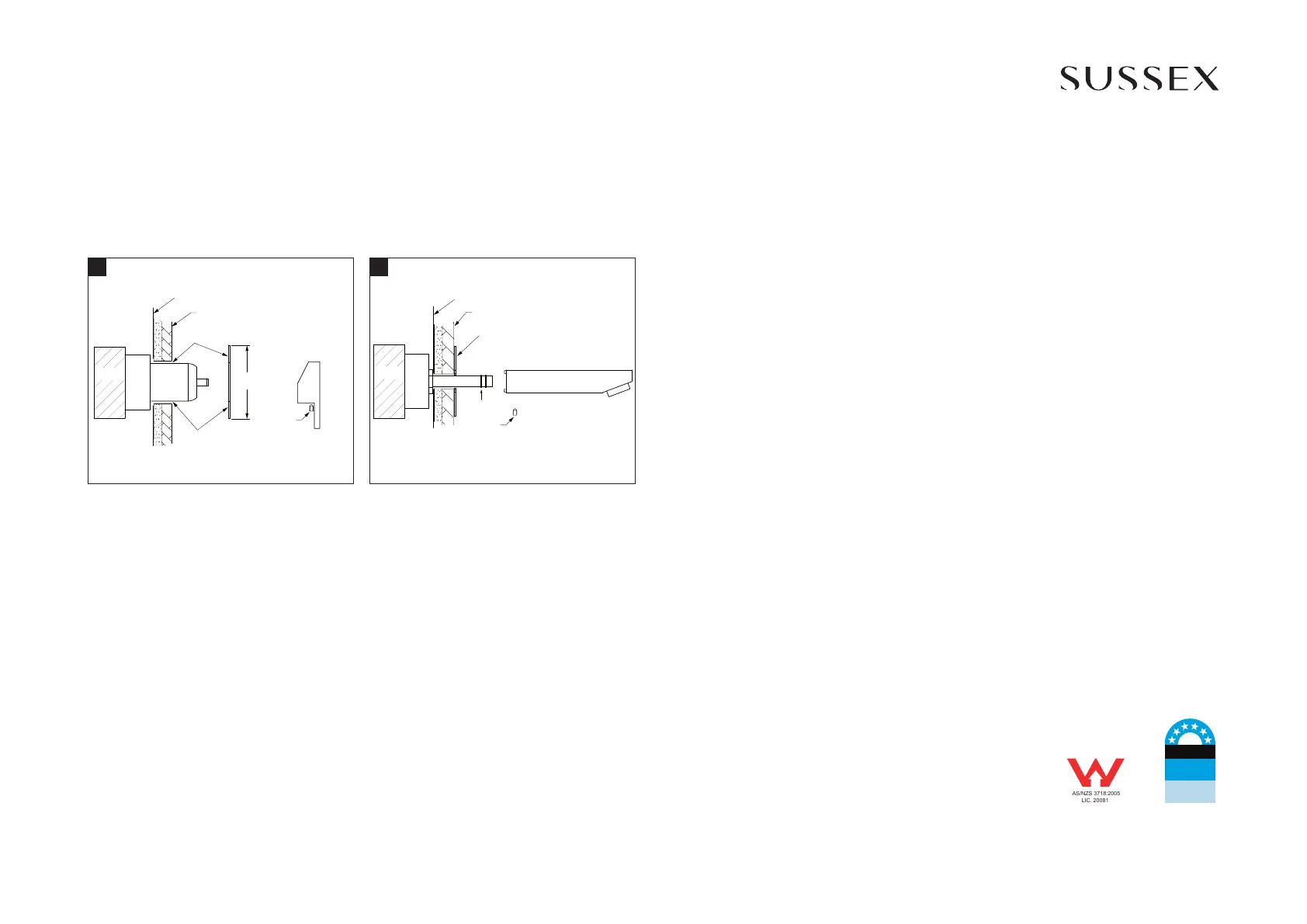

2. Outlet fit off
1. Mixer dress kit
- Remove Mixer protective cover.
- Using silicon, seal the wall surface around the Mixer.
- Apply a small amount of silicon to the rear of the backplate prior to mounting onto the wall.
- Fit the handle body onto the Mixer Cartridge Lever ensuring the Handle is fully engaged.
- Secure the Handle Body by tightening the Set screw using the Allen Key provided (tighten well).
- Apply a small amount of grease to the O-rings of the fitting.
- Carefully fit the Outlet ensuring the locating pins align with the Backplate.
- Secure the Outlet by tightening the Set Screw.
To complete the installation, operate the Mixer(s) checking the flow of both hot and cold water from Outlet.
Check all fittings and fixtures for water leaks.
sussextaps.com.au
Tapware is to be installed by a Licensed Plumber in accordance with AS/NZS 3500:2003
Recommended working water pressure 300-500 kpa. Maximum water temperature is 65 deg.c
Copyright © Sussex Taps.
1
Vi ew f ro m ab ov e
NOGGING
Back Plate
Handle
Body
30-32mm
Wall Covering
Max. 30mm
90
70
Mixer
Stud face
Min.
8mm
This
side
UP
Outlet
Outlet
Fitting
Outlet
Mixer
Pipe Connections
Hot
Cold
Product code
Suba
BLWBMS160RH Lever wall basin mixer outlet system 160mm
BLWBMS210RH Lever wall basin mixer outlet system 210mm

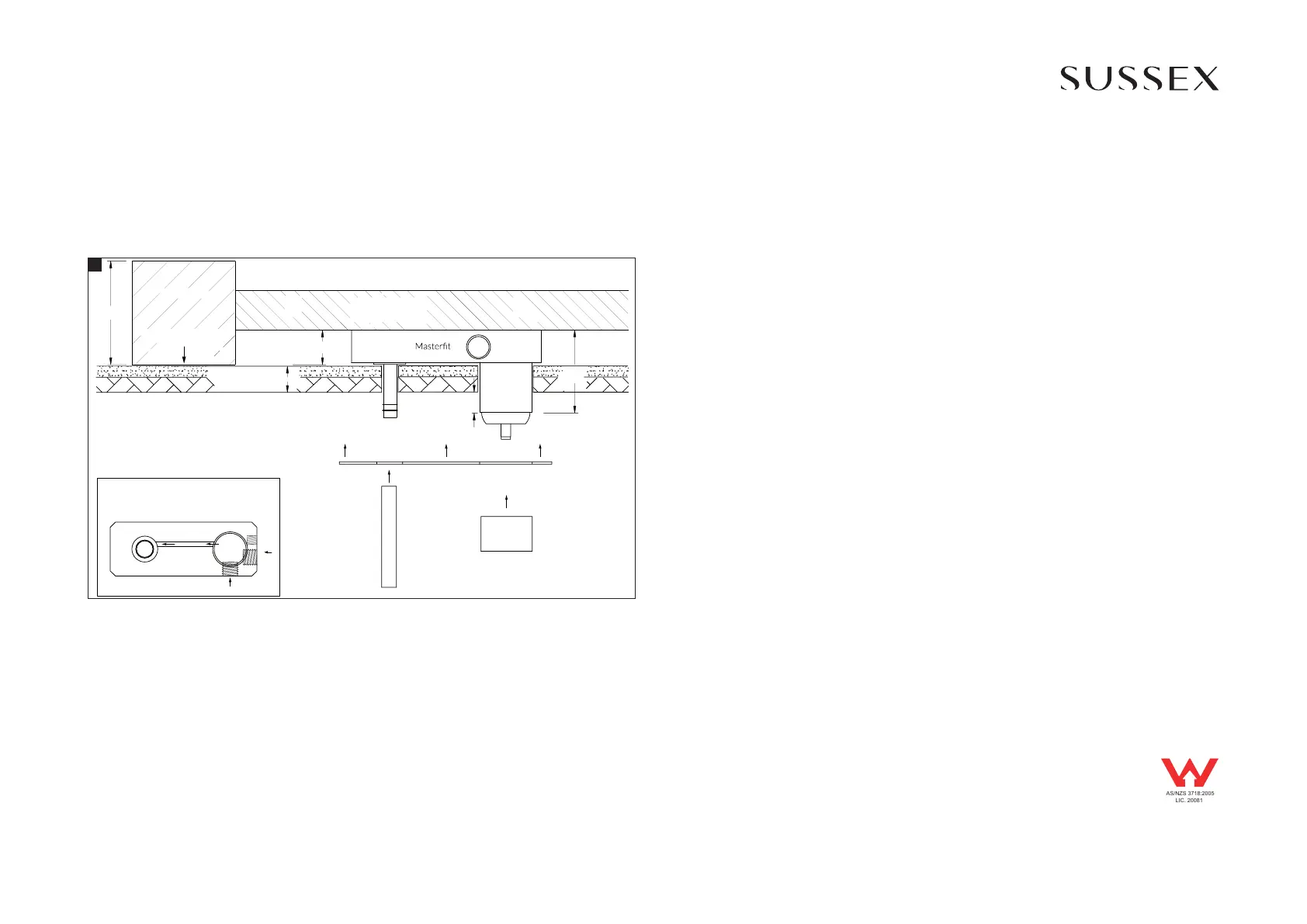

Lever wall basin mixer outlet system Rough in
Plumber note
Pipe connections
Rough in plumbing
- Prior to installing, calculate the finished wall thickness, maximum is 30mm thick, contact manufacturer for
further options.
- If Wall thickness is greater than 30mm, contact manufacturer for further options.
- Prepare a Nogging to be fixed parallel between the Wall Studs.
- The Nogging must be fitted to enable the base of the Masterfit to be 30-32mm back from the Stud Face.
- The Masterfit will be marked “This side Up” to indicate orientation.
- Using the screws (x4) provided, mount the Masterfit to the Nogging. Ensure the Masterfit is level and square.
- On-site high pressure line testing must be conducted with the Mixer in the closed position. (STATIC TEST ONLY)
- Under no circumstances is the Mixer to be opened when exceeding the maximum stated water pressure.
- At the completion of the testing, do not relieve any high pressure by opening the Mixer.
- Exposing the internals of the Mixer Cartridge to higher than specified water pressures, will void the
manufacturer’s warranty.
- The Hot and Cold ports are marked on the Masterfit. (Mixers have individual Hot/Cold inlet ports).
- Flush all water feed lines. All lines must be free from any dirt and debris before connecting to the Masterfit.
- Connect Hot and Cold lines to the corresponding 1/2” BSP ports of the Masterfit. (see Drawing)
- Do not remove any factory fitted pressure plugs or Fixings.
- Once all water connections are made, check Hot/Cold water flow by operating the Mixer Cartridge.
- Check all fittings and fixtures for leaks.
- Leave the Mixer(s) in the closed position and replace the Mixer protective cover.
- Store the Dress Kit in a safe place until required (see Dress Finishing Guide)
sussextaps.com.au
Tapware is to be installed by a Licensed Plumber in accordance with AS/NZS 3500:2003
Recommended working water pressure 300-500 kpa. Maximum water temperature is 65 deg.c
Copyright © Sussex Taps.
