1

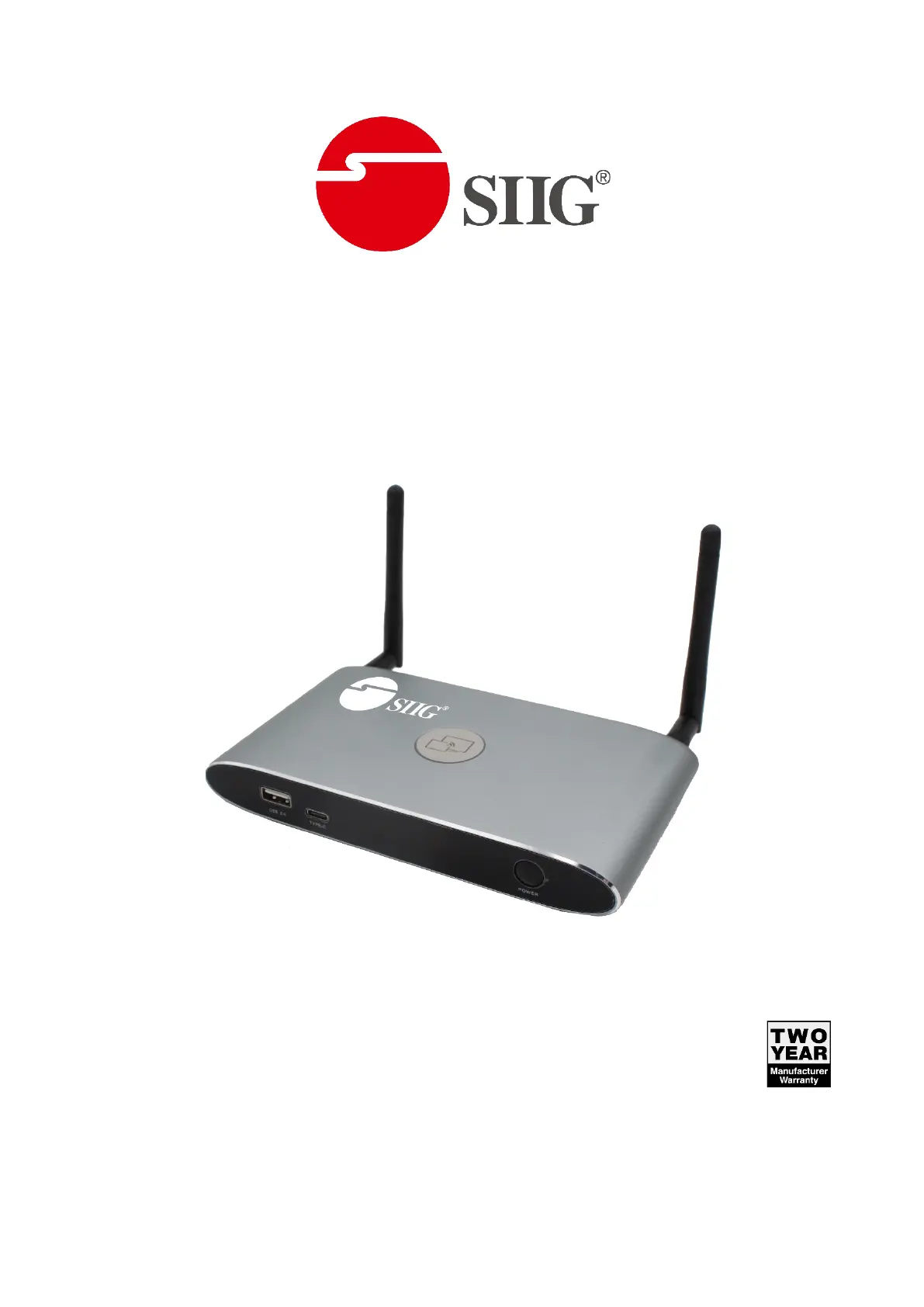

Dual View Wireless Media Presentation
User Manual
P/N - -CE H25Y11 S1
P/N CE- - H26611 S1
04 1272A 6711- -P/N CE H2 -S1
2
Features
Support dual viewer on one display.
Support VESA PC resolution input, detecting.auto-
Can transmit PC’s mirror/extended desktop or Macbook’s mirror desktop.
Can transmit smart devices’ mirror, photos, videos, music etc.
Support USB plug in auto pairing for Wireless Media Presentation-
Support “Airplay” for apple device.
Package contents ( ) CE- -H25Y11 S1
Dual View Wireless Media Presentation (WMS)
USB A/C Dongle
Power adapter DC 12V/1.5A
Antenna x2
Quick Start Guide
Package contents ( ) CE- -H26611 S1
Dual View Wireless Media Presentation (WMS)
Wireless Media Presentation Transmitter- HDMI Dongle x2
USB A/C Dongle
Power adapter DC 12V/1.5A
Antenna x2
Quick Start Guide
Package contents ( ) CE- -H26711 S1
Wireless Media Presentation Transmitter- HDMI Dongle
Quick Start Guide
3
Specification:
WMS Specification
HDMI output
1x HDMI 19-pin female connector
Video Output Resolution 3840x2160@60Hz,3840x2160@30Hz,
1920x1080@60Hz,
Format Compliance
HDMI1.4/HDMI2.0
Video Capacity:
1080P @ <60Hz Airplay for IOS devices
1080P @ <60Hz "WirelessMedia" app
1080P @ <30Hz for all show- me button
HDCP HDCP1.4/HDCP2.2
Analog Audio Output 1x 3.5mm PC audio female connectors
LAN port RJ45 x2 100Mbps x1：1000Mbps x1，
USB interface USB3.0 x1, USB 2.0 x1，Type- C x1
Audio Input AirPlay, Windows/MAC, WMH
Control connectors
3.5mm Phoenix terminal/ RS232 interface
Number of window simultaneous
on screen
≥4+14
（
4 main windows+14 thumbnail
windows）
Number of simultaneous
connections ≥16
Data rate in wireless Up to 1200Mbps
Video Playback Frame Rate - 20 60 FPS
Latency ＜ ，100ms Min 20ms
Wireless transmission protocol WIFI IEEE 802.11 a/g/n/ac
Frequency band 2.4 GHz & 5 GHz
WIFI Antenna
MIMO 2x2
Dimension (W x D x H)
165mm x 95mm x 24.5mm
（
including antenna
：
165mm x 125mm x 24.5 mm）
Weight 0.4lbs 200g（ ）
Temperature - (-4° ~ +140° F 20° ~ +60° C)
Humidity (Storage / Operating)
20% 90%-
（
non-condensing
）
DC Power
12V / POE
POE standard IEEE802.3af
Power Consumption
10W(MAX)
