Strona 1/8

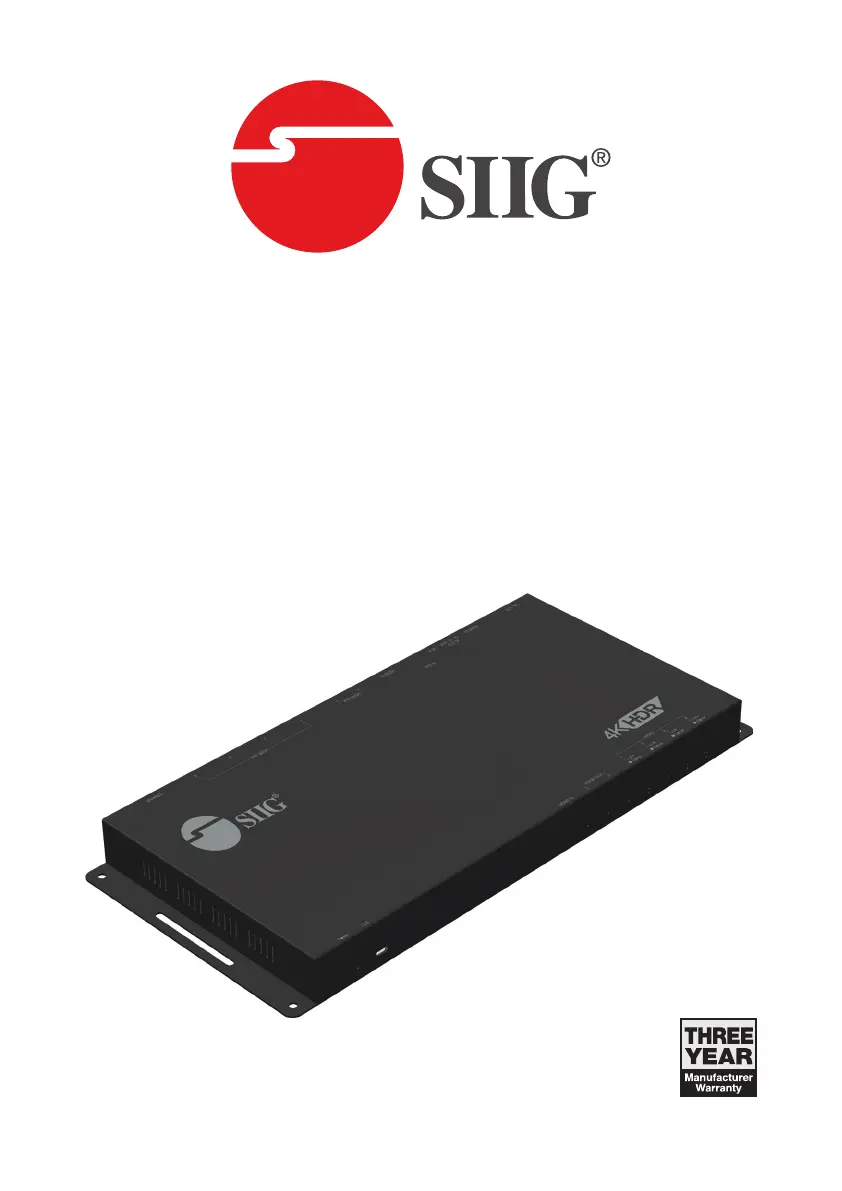

HDMI 2.0 4K HDR 1x4 Splitter
HDBaseT Extender
with Auto-scaling
User Manual
04-1192A P/N: CE-H24N11-S1
2
Safety and Notice
The device has been tested for conformance to safety regulations and
requirements, and has been certified for international use. However,
like all electronic equipment, the device should be used with care.
Please read and follow the safety instructions to protect yourself from
possible injury and to minimize the risk of damage to the unit.
• Follow all instructions and warnings marked on this unit.
• Do not attempt to service this unit yourself, except where
explained in this manual.
• Provide proper ventilation and air circulation and do not use near water.
• Keep objects that might damage the device and assure that the
placement of this unit is on a stable surface.
• Use only the power adapter and power cords and connection
cables designed for this unit.
• Do not use liquid or aerosol cleaners to clean this unit.
• Always unplug the power to the device before cleaning.
Package contents
• HDMI 2.0 4K HDR 1x4 Splitter HDBaseT Extender
• Receiver x3
• Power adapter DC 12V / 7.5A
• IR blaster p2-x1 / IR Receiver p2-x3
• Terminal block x4
• Mounting kit
• User Manual
3
Features
• HDMI 2.0a compliant
• Supports 4K2K@60 4:4:4 8bits
• Supports HDR which is 4K2K@60 4:2:0 10bits
• Extends HDMI signal up to 198ft from the HDMI source at Full HD
1080p 36-bit, 114ft at 4K2K@60 444 (4K-HDR Technology)
• Supports PoC(Power over Cable)
• Supports two HDMI loopout
• HDCP bypass
• Supports EDID management
• Supports resolution downscaling from 4K2K to 1080P
• Bi-directional IR pass-though
• Pure unaltered uncompressed 7.1ch digital HDMI over Cat.5/5e/6
• Supports 7.1 channel digital audio
• Supports full frequency IR signal from 30KHz to 56KHz
• RS-232 Pass-Thru: Up to 115,200bps
Thank You
for your purchase!
1. NOT supports
(1) Resolution downscaling from 4K2K@60 4:2:2 to 1080P
(2) Frame rate conversion
(3) 4K2K@60 4:2:2 to 4K2K@60 4:2:0
2. Splitter can bypass 4K HDR data content, but can NOT process it and make
HDR content 100% t into 1080p
3. The length depends on the characteristics and quality of the cables. Higher
resolutions and longer transmission distances require low skew cables
(<25ns/100m) for best performance. Unshielded CAT6 with metal RJ45 connectors
is recommended.
