XTS5.5
Wall-mounted Touchscreen
Installation Manual
Overview
The Russound XTS5.5 is an elegant, in-wall
touchscreen with a 5.5” FHD display that is
designed to be a primary user interface for
.metsys oidua dnuossuR elbitapmoc a gnillortnoc
By running the MyRussound™ app, the XTS5.5
allows full control of any zone in a Russound
system and provides metadata feedback from
compatible sources, including song titles, artist
name, album titles, and album art.
Russound
1 Forbes Rd., Newmarket, NH 03857, USA
tel 603.659.5170
www.russound.com
e-mail: tech@russound.com
Limited Warranty
The Russound is guaranteed for one (1) XTS5.5
year from the date of purchase against all defects
in materials and workmanship. During this period
Russound will replace any defective parts and
correct any defect in workmanship without charge
for either parts or labor. For this warranty to apply,
the unit must be installed and used according to its
written instructions. If service is necessary, it must
be performed by Russound. Russound assumes no
responsibility for defects resulting from abuse or
servicing performed by an agency or person not
to or destruction of components due to improper use
voids the warranty. In these cases the repair will be
made at the owner’s expense. Accidental damage and
shipping damage are not considered defects under the
terms of the warranty. To return for repairs, the unit
must be shipped to Russound at the owner’s expense,
along with a Return Authorization number and
documentation explaining the nature of the service
required. Any product returned without prior written
permission will be returned to sender. Russound
sells products only through authorized Dealers and
Distributors to ensure that customers obtain proper
support and service. Any Russound product purchased
from an unauthorized dealer or other source, including
retailers, mail order sellers and online sellers will not be
honored or serviced under existing Russound warranty
policy. Any sale of products by an unauthorized source
or other manner not authorized by Russound shall void
the warranty on the applicable product.
Wall Single gang
electrical box
CAT-5
Mounting bracket Screws
Step 3
Attach the PoE Ethernet cable from the electrical
box to the rear of the XTS5.5 touchscreen. No
other wiring connection is needed.
Note: The XTS5.5 uses a dynamic DHCP network
address. A DHCP-reservation may be used on a
compatible router when a more permanent IP
address is required.
Step 4
Attach the XTS5.5 touchscr n to e mounting ee th
bracket by inserting the prongs of the mounting
plate into e matching slots on e rear of the th th
XTS5.5. M e sure that the XTS5.5 is oriented as ak
shown in the diagram below. There are two captive
mounting screws. Use a Phillips screwdriver to
tighten the screw at both the top and bottom of
the XTS5.5 to secure it i ace.n pl

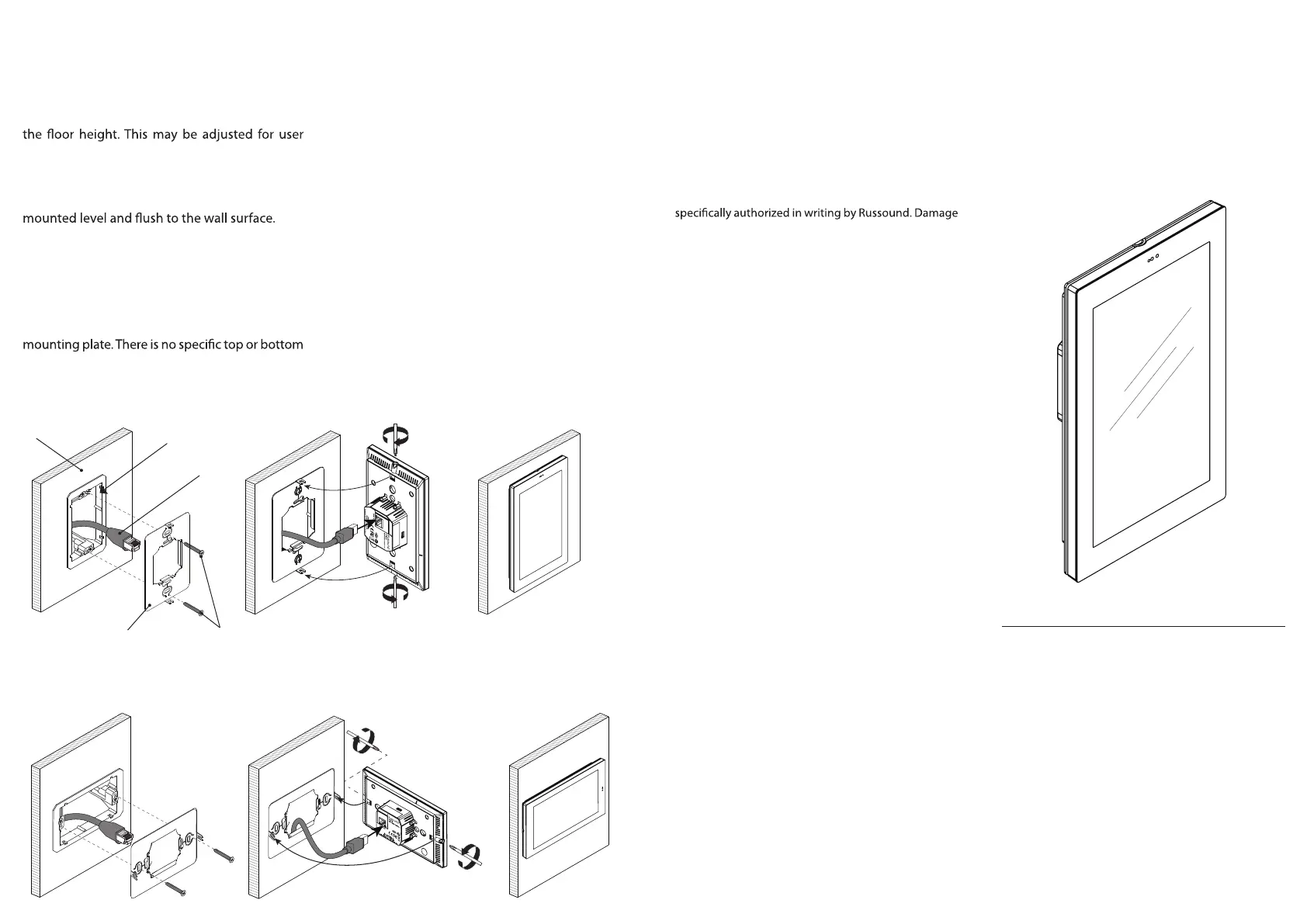

Installation Instructions
Step 1
Install the electrical box or P-Ring. The typical
recommended mounting height for a wall-
mounted touchscreen is for the center of the
electrical box/p-ring to be at 59” (150cm) from
preference, but the 59” height is recommended
to accommodate all users.
Note: The electrical box/P-Ring must be a
1-gang piece. Make sure that the box/P-ring is
Step 2
Attach the XTS5.5 mounting plate to the electrical
box or P-ring using the supplied screws. The plate
should be unted so that the two prongs at mo
either end are facing into the room. These prongs
will be used for attaching the XTS5.5. to the
orienta on. The plate may be mounted in either ti
orienta on as long as th prongs ac utwards.ti e f e o
01.22. 21, Rev. 1.0
Landscape Orientation - The XTS5.5 may also be installed in a landscape orientation, set the
“ ” setting in the Settings Menu to “ ”Screen Orientation Landscape
Russound
©2021 Russound/FMP, Inc. All rights reserved.
All trademarks are the property of their respective
owners. Specications are subject to change without
notice.
FHD
1
2
3
High resolution HD Display
”5.5 ecnamrofrep hgih a sesuXTS5.5 ehT
IPS LCD display with a maximum resolution of
1920 x 1080. The XTS5.5 display also features
projected capacitive technology, the latest
touch technology used in smartphones and
tablets, enhancing the XTS5.5 with a quicker
response time, high durability, and excellent
optical performance.
Control Always Available
By placing the powerful MyRussound™ app in
a permanent location on a wall, the XTS5.5
gives you full control and easy access to your
Russound system, eliminating the need for your
phone or tablet to simply change the volume or
switch favorites. The XTS5.5 gives you not only
system from one interface but grants full access
and control to your Russound system at any time
by placing the MyRussound App in a permanent
location.
One-touch access to Favorites
From the Now Playing screen, enjoy one-touch
access to your list of system favorites. As soon
as your favorite is selected, your Russound
audio system will automatically switch to the
appropriate source and begin playing your
selection.
Custom features available only on the
XTS5.5
While the XTS5.5 runs the MyRussound app, it
has been customized with additional features
that are needed for an in-wall touchscreen:
Selectable Screen Timeout Delay
The
XTS5.5
provides several options for turning
The options range from no timeout (display
is always active) to up to 10 minutes. There is
also an option called “Follow Zone Power” to
is useful for bedrooms when you would like the
XTS5.5
Clean Screen Mode
The XTS5.5 has a built-in cleaning mode
that allows you to clean the screen while the
touchscreen is active. Cleaning the screen
Display size: 5.5” (140mm)
FHDDisplay type:
Power requirements: PoE Power - 802.3af compatible
Single gang (US and EU) Mounting:
3.4” W x 5.8” H x 1.33” D Dimensions:
87.5 W x 148.5 x 33.7 mm
Weight: 3oz
Installation Requirements:
1-Gang Electrical Box or P-Ring – The XTS5.5 is
designed for mounting into a 1-gang plastic or
metal electrical box. The box must be mounted
from the wall surface. If using a P-ring with
such as the Arlington® LV1LP is recommended.
Wired Ethernet Connection - The XTS5.5
uses a wired Ethernet connection in order to
communicate with other Russound equipment.
The XTS5.5 must be on the same network as
your Russound controller. The XTS5.5 uses DHCP
for obtaining a network address.
The XTS5.5 works with both EIA/TIA 568A and
568B wiring
Phillips Screwdriver (#0)
Used to tighten the captive locking screws
Phillips Screwdriver (#2)
Used to attach the XTS5.5 Mounting
bracket to the Electrical Box/P-Ring
Tools needed
while it’s active can sometimes result in
unwanted button presses. The Clean Screen
mode eliminates this problem. Select EAN CL
SCREEN in the Settings Menu and all button
presses will be ignored until you press and
hold the button on the screen to exit cleaning
mode. Use a soft, slightly damp, lint-free cloth
to clean your XTS5.5. Avoid getting moisture
into openings. Don’t use window cleaners,
household cleaners, compressed air, aerosol
sprays, solvents, ammonia, abrasives, or any
cleaners containing hydrogen peroxide.
Easy updates
Unlike some competitors’ products that run
custom software making it challenging to keep
up-to-date, the XTS5.5 makes it easy to keep
your interface up-to-date with the latest version
of the MyRussound app by performing a simple
update from the admin settings menu.
Networking
The XTS5.5 is an IP-networked device. It
connects to any available Ethernet connection
.rellortnoC dnuossuR eht sa krowten emas eht no
The XTS5.5 uses DHCP to connect to the
network. If a more permanent IP address is
required, use a DHCP reservation for the XTS5.5
Convenient PoE Power
The XTS5.5 is fully PoE compatible and
is designed to connect to an 802.3af (PoE
compatible) network router or switch located
on the same network as the Russound devices
to be controlled. By using PoE (Power over
Ethernet), the XTS5.5 only requires a single
CAT5 connection for both data transmission and
power.
Admin settings
To enter the Admin Settings menu, press and
hold the Settings icon from the Now Playing
Screen for 5 seconds until you see the Admin
Settings menu appear.
IP Address – This setting allows you to adjust
XTS5.5
Russound controller on your network. This IP
address is normally discovered automatically
(using DHCP) and does not need to be adjusted.
Russound recommends not changing this
setting unless instructed to do so by Russound
Technical Support. If a permanent IP address for
the XTS5.5 is desired, set a DHCP reservation
XTS5.5
Enable Developer Options – This setting is for
Clear cache and data – This setting is used to
.XTS5.5 eht no ppa dnuossuRyM eht ”hserfer“
All user preferences will be cleared, and the
app will restart automatically. User preferences
include display timeout settings, screen
brightness, etc. Using “Clear cache and data”
your Russound controller such as room names,
source names, favorites, or account settings
like usernames or passwords.
Ethernet port
USB port (factory use only)
Reset button
2
3
1

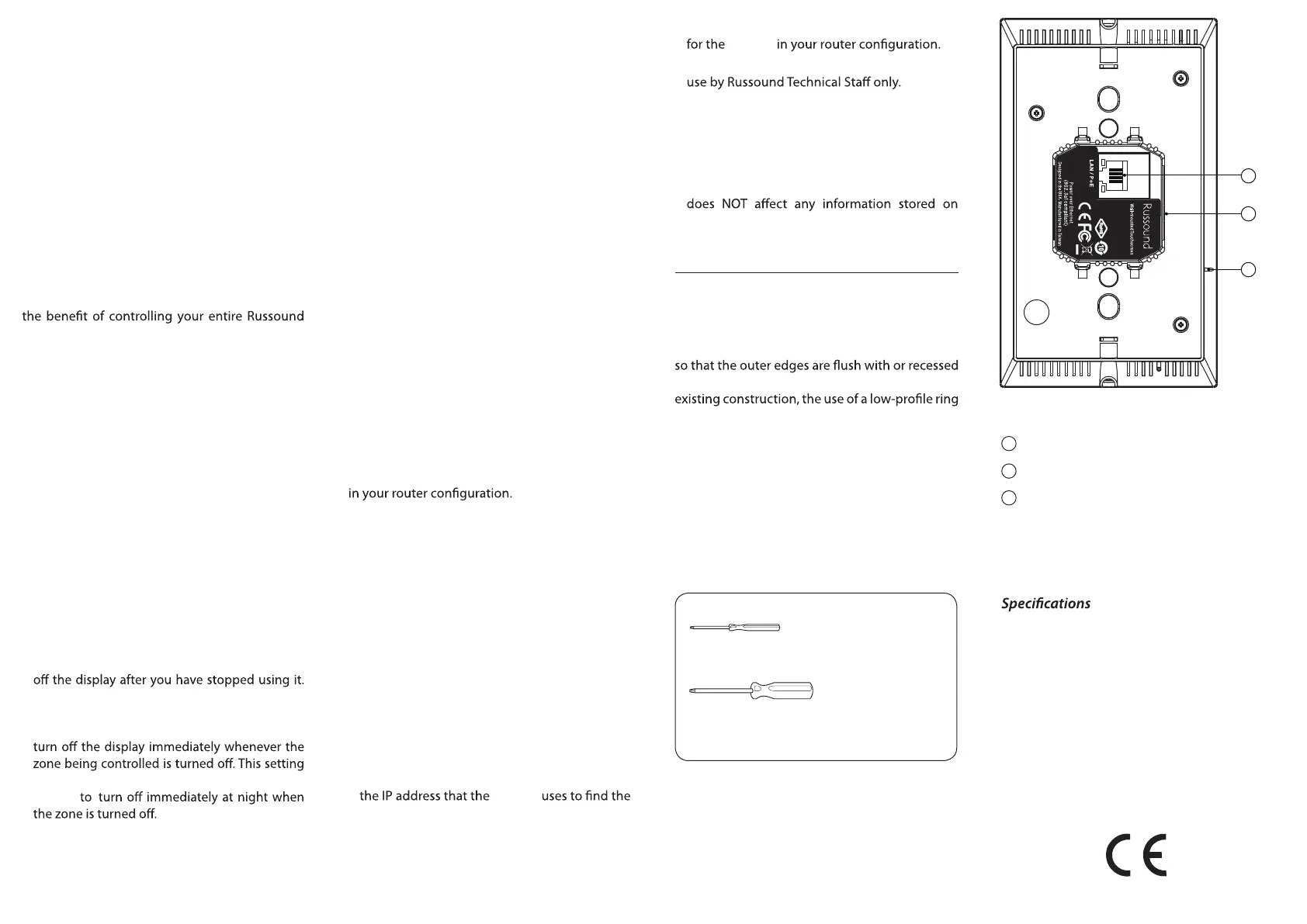

Back Panel
XTS5.5
