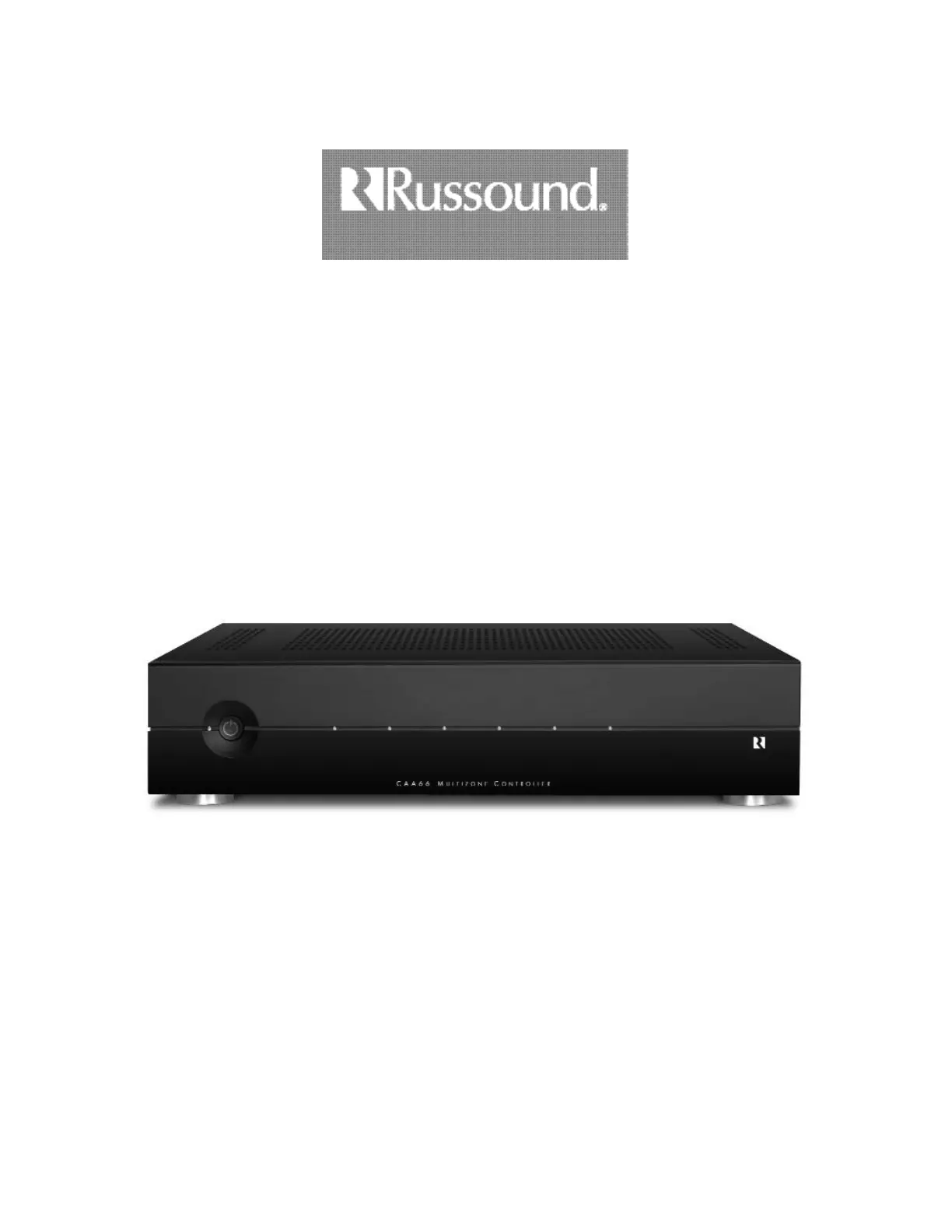

CAA66

Multisource Multiroom

Audio Controller/Amplifier

Installation Manual

WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK,

DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE.

CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT

REMOVE COVER. NO USER - SERVICEABLE PARTS INSIDE.

REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

The lightning flash with arrowhead symbol, within an equilateral

triangle, is intended to alert the user to the presence of uninsulated

“dangerous voltage” within the product’s enclosure that may be of

sufficient magnitude to constitute a risk of electric shock to persons.

The exclamation point within an equilateral triangle is intended to

alert the user to the presence of important operating and mainte-

nance (servicing) instructions in the literature accompanying the

appliance.

If you have any questions please call Russound Inc. at

1-800-638-8055 or 603-659-5170.

Safety Instructions:

1. Read Instructions - All the safety and operating instructions should be

read before the appliance is operated.

2. Retain Instructions - The safety and operating instructions should be

retained for future reference.

3. Heed Warnings - All warnings on the appliance in the operating instruc-

tions should be adhered to.

4. Follow Instructions - All operating and user instructions should be fol-

lowed.

5. Water and Moisture - The appliance should not be used near water; for

example, near a bathtub, washbowl, kitchen sink, laundry tub, in a wet

basement, or near a swimming pool.

6. Carts and Stands - The appliance should be

used only with a cart or stand that is recom-

mended by the manufacturer. An appliance

and cart combination should be moved with

care. Quick stops, excessive force and

uneven surfaces may cause the appliance

and cart combination to overturn.

7. Wall or Ceiling Mounting - The appliance should be mounted to a wall

or ceiling only as recommended by the manufacturer.

8. Ventilation - The appliance should be situated so that its location or

position does not interfere with its proper ventilation. For example, the

appliance should not be situated on a bed, sofa, rug, or similar surface

that may block the ventilation openings, or placed in a built-in installa-

tion, such as a bookcase or cabinet that may impede the flow of air

through the ventilation openings.

9. Heat - The appliance should be situated away from heat sources such

as radiators, heat registers, stoves, or other appliances (including

amplifiers) that produce heat.

10.Power Sources - The appliance should be connected to a power supply

only of the type described in the operating instructions or as marked on

the appliance.

11.Grounding or Polarization - Precaution should be taken so that the

grounding or polarization means of an appliance is not defeated.

12.Power Cord Protection - Power supply cords should be routed so that

they are not likely to be walked on or pinched by items placed upon or

against them, paying particular attention to cords at plugs, receptacles,

and the point where they exit from the appliance.

13.Cleaning - The appliance should be cleaned only as recommended by

the manufacturer.

14.Non-use Periods - The power cord of the appliance should be

unplugged from the outlet when left unused for a long period of time.

15.Object and Liquid Entry - Care should be taken so that objects do not

fall and liquids are not spilled into the enclosure through the openings.

16.Damage Requiring Service - The appliance should be serviced by quali-

fied service personnel when:

A. The power supply cord or the plug has been damaged; or

B. Objects have fallen, liquid has been spilled into the appliance; or

C. The appliance has been exposed to rain; or

D.The appliance does not appear to operate normally; or

E. The appliance has been dropped or the enclosure is damaged.

17.Servicing - The user should not attempt to service the appliance beyond

that described in the operating instructions. All other servicing should

be referred to qualified service personnel.

Precautions:

1. Power – WARNING: BEFORE TURNING ON THE POWER FOR THE

FIRST TIME, READ THE FOLLOWING SECTION CAREFULLY.

2. Do Not Touch The Unit With Wet Hands – Do not handle the unit or

power cord when your hands are wet or damp. If water or any other liq-

uid enters the cabinet, unplug the unit from power immediately and take

it to a qualified service person for inspection.

3. Location of Unit – Place the unit in a well-ventilated location. Take spe-

cial care to provide plenty of ventilation on all sides of the unit especial-

ly when it is placed in an audio rack. If ventilation is blocked, the unit

may overheat and malfunction. Do not expose the unit to direct sun

light or heating units as the unit internal components temperature may

rise and shorten the life of the components. Avoid damp and dusty

places.

4. Care – From time to time you should wipe off the front and side panels

of the cabinet with a soft cloth. Do not use rough material, thinners,

alcohol or other chemical solvents or cloths since this may damage the

finish or remove the panel lettering.

IMPORTANT SAFEGUARDS

USER SECTION

Product Introduction ............................................................................................................5

Component Guide

CAA66 Controller ................................................................................................................6

KP6 Keypad........................................................................................................................7

KPL Keypad .......................................................................................................................8

KPSC Keypad......................................................................................................................9

Numeric Entry................................................................................................................9

Prefix and Suffix Commands ...........................................................................................9

SRC1 Remote Control........................................................................................................10

Operation

KP6 User Options Mode ....................................................................................................11

KPL User Options Mode.....................................................................................................12

INSTALLER SECTION

Getting Started

Unpacking ........................................................................................................................13

System Components .........................................................................................................13

Tools Needed....................................................................................................................13

System Installation Considerations......................................................................................13

Connection Tips ................................................................................................................13

Wiring Instructions

Keypad Wiring...................................................................................................................14

Speaker Wiring .................................................................................................................14

Component Guide

CAA66 Controller Front Panel Removal ...............................................................................15

CAA66 Controller Rear Panel .............................................................................................16

KP6 Keypad Update Port ...................................................................................................17

KP6 Keypad Rear Panel ....................................................................................................18

Keypad Installation

KP6 Keypad Installation .....................................................................................................18

Making Connections

Keypad Port Connections...................................................................................................19

Source Audio Input Connections.........................................................................................20

Source IR Connections ......................................................................................................20

RNET Source Audio Connections........................................................................................21

TABLE OF CONTENTS
