USER INSTRUCTIONS
including exploded view & part list

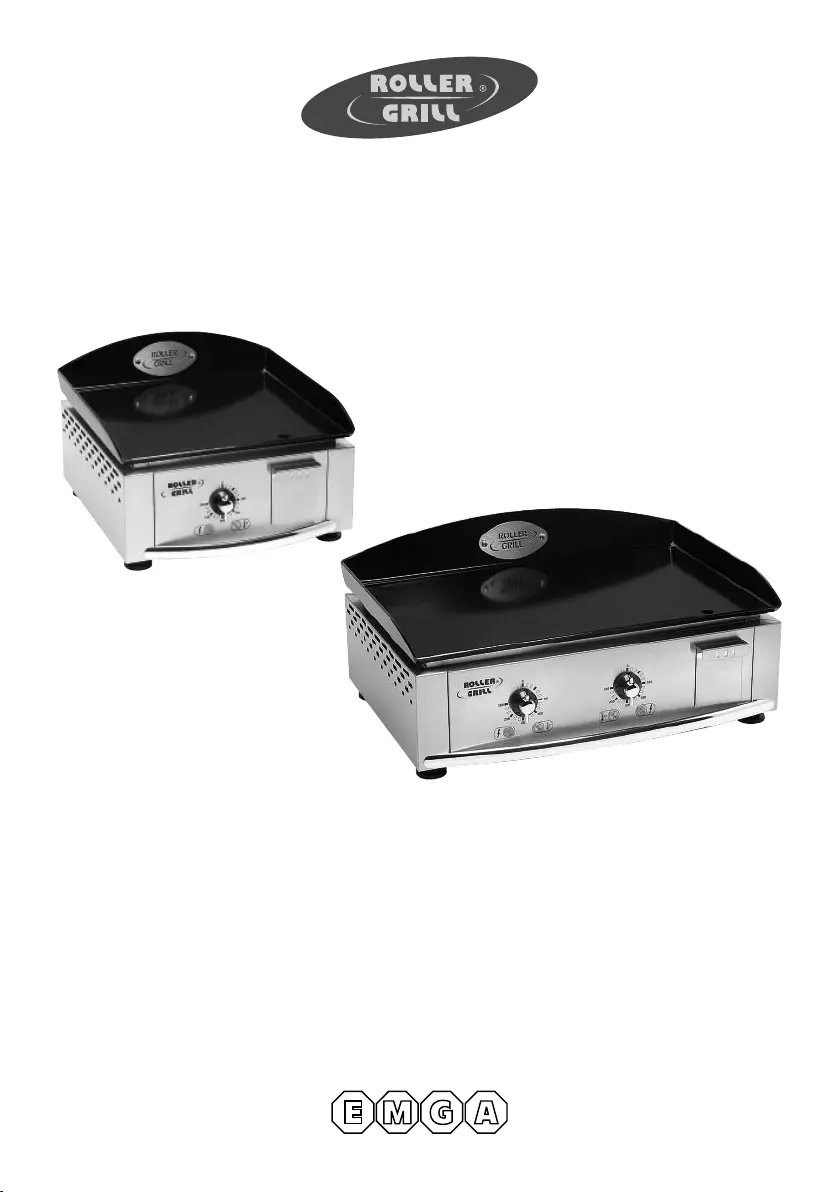

FRY-TOPS ELECTRIC
(*304.140 - *304.160)
You should read these user instructions carefully before using the appliance
4
5
6
1 2 3
Refer to detailed exploded view of PL 400 E and PL 600 E at the end of the docu-
ment.
3. CONFORMITY OF USE
Use the appliance to grill and quickly sear meat, sausages, fish, shellfish, vegeta-
bles, onions as well as for fried eggs or even an omelette.
4. USAGE INSTRUCTIONS
This plancha is an enamelled steel solid cooking plate. The plate’s smooth surface
provides direct heat transfer to the food being cooked, without heat loss at the centre
as in the periphery thanks to incoloy resistances (1 for PL 400 E and 2 for PL 600 E)
that cover the entire cooking surface.
To switch on and heat the plate, just turn the control knob of the thermostat (No.3 in
the photo) to the desired position. Your plancha is ready when the thermostat indica-
tor light (No. 2 in the photo) is off.
While cooking, the temperature can be regulated using the control knob of the ther-
mostat (No. 3 in the photo) to avoid over-cooking. The orange light indicates the
heating periods.
Power-on light Outlet for juices and fats
Thermostat light Juice collector tray
Thermostat Utensil holder with anodised curved
handle
1
2
3
4
5
6
2/14
304140-160 en ma 2012-06
Meat is cooked at a temperature ranging between 250 and 300°C.
Your appliance is equipped with a tray (No. 5 in the photo) that is fully removable to
drain juice and fats. It must be cleared regularly. It is recommended to pour a little water
in the tray when you start cooking to facilitate maintenance and to avoid the solidifica-
tion of fats at the bottom of the tray at the end of the meal.
Never use the appliance without the drip tray (No. 5 in the photo).
5. FUNCTIONING / HANDLING
a) Installation/Assembly:
- Carefully unpack the plancha from the cover and remove from its cardboard box.
- Place the plancha on a flat and heat-resistant surface.
- Never place the appliance near a wall or a partition made of combustible materials
even if it is properly insulated.
- A distance of minimum 10 cm with the partition or the wall is required.
- Remove the “Food enamel” label and the red label on the plate as well as the pro-
tective film around the appliance without forgetting to remove the film that protects
the juice collector tray (No. 5 in the drawing). Use a solvent like acetone or other
solvents to remove these labels.
b) First use:
When you use this appliance for the first time, heat the plate outside for approx. 30 min
to remove any residual oil smoke from the manufacturing of the metal parts. This may
emit a slight smell for a few moments.
The appliance does not need to be kept switched on at full capacity: the tempera-
ture must be adapted to the products that are to be cooked to limit power con-
sumption.
First cleaning
Clean the appliance before its first use. (Refer to. 6 Cleaning)
Connecting the appliance
- Check that the voltage and frequency of the electrical network match the values
indicated on the rating plate.
- Always check that the power plug or cable is not damaged.
- Ensure that each control knob is properly set to 0.
- Unwind the power cable completely and connect it to a plug connected to the
earth.
- The appliance is connected.
Note: In case of connection of the appliance to a plug without a protection wire or di-
rectly to the electrical network, ensure that the appliance is connected by a qualified
person.
3/14
304140-160 en ma 2012-06
