Installation Guide RIGOL
1
RM-DM-3 Rack Mount Kit
This rack mount kit is designed to mount RIGOL DM3068/DM3058/DM3058E series digital
multimeter into a 19-inch cabinet that conforms to the Electronic Industries Association (EIA)
standard.

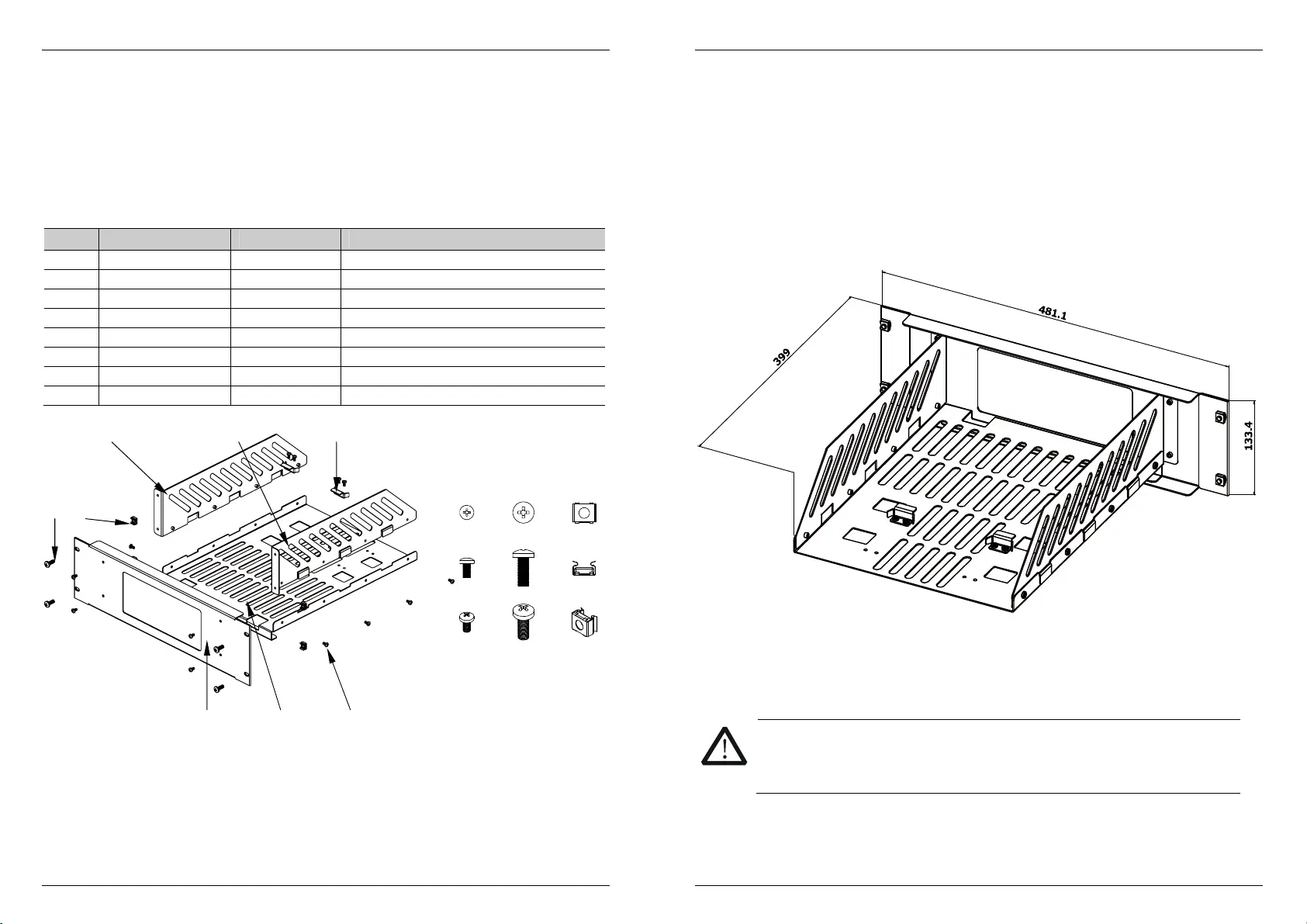

Kit Part Checklist
No. Name Qty. Description
1 Front Plate 1 --
2 Bottom Plate 1 --
3 Left Plate 1 --
4 Right Plate 1 --
5 Retaining Bracket 2 --
6 M4 Screw 16 M4x8 Phillips Pan Head Screw
7 M6 Screw 4 M6x16 Phillips Pan Head Screw
8 M6 Nut 4 M6 Square Lock Cage Nut
Installation Tool
The PH2 Philips screwdriver is recommended.
RIGOL
6 7 8
1 2 6
3 4 5
7 8
Installation Guide RIGOL
2
Space Requirements
To mount the instrument into the cabinet correctly, please ensure that the following
requirements are met.
The cabinet must be a standard 19-inch one.
The available height of the cabinet should be at least 3U (133.5mm).
The depth of the cabinet should be at least 400mm.
The dimensions of the rack are as shown below.
Unit: mm
Installation Procedures
CAUTION
Only authorized operators are allowed to perform the installation. Improper
installation might cause damage to the instrument or an installation failure.
Installation Guide RIGOL
3
1. Dissemble the handle
Rotate the handle upright. Then, pull it out from the sides of the instrument to remove
it.
2. Mount the left and right plates
Align the detents of the left and right plates with the openings on both sides of the
bottom plate respectively and insert them into the bottom plate, then fasten them
using eight M4 screws.
3. Place the instrument
Align the rear rubber pads with the specified slots on the bottom plate and ensure the
slots engage the rubber pads.
Installation Guide
RIGOL
4
4. Fasten the instrument
Put two retaining brackets onto the bottom plate and fasten the instrument with four
M4 screws.
5. Mount the front plate
Attach the front plate to the assembled rack, and fasten the front plate with four M4
screws.
6. Get encased in the cabinet
Mount the assembled instrument and rack into a standard 19-inch cabinet using four
M6 screws and four M6 square nuts.
-End-
