Strona 1/8

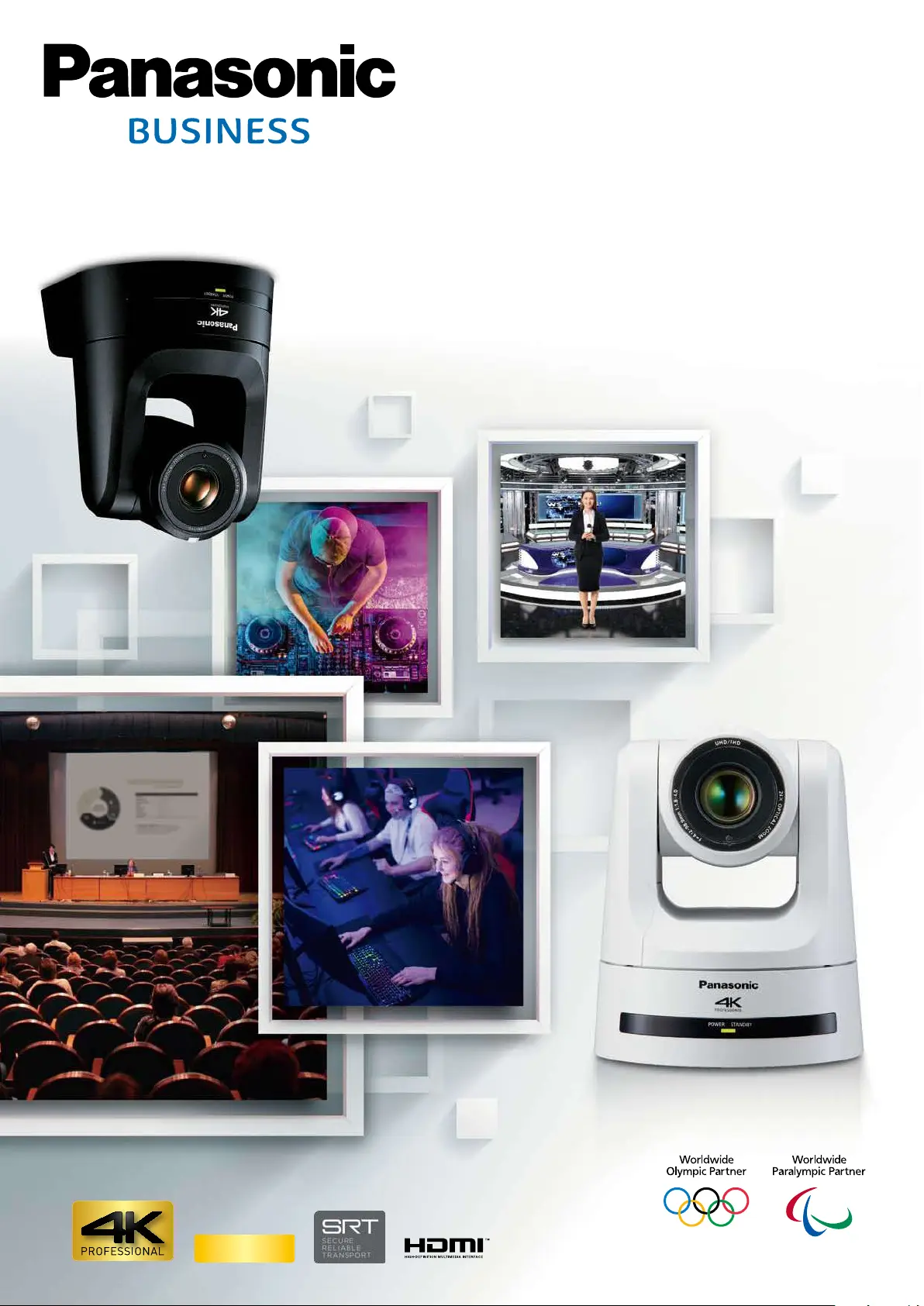

4K 60p/50p NDI
®
&SRT supported PTZ Camera with
a compact body and a wide range of features
12GSDI
AW-UE100W[White Model]
AW-UE100K[Black Model]
4K Integrated Camera
Ofcial camera supplier of the Olympic and Paralympic Games
This 4K Integrated Camera is compatible with various IP
transmission protocols, including NDI®*1, SRT*2, and
FreeD*3, achieving flexible video product ion with
high-quality 4K 60p/50p*4 video. 12G-SDI output is also
supported in addition to 3G-SDI and HDMI, allowing the
appropriate output to be selected for use in a wide range
of situations, from live streaming of events to studio
production.
High-quality 4K PTZ Camera compatible with a variety of video
transmission systems to support next-generation video production
1/2.5-type MOS sensor
The camera is equipped with a newly-developed 1/2.5-type
4K MOS sensor and achieves high-resolution video.
High-Quality 4K 60p/50p*4 Shooting
3840 x 2160 4K output and 59.94p/50p*4 shooting achieve
extremely smooth video, even in live sports and other
environments containing rapid movement.
Output format
2160/59.94p, 2160/50p, 2160/29.97p*5,
2160/25p*5, 2160/24p*5, 2160/23.98p*5
1080/59.94p, 1080/50p, 1080/29.97p*5,
1080/29.97PsF*6, 1080/25p*5, 1080/25PsF*6,
1080/23.98p*7, 1080/24p*5, 1080/23.98p*5,
1080/23.98PsF*6, 1080/59.94i, 1080/50i
720/59.94p, 720/50p
4K
HD
(3G-SDI output/HDMI output)
(12G-SDI output/HDMI output)
operability
A wide range of speeds are supported, from slow movement of 0.08° per
second to ultra-high speeds of 180° per second (Fast2 Mode).
responsiveness
Excellent responsiveness allows for accurate camera work, ensuring that the
target area is captured.
quietness
A noise level of NC30 or less is ensured, enabling shooting in situations such
as Concert hall and Studio where quietness is required.
Newly-developed high-precision Direct Drive motor
The inclusion of a Direct Drive motor for the rotating section
improves operability, responsiveness and quietness during
pan/tilt operations.
Direct Drive motor for
rotating section
New Direct Drive system
* Images are simulated.
AW-UE100W
4K Integrated Camera
[White Model]
AW-UE100K
4K Integrated Camera
[Black Model]
Electronic Image Stabilization (EIS) for roll direction
Electronic Image Stabilization (EIS) for the roll direction has
been added in addition to Optical Image Stabilization (OIS).
Stable images with reduced blurring can be shot even in
locations where special equipment such as a rail systems or
camera arms are used.
ptical Image
tabilization (OIS)
ectronic Image
tabilization (EIS)
r roll direction
New features
* Images are simulated.
Horizontal 74.1° Shooting Range
Shooting with 24x optical zoom and a 74.1°
horizontal angle of view
In addition to 24x optical zoom, the inclusion of i.Zoom enables
super resolution zooming of up to 36x in HD Mode and 28x in
4K mode while maintaining high resolution. The 1.4x and 2x
digital extender zoom also allows distant subjects to be
captured clearly, while the 74.1° horizontal angle of view
enables a wide area to be shot from a limited installation space.
* Images are simulated.
Camera Position
AW-HE130
(
Previousmodel
)
60.2°
AW-U E100
74.1°
Optical 24x Zoom Image Quality
2
Direct Broadcast via RTMP/RTMPS*9
RTMP/RTMPS*9 is supported to enable direct upload of video
to live-streaming services such as YouTube Live and Facebook
Live. This means a live stream can be broadcast directly from
the camera.
R T M P / R T M P S*9
AW-UE100W/K
4K Integrated Camera
*1: NDI® is a new live video production workflow support protocol for IP use developed
b y Ne w T e k in th e U n i t e d St a t e s . I n t h i s in s t a n c e , ND I® i s us e d t o in d i c a t e hi g h
bandwidth NDI®. * 2: SRT: Secure Reliable T ransport. *3: FreeD: Widely used protocol for
transmitting ca mera tra cking information, ma inly in virtual studio systems. *4: Actual
output format is UHD (3840 x 2160) 59.94p/50p. *5: Native output. * 6: Cannot be output
from HDMI. *7: It denotes “1080/23.98p over 59.94i”. * 8: Only ava ilable during full HD
op e r a t ion. AV-H LC10 0 doe s not su p por t 4K ou tpu t. * 9: RT MP : Rea l -T ime Messa g in g
Protocol. RT MPS: Rea l-Time Messaging Protocol Secure. *10: AR: Augmented Reality. VR:
Virtual Reality. * 11: Picture quality is lower with the cropping zoom.
High image quality and low latency with
high bandwidth NDI® support
High bandwidth NDI® and high efficiency low bandwidth
NDI®|HX, which encode and transmit high-quality video in
real time, are included. High bandwidth NDI® transmits 4K
video at a maximum of 250 Mbps and full HD video at a
maximum of 125 Mbps, enabling high-quality, low-latency
live video transmission.
System Conguration
NDI® Supported
Connection
Live Streaming
Service
AC Adaptor Smartphone
Tablet
PC
A L 1
イブ ダクションセンタ
ー
AV-HLC100*8
Live Production Center
AW-UE100W/K
4K Integrated Camera
Network Switch
Secure
Strong security is ensured by encrypting video data before transmission.
Reliable
The packet loss recovery function automatically detects and retransmits
packets lost during transmission, ensuring smooth, stable video transmission.
Transport
The flexible and adaptable buffer management system enables stable
video transmission even in network environments with unstable bit rates.
Long-distance video transmission over public lines is supported.
Video transmission over public lines
SRT*2 support for stable video
transmission over public lines
SRT, a next-generation video transmission protocol with
strong security suitable for unstable network environments,
is supported.
Internet
decoder
FreeD*3 Support for Construction of AR/VR*10 Systems
Integration with AR/VR systems is available via FreeD-
compliant command output. Camera tracking information
(pan/tilt/zoom/focus/iris) is output according to a
synchronizing signal to facilitate configuration of virtual
systems without an encoder.
Image of AR/VR system construction Composite image
AW-UE100W/K
4K Integrated Camera
SDI
FreeD (
IP/RS422
)AR/VR
system
* Images are simulated.
Cropping (+ Zoom) function
A cropped portion of the video can be created simultaneously
during output of the full 4K video. Up to three crop areas can
be specified, with easy operation using the AW-RP150GJ
Remote Camera Controller and the web browser screen. The
inclusion of cropping zoom also allows up to 5x zoom of
cropped images.
* Images are simulated.
FHD Cropping Cropping Zoom*
11
3
